datasources = [
        {  // datasource
           type: 'entity',// type of the datasource. Can be "function" or "entity"
           name: 'name', // name of the datasource (in case of "entity" usually Entity name)
           aliasName: 'aliasName', // name of the alias used to resolve this particular datasource Entity
           entityName: 'entityName', // name of the Entity used as datasource
           entityType: 'DEVICE', // datasource Entity type (for ex. "DEVICE", "ASSET", "TENANT", etc.)
           entityId: '943b8cd0-576a-11e7-824c-0b1cb331ec92', // entity identificator presented as string uuid.
           dataKeys: [ //  array of keys (Array<DataKey>) (attributes or timeseries) of the entity used to fetch data
               { // dataKey
                    name: 'name', // the name of the particular entity attribute/timeseries
                    type: 'timeseries', // type of the dataKey. Can be "timeseries", "attribute" or "function"
                    label: 'Sin', // label of the dataKey. Used as display value (for ex. in the widget legend section)
                    color: '#ffffff', // color of the key. Can be used by widget to set color of the key data (for ex. lines in line chart or segments in the pie chart).
                    funcBody: "", // only applicable for datasource with type "function" and "function" key type. Defines body of the function to generate simulated data.

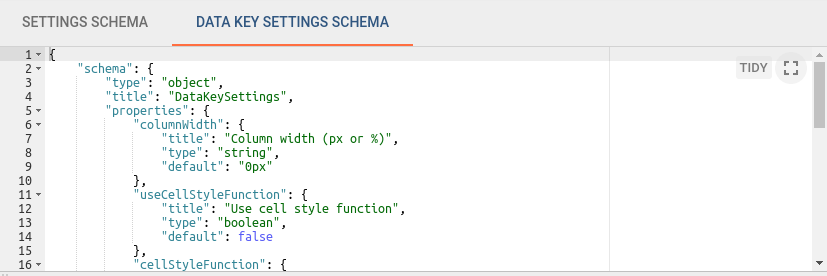

                    settings: {} // dataKey specific settings with structure according to the defined Data key settings json schema. See "Settings schema section".
               },
               //...
           ]
        },
        //...
    ]

    data = [
        {
            datasource: {}, // datasource object of this data. See datasource structure above.
            dataKey: {}, // dataKey for which the data is held. See dataKey structure above.
            data: [ // array of data points
                [   // data point
                    1498150092317, // unix timestamp of datapoint in milliseconds
                    1, // value, can be either string, numeric or boolean
                ],
                //...
            ]
        },
        //...
    ]

    alarmSource = {
         type: 'entity',// type of the alarm source. Can be "function" or "entity"
         name: 'name', // name of the alarm source (in case of "entity" usually Entity name)
         aliasName: 'aliasName', // name of the alias used to resolve this particular alarm source Entity
         entityName: 'entityName', // name of the Entity used as alarm source
         entityType: 'DEVICE', // alarm source Entity type (for ex. "DEVICE", "ASSET", "TENANT", etc.)
         entityId: '943b8cd0-576a-11e7-824c-0b1cb331ec92', // entity identificator presented as string uuid.
         dataKeys: [ // array of keys indicating alarm fields used to display alarms data
            { // dataKey
                 name: 'name', // the name of the particular alarm field
                 type: 'alarm', // type of the dataKey. Only "alarm" in this case.
                 label: 'Severity', // label of the dataKey. Used as display value (for ex. as a column title in the Alarms table)
                 color: '#ffffff', // color of the key. Can be used by widget to set color of the key data.
                 settings: {} // dataKey specific settings with structure according to the defined Data key settings json schema. See "Settings schema section".
            },
            //...
          ]
    }

    alarms = [
        { // alarm
            id: { // alarm id
                entityType: "ALARM",
                id: "943b8cd0-576a-11e7-824c-0b1cb331ec92"
            },
            createdTime: 1498150092317, // Alarm created time (unix timestamp)
            startTs: 1498150092316, // Alarm started time (unix timestamp)
            endTs: 1498563899065, // Alarm end time (unix timestamp)
            ackTs: 0, // Time of alarm aknowledgment (unix timestamp)
            clearTs: 0, // Time of alarm clear (unix timestamp)
            originator: { // Originator - id of entity produced this alarm
                entityType: "ASSET",
                id: "ceb16a30-4142-11e7-8b30-d5d66714ea5a"
            },
            originatorName: "Originator Name", // Name of originator entity
            type: "Temperature", // Type of the alarm
            severity: "CRITICAL", // Severity of the alarm ("CRITICAL", "MAJOR", "MINOR", "WARNING", "INDETERMINATE")
            status: "ACTIVE_UNACK", // Status of the alarm
                                    // ("ACTIVE_UNACK" - active unacknowledged,
                                    // "ACTIVE_ACK" - active acknowledged,
                                    // "CLEARED_UNACK" - cleared unacknowledged,
                                    // "CLEARED_ACK" - cleared acknowledged)
            details: {} // Alarm details object derived from alarm details json.
        }
    ]

    return {
        maxDatasources: -1, // Maximum allowed datasources for this widget, -1 - unlimited
        maxDataKeys: -1, //Maximum allowed data keys for this widget, -1 - unlimited
        dataKeysOptional: false //Whether this widget can be configured with datasources without data keys
    }

   return {
        'headerButton': { // Action source Id (unique action source identificator)
           name: 'Header button', // Display name of action source, used in widget settings ('Actions' tab).
           multiple: true // Boolean property indicating if this action source supports multiple action definitions (for ex. multiple buttons in one cell, or only one action can by assigned on table row click.)
        }
    };

    self.onInit = function() {
       self.ctx.$scope.data = self.ctx.defaultSubscription.data;
    }

    self.onDataUpdated = function() {
        self.ctx.detectChanges();
    }

self.onInit = function() {

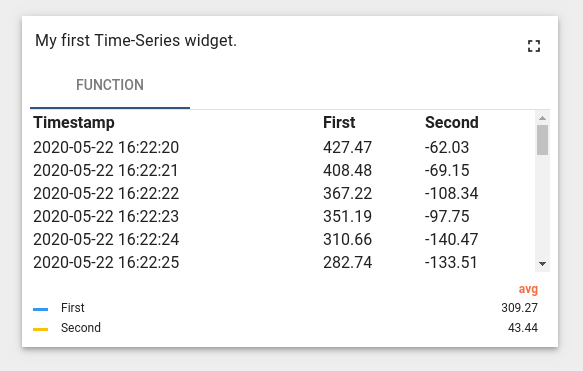

    self.ctx.widgetTitle = 'My first Time-Series widget';
    self.ctx.$scope.datasources = self.ctx.defaultSubscription.datasources;
    self.ctx.$scope.data = self.ctx.defaultSubscription.data;

    self.ctx.$scope.datasourceData = [];

    var currentDatasource = null;
    var currentDatasourceIndex = -1;

    for (var i=0;i<self.ctx.$scope.data.length;i++) {
        var dataKeyData = self.ctx.$scope.data[i];
        if (dataKeyData.datasource != currentDatasource) {
            currentDatasource = dataKeyData.datasource
            currentDatasourceIndex++;
            self.ctx.$scope.datasourceData[currentDatasourceIndex] = [];

        }
        self.ctx.$scope.datasourceData[currentDatasourceIndex].push(dataKeyData);
    }
    self.ctx.updateWidgetParams();

}

self.onDataUpdated = function() {
    self.ctx.detectChanges();
}

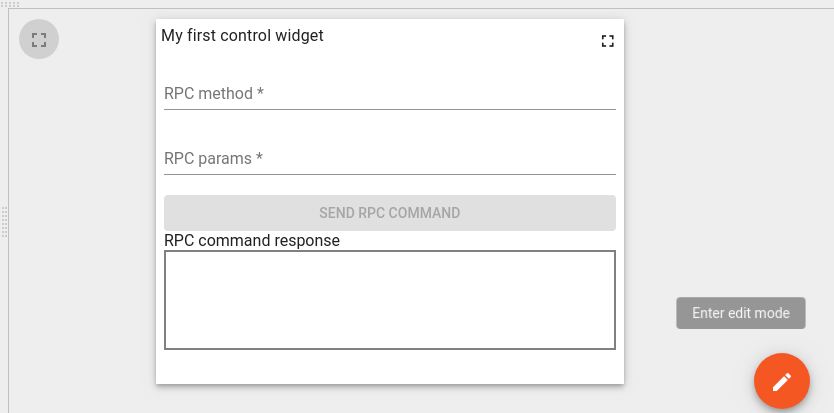

self.onInit = function() {

    self.ctx.$scope.sendCommand = function() {
        var rpcMethod = self.ctx.$scope.rpcMethod;
        var rpcParams = self.ctx.$scope.rpcParams;

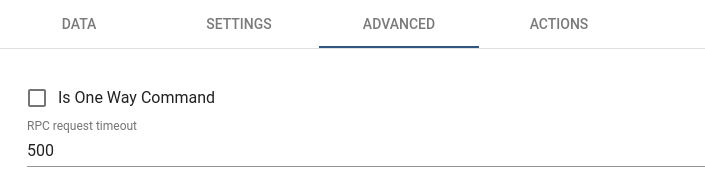

        var timeout = self.ctx.settings.requestTimeout;
        var oneWayElseTwoWay = self.ctx.settings.oneWayElseTwoWay ? true : false;

        var commandObservable;
        if (oneWayElseTwoWay) {
            commandObservable = self.ctx.controlApi.sendOneWayCommand(rpcMethod, rpcParams, timeout);
        } else {
            commandObservable = self.ctx.controlApi.sendTwoWayCommand(rpcMethod, rpcParams, timeout);
        }
        commandObservable.subscribe(
            function (response) {
                if (oneWayElseTwoWay) {

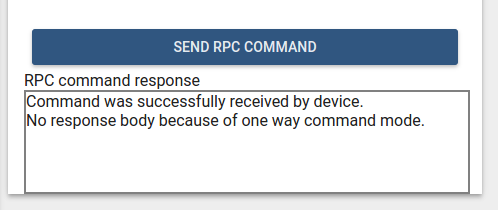

                    self.ctx.$scope.rpcCommandResponse = "Command was successfully received by device.<br> No response body because of one way command mode.";
                } else {

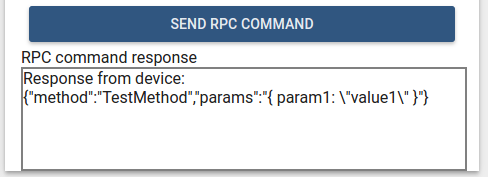

                    self.ctx.$scope.rpcCommandResponse = "Response from device:<br>";
                    self.ctx.$scope.rpcCommandResponse += JSON.stringify(response, undefined, 2);
                }
                self.ctx.detectChanges();
            },
            function (rejection) {

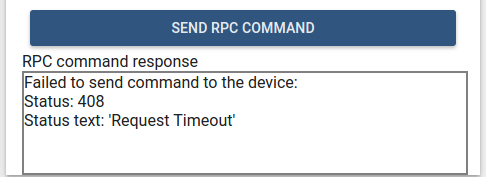

                self.ctx.$scope.rpcCommandResponse = "Failed to send command to the device:<br>"
                self.ctx.$scope.rpcCommandResponse += "Status: " + rejection.status + "<br>";
                self.ctx.$scope.rpcCommandResponse += "Status text: '" + rejection.statusText + "'";
                self.ctx.detectChanges();
            }

        );
    }

}

self.onInit = function() {
    self.ctx.$scope.alarmSource = self.ctx.defaultSubscription.alarmSource;

    var alarmSeverityColorFunctionBody = self.ctx.settings.alarmSeverityColorFunction;
    if (typeof alarmSeverityColorFunctionBody === 'undefined' || !alarmSeverityColorFunctionBody.length) {
        alarmSeverityColorFunctionBody = "if(severity == 'CRITICAL') {return 'red';} else if (severity == 'MAJOR') {return 'orange';} else return 'green';";
    }

    var alarmSeverityColorFunction = null;
    try {
        alarmSeverityColorFunction = new Function('severity', alarmSeverityColorFunctionBody);
    } catch (e) {
        alarmSeverityColorFunction = null;
    }

    self.ctx.$scope.getAlarmValue = function(alarm, dataKey) {
        var alarmKey = dataKey.name;
        if (alarmKey === 'originator') {
            alarmKey = 'originatorName';
        }
        var value = alarm[alarmKey];
        if (alarmKey === 'createdTime') {
            return self.ctx.date.transform(value, 'yyyy-MM-dd HH:mm:ss');
        } else {
            return value;
        }
    }

    self.ctx.$scope.getAlarmCellStyle = function(alarm, dataKey) {
        var alarmKey = dataKey.name;
        if (alarmKey === 'severity' && alarmSeverityColorFunction) {
            var severity = alarm[alarmKey];
            var color = alarmSeverityColorFunction(severity);
            return {
                color: color
            };
        }
        return {};
    }
}

self.onDataUpdated = function() {
    self.ctx.$scope.alarms = self.ctx.defaultSubscription.alarms;
    self.ctx.detectChanges();
}

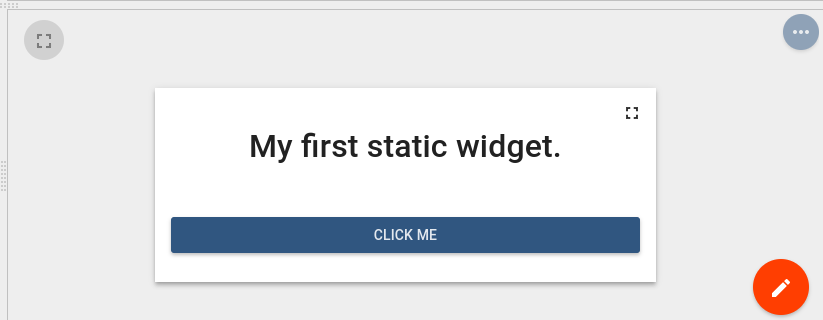

self.onInit = function() {

    self.ctx.$scope.showAlert = function() {
        var alertContent = self.ctx.settings.alertContent;
        if (!alertContent) {
            alertContent = "Content derived from alertContent property of widget settings.";
        }
        window.alert(alertContent);
    };

}

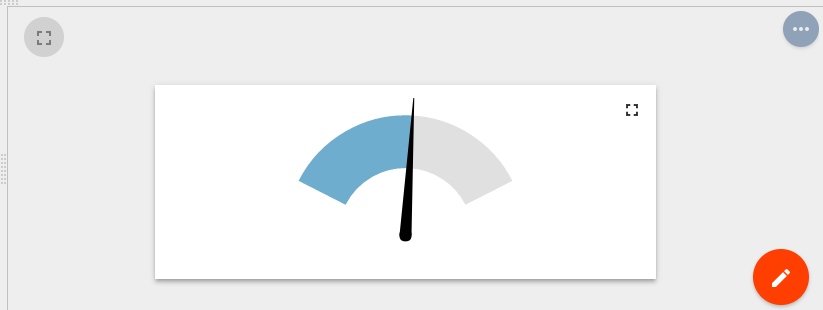

var canvasElement;
var gauge;

self.onInit = function() {
    canvasElement = $('#my-gauge', self.ctx.$container)[0];
    gauge = new Gauge(canvasElement);
    gauge.minValue = -1000;
    gauge.maxValue = 1000;
    gauge.animationSpeed = 16;
    self.onResize();
}

self.onResize = function() {
    canvasElement.width = self.ctx.width;
    canvasElement.height = self.ctx.height;
    gauge.update(true);
    gauge.render();
}

self.onDataUpdated = function() {
    var value = self.ctx.defaultSubscription.data[0].data[0][1];
    gauge.set(value);
}

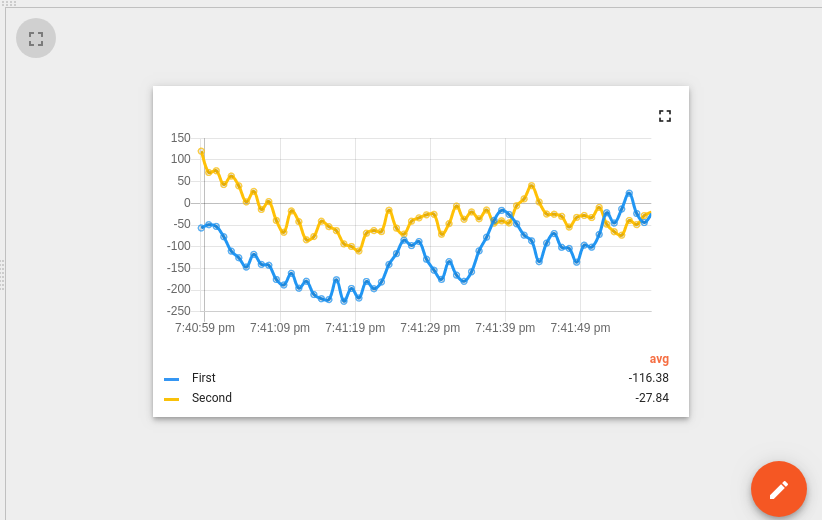

var myChart;

self.onInit = function() {

    var chartData = {
        datasets: []
    };

    for (var i=0; i < self.ctx.data.length; i++) {
        var dataKey = self.ctx.data[i].dataKey;
        var dataset = {
            label: dataKey.label,
            data: [],
            borderColor: dataKey.color,
            fill: false
        };
        chartData.datasets.push(dataset);
    }

    var options = {
        maintainAspectRatio: false,
        legend: {
            display: false
        },
        scales: {
        xAxes: [{
            type: 'time',
            ticks: {
                maxRotation: 0,
                autoSkipPadding: 30
            }
        }]
    }
    };

    var canvasElement = $('#myChart', self.ctx.$container)[0];
    var canvasCtx = canvasElement.getContext('2d');
    myChart = new Chart(canvasCtx, {
        type: 'line',
        data: chartData,
        options: options
    });
    self.onResize();
}

self.onResize = function() {
    myChart.resize();
}

self.onDataUpdated = function() {
    for (var i = 0; i < self.ctx.data.length; i++) {
        var datasourceData = self.ctx.data[i];
        var dataSet = datasourceData.data;
        myChart.data.datasets[i].data.length = 0;
        var data = myChart.data.datasets[i].data;
        for (var d = 0; d < dataSet.length; d++) {
            var tsValuePair = dataSet[d];
            var ts = tsValuePair[0];
            var value = tsValuePair[1];
            data.push({t: ts, y: value});
        }
    }
    myChart.options.scales.xAxes[0].ticks.min = self.ctx.timeWindow.minTime;
    myChart.options.scales.xAxes[0].ticks.max = self.ctx.timeWindow.maxTime;
    myChart.update();
}
