面板

视频教程

用户默认的IoT仪表板

从ThingsBoard 1.2开始,你现在可以通过两个简单步骤为用户定义默认的IoT仪表板:

步骤1.将IoT仪表板分配给客户

请参阅上面的嵌入式视频教程,以获取有关如何执行此操作的提示。

步骤2.打开客户用户详细信息

导航至 “Customers -> 你的客户 -> Customer Users” 然后使用屏幕右上角的“铅笔”按钮切换编辑模式。

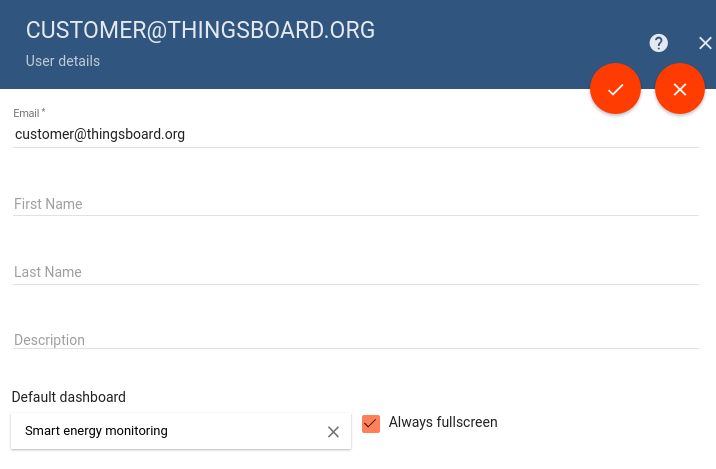

步骤3.选择IoT仪表板

从列表中选择IoT仪表板并应用更改。请注意,你还可以检查“始终全屏”模式,以防止用户导航到其他仪表板/屏幕。


IoT仪表板导入/导出

仪表板导出

你可以将仪表板导出为JSON格式,然后将其导入相同或另一个ThingsBoard实例。

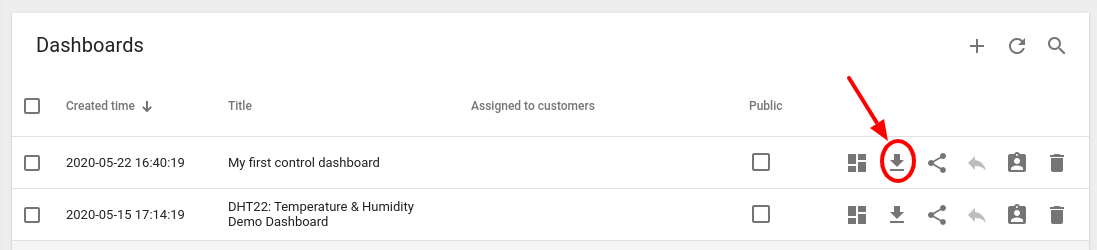

«««< HEAD 为了导出仪表盘,你应该导航到Dashboards页面,然后单击位于特定仪表盘卡上的导出按钮。 ======= In order to export dashboard, you should navigate to the Dashboards page and click on the export button located on the particular dashboard row.

master


仪表板导入

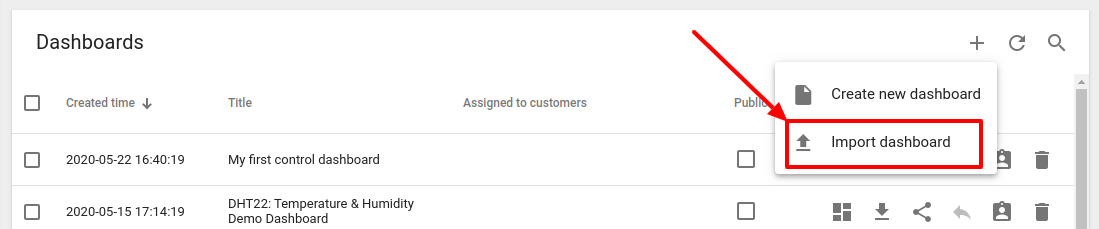

«««< HEAD 同样,要导入仪表板,你应该导航至Dashboards页面,然后单击屏幕右下角的大“ +”按钮,然后单击导入按钮。 ======= Similar, to import the dashboard you should navigate to the Dashboards page and click on the “+” button located in the top-right corner of the Dashboards table and then choose “Import dashboard” option.

master

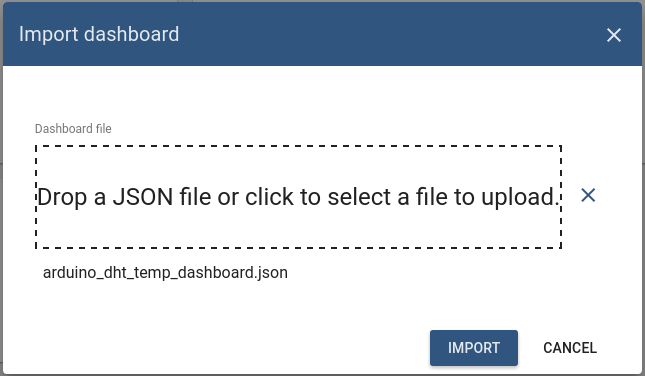

仪表板导入窗口应弹出,并提示你上传json文件。

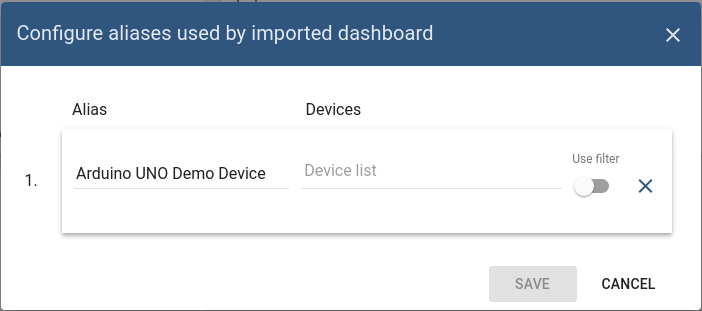

单击“导入”按钮后,你将需要指定设备别名。基本上这使你可以设置与仪表板别名对应的设备。
