TheThingsNetwork Integration

ThingsBoard PE Feature

Only ThingsBoard Professional Edition supports Platform Integrations feature.

See ThingsBoard PE Installation Options to install ThingsBoard PE.


TheThingsNetwork is LoRaWAN network designed for connecting your devices using LoRaWAN stack. After integrating TheThingsNetwork with the Thingsboard, you can connect, communicate, process and visualize data from devices in the Thingsboard IoT platform.

TheThingsNetwork setup

Register Application

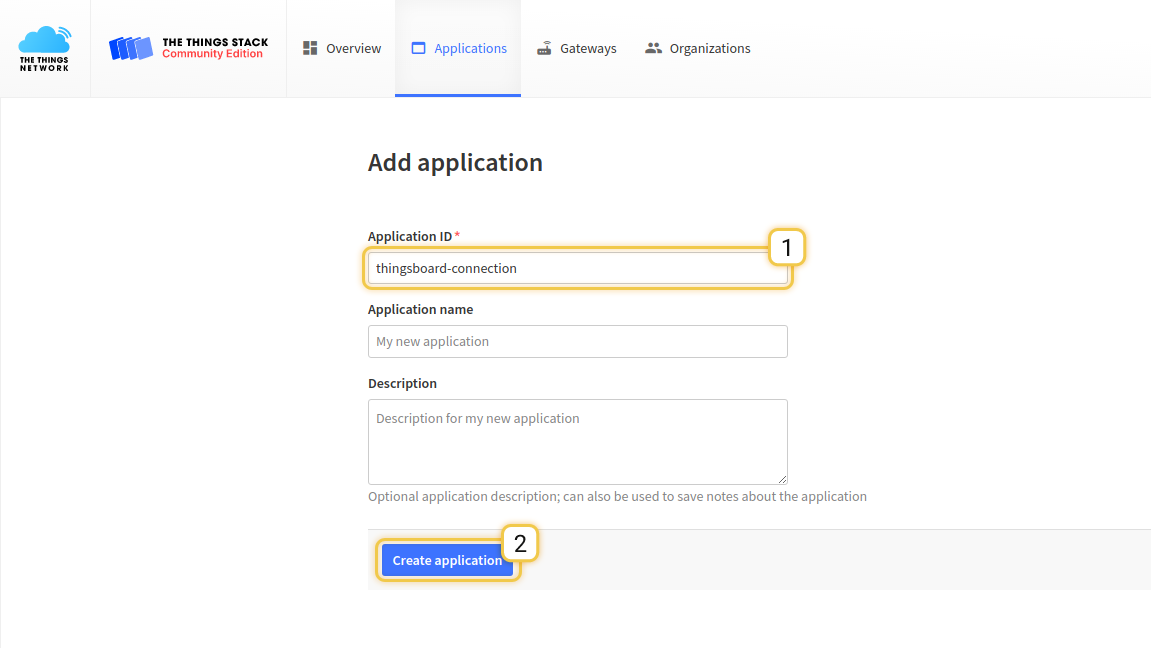

The first step is to create an application in TheThingsNetwork console. Go to console, open Applications section, press add application button and fill required fields.

  • Application ID - tb_applciation
  • Handler registration - ttn-handler-eu

Handler registration - used to identify region where application will be registered. In our example it will be eu region.


Payload Decoder

Our device submits data in binary format. We have 2 options where to decode this data:

  • TheThingsNetwork decoder - data will be decoded before entering the Thingsboard
  • Thingsboard converters - uplink/downlink converters will be used to decode data from binary format into JSON

In this tutorial, we will make an initial transformation into JSON with TTN decoder and then use Thingsboard converters for correct data processing. In real life scenario, it is up to you where to decode/encode data, because it is possible to do this on any side.

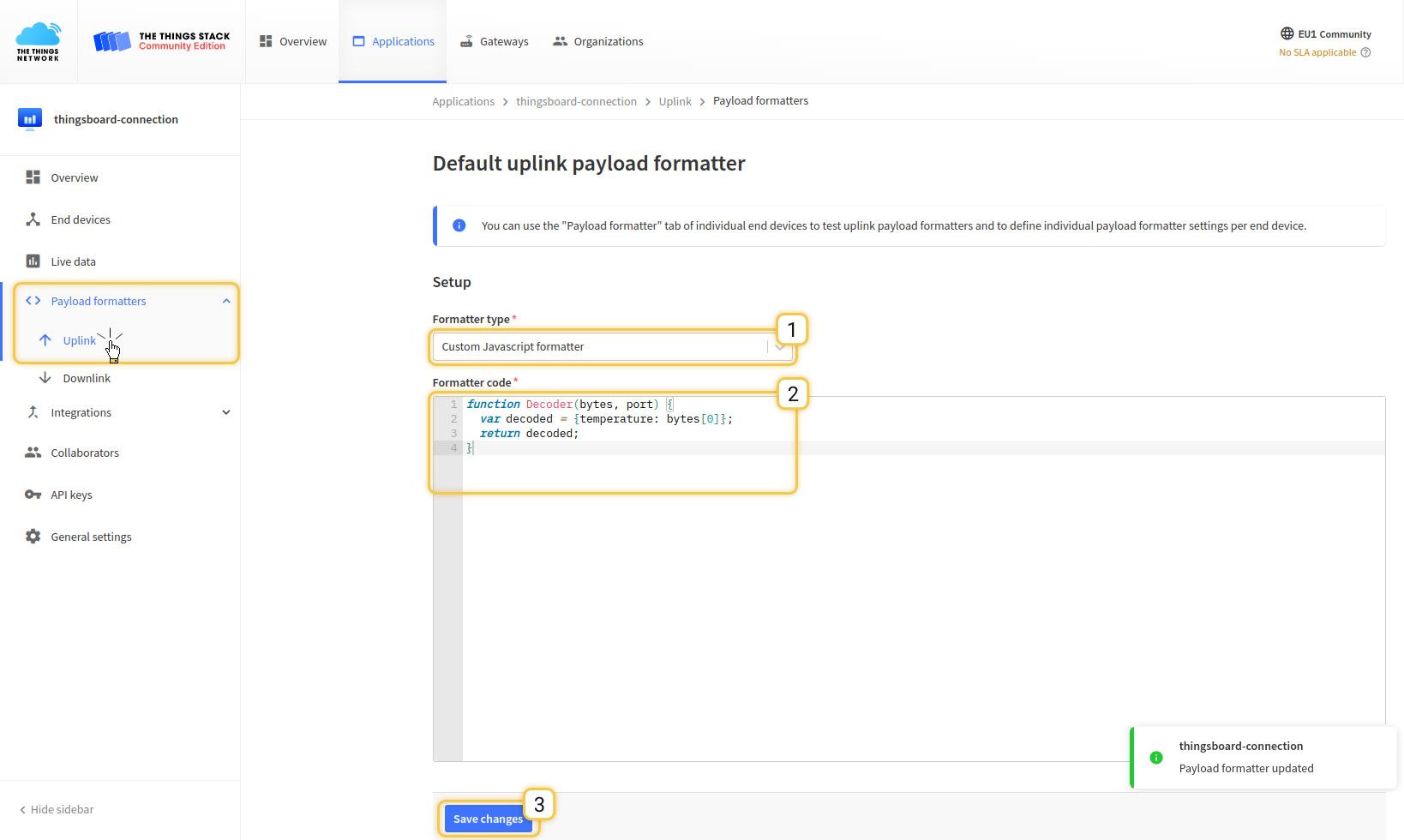

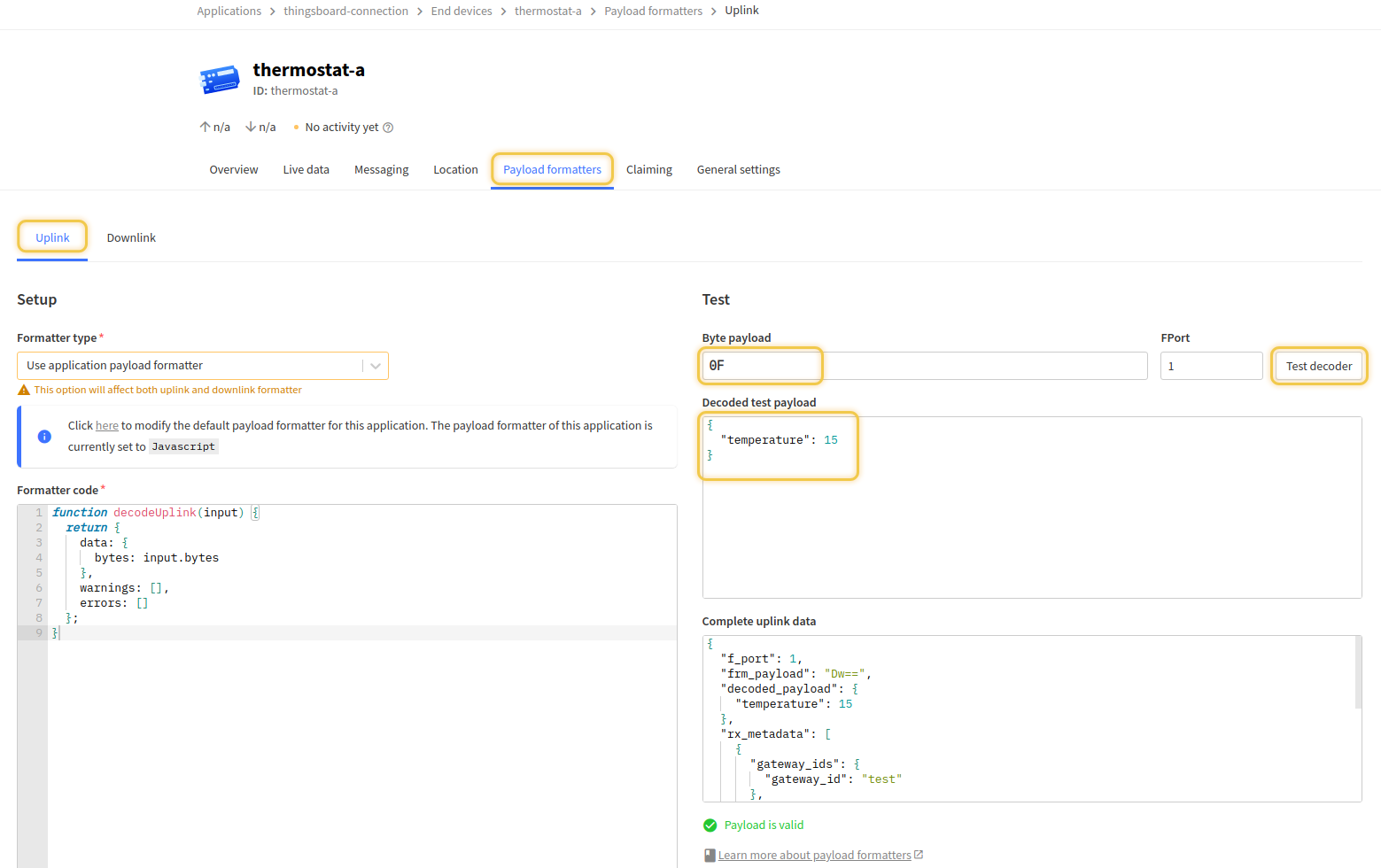

After application registered in TTN, go to payload_formats, select decoder function. We will take the first byte as a temperature value from a device and transform it into JSON.

Decode Function

function Decoder(bytes, port) {
  var decoded = {temperature: bytes[0]};
  return decoded;

Output json:

  "temperature": 15


Press Save payload function

Device Registration in TheThingsNetwork

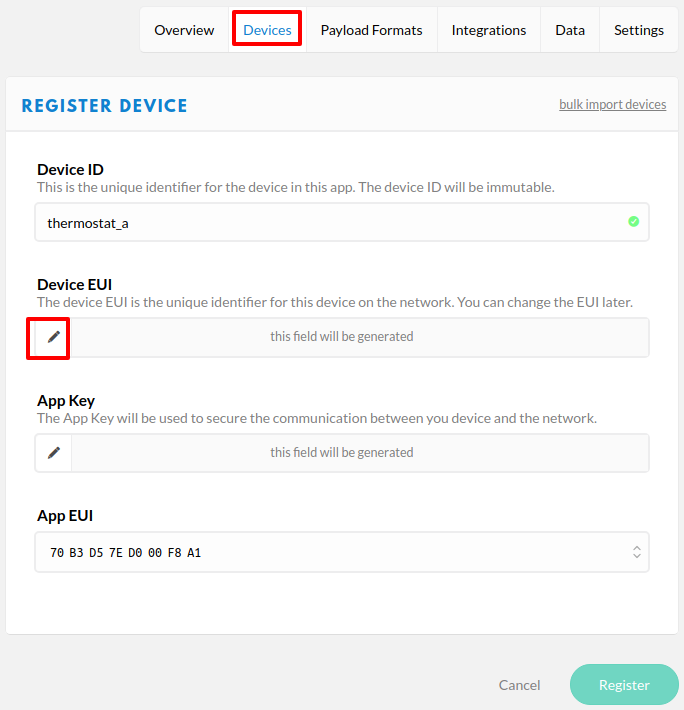

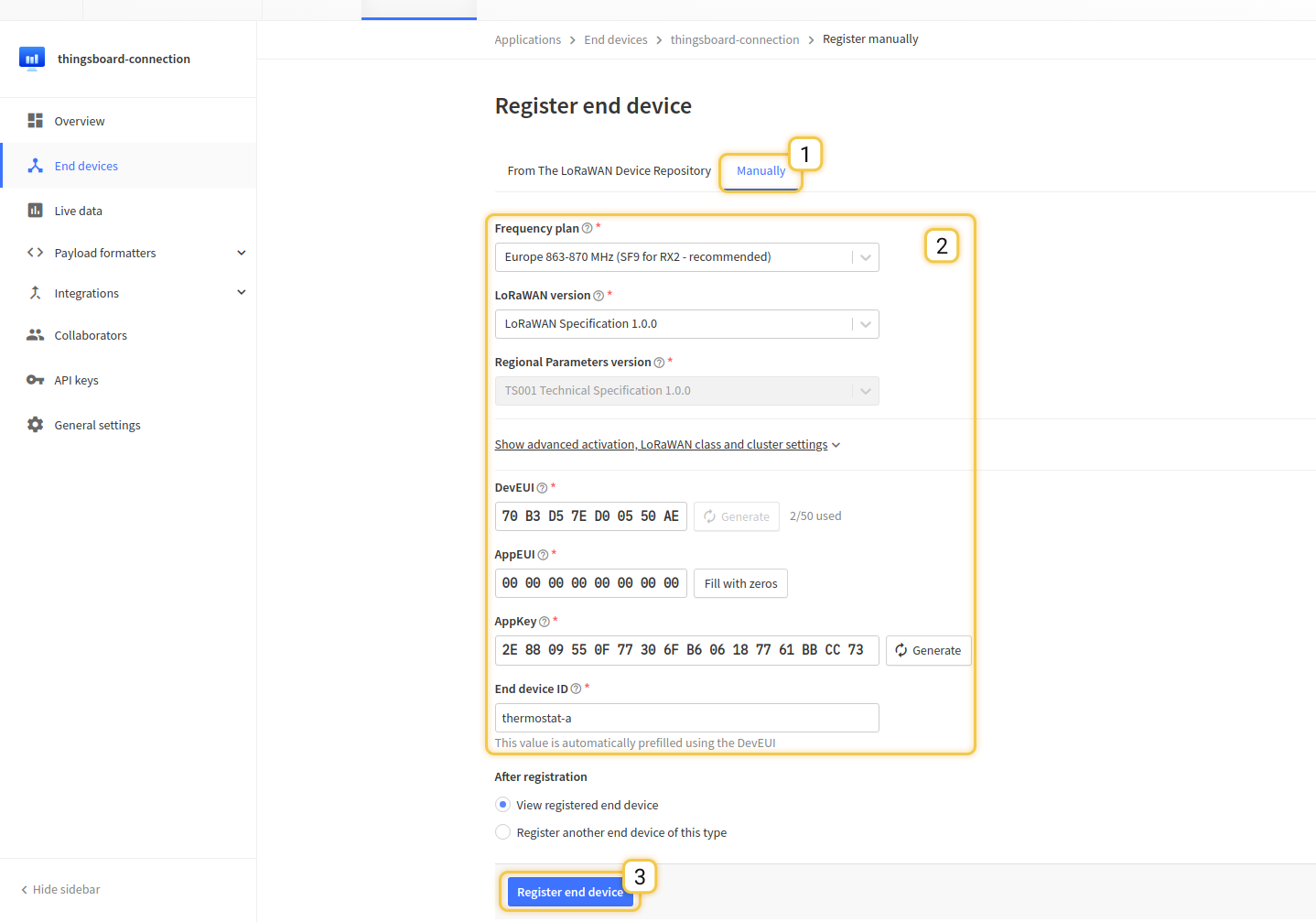

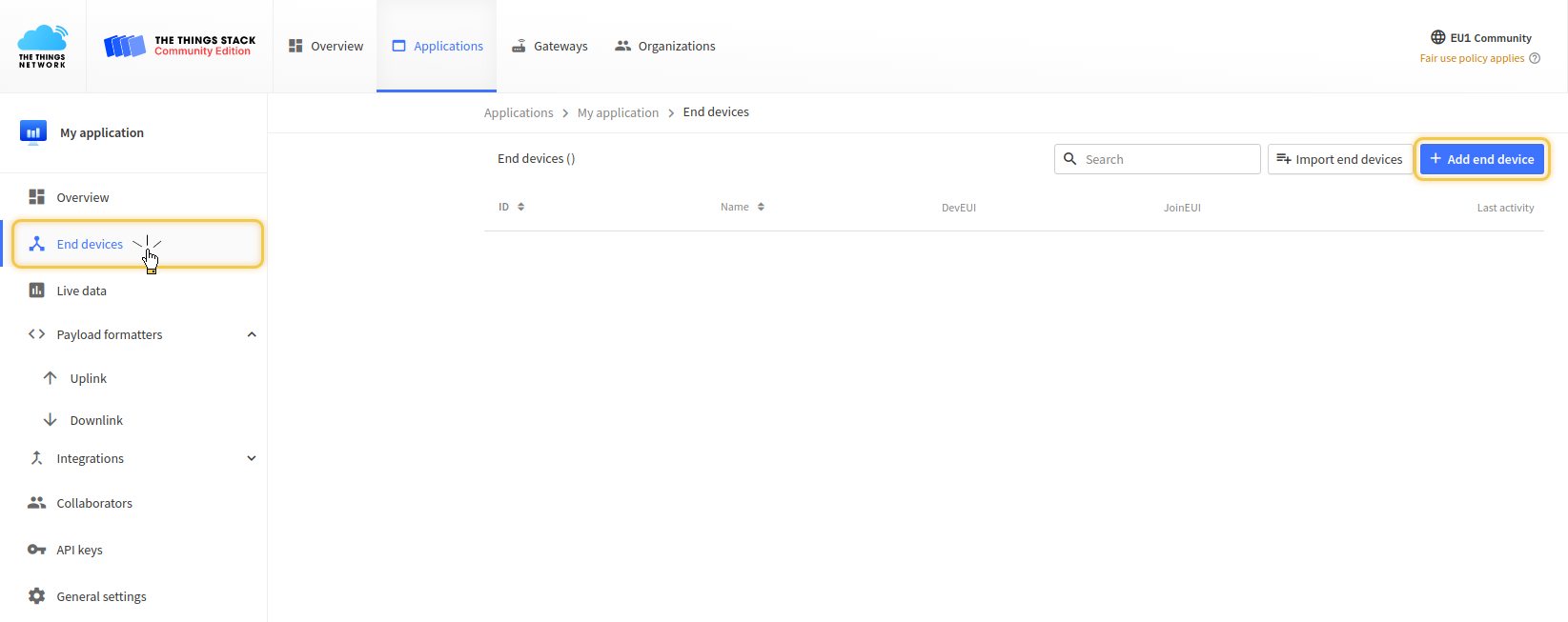

Next step is a Device creation in the TTN. Open Devices page and press register device

  • Device ID - thermostat_a
  • Device EUI - press generate button for generating random identified


Press Register button.

Integration with the Thingsboard

In the TheThingsNetwork, we already make all required configuration (register device, decoder function, and register application). Now we can start configuring the Thingsboard.

First, we need to create Uplink Data converter that will be used for receiving messaged from the TTN. The converter should transform incoming payload into the required message format. Message must contains deviceName and deviceType. Those fields are used for submitting data to the correct device. If a device was not found then new device will be created. Here is how payload from TheThingsNetwork will look like:

    "app_id": "tb_platform",
    "dev_id": "thermostat_a",
    "hardware_serial": "*********",
    "port": 1,
    "counter": 0,
    "payload_raw": "Dw==",
    "payload_fields": {
        "temperature": 15
    "metadata": {
        "time": "2018-06-07T17:31:18.670792607Z"

We will take dev_id and map it to the deviceName and app_id map to the deviceType. But you can use another mapping in your specific use cases. Also, we will take the value of the temperature field and use it as a device telemetry.

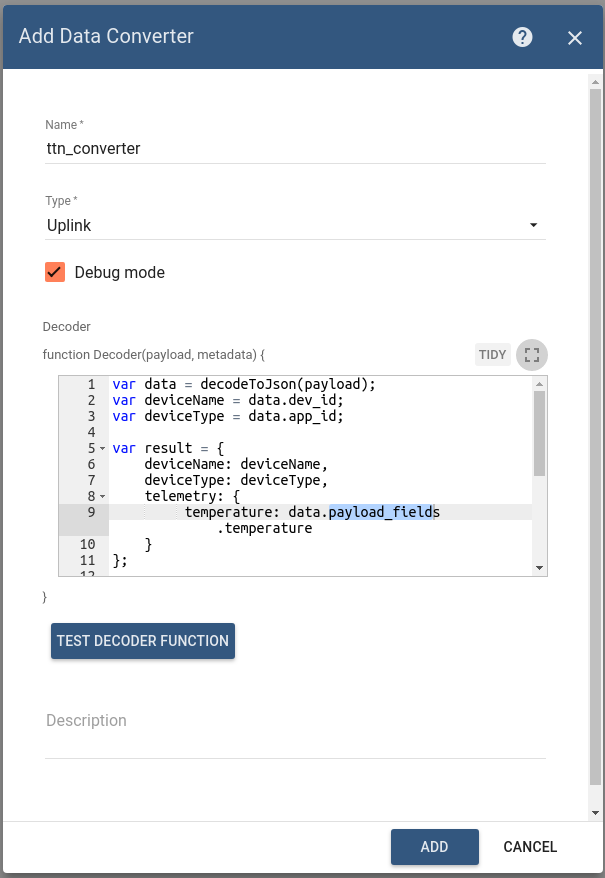

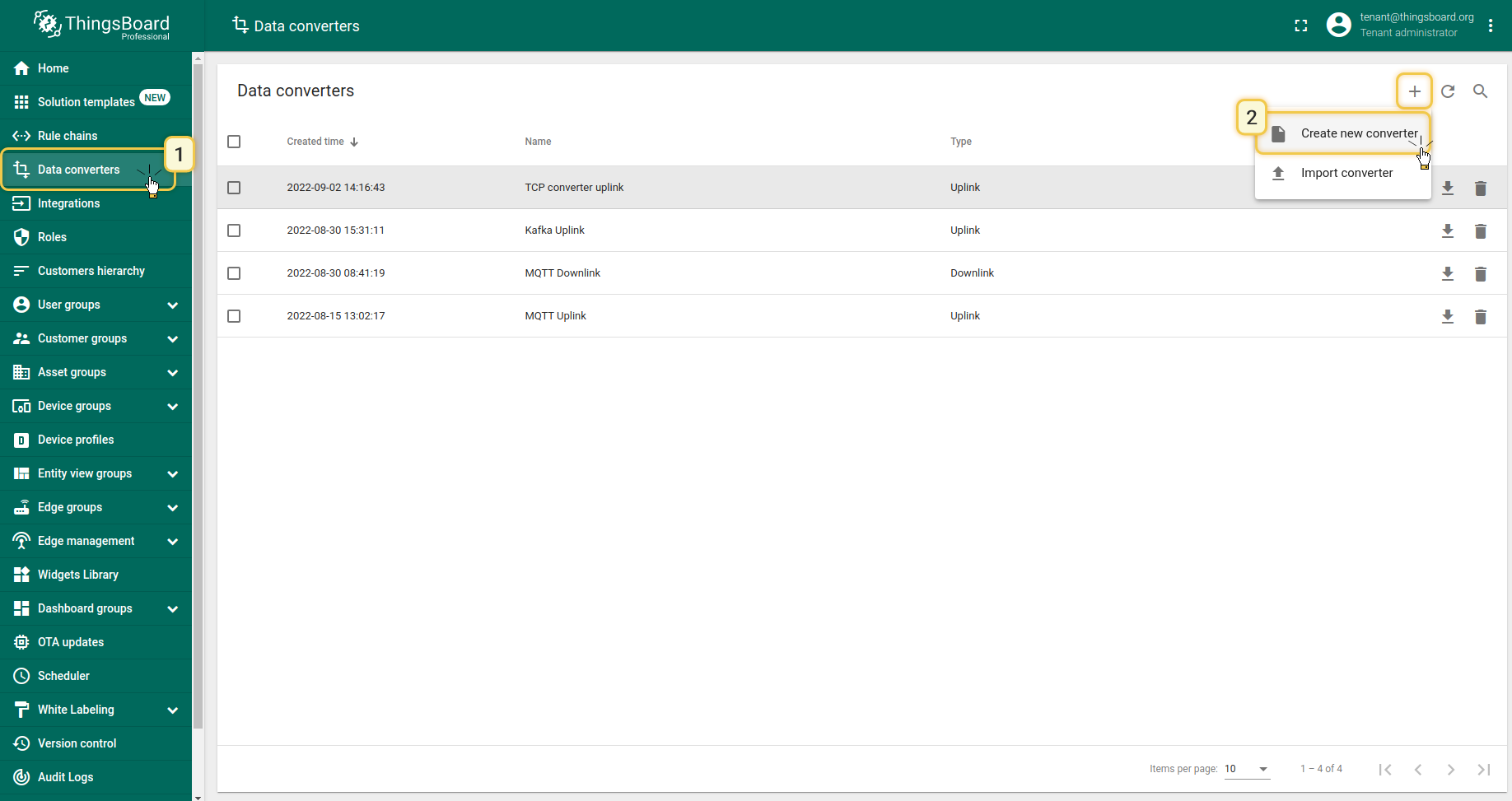

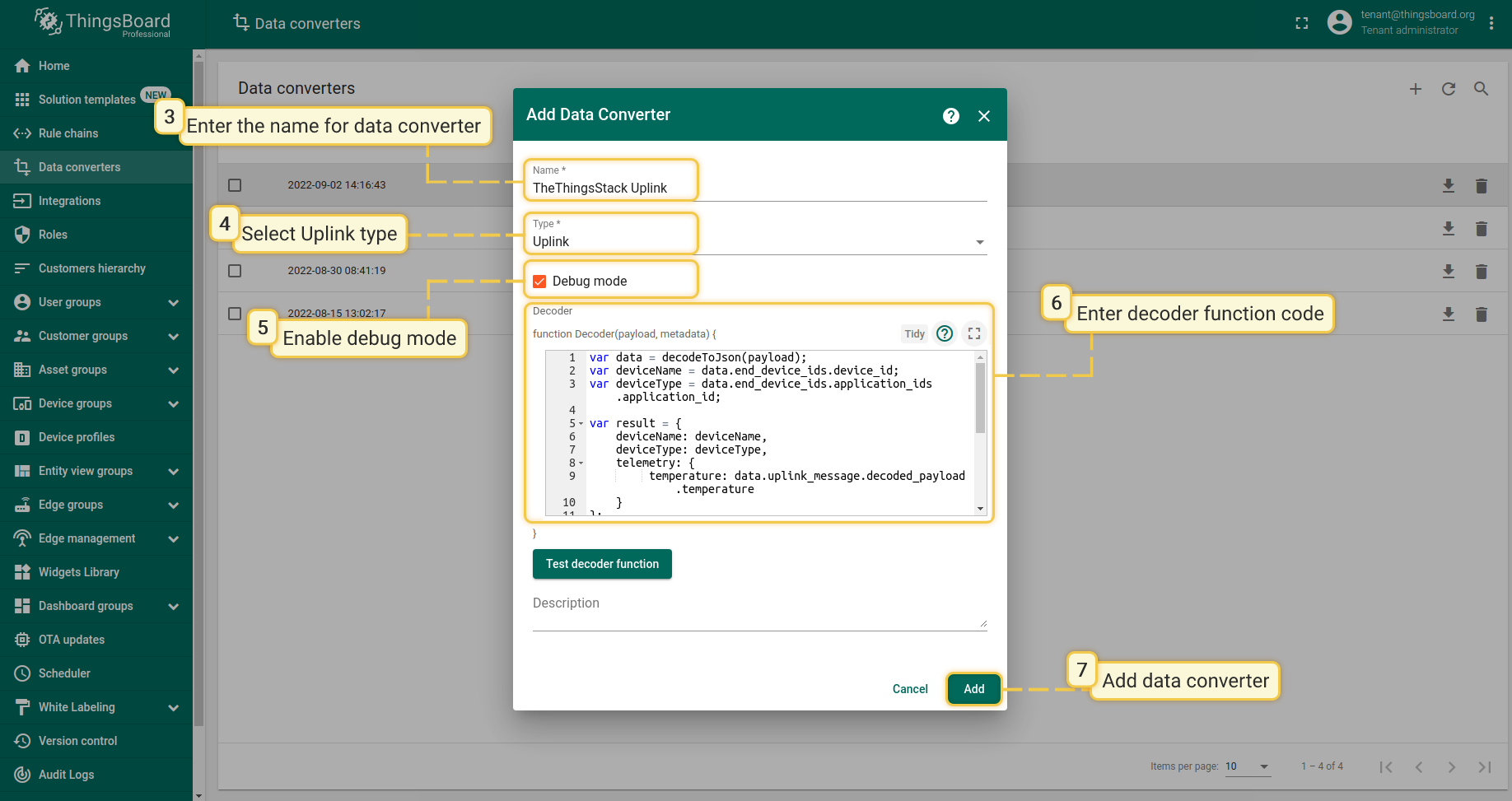

Go to Data Converters and create new uplink Converter with this function:

var data = decodeToJson(payload);
var deviceName = data.dev_id;
var deviceType = data.app_id;

var result = {
    deviceName: deviceName,
    deviceType: deviceType,
    telemetry: {
         temperature: data.payload_fields.temperature

function decodeToString(payload) {
    return String.fromCharCode.apply(String, payload);

function decodeToJson(payload) {
    var str = decodeToString(payload);
    var data = JSON.parse(str);
    return data;

return result;


For sending Downlink messages from the Thingsboard to the device inside TTN, we need to define downlink Converter. In general, output from Downlink converter should have the following structure:

    "contentType": "JSON",
    "data": "{\"port\":1,\"confirmed\":false,\"payload_fields\":{\"version\":\"0.11\"}}",
    "metadata": {
        "devId": "thermostat_a"
  • contentType - defines how data will be encoded {TEXT | JSON | BINARY}
  • data - actual data that will be sent to the device in TTN. More details about API can be foind in this TTN API
  • metadata - in this object you should place correct devId value that will be used to identify target device in TTN

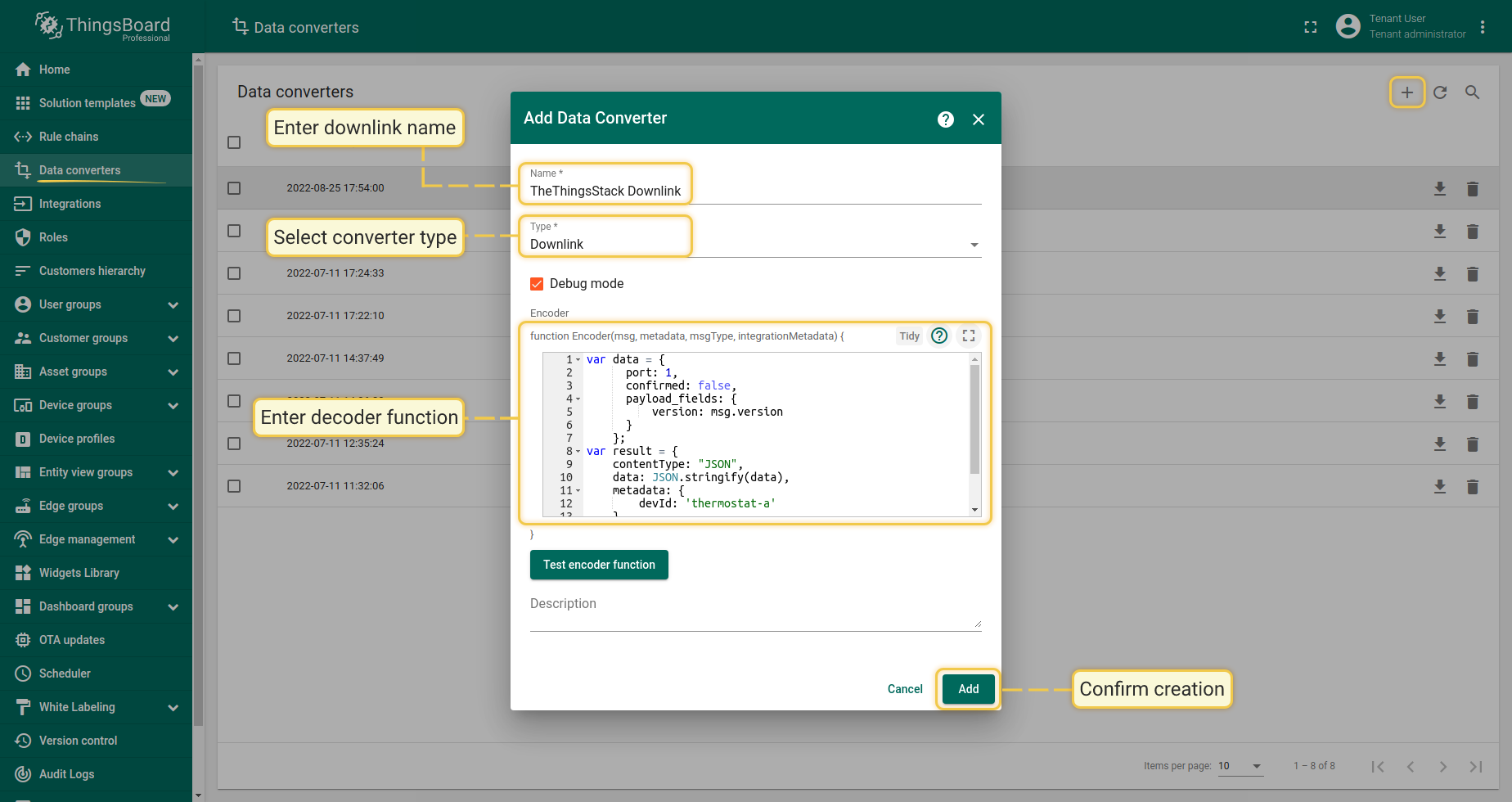

Go to Data Converters and create new downlink Converter with this function:

var data = {
      port: 1,
      confirmed: false,
      payload_fields: {
          version: msg.version

var result = {
    contentType: "JSON",
    data: JSON.stringify(data),
    metadata: {
        devId: 'thermostat_a'


return result;

This converter will take version field from the incoming message and add it is a payload field in the outbound message. Destination device is a thermostat_a device.


TTN Integration

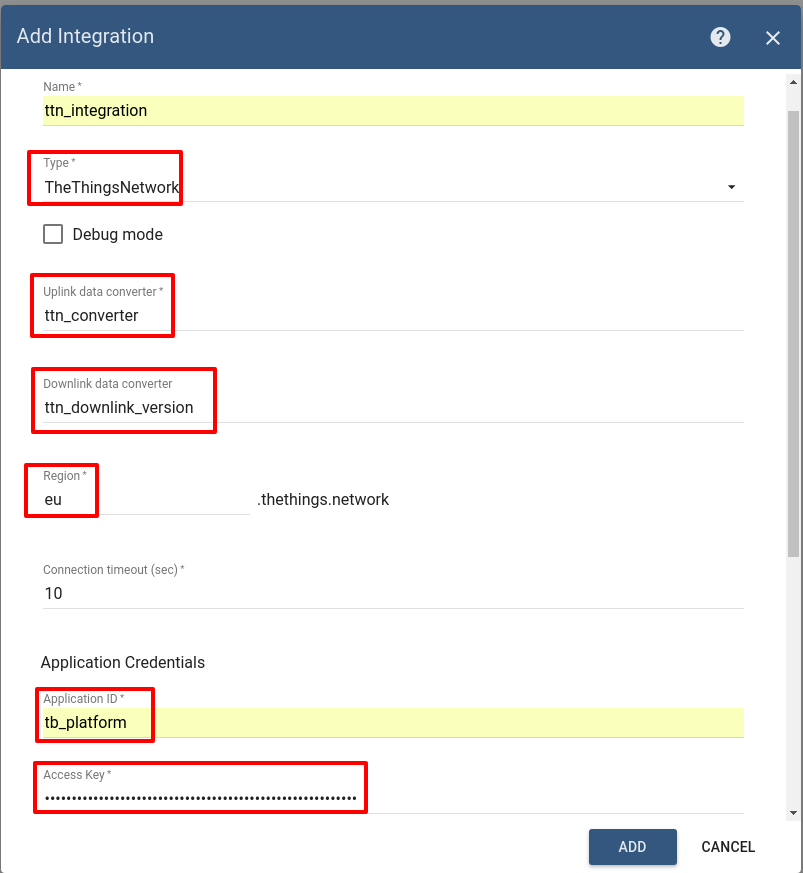

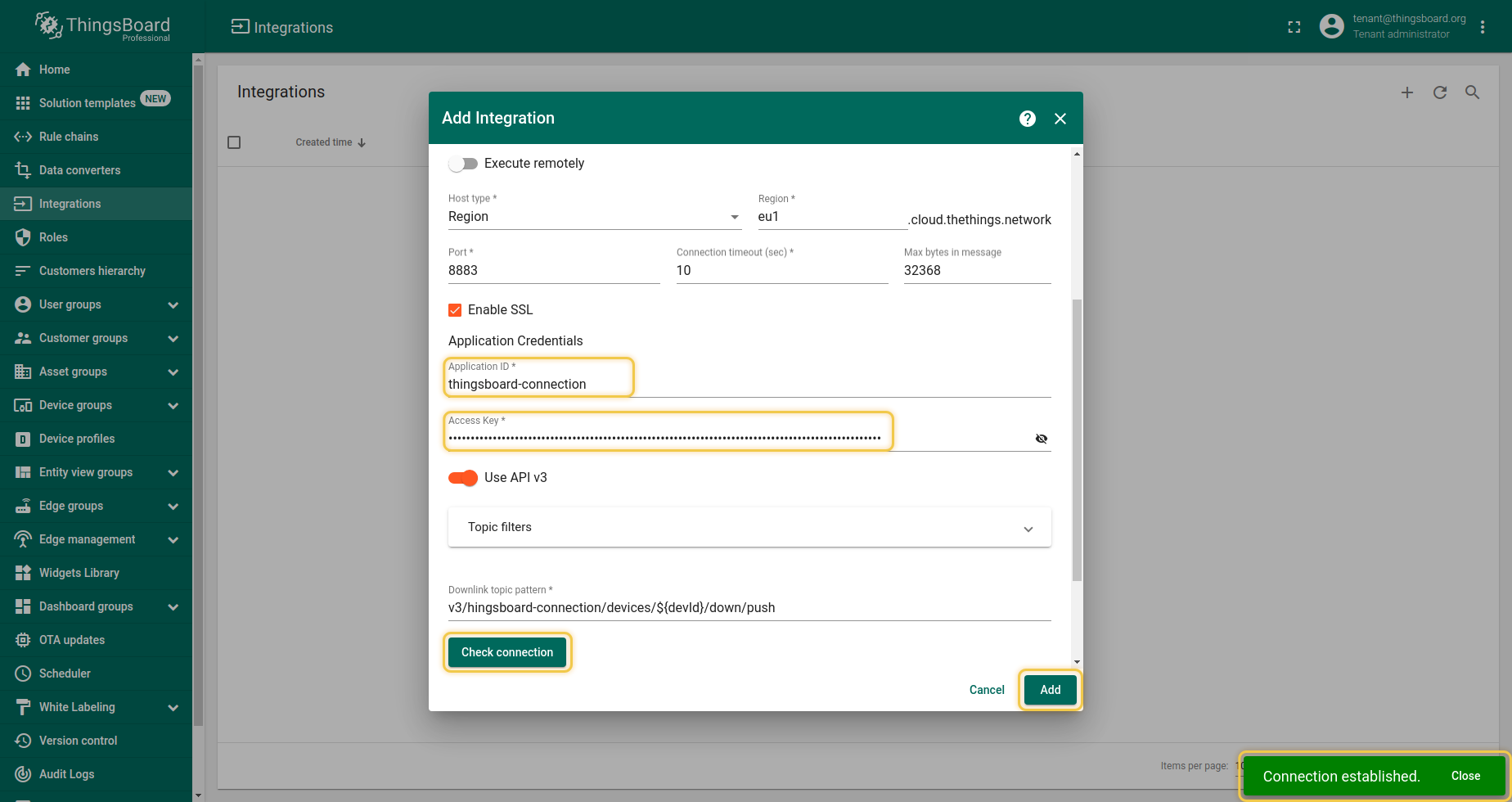

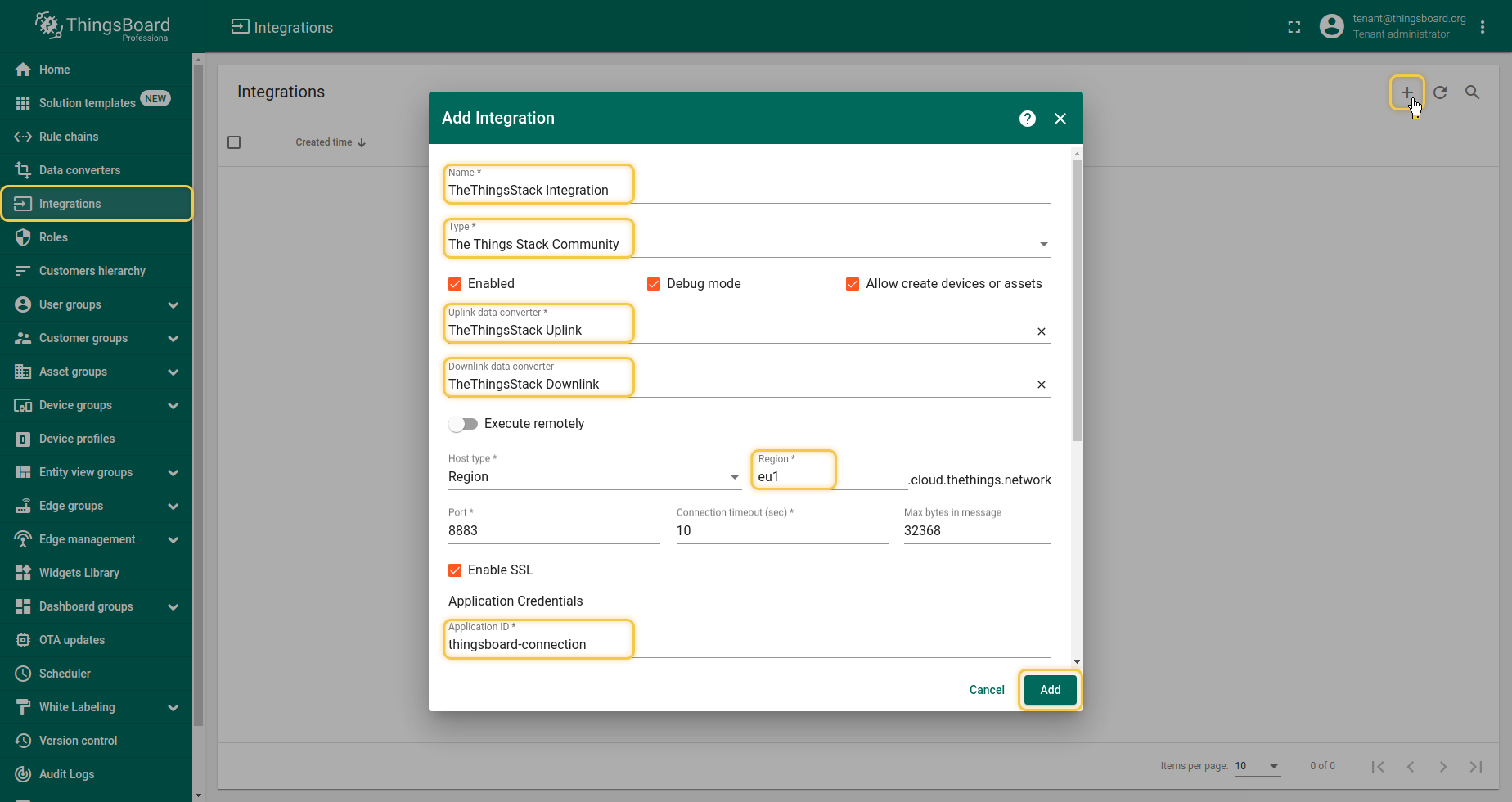

Next we will create Integration with TheThingsNetwork inside the Thingsboard. Open Integrations section and add new Integration with type TheThingsNetwork

  • Name: ttn_integration
  • Type: TheThingsNetwork
  • Uplink data converter: ttn_converter
  • Downlink data converter: ttn_downlink_version
  • Region: eu (region where your application was registered inside TTN)
  • Application ID: tb_platform (use Application ID from TTN)

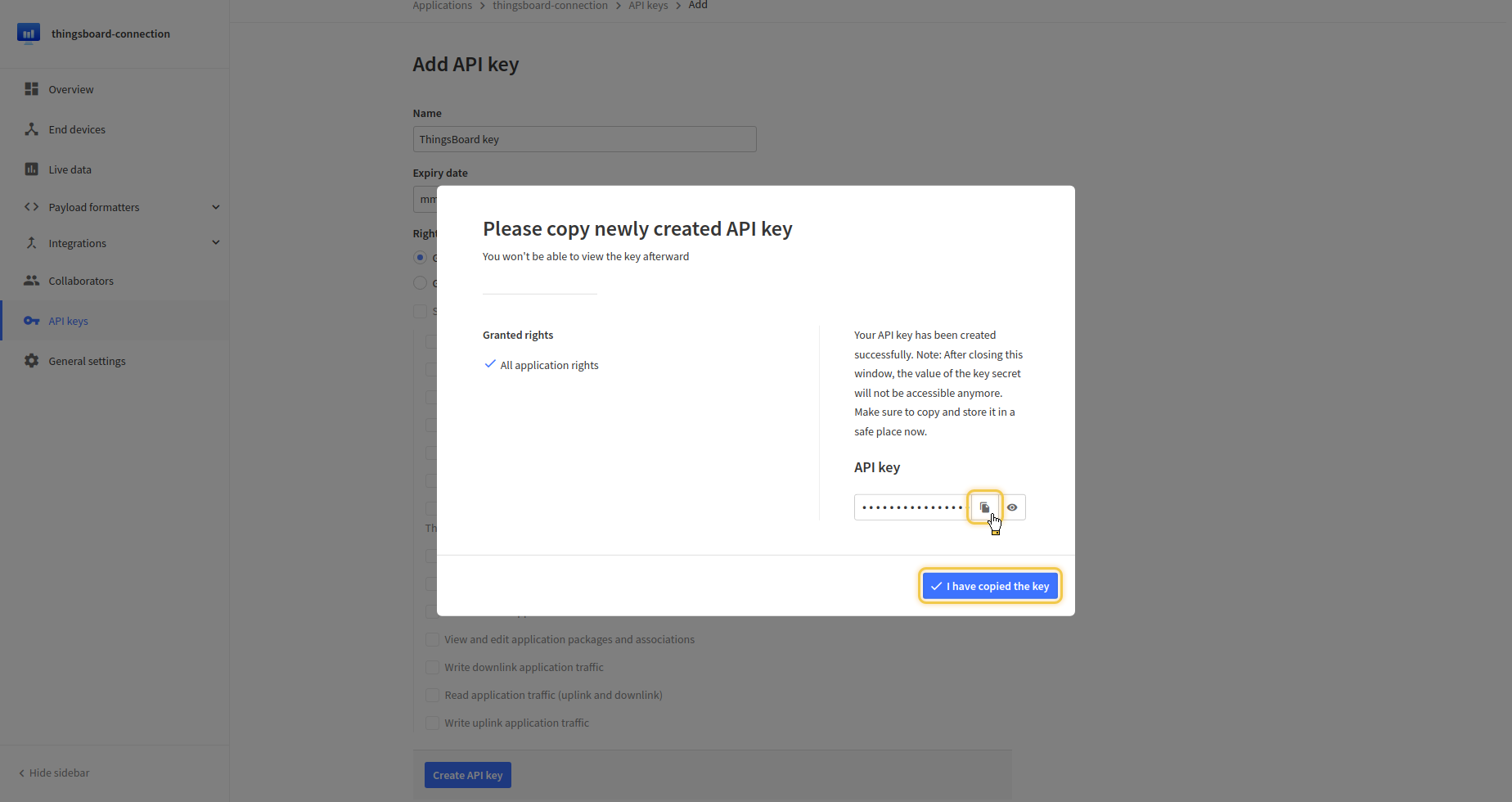

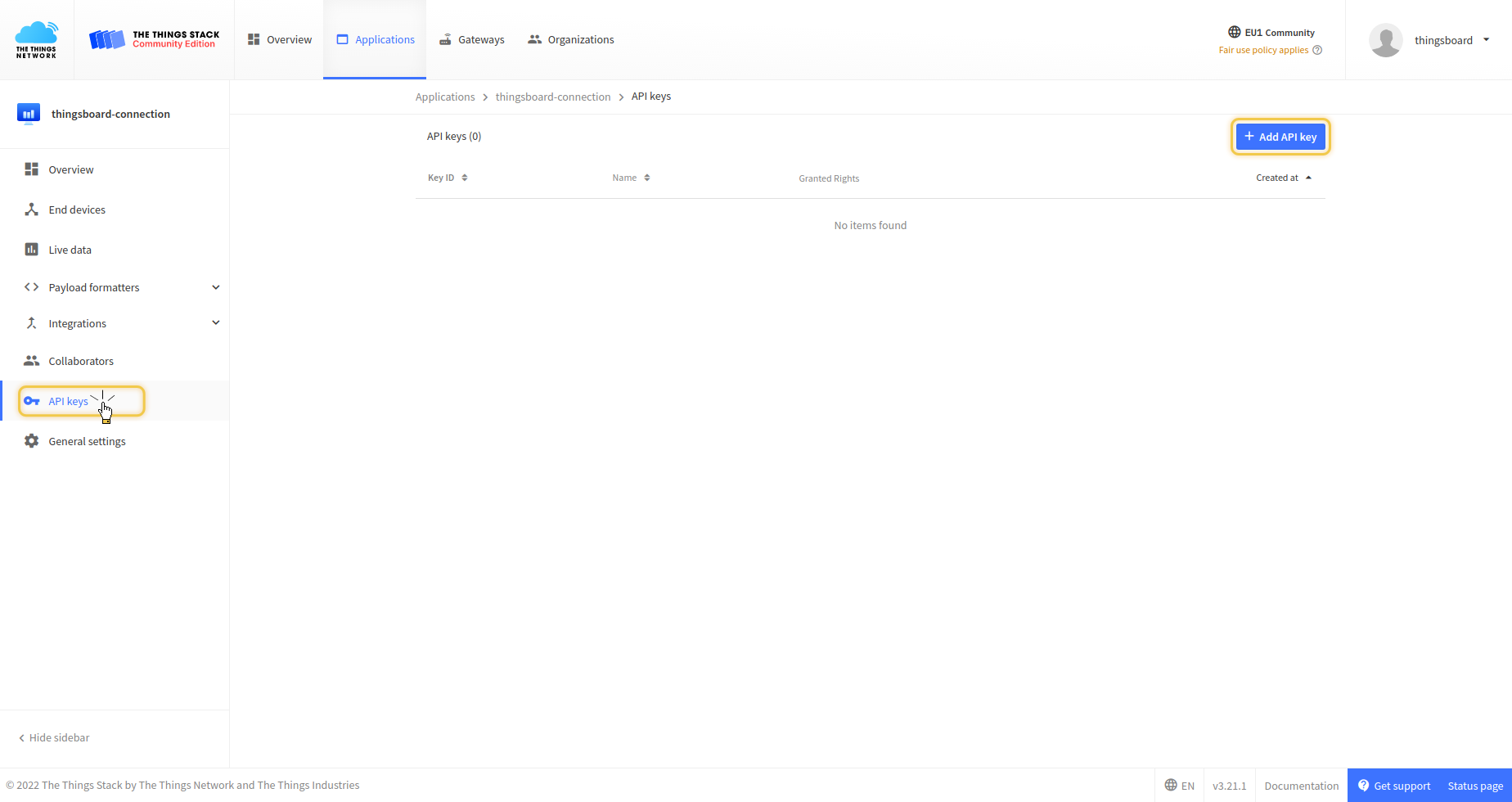

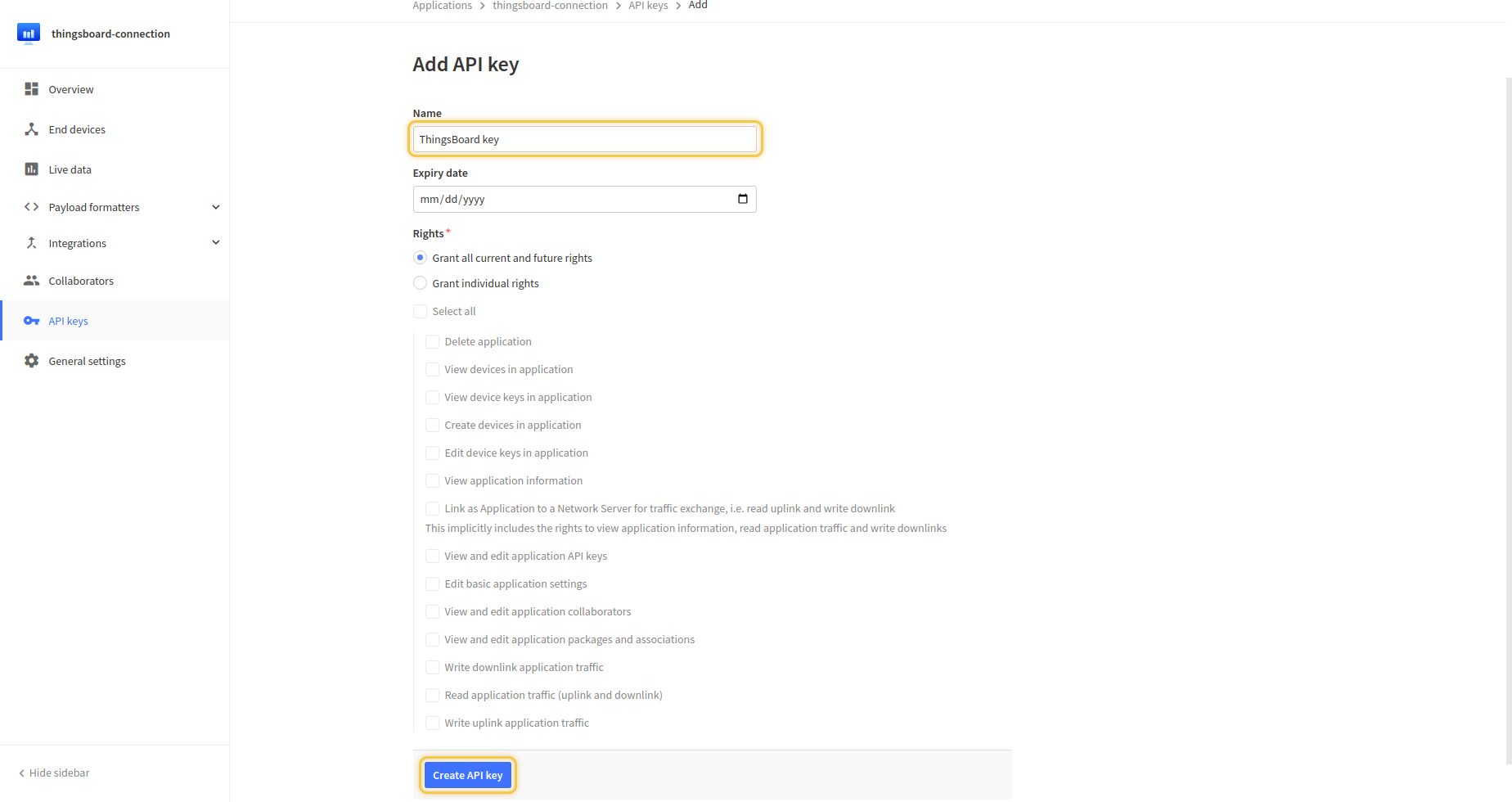

  • Access Key: use Access Key from TTN

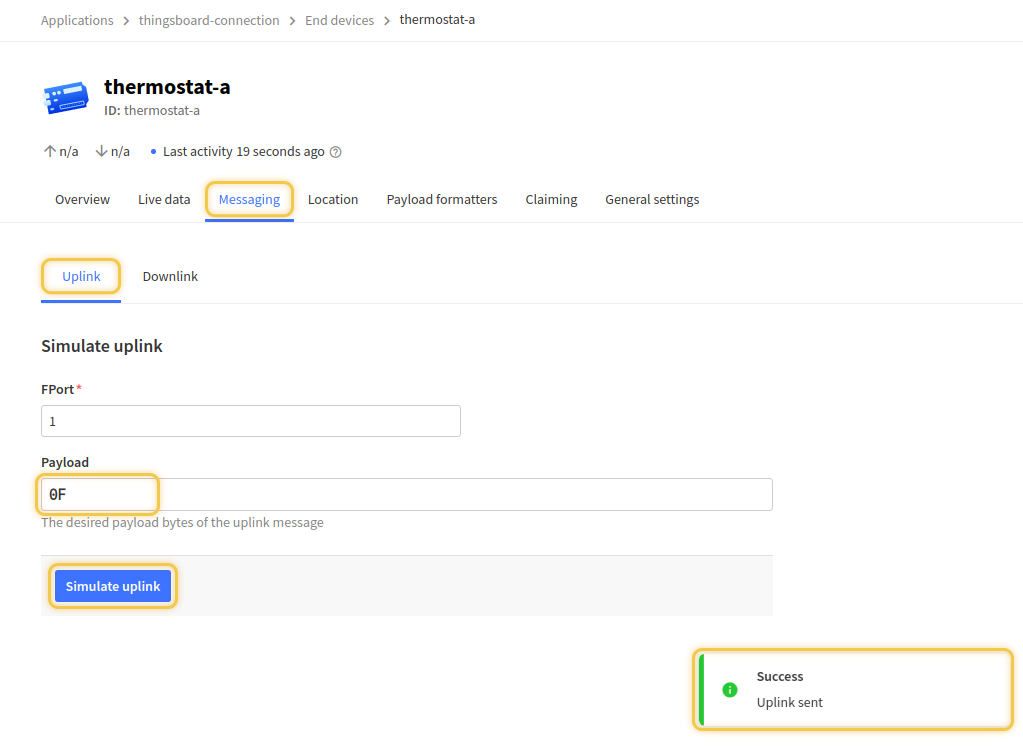

Lets verify our integration. Go to the device thermostat_a page in TheThingsNetwork. Scroll to the Simulate Uplink section. Our device will publish temperature 0F (15). So enter 0F into payload field and press Send button.


Go to Device Group -> All -> thermostat_a - you can see that

  • new device was registered in the thingsboard

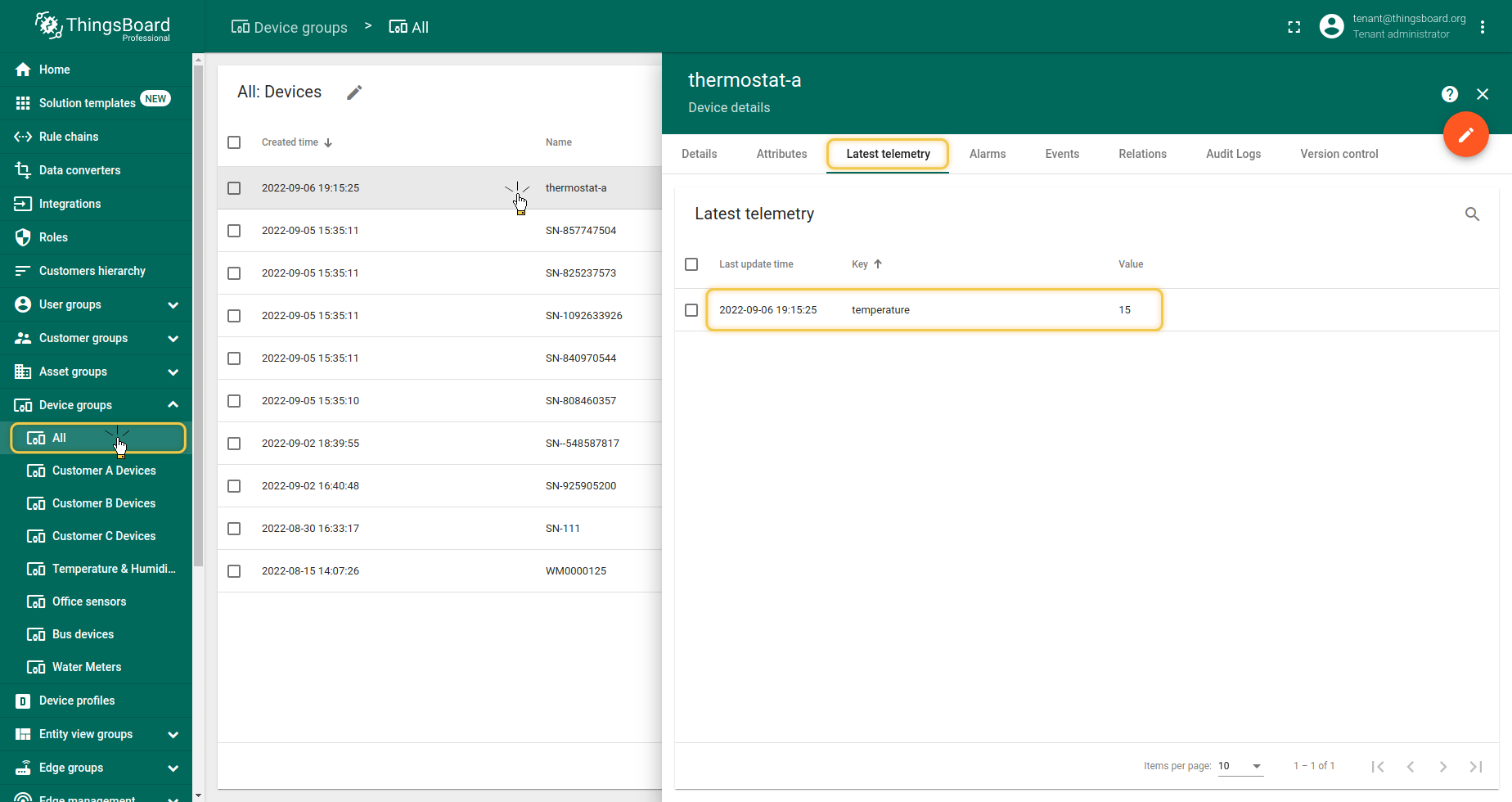

  • In the Latest Telemetry section you will see that last submitted temperature = 15.

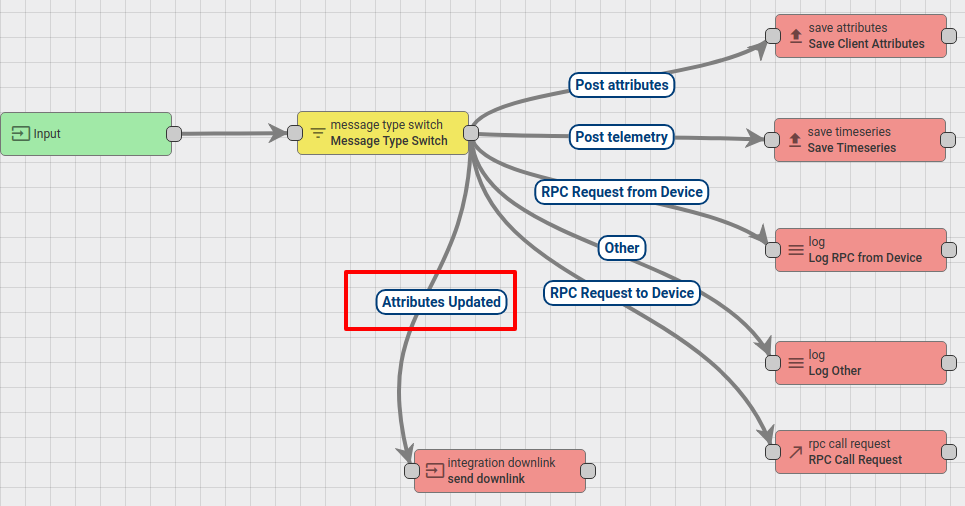

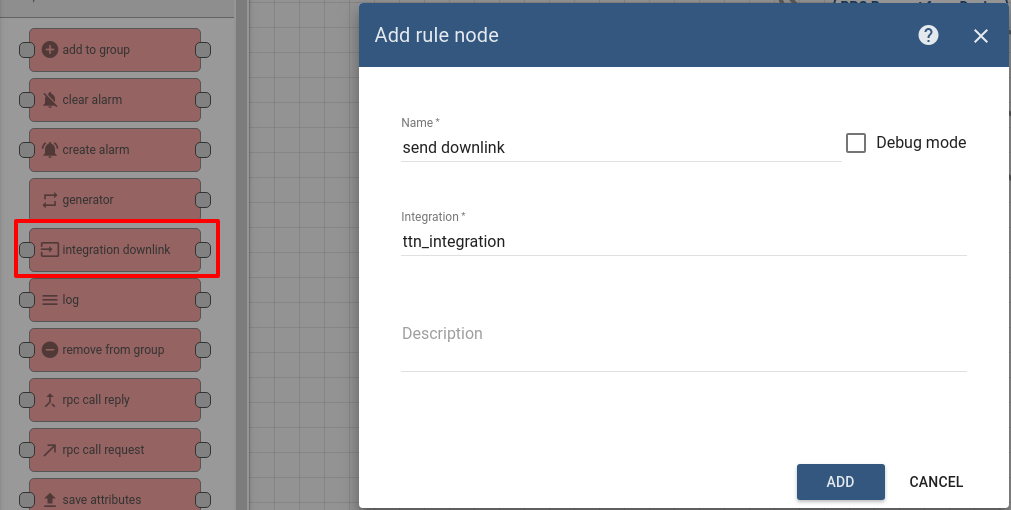

For testing Downlink Messages, we will update our Root Rule Chain to send downlink message when device attribute is changed. Open and edit Root Rule Chain. Add Integration Downlink Action node and connect it with the Message Type Switch Node using relation Attributes Updated



Save Changes.

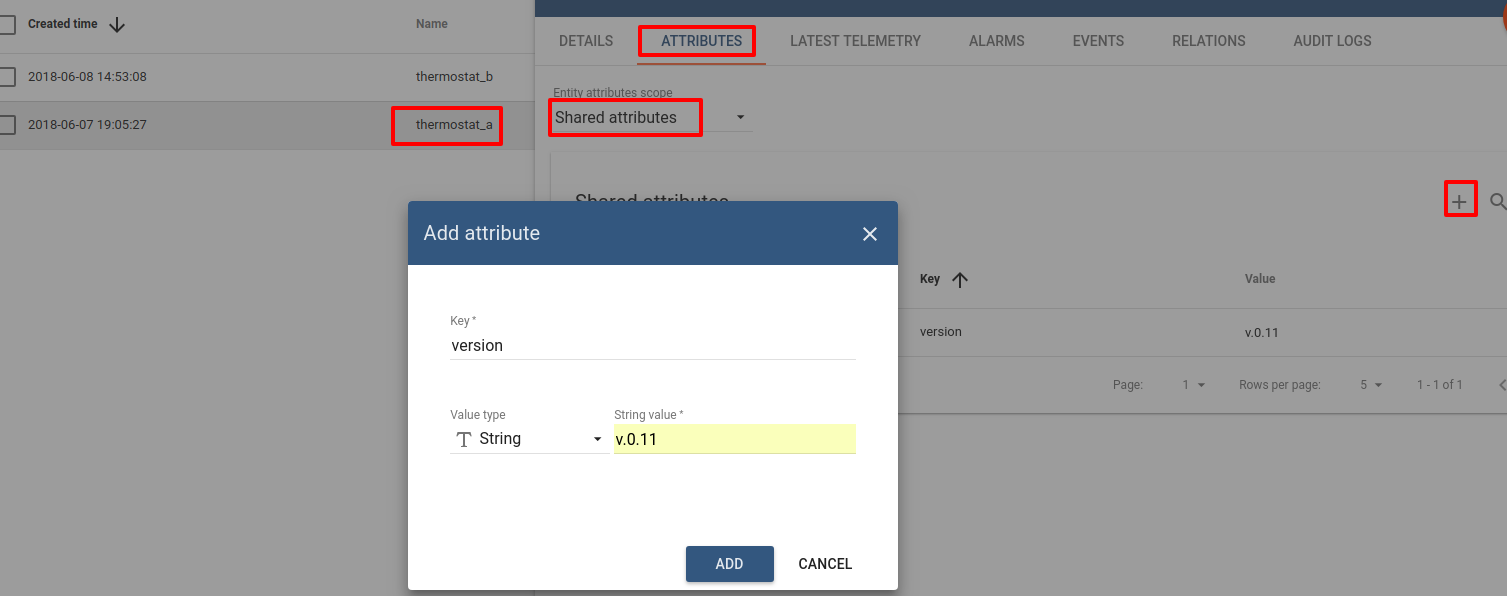

Go to Device Group -> All -> thermostat_a -> attributes section. We will add Shared attribute with name version and value v.0.11

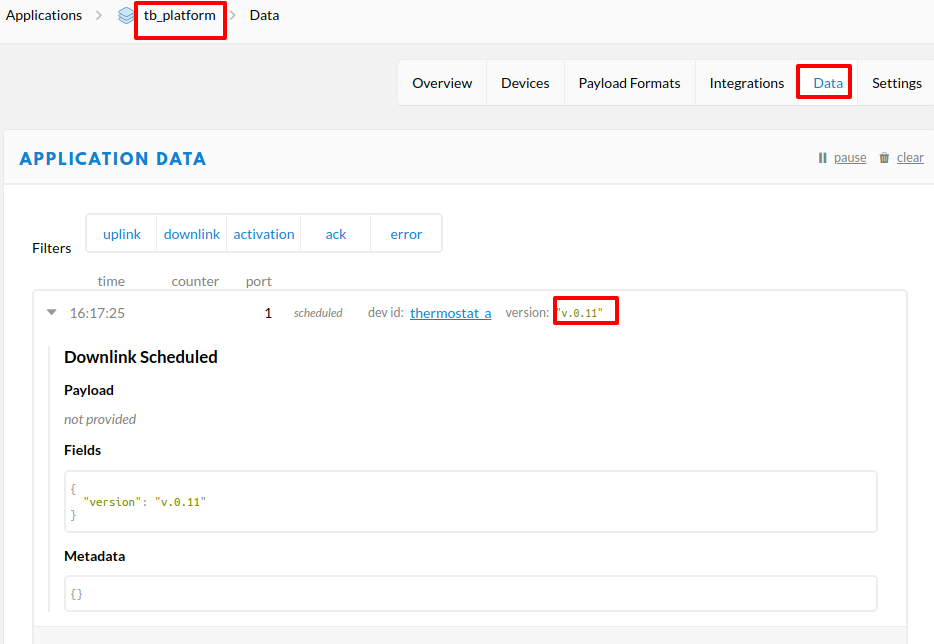

By making this step, we triggered downlink message to the device thermostat_a and this message should contains version field value. Open TTN Console, navigate to tb_platfrom application, to the section Data. And we see that Downlink message was received.


See also

With this integration you can also configure Downlink converters and trigger required actions using Rule Engine nodes.

Next steps
