Remote Integrations

HTTP Integrations
(HTTP, Sigfox, ThingPark, OceanConnect and
T-Mobile IoT CDP)

CoAP
Integration

Execute the following command to pull the image:

docker pull thingsboard/tb-pe-http-integration:3.5.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

mkdir -p ~/.tb-pe-http-integration-logs && sudo chown -R 799:799 ~/.tb-pe-http-integration-logs

Execute the following command to run the integration:

docker run -it -v ~/.tb-pe-http-integration-logs:/var/log/tb-http-integration \
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-http-integration --restart always thingsboard/tb-pe-http-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;

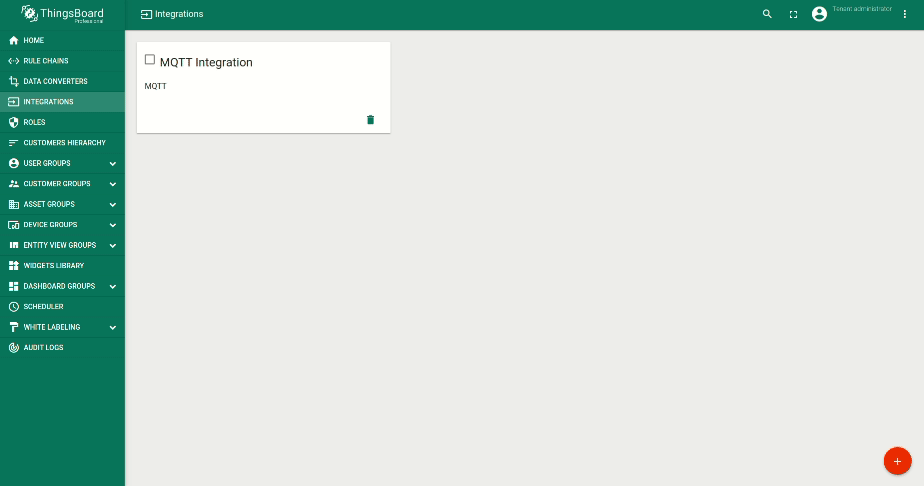

YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v ~/.tb-pe-http-integration-logs:/var/log/tb-http-integration - mounts the host’s dir ~/.tb-pe-http-integration-logs to ThingsBoard logs directory;
--name tb-pe-http-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-http-integration:3.5.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-http-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-http-integration

To stop the container:

docker stop tb-pe-http-integration

To start the container:

docker start tb-pe-http-integration

Execute the following command to pull the image:

docker pull thingsboard/tb-pe-mqtt-integration:3.5.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

mkdir -p ~/.tb-pe-mqtt-integration-logs && sudo chown -R 799:799 ~/.tb-pe-mqtt-integration-logs

Execute the following command to run the integration:

docker run -it -v ~/.tb-pe-mqtt-integration-logs:/var/log/tb-mqtt-integration \
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-mqtt-integration --restart always thingsboard/tb-pe-mqtt-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v ~/.tb-pe-mqtt-integration-logs:/var/log/tb-mqtt-integration - mounts the host’s dir ~/.tb-pe-mqtt-integration-logs to ThingsBoard logs directory;
--name tb-pe-mqtt-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-mqtt-integration:3.5.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-mqtt-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-mqtt-integration

To stop the container:

docker stop tb-pe-mqtt-integration

To start the container:

docker start tb-pe-mqtt-integration

Execute the following command to pull the image:

docker pull thingsboard/tb-pe-aws-integration:3.5.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

mkdir -p ~/.tb-pe-aws-integration-logs && sudo chown -R 799:799 ~/.tb-pe-aws-integration-logs

Execute the following command to run the integration:

docker run -it -v ~/.tb-pe-aws-integration-logs:/var/log/tb-aws-integration \
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-aws-integration --restart always thingsboard/tb-pe-aws-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v ~/.tb-pe-aws-integration-logs:/var/log/tb-aws-integration - mounts the host’s dir ~/.tb-pe-aws-integration-logs to ThingsBoard logs directory;
--name tb-pe-aws-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-aws-integration:3.5.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-aws-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-aws-integration

To stop the container:

docker stop tb-pe-aws-integration

To start the container:

docker start tb-pe-aws-integration

Execute the following command to pull the image:

docker pull thingsboard/tb-pe-azure-integration:3.5.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

mkdir -p ~/.tb-pe-azure-integration-logs && sudo chown -R 799:799 ~/.tb-pe-azure-integration-logs

Execute the following command to run the integration:

docker run -it -v ~/.tb-pe-azure-integration-logs:/var/log/tb-azure-integration \
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-azure-integration --restart always thingsboard/tb-pe-azure-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v ~/.tb-pe-azure-integration-logs:/var/log/tb-azure-integration - mounts the host’s dir ~/.tb-pe-azure-integration-logs to ThingsBoard logs directory;
--name tb-pe-azure-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-azure-integration:3.5.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-azure-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-azure-integration

To stop the container:

docker stop tb-pe-azure-integration

To start the container:

docker start tb-pe-azure-integration

Execute the following command to pull the image:

docker pull thingsboard/tb-pe-opc-ua-integration:3.5.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

mkdir -p ~/.tb-pe-opc-ua-integration-logs && sudo chown -R 799:799 ~/.tb-pe-opc-ua-integration-logs

Execute the following command to run the integration:

docker run -it -v ~/.tb-pe-opc-ua-integration-logs:/var/log/tb-opc-ua-integration \
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-opc-ua-integration --restart always thingsboard/tb-pe-opc-ua-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v ~/.tb-pe-opc-ua-integration-logs:/var/log/tb-opc-ua-integration - mounts the host’s dir ~/.tb-pe-opc-ua-integration-logs to ThingsBoard logs directory;
--name tb-pe-opc-ua-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-opc-ua-integration:3.5.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-opc-ua-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-opc-ua-integration

To stop the container:

docker stop tb-pe-opc-ua-integration

To start the container:

docker start tb-pe-opc-ua-integration

Execute the following command to pull the image:

docker pull thingsboard/tb-pe-tcp-udp-integration:3.5.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

mkdir -p ~/.tb-pe-tcp-udp-integration-logs && sudo chown -R 799:799 ~/.tb-pe-tcp-udp-integration-logs

Execute the following command to run the integration:

docker run -it -p 10560:10560 -v ~/.tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration  \
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-tcp-udp-integration --restart always thingsboard/tb-pe-tcp-udp-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-p 10560:10560 - connect local port 10560 to exposed internal 10560 port for the integration. If the exposed port is UDP, add /udp at the end, e.g. -p 11560:11560/udp
-v ~/.tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration - mounts the host’s dir ~/.tb-pe-tcp-udp-integration-logs to ThingsBoard logs directory;
--name tb-pe-tcp-udp-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-tcp-udp-integration:3.5.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-tcp-udp-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-tcp-udp-integration

To stop the container:

docker stop tb-pe-tcp-udp-integration

To start the container:

docker start tb-pe-tcp-udp-integration

Execute the following command to pull the image:

docker pull thingsboard/tb-pe-coap-integration:3.5.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

mkdir -p ~/.tb-pe-coap-integration-logs && sudo chown -R 799:799 ~/.tb-pe-coap-integration-logs

Execute the following command to run the integration:

docker run -it -p 5683:5683/udp -v ~/.tb-pe-coap-integration-logs:/var/log/tb-coap-integration  \
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-coap-integration --restart always thingsboard/tb-pe-coap-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-p 5683:5683/udp - connect local udp port 5683 to exposed internal 5683 udp port for the integration.
-v ~/.tb-pe-coap-integration-logs:/var/log/tb-coap-integration - mounts the host’s dir ~/.tb-pe-coap-integration-logs to ThingsBoard logs directory;
--name tb-pe-coap-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-coap-integration:3.5.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-coap-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-coap-integration

To stop the container:

docker stop tb-pe-coap-integration

To start the container:

docker start tb-pe-coap-integration

Advanced configuration

See configuration yml file below for a list of possible configuration parameters, corresponding environment variables and their default values. For example, default client id of the integration, that is used in integration debug messages is “remote” and can be altered by setting “RPC_CLIENT_ID” environment variable.

server:
  # Server bind address
  address: "${HTTP_BIND_ADDRESS:0.0.0.0}"
  # Server bind port
  port: "${HTTP_BIND_PORT:8082}"

integration:
  routingKey: "${INTEGRATION_ROUTING_KEY:PUT_YOUR_ROUTING_KEY_HERE}"
  secret: "${INTEGRATION_SECRET:PUT_YOUR_SECRET_HERE}"
  # Allows connection to the localhost resources. For example, local MQTT broker, etc.
  allow_local_network_hosts: "${INTEGRATION_ALLOW_LOCAL_NETWORK_HOSTS:true}"
  statistics:
    # Enable/disable integration statistics
    enabled: "${INTEGRATION_STATISTICS_ENABLED:true}"
    # Send statistics interval. Dfault value is once per hour
    persist_frequency: "${INTEGRATION_STATISTICS_PERSIST_FREQUENCY:3600000}"

storage:
  # Location of the folder to store data files
  data_folder_path: "${INTEGRATION_STORAGE_DATA_FOLDER_PATH:./}"
  # Max amount of data files to maintain
  max_file_count: "${INTEGRATION_STORAGE_MAX_FILE_COUNT:100}"
  # Max records per data file
  max_records_per_file: "${INTEGRATION_STORAGE_MAX_RECORDS_PER_FILE:30}"
  # Max records between persistence of data file
  max_records_between_fsync: "${INTEGRATION_STORAGE_MAX_RECORDS_BETWEEN_FSYNC:100}"
  # Size of the upload chunk
  max_read_records_count: "${INTEGRATION_STORAGE_MAX_READ_RECORDS_COUNT:50}"
  # Sleep interval while no new records
  no_read_records_sleep: "${INTEGRATION_STORAGE_NO_READ_RECORDS_SLEEP:1000}"

executors:
  # Size of the thread pool to handle incoming messages and tasks
  thread_pool_size: "${EXECUTORS_SIZE:1}"
  # Timeout to reconnect to ThingsBoard
  reconnect_timeout: "${EXECUTORS_RECONNECT_TIMEOUT:3000}" # in milliseconds

rpc:
  # Host of the ThingsBoard server
  host: "${RPC_HOST:thingsboard.cloud}"
  # Port of the ThingsBoard server
  port: "${RPC_PORT:9090}"
  # No reply timeout
  timeout: "${RPC_TIMEOUT:5}" # Timeout in seconds for channel termination
  # ID of the RPC client
  client_id: "${RPC_CLIENT_ID:remote}"
  ssl:
    # SSL enabled/disabled
    enabled: "${RPC_SSL_ENABLED:false}"
    # SSL certificate
    cert: "${RPC_SSL_CERT:roots.pem}"

js:
  evaluator: "${JS_EVALUATOR:local}"
  # Built-in JVM JavaScript environment properties
  local:
    # Use Sandboxed (secured) JVM JavaScript environment
    use_js_sandbox: "${USE_LOCAL_JS_SANDBOX:true}"
    # Specify thread pool size for JavaScript sandbox resource monitor
    monitor_thread_pool_size: "${LOCAL_JS_SANDBOX_MONITOR_THREAD_POOL_SIZE:4}"
    # Maximum CPU time in milliseconds allowed for script execution
    max_cpu_time: "${LOCAL_JS_SANDBOX_MAX_CPU_TIME:5000}"
    # Maximum allowed JavaScript execution errors before JavaScript will be blacklisted
    max_errors: "${LOCAL_JS_SANDBOX_MAX_ERRORS:3}"

service:
  type: "${TB_SERVICE_TYPE:tb-integration}"

Troubleshooting

注意：如果你发现与DNS问题相关的错误，例如

127.0.1.1:53: cannot unmarshal DNS message

你可以将系统配置为使用 Google公共DNS服务器。
请参阅相应的Linux和Mac OS说明

Docker on Windows

Install Docker Toolbox for Windows
Choose Integration to install

MQTT Integrations
(MQTT, AWS IoT, IBM Watson, The Things Network)

HTTP Integrations
(HTTP, Sigfox, ThingPark, OceanConnect and
T-Mobile IoT CDP)

CoAP
Integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-http-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

docker volume create tb-pe-http-integration-logs

Execute the following command to run this docker directly:

docker run -it -v tb-pe-http-integration-logs:/var/log/tb-http-integration `
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-http-integration --restart always thingsboard/tb-pe-http-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v tb-pe-http-integration-logs:/var/log/tb-http-integration - mounts the host’s dir ~/.tb-pe-http-integration-logs to ThingsBoard logs directory;
--name tb-pe-http-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-http-integration:3.5.1PE - docker image.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-http-integration

To stop the container:

docker stop tb-pe-http-integration

To start the container:

docker start tb-pe-http-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-mqtt-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

docker volume create tb-pe-mqtt-integration-logs

Execute the following command to run this docker directly:

docker run -it -v tb-pe-mqtt-integration-logs:/var/log/tb-mqtt-integration `
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-mqtt-integration --restart always thingsboard/tb-pe-mqtt-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v tb-pe-mqtt-integration-logs:/var/log/tb-mqtt-integration - mounts the host’s dir ~/.tb-pe-mqtt-integration-logs to ThingsBoard logs directory;
--name tb-pe-mqtt-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-mqtt-integration:3.5.1PE - docker image.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-mqtt-integration

To stop the container:

docker stop tb-pe-mqtt-integration

To start the container:

docker start tb-pe-mqtt-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-aws-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

docker volume create tb-pe-aws-integration-logs

Execute the following command to run this docker directly:

docker run -it -v tb-pe-aws-integration-logs:/var/log/tb-aws-integration `
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-aws-integration --restart always thingsboard/tb-pe-aws-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v tb-pe-aws-integration-logs:/var/log/tb-aws-integration - mounts the host’s dir ~/.tb-pe-aws-integration-logs to ThingsBoard logs directory;
--name tb-pe-aws-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-aws-integration:3.5.1PE - docker image.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-aws-integration

To stop the container:

docker stop tb-pe-aws-integration

To start the container:

docker start tb-pe-aws-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-azure-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

docker volume create tb-pe-azure-integration-logs

Execute the following command to run this docker directly:

docker run -it -v tb-pe-azure-integration-logs:/var/log/tb-azure-integration `
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-azure-integration --restart always thingsboard/tb-pe-azure-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v tb-pe-azure-integration-logs:/var/log/tb-azure-integration - mounts the host’s dir ~/.tb-pe-azure-integration-logs to ThingsBoard logs directory;
--name tb-pe-azure-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-azure-integration:3.5.1PE - docker image.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-azure-integration

To stop the container:

docker stop tb-pe-azure-integration

To start the container:

docker start tb-pe-azure-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-opc-ua-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

docker volume create tb-pe-opc-ua-integration-logs

Execute the following command to run this docker directly:

docker run -it -v tb-pe-opc-ua-integration-logs:/var/log/tb-opc-ua-integration `
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-opc-ua-integration --restart always thingsboard/tb-pe-opc-ua-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-v tb-pe-opc-ua-integration-logs:/var/log/tb-opc-ua-integration - mounts the host’s dir ~/.tb-pe-opc-ua-integration-logs to ThingsBoard logs directory;
--name tb-pe-opc-ua-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-opc-ua-integration:3.5.1PE - docker image.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-opc-ua-integration

To stop the container:

docker stop tb-pe-opc-ua-integration

To start the container:

docker start tb-pe-opc-ua-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-tcp-udp-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

docker volume create tb-pe-tcp-udp-integration-logs

Execute the following command to run this docker directly:

docker run -it -p 10560:10560 -v tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration `
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-tcp-udp-integration --restart always thingsboard/tb-pe-tcp-udp-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-p 10560:10560 - connect local port 10560 to exposed internal 10560 port for the integration
-v tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration - mounts the host’s dir ~/.tb-pe-tcp-udp-integration-logs to ThingsBoard logs directory;
--name tb-pe-tcp-udp-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-tcp-udp-integration:3.5.1PE - docker image.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-tcp-udp-integration

To stop the container:

docker stop tb-pe-tcp-udp-integration

To start the container:

docker start tb-pe-tcp-udp-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-coap-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

docker volume create tb-pe-coap-integration-logs

Execute the following command to run this docker directly:

docker run -it -p 5683:5683/udp -v tb-pe-coap-integration-logs:/var/log/tb-coap-integration `
-e "RPC_HOST=thingsboard.cloud" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-coap-integration --restart always thingsboard/tb-pe-coap-integration:3.5.1PE

Where:

thingsboard.cloud - is the host name of your ThingsBoard PE instance;
9090 - is the port of your ThingsBoard PE instance. It is configured in thingsboard.yml using INTEGRATIONS_RPC_PORT env variable;
YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
docker run - run this container;
-it - attach a terminal session with current ThingsBoard process output;
-p 5683:5683/udp - connect local udp port 5683 to exposed internal 5683 udp port for the integration.
-v tb-pe-coap-integration-logs:/var/log/tb-coap-integration - mounts the host’s dir ~/.tb-pe-coap-integration-logs to ThingsBoard logs directory;
--name tb-pe-coap-integration - friendly local name of this machine;
--restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
thingsboard/tb-pe-coap-integration:3.5.1PE - docker image.

You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.

Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard logs) run:

docker attach tb-pe-coap-integration

To stop the container:

docker stop tb-pe-coap-integration

To start the container:

docker start tb-pe-coap-integration

Advanced configuration

server:
  # Server bind address
  address: "${HTTP_BIND_ADDRESS:0.0.0.0}"
  # Server bind port
  port: "${HTTP_BIND_PORT:8082}"

integration:
  routingKey: "${INTEGRATION_ROUTING_KEY:PUT_YOUR_ROUTING_KEY_HERE}"
  secret: "${INTEGRATION_SECRET:PUT_YOUR_SECRET_HERE}"
  # Allows connection to the localhost resources. For example, local MQTT broker, etc.
  allow_local_network_hosts: "${INTEGRATION_ALLOW_LOCAL_NETWORK_HOSTS:true}"
  statistics:
    # Enable/disable integration statistics
    enabled: "${INTEGRATION_STATISTICS_ENABLED:true}"
    # Send statistics interval. Dfault value is once per hour
    persist_frequency: "${INTEGRATION_STATISTICS_PERSIST_FREQUENCY:3600000}"

storage:
  # Location of the folder to store data files
  data_folder_path: "${INTEGRATION_STORAGE_DATA_FOLDER_PATH:./}"
  # Max amount of data files to maintain
  max_file_count: "${INTEGRATION_STORAGE_MAX_FILE_COUNT:100}"
  # Max records per data file
  max_records_per_file: "${INTEGRATION_STORAGE_MAX_RECORDS_PER_FILE:30}"
  # Max records between persistence of data file
  max_records_between_fsync: "${INTEGRATION_STORAGE_MAX_RECORDS_BETWEEN_FSYNC:100}"
  # Size of the upload chunk
  max_read_records_count: "${INTEGRATION_STORAGE_MAX_READ_RECORDS_COUNT:50}"
  # Sleep interval while no new records
  no_read_records_sleep: "${INTEGRATION_STORAGE_NO_READ_RECORDS_SLEEP:1000}"

executors:
  # Size of the thread pool to handle incoming messages and tasks
  thread_pool_size: "${EXECUTORS_SIZE:1}"
  # Timeout to reconnect to ThingsBoard
  reconnect_timeout: "${EXECUTORS_RECONNECT_TIMEOUT:3000}" # in milliseconds

rpc:
  # Host of the ThingsBoard server
  host: "${RPC_HOST:thingsboard.cloud}"
  # Port of the ThingsBoard server
  port: "${RPC_PORT:9090}"
  # No reply timeout
  timeout: "${RPC_TIMEOUT:5}" # Timeout in seconds for channel termination
  # ID of the RPC client
  client_id: "${RPC_CLIENT_ID:remote}"
  ssl:
    # SSL enabled/disabled
    enabled: "${RPC_SSL_ENABLED:false}"
    # SSL certificate
    cert: "${RPC_SSL_CERT:roots.pem}"

js:
  evaluator: "${JS_EVALUATOR:local}"
  # Built-in JVM JavaScript environment properties
  local:
    # Use Sandboxed (secured) JVM JavaScript environment
    use_js_sandbox: "${USE_LOCAL_JS_SANDBOX:true}"
    # Specify thread pool size for JavaScript sandbox resource monitor
    monitor_thread_pool_size: "${LOCAL_JS_SANDBOX_MONITOR_THREAD_POOL_SIZE:4}"
    # Maximum CPU time in milliseconds allowed for script execution
    max_cpu_time: "${LOCAL_JS_SANDBOX_MAX_CPU_TIME:5000}"
    # Maximum allowed JavaScript execution errors before JavaScript will be blacklisted
    max_errors: "${LOCAL_JS_SANDBOX_MAX_ERRORS:3}"

service:
  type: "${TB_SERVICE_TYPE:tb-integration}"

Troubleshooting

注意：如果你发现与DNS问题相关的错误，例如

127.0.1.1:53: cannot unmarshal DNS message

你可以配置系统以使用Google公用DNS服务

Ubuntu Server

Install Java 11 (OpenJDK)

ThingsBoard服务运行在Java 11请按照以下说明安装OpenJDK 11：

sudo apt update
sudo apt install openjdk-11-jdk

使用以下命令设置默认版本是OpenJDK 11：

sudo update-alternatives --config java

可以使用以下命令检查安装：

java -version

命令输出结果：

openjdk version "11.0.xx"
OpenJDK Runtime Environment (...)
OpenJDK 64-Bit Server VM (build ...)

Choose Integration package to install

MQTT Integrations
(MQTT, AWS IoT, IBM Watson, The Things Network)

HTTP Integrations
(HTTP, Sigfox, ThingPark, OceanConnect and
T-Mobile IoT CDP)

CoAP
Integration

Download installation package:

wget https://dist.thingsboard.io/tb-http-integration-3.5.1pe.deb

Install integration as a service:

sudo dpkg -i tb-http-integration-3.5.1pe.deb

Open the file for editing using the following command:

sudo nano /etc/tb-http-integration/conf/tb-http-integration.conf

Locate the following configuration block:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=thingsboard.cloud
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

执行以下命令以启动ThingsBoard：

sudo service tb-http-integration start

Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

sudo nano /etc/tb-http-integration/conf/tb-http-integration.conf

After executing this command you can open logs which are located here /var/log/tb-http-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

wget https://dist.thingsboard.io/tb-mqtt-integration-3.5.1pe.deb

Install integration as a service:

sudo dpkg -i tb-mqtt-integration-3.5.1pe.deb

Open the file for editing using the following command:

sudo nano /etc/tb-mqtt-integration/conf/tb-mqtt-integration.conf

Locate the following configuration block:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=thingsboard.cloud
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

执行以下命令以启动ThingsBoard：

sudo service tb-mqtt-integration start

Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

sudo nano /etc/tb-mqtt-integration/conf/tb-mqtt-integration.conf

After executing this command you can open logs which are located here /var/log/tb-mqtt-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

wget https://dist.thingsboard.io/tb-aws-integration-3.5.1pe.deb

Install integration as a service:

sudo dpkg -i tb-aws-integration-3.5.1pe.deb

Open the file for editing using the following command:

sudo nano /etc/tb-aws-integration/conf/tb-aws-integration.conf

Locate the following configuration block:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=thingsboard.cloud
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

执行以下命令以启动ThingsBoard：

sudo service tb-aws-integration start

Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

sudo nano /etc/tb-aws-integration/conf/tb-aws-integration.conf

After executing this command you can open logs which are located here /var/log/tb-aws-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

wget https://dist.thingsboard.io/tb-azure-integration-3.5.1pe.deb

Install integration as a service:

sudo dpkg -i tb-azure-integration-3.5.1pe.deb

Open the file for editing using the following command:

sudo nano /etc/tb-azure-integration/conf/tb-azure-integration.conf

Locate the following configuration block:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=thingsboard.cloud
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

执行以下命令以启动ThingsBoard：

sudo service tb-azure-integration start

Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

sudo nano /etc/tb-azure-integration/conf/tb-azure-integration.conf

After executing this command you can open logs which are located here /var/log/tb-azure-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

wget https://dist.thingsboard.io/tb-opc-ua-integration-3.5.1pe.deb

Install integration as a service:

sudo dpkg -i tb-opc-ua-integration-3.5.1pe.deb

Open the file for editing using the following command:

sudo nano /etc/tb-opc-ua-integration/conf/tb-opc-ua-integration.conf

Locate the following configuration block:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=thingsboard.cloud
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

执行以下命令以启动ThingsBoard：

sudo service tb-opc-ua-integration start

Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

sudo nano /etc/tb-opc-ua-integration/conf/tb-opc-ua-integration.conf

After executing this command you can open logs which are located here /var/log/tb-opc-ua-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

wget https://dist.thingsboard.io/tb-tcp-udp-integration-3.5.1pe.deb

Install integration as a service:

sudo dpkg -i tb-tcp-udp-integration-3.5.1pe.deb

Open the file for editing using the following command:

sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

Locate the following configuration block:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=thingsboard.cloud
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

执行以下命令以启动ThingsBoard：

sudo service tb-tcp-udp-integration start

Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

After executing this command you can open logs which are located here /var/log/tb-tcp-udp-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

wget https://dist.thingsboard.io/tb-coap-integration-3.5.1pe.deb

Install integration as a service:

sudo dpkg -i tb-coap-integration-3.5.1pe.deb

Open the file for editing using the following command:

sudo nano /etc/tb-coap-integration/conf/tb-coap-integration.conf

Locate the following configuration block:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=thingsboard.cloud
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

执行以下命令以启动ThingsBoard：

sudo service tb-coap-integration start

Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

sudo nano /etc/tb-coap-integration/conf/tb-coap-integration.conf

After executing this command you can open logs which are located here /var/log/tb-coap-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

CentOS/RHEL Server

Install Java 11 (OpenJDK)

ThingsBoard服务运行在Java 11请按照以下说明安装OpenJDK 11：

sudo yum install java-11-openjdk

使用以下命令设置默认版本是OpenJDK 11：

sudo update-alternatives --config java

可以使用以下命令检查安装：

java -version

命令输出结果：

openjdk version "11.0.xx"
OpenJDK Runtime Environment (...)
OpenJDK 64-Bit Server VM (build ...)

Choose Integration package to install

MQTT Integrations
(MQTT, AWS IoT, IBM Watson, The Things Network)
