Add & remove devices to group dynamically

ThingsBoard PE Feature Only ThingsBoard Professional Edition supports Device & Asset Groups feature. See ThingsBoard PE Installation Options to install ThingsBoard PE.

This tutorial will show how to dynamically add & remove device from the device group based on incoming data from device.

• Use case
• Prerequisites
• Model definition
• Message Flow
  • Root rule chain
  • New “Add device to group” rule chain
• Configuring the Rule Chain
• Validating the flow
• Next steps

Use case

Let’s assume your device is reporting temperature readings to ThingsBoard and you would like to visualize devices that have reported temperature > 50°C.

In this tutorial we will configure ThingsBoard Rule Engine to automatically update “High temperature devices” group members based on incoming temperature readings from the device. You can use this tutorial as a basis for much more complex filtering.

Prerequisites

We assume you have completed the following guides and reviewed the articles listed below:

• Getting Started guide.
• Rule Engine Overview.

Model definition

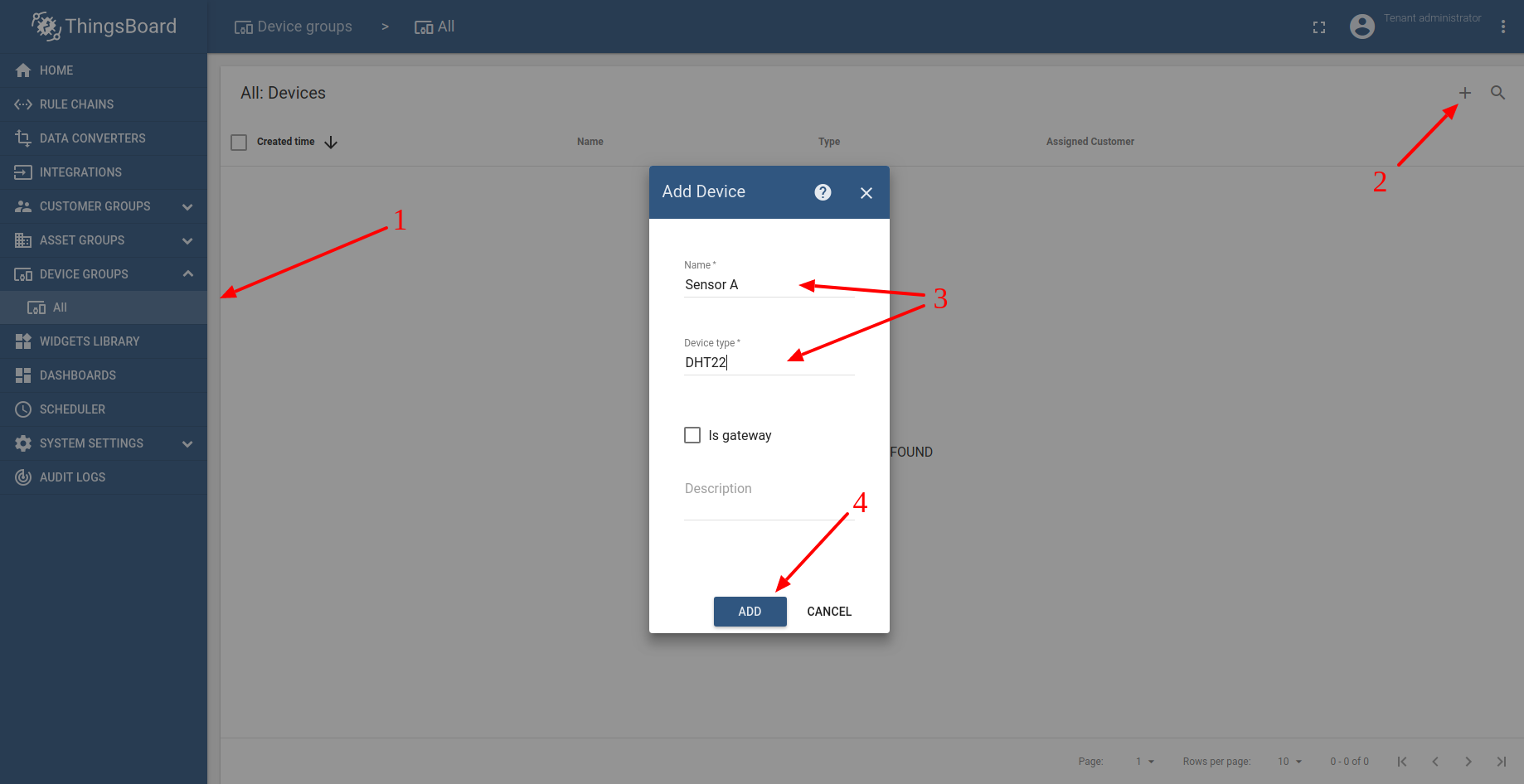

We will operate with Temperature sensor device that has name “Sensor A” and type “DHT22”.

Message Flow

In this section, we explain the purpose of each node in this tutorial.

Root rule chain

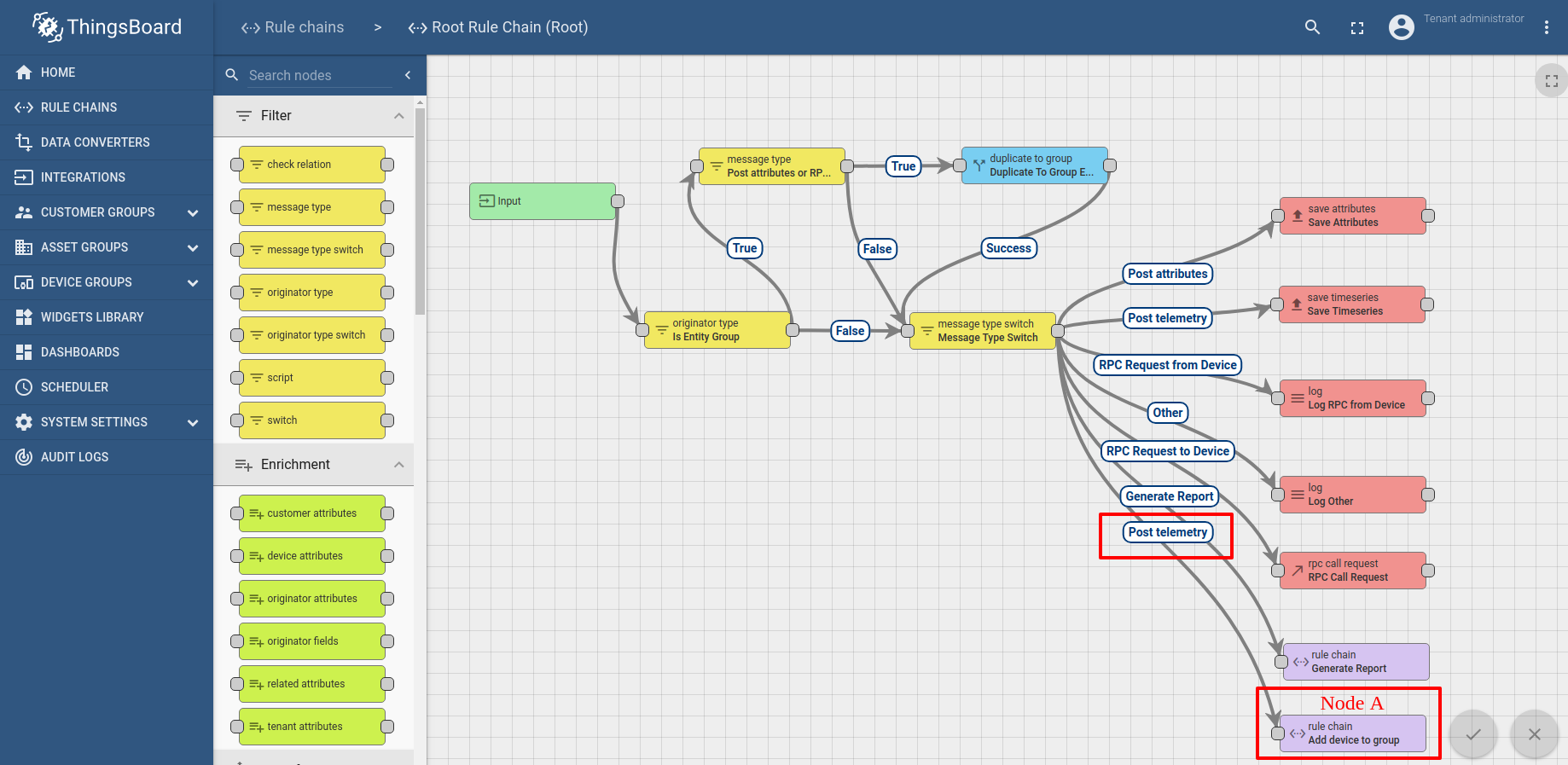

• Node A: Rule Chain node

  • We modify the default root rule chain to forward all telemetry to new “Add device to group” rule chain

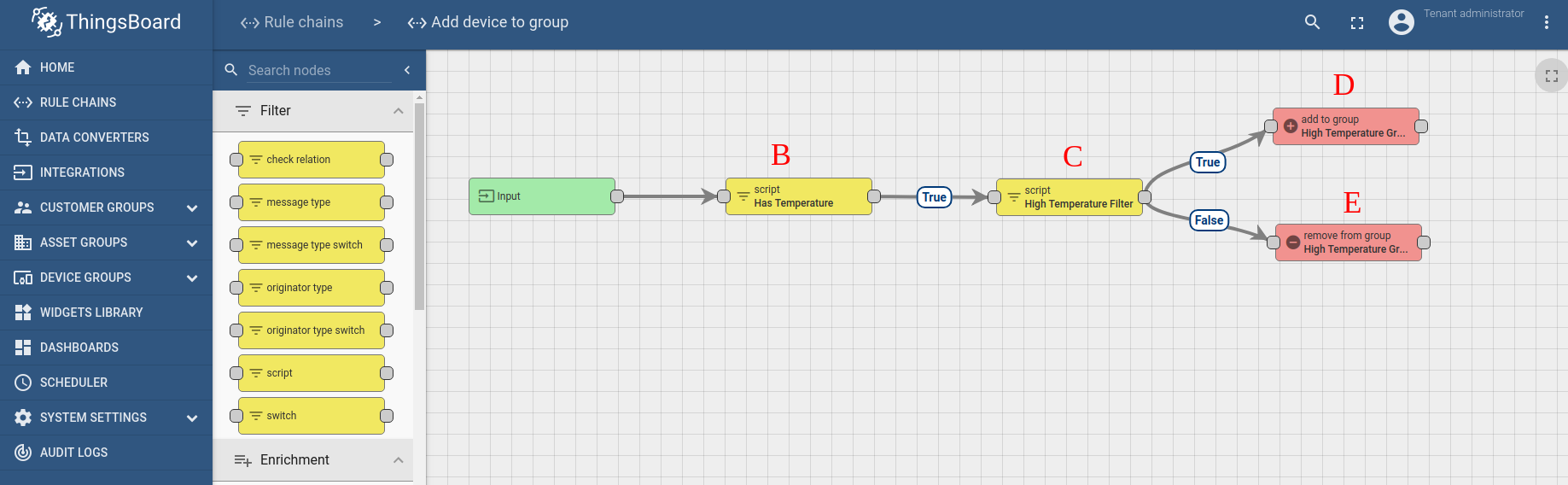

New “Add device to group” rule chain

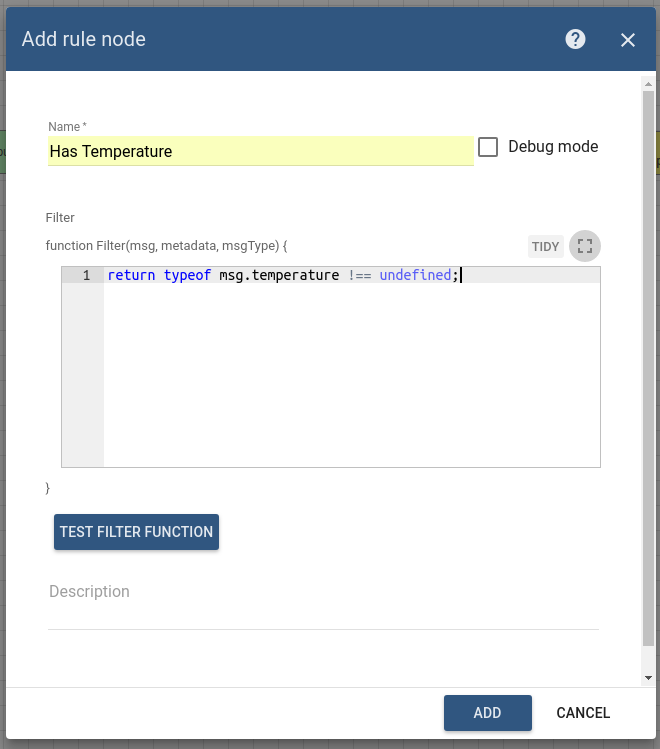

• Node B: Script filter node

  • Checks that the incoming message from device contains temperature readings
  • If message from device contains temperature readings it is forwarded to Node C

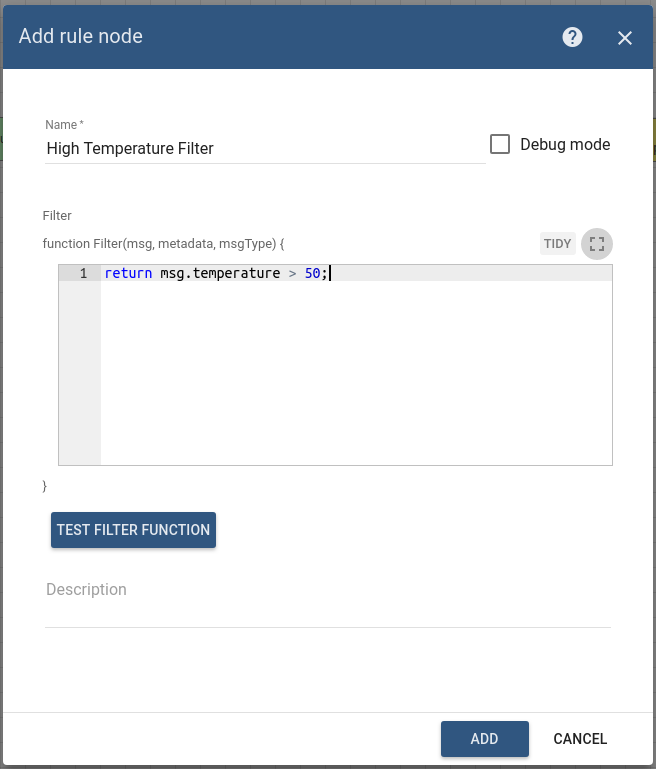

• Node C: Script filter node

  • Checks that the incoming message temperature is > 50°C
  • If temperature > 50°C message is forwarded to Node D
  • If temperature <= 50°C message is forwarded to Node E

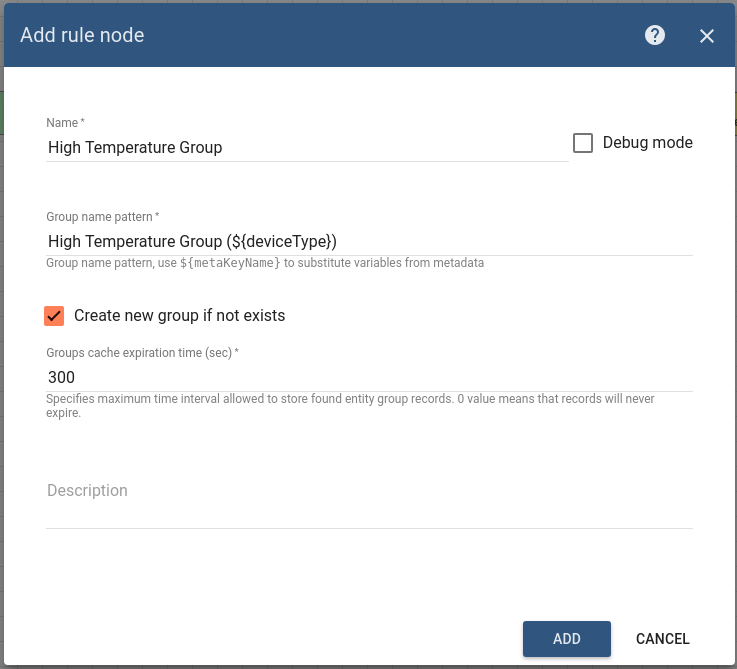

• Node D: Add to Group node

  • Adds device to the group
  • Constructs group name by substituting deviceType metadata value
  • Automatically creates device group if needed

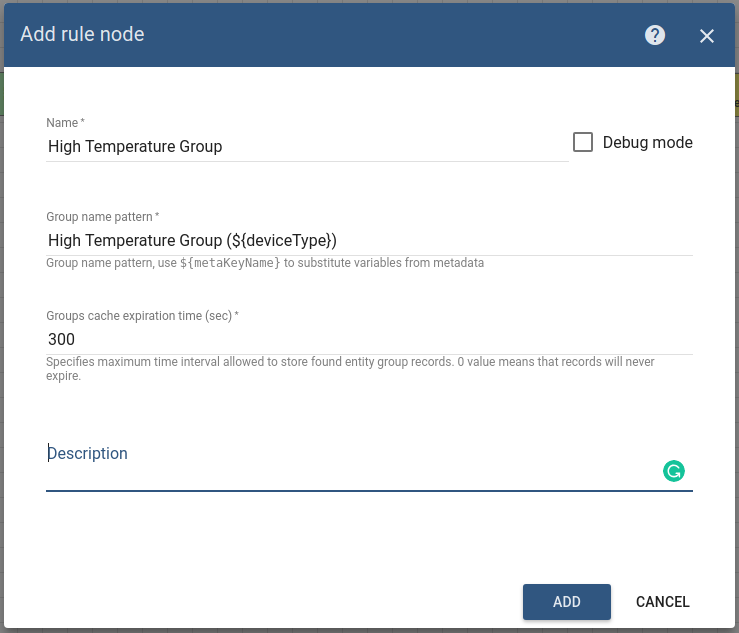

• Node E: Remove from Group node

  • Removes device from the group
  • Constructs group name by substituting deviceType metadata value

Configuring the Rule Chain

Download and import attached json file as a new “Add device to group” rule chain. Please note that all nodes have debug enabled. This affects performance. Create Node A as shown on the image above in the root rule chain to forward telemetry to new rule chain.

Validating the flow

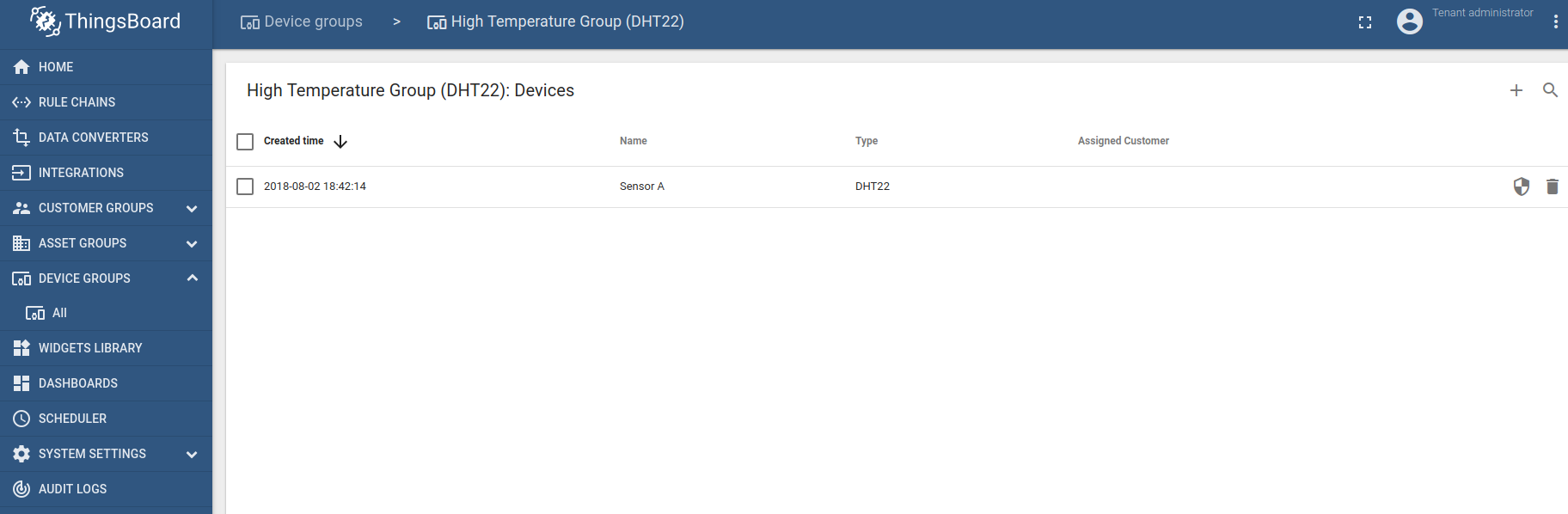

Publish temperature readings on behalf of the new device and observe new group automatically created:
