The purpose of this tutorial is to show how the Check Relation node can be used to check the relation between Entities.

Use case
Prerequisites
Adding the devices and creating the relation between them
Message flow
Configure Rule Chains
- Create new Rule Chain (Related Fire Alarm System)
- Modify Root Rule Chain
How to verify the Rule Chain and Post telemetry
See Also
- Next steps

Use case

Let’s assume the following use case:

You have 2 devices:
- Smoke Detector with the Smoke Sensor which sends data to ThingsBoard when it appears.
- Fire Alarm System which provides a fire alarm, when the smoke is present.

However, there are different ways for the realization of this case, for example, it can be implemented using the Switch node that routes incoming Message to one or multiple output chains.
For more information about how to use the Switch node, please check the link to The article of Switch Node in the See Also section.

Prerequisites

You need to read the following guides before you start this tutorial:

Adding the devices and creating the relation between them

Add two Device entity in ThingsBoard:

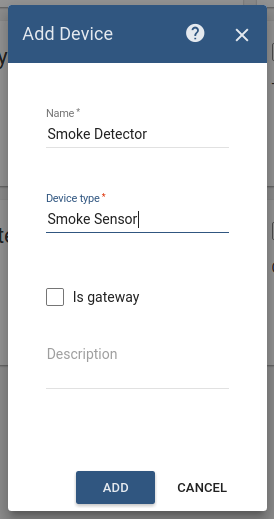

Smoke Detector is represented as a Device. Its name is Smoke Detector and its type is Smoke Sensor.

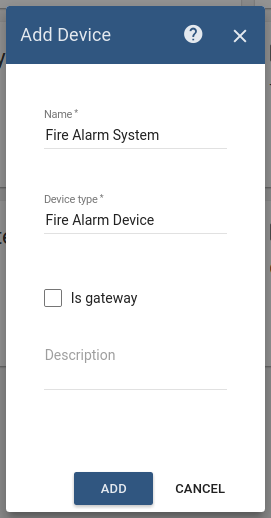

Fire Alarm System is represented as a Device. Its name is Fire Alarm System and its type is Fire Alarm Device.

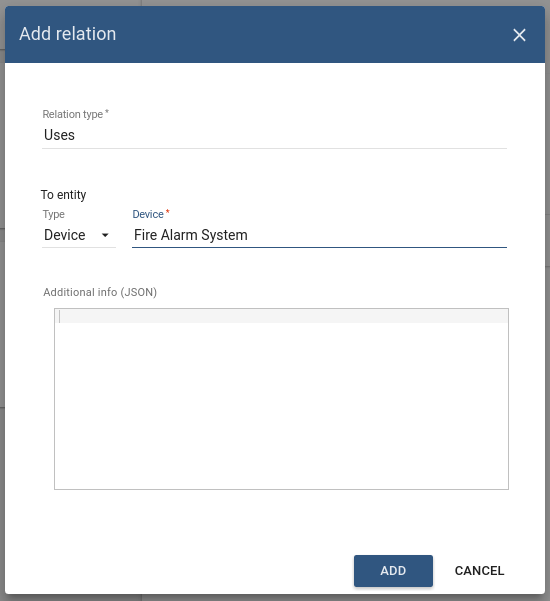

Create a relation of the type Uses:

from Smoke Detector to Fire Alarm System;

The following screenshots show how to do this:

Message flow

In this section, we explain the purpose of each node in this tutorial:

Node A: Check Relation node.
- Checks the relation from the Device, Fire Alarm System, to the originator of the message Smoke Detector using the type and direction of relation.
Node B: Change originator node.
- Change the originator from Devices Smoke Detector to the related Device Fire Alarm System and the submitted message will be processed as a message from Device Fire Alarm System.
Node C: Transformation Script.
- Transform an original message into RPC request message.
Node D: RPC call request node.
- Takes the message payload and sends it as a response to the Fire Alarm System.
Node E: Filter Script node.
- Checks if data of incoming message is smoke.
Node F: Clear alarm node.
- Loads the latest Alarm with configured Alarm Type for Message Originator Smoke Detector and Clears the Alarm if it exists.
Node G: Create alarm node.
- Tries to load the latest Alarm with configured Alarm Type for Message Originator, namely Smoke Detector.
Node H: Rule Chain node.
- Forwards incoming Message to specified Rule Chain Related Fire Alarm System.

Configure Rule Chains

In this tutorial, we modified our Root Rule Chain and also created Rule Chain Related Fire Alarm System

The following screenshots show how the above Rule Chains should look like:

Related Fire Alarm System:

Root Rule Chain:

Download the attached json file for the Root Rule Chain. Don’t forget to mark this rule chain as root.

Also, you need to create Related Fire Alarm System Rule Chain or you can download the attached json file for this Chain and import it.

The following section shows you how to create it.

Go to Rule Chains -> Add new Rule Chain

Configuration:

Name : Related Fire Alarm System

New Rule Chain is created. Press Edit button and configure Chain.

Adding the required nodes

In this rule chain, you will create 4 nodes as it will be explained in the following sections:

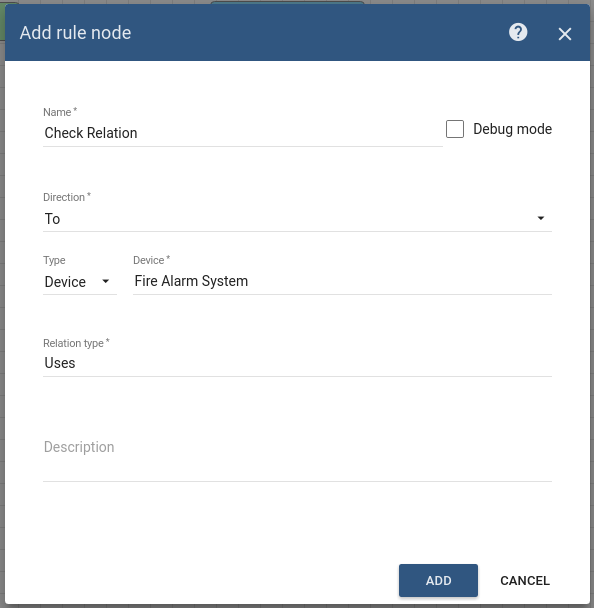

Node A: Check Relation

Add the Check Relation node and connect it to the Input node.

This node will check the relation from the Device, Fire Alarm System, to the originator of the message Smoke Detector using the type and direction of relation. If the relation exists, the message will be sent through the True chain.
Fill in the fields with the input data shown in the following table:

Field	Input Data
Name	Check Relation
Direction	To
Type	Device
Device	Fire Alarm System
Relation type	Uses

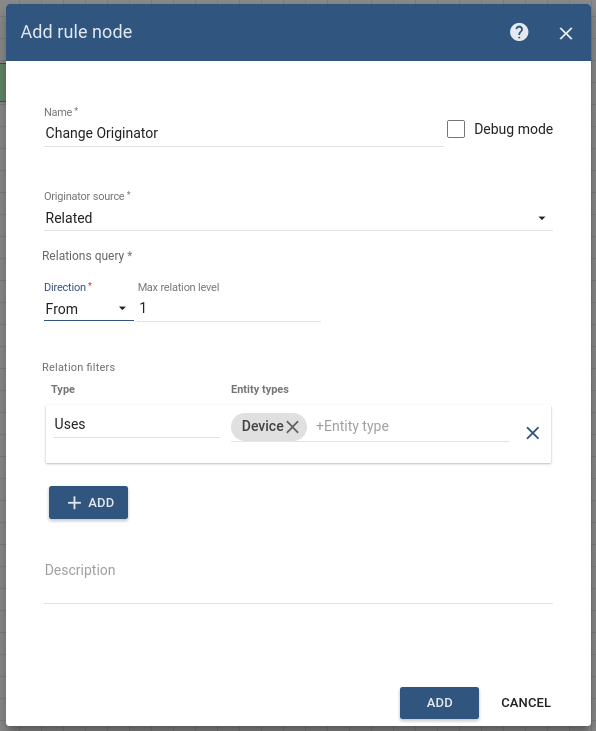

Node B: Change Orignator

Add the Change Orignator node and connect it to the Check Relation node with a relation type True.
This node will change the originator from the Device Smoke Detector to the related Device Fire Alarm System and the submitted message will be processed as a message from another entity, namely Fire Alarm System.
Fill in the fields with the input data shown in the following table:

Field	Input Data
Name	Change Originator
Originator source	Related
Direction	From
Max relationship level	1
Relation type	Uses
Entity type	Device

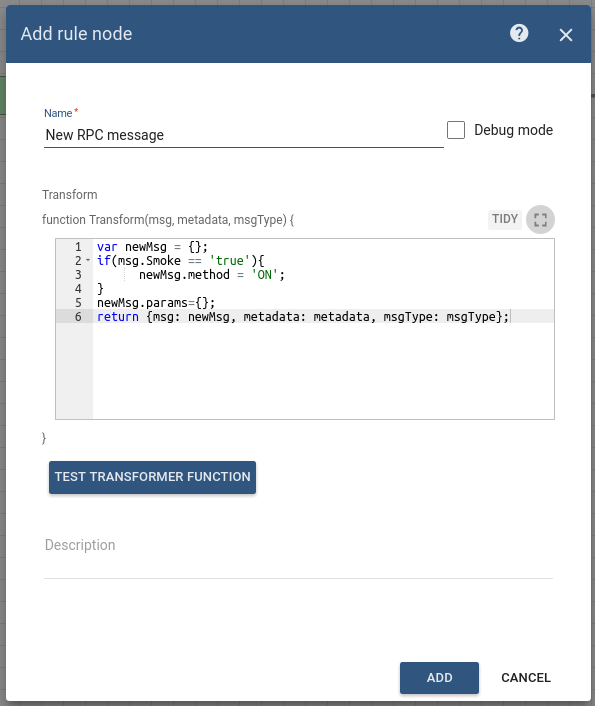

Node C: Script Transformation

Add the Script Transformation node and connect it to the Change Orignator node with a relation type Success.

This node will transform an original message into RPC request message.

The RPC call will have 2 properties:

Property Value

method ON

params {}
In order to do this, add the following Script:

Property	Value
method	ON
params	{}

    var newMsg = {};
    if(msg.smoke == 'true'){
          newMsg.method = 'ON';
    }
    newMsg.params={};
    return {msg: newMsg, metadata: metadata, msgType: msgType};

Enter the Name field as New RPC message.

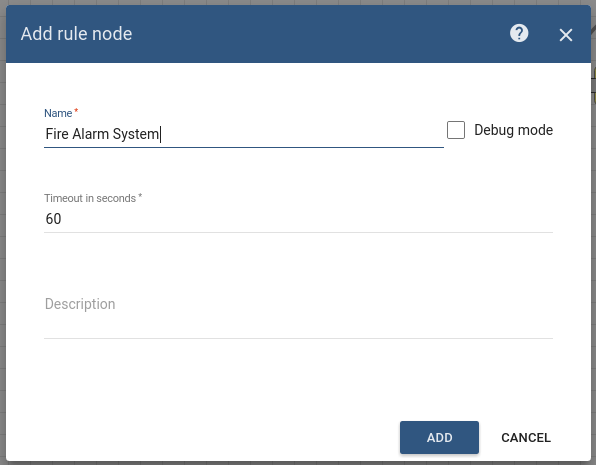

Node D: RPC call request node

Add the RPC call request node and connect it to the Script Transformation node with a relation type Success.
This node takes the message payload and sends it as a response to the Message Originator Fire Alarm System.
Enter the Name field as Fire Alarm System.
Enter the Timeout value as 60 seconds.

This Rule chain is ready and we should save it.

Modify Root Rule Chain

The initial Rule Chain has been modified by adding the following nodes:

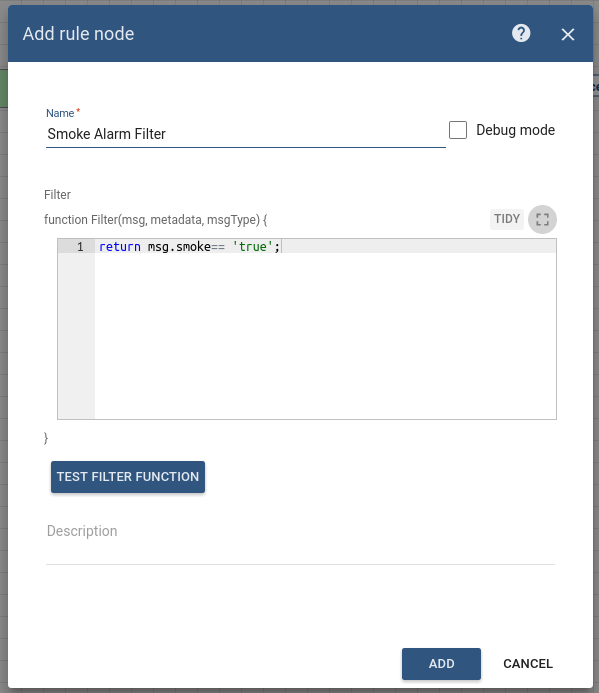

Node E: Filter Script

Add the Filter Script node and connect it to the Save Timeseries node with a relation type Success.
This node will check if data of incoming message is smoke using the following script:

return msg.smoke== 'true';

Enter the Name field as Smoke Alarm Filter.

Node F: Clear Alarm

Add the Clear Alarm node and connect it to the Filter Script node with a relation type False.
This node loads the latest Alarm with configured Alarm Type for Message Originator Smoke Detector and Clears the Alarm if it exists.
Enter the Name field as Clear Smoke Alarm and the Alarm type as Smoke Alarm.

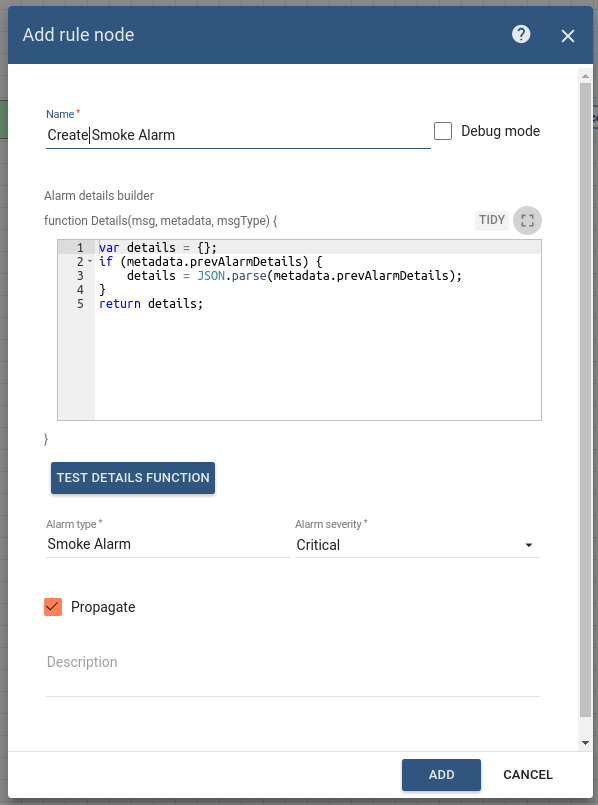

Node G: Create alarm

Add the Create alarm node and connect it to the Filter Script node with a relation type True.
This node tries to load the latest Alarm with configured Alarm Type for Message Originator, namely Smoke Detector.
Enter the Name field as Create Smoke Alarm and the Alarm type as Smoke Alarm.

Node H: Rule Chain

Add the Rule Chain node and connect it to the Filter Script node with a relation type True.
This node forwards incoming Message to specified Rule Chain Related Fire Alarm System.
Enter the Name field as Related Fire Alarm System.

The following screenshot shows how the final Root Rule Chain should look like:

How to verify the Rule Chain and Post telemetry

Use the following javascript code to emulate the Fire Alarm System device.
- FireAlarmEmulator.js.
- To run the script, you need to do the following steps:
- Copy the Fire Alarm System device access token, then paste them in the script.
  You can copy the access token from the Device page.
Use the Rest APIs, Telemetry upload APIs, for posting telemetry from the device Smoke Detector.

curl -v -X POST -d '{"smoke":"true"}' http://demo.thingsboard.io/api/v1/$ACCESS_TOKEN/telemetry --header "Content-Type:application/json"

**you need to replace $ACCESS_TOKEN with the actual device token**

Also, you can:

configure the Dashboard by adding an alarm widget to visualize the alarms.
define an additional logic for alarm processing, for example, sending an email.

Please refer to the third and fourth links under the See Also section to see how to do this.
