Use case

Let’s assume your device is reporting absolute “counter” that correspond to water consumption. However, you would like to visualize not the “absolute” but “delta” values, e.g. how many water was consumer within last day, week, month.

In this tutorial we will calculate “delta” of the counter readings based on current and previous reading.

Assuming that previous reported value of counter was 90, we will transform incoming telemetry:

{
  "counter": 100
}

{
  "counter": 100,
  "delta": 10
}

Prerequisites

We assume you have completed the following guides and reviewed the articles listed below:

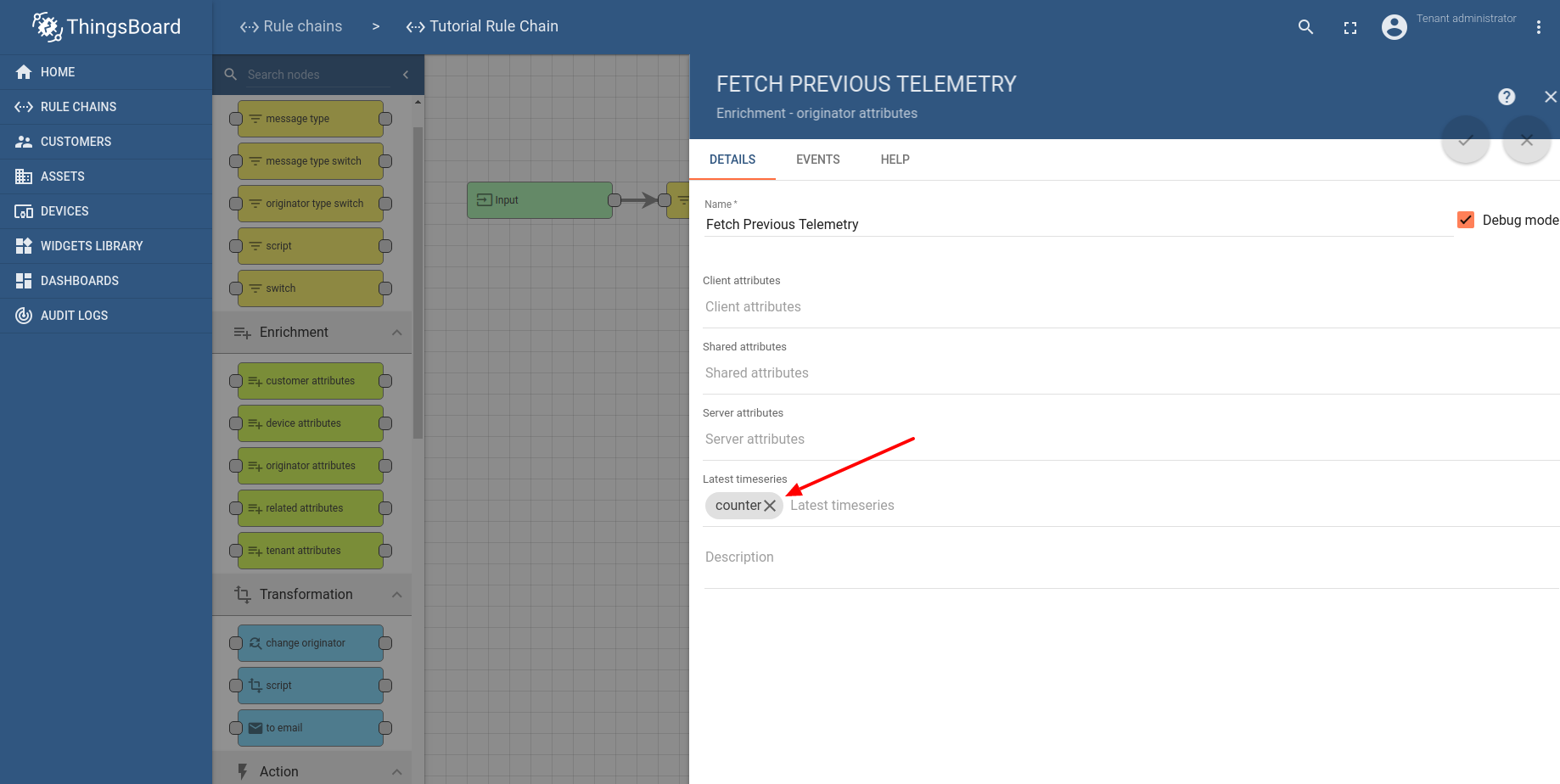

Step 1: Adding enrichment node

We will modify default rule chain and will an enrichment rule node to fetch previous telemetry value from the database and put it to the message metadata.

We will use the following node configuration:

Please note that if the “counter” value is missing, the rule node will return failure. We will protect from this failure by setting the default previous counter on the next step.

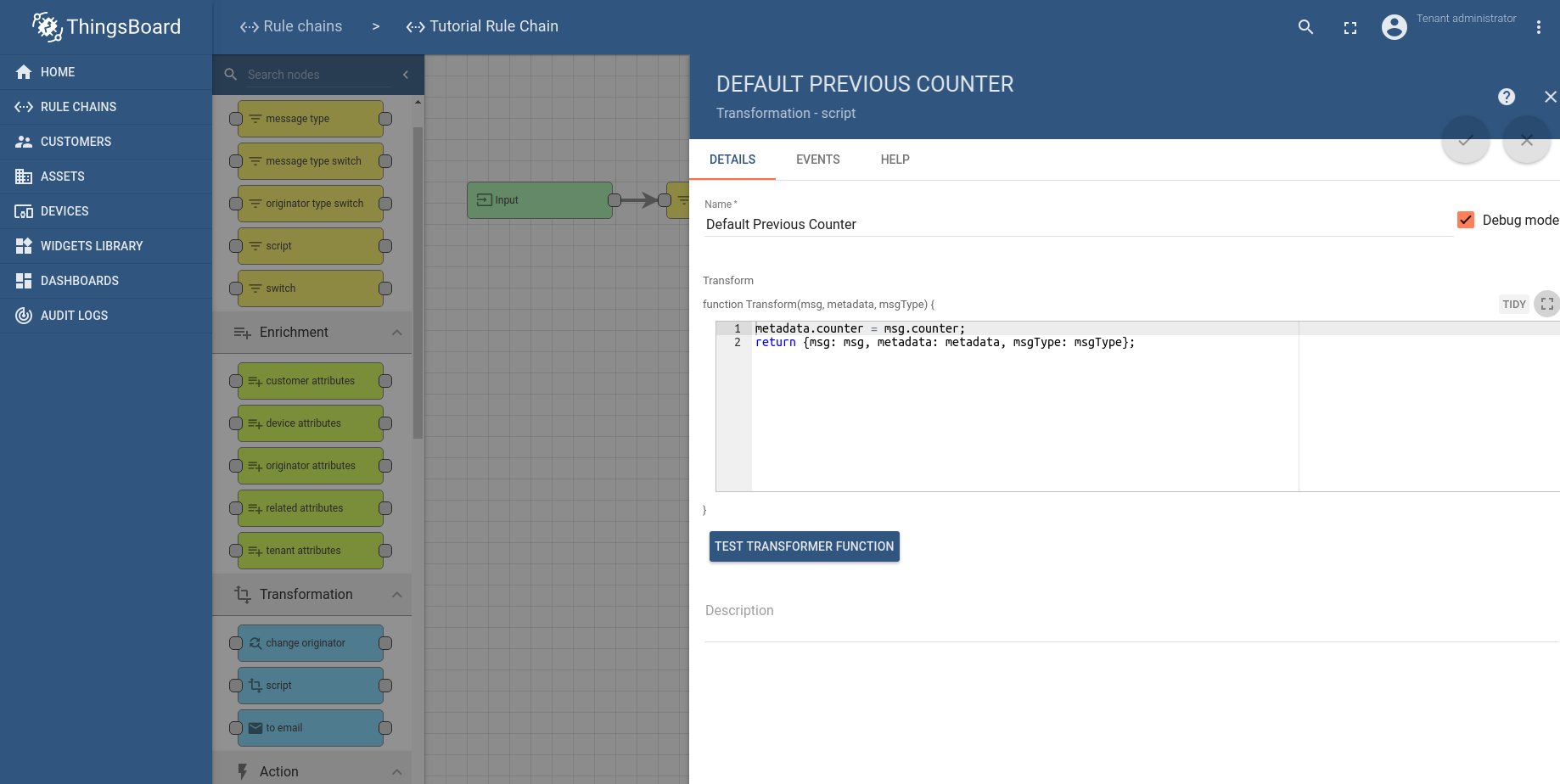

Step 2: Default previous counter node

This transformation node will set the default counter to the metadata from the incoming message. This will be used to set default “delta” value to 0 on the next step.
