ChirpStack 集成

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
var data = decodeToJson(payload);
var deviceName = data.deviceInfo.deviceName;
var deviceType = data.deviceInfo.deviceProfileName;
var groupName = 'IAQ devices';
// var customerName = 'Customer A';
// use assetName and assetType instead of deviceName and deviceType
// to automatically create assets instead of devices.
// var assetName = 'Asset A';
// var assetType = 'building';

// If you want to parse incoming data somehow, you can add your code to this function.
// input: bytes
// expected output:
//  {
//    "attributes": {"attributeKey": "attributeValue"},
//    "telemetry": {"telemetryKey": "telemetryValue"}
//  }
//
// In the example - bytes will be saved as HEX string and also parsed as light level, battery level and PIR sensor value.
//

function decodePayload(input) {
var output = { attributes:{}, telemetry: {} };
// --- Decoding code --- //

    output.telemetry.HEX_bytes = bytesToHex(input);

    // If the length of the input byte array is odd - we cannot parse it using the example below
    if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

    // --- Decoding code --- //
    return output;
}

// --- attributes and telemetry objects ---
var telemetry = {};
var attributes = {};
// --- attributes and telemetry objects ---

// --- Timestamp parsing
var dateString = data.time;
var timestamp = -1;
if (dateString != null) {
  timestamp = new Date(dateString).getTime();
  if (timestamp == -1) {
    var secondsSeparatorIndex = dateString.lastIndexOf('.') + 1;
    var millisecondsEndIndex = dateString.lastIndexOf('+');
    if (millisecondsEndIndex == -1) {
      millisecondsEndIndex = dateString.lastIndexOf('Z');
    }
    if (millisecondsEndIndex == -1) {
      millisecondsEndIndex = dateString.lastIndexOf('-');
    }
    if (millisecondsEndIndex == -1) {
      if (dateString.length >= secondsSeparatorIndex + 3) {
        dateString = dateString.substring(0, secondsSeparatorIndex + 3);
      }
    } else {
      dateString = dateString.substring(0, secondsSeparatorIndex + 3) +
        dateString.substring(millisecondsEndIndex, dateString.length);
    }
    timestamp = new Date(dateString).getTime();
  }
}
// If we cannot parse timestamp - we will use the current timestamp
if (timestamp == -1) {
timestamp = Date.now();
}
// --- Timestamp parsing

// You can add some keys manually to attributes or telemetry
attributes.deduplicationId = data.deduplicationId;

// You can exclude some keys from the result
var excludeFromAttributesList = ["deviceName", "rxInfo", "confirmed", "data", "deduplicationId","time", "adr", "dr", "fCnt"];
var excludeFromTelemetryList = ["data", "deviceInfo", "txInfo", "devAddr", "adr", "time", "fPort", "region_common_name", "region_config_id", "deduplicationId"];

// Message parsing
// To avoid paths in the decoded objects we passing false value to function as "pathInKey" argument.
// Warning: pathInKey can cause already found fields to be overwritten with the last value found.

var telemetryData = toFlatMap(data, excludeFromTelemetryList, false);
var attributesData = toFlatMap(data, excludeFromAttributesList, false);

var uplinkDataList = [];

// Passing incoming bytes to decodePayload function, to get custom decoding
var customDecoding = decodePayload(base64ToBytes(data.data));

// Collecting data to result
if (customDecoding.?telemetry.size() > 0) {
  telemetry.putAll(customDecoding.telemetry);
}

if (customDecoding.?attributes.size() > 0) {
  attributes.putAll(customDecoding.attributes);
}

telemetry.putAll(telemetryData);
attributes.putAll(attributesData);

var result = {
    deviceName: deviceName,
    deviceType: deviceType,
    //  assetName: assetName,
    //  assetType: assetType,
    //  customerName: customerName,
    groupName: groupName,
    attributes: attributes,
    telemetry: {
    ts: timestamp,
    values: telemetry
    }
};

return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
// Decode an uplink message from a buffer
// payload - array of bytes
// metadata - key/value object

/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);

// decode payload to JSON
// var data = decodeToJson(payload);

var deviceName = 'Device A';
var deviceType = 'thermostat';
var customerName = 'Customer C';
var groupName = 'thermostat devices';
var manufacturer = 'Example corporation';
// use assetName and assetType instead of deviceName and deviceType
// to automatically create assets instead of devices.
// var assetName = 'Asset A';
// var assetType = 'building';

// Result object with device/asset attributes/telemetry data
var result = {
// Use deviceName and deviceType or assetName and assetType, but not both.
  deviceName: deviceName,
  deviceType: deviceType,
// assetName: assetName,
// assetType: assetType,
// customerName: customerName,
  groupName: groupName,
  attributes: {
    model: 'Model A',
    serialNumber: 'SN111',
    integrationName: metadata['integrationName'],
    manufacturer: manufacturer
  },
  telemetry: {
    temperature: 42,
    humidity: 80,
    rawData: payloadStr
  }
};

/** Helper functions **/

function decodeToString(payload) {
  return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
  // covert payload to string.
  var str = decodeToString(payload);

  // parse string to JSON
  var data = JSON.parse(str);
  return data;
}

return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

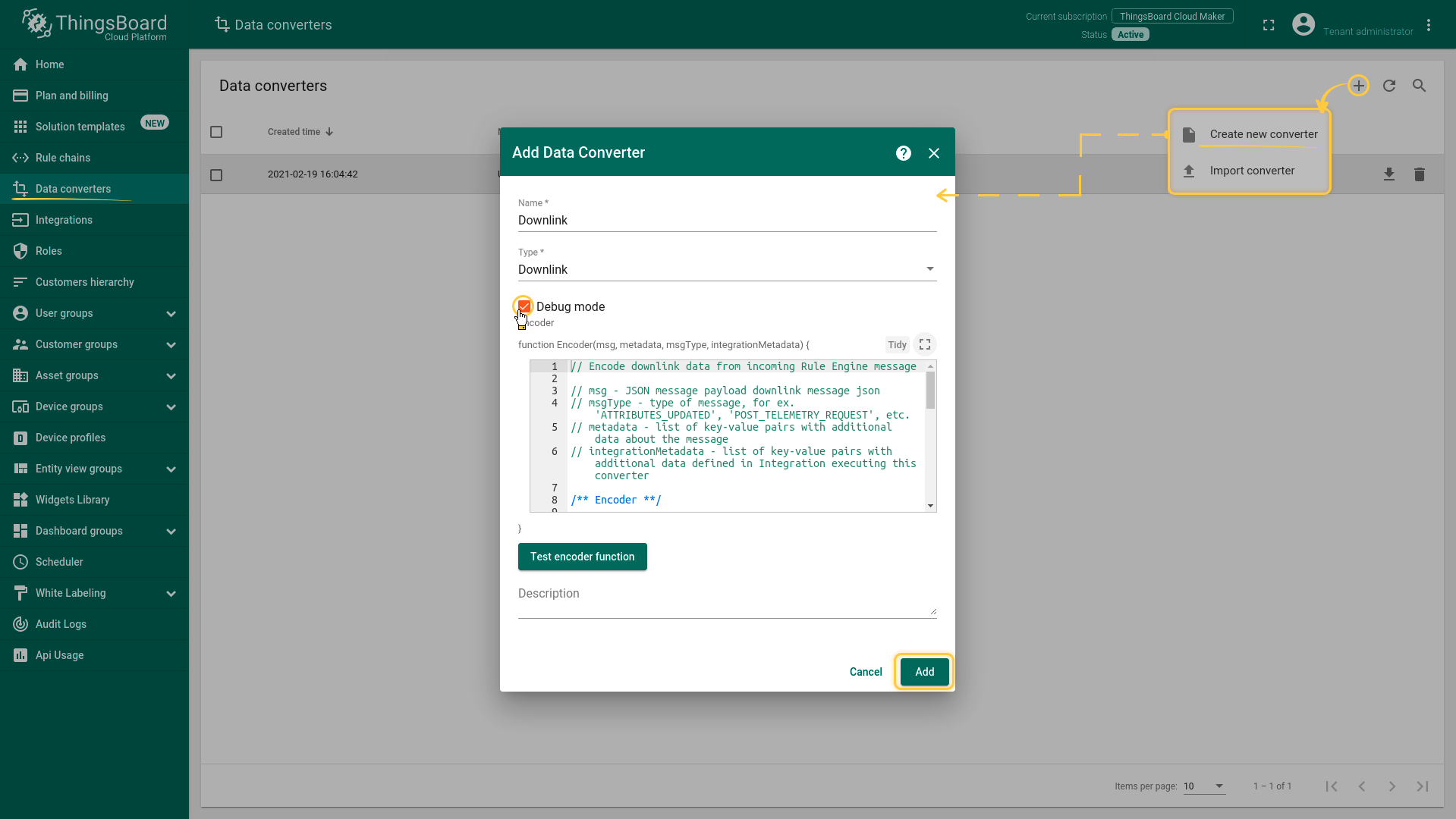

// Encode downlink data from incoming Rule Engine message

// msg - JSON message payload downlink message json
// msgType - type of message, for ex. 'ATTRIBUTES_UPDATED', 'POST_TELEMETRY_REQUEST', etc.
// metadata - list of key-value pairs with additional data about the message
// integrationMetadata - list of key-value pairs with additional data defined in Integration executing this converter

/** Encoder **/

// Result object with encoded downlink payload
var result = {

    // downlink data content type: JSON, TEXT or BINARY (base64 format)
    contentType: "TEXT",

    // downlink data
    data: btoa(msg.downlink),

    // Optional metadata object presented in key/value format
    metadata: {
            DevEUI: metadata.cs_devEui,
            fPort: metadata.cs_fPort
    }

};

return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
// Encode downlink data from incoming Rule Engine message

// msg - JSON message payload downlink message json
// msgType - type of message, for ex. 'ATTRIBUTES_UPDATED', 'POST_TELEMETRY_REQUEST', etc.
// metadata - list of key-value pairs with additional data about the message
// integrationMetadata - list of key-value pairs with additional data defined in Integration executing this converter

/** Encoder **/

// Result object with encoded downlink payload
var result = {

    // downlink data content type: JSON, TEXT or BINARY (base64 format)
    contentType: "TEXT",

    // downlink data
    data: btoa(msg.downlink),

    // Optional metadata object presented in key/value format
    metadata: {
            DevEUI: metadata.cs_devEui,
            fPort: metadata.cs_fPort
    }

};

return result;
