From Gateway version 3.1 we added a new OPC-UA connector based on the AsyncIO library. Note that the connector is in the early beta, so it can have bugs. Also, it is not recommended to use it in production mode for now. For enabling it, use the type of connector “opcua_asyncio”.

This guide will help you to get familiar with OPC-UA connector configuration for ThingsBoard IoT Gateway. Use general configuration to enable this extension. We will describe connector configuration file below.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
{
  "server": {
    "name": "OPC-UA Default Server",
    "url": "localhost:4840/freeopcua/server/",
    "timeoutInMillis": 5000,
    "scanPeriodInMillis": 5000,
    "disableSubscriptions":false,
    "subCheckPeriodInMillis": 100,
    "showMap": false,
    "security": "Basic128Rsa15",
    "identity": {
      "type": "anonymous"
    },
    "mapping": [
      {
        "deviceNodePattern": "Root\\.Objects\\.Device1",
        "deviceNamePattern": "Device ${Root\\.Objects\\.Device1\\.serialNumber}",
        "attributes": [
          {
            "key": "CertificateNumber",
            "path": "${ns=2;i=5}"
          }
        ],
        "timeseries": [
          {
            "key": "temperature °C",
            "path": "${Root\\.Objects\\.Device1\\.TemperatureAndHumiditySensor\\.Temperature}"
          },
          {
            "key": "batteryLevel",
            "path": "${Battery\\.batteryLevel}"
          }
        ],
        "rpc_methods": [
          {
            "method": "multiply",
            "arguments": [2, 4]
          }
        ],
        "attributes_updates": [
          {
            "attributeOnThingsBoard": "deviceName",
            "attributeOnDevice": "Root\\.Objects\\.Device1\\.serialNumber"
          }
        ]
      }
    ]
  }
}

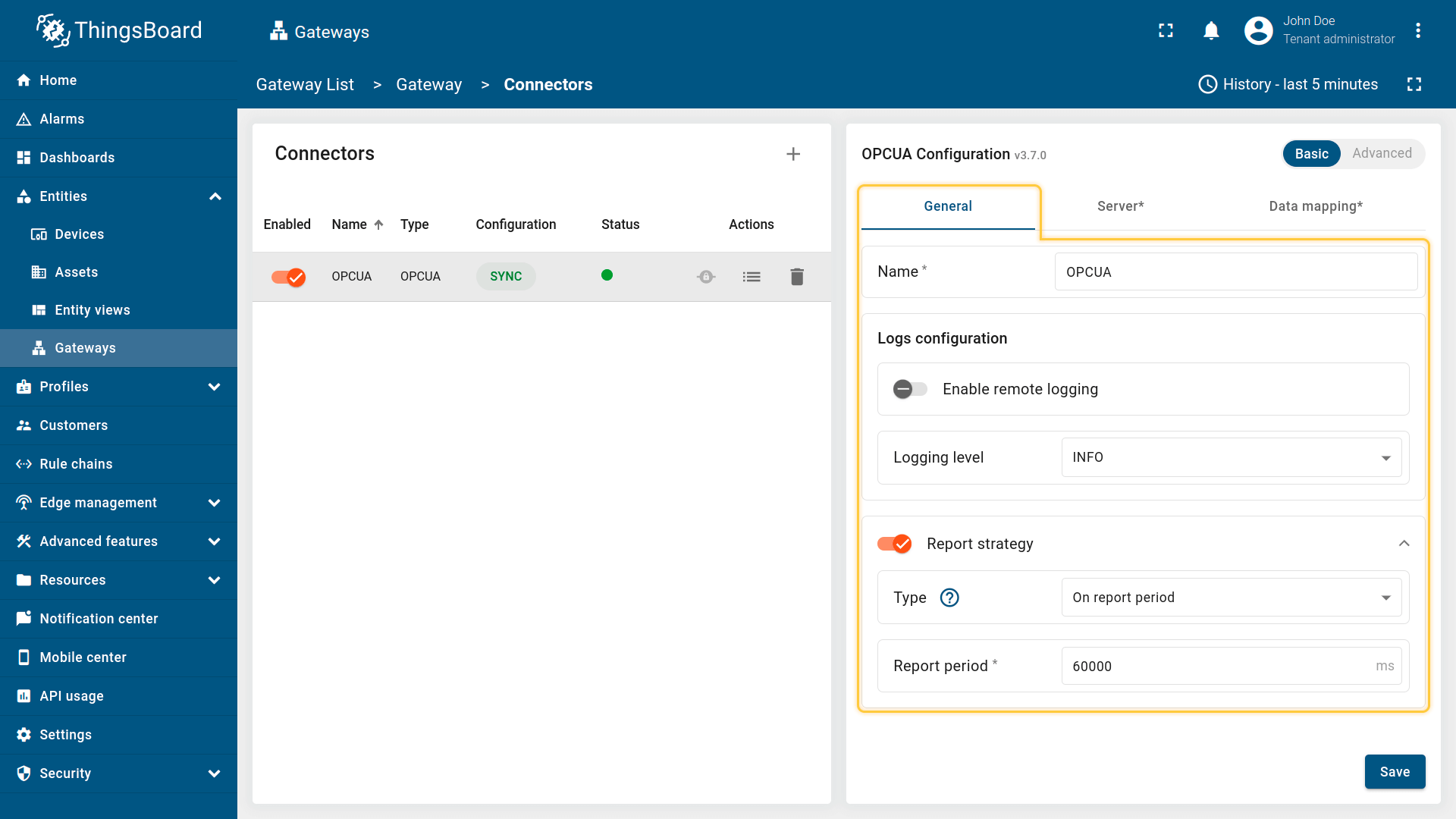

Section “server”

Configuration in this section uses for connecting to OPC-UA server.

Let’s look an example.
In this example uses the Prosys OPC UA Simulation Server to demonstrate how to configure the OPC-UA connector.

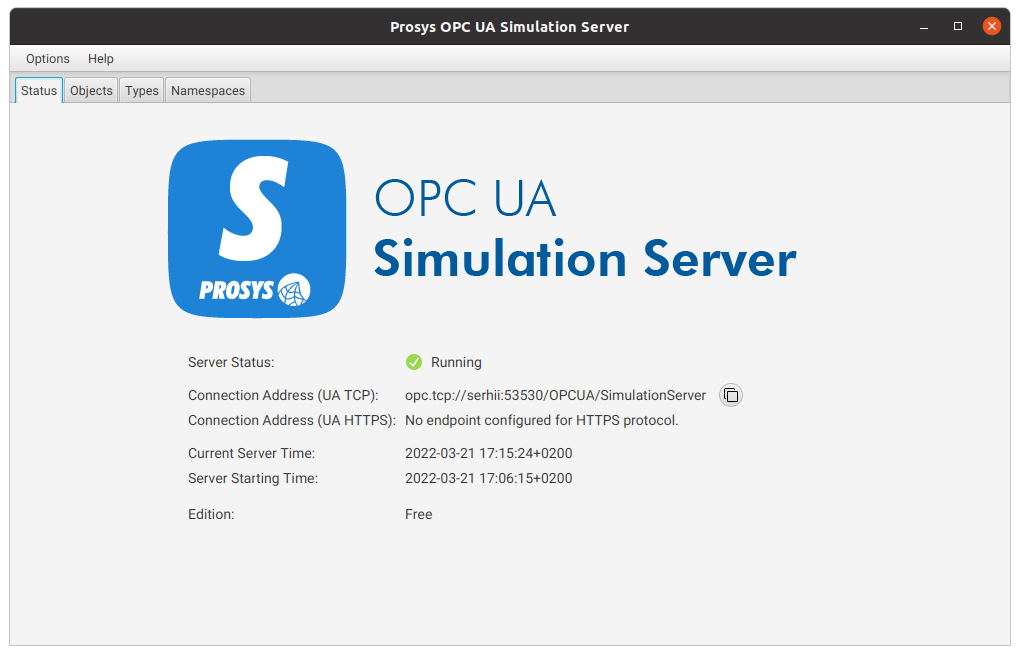

On the main “Status” tab, copy connection address (UA TCP).

To connect your OPC UA server to ThingsBoard, in the OPC-UA Connector configuration file (opcua.json), replace the “url” value with the copied connection address.

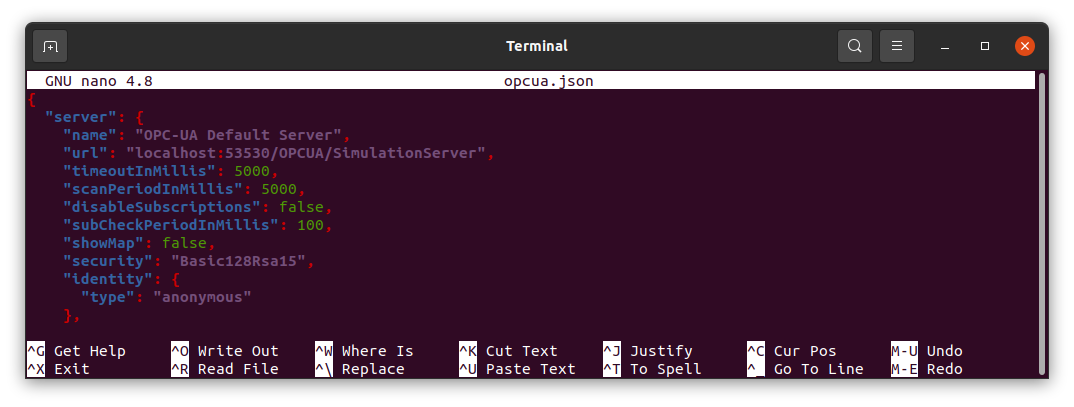

Our server section would look like this:

1
2
3
4
5
6
7
8
9
  "server": {
    "name": "OPC-UA Default Server",
    "url": "localhost:53530/OPCUA/SimulationServer",
    "timeoutInMillis": 5000,
    "scanPeriodInMillis": 5000,
    "disableSubscriptions": false,
    "subCheckPeriodInMillis": 100,
    "showMap": false,
    "security": "Basic128Rsa15",

Subsection “identity”

There are several types available for this subsection:

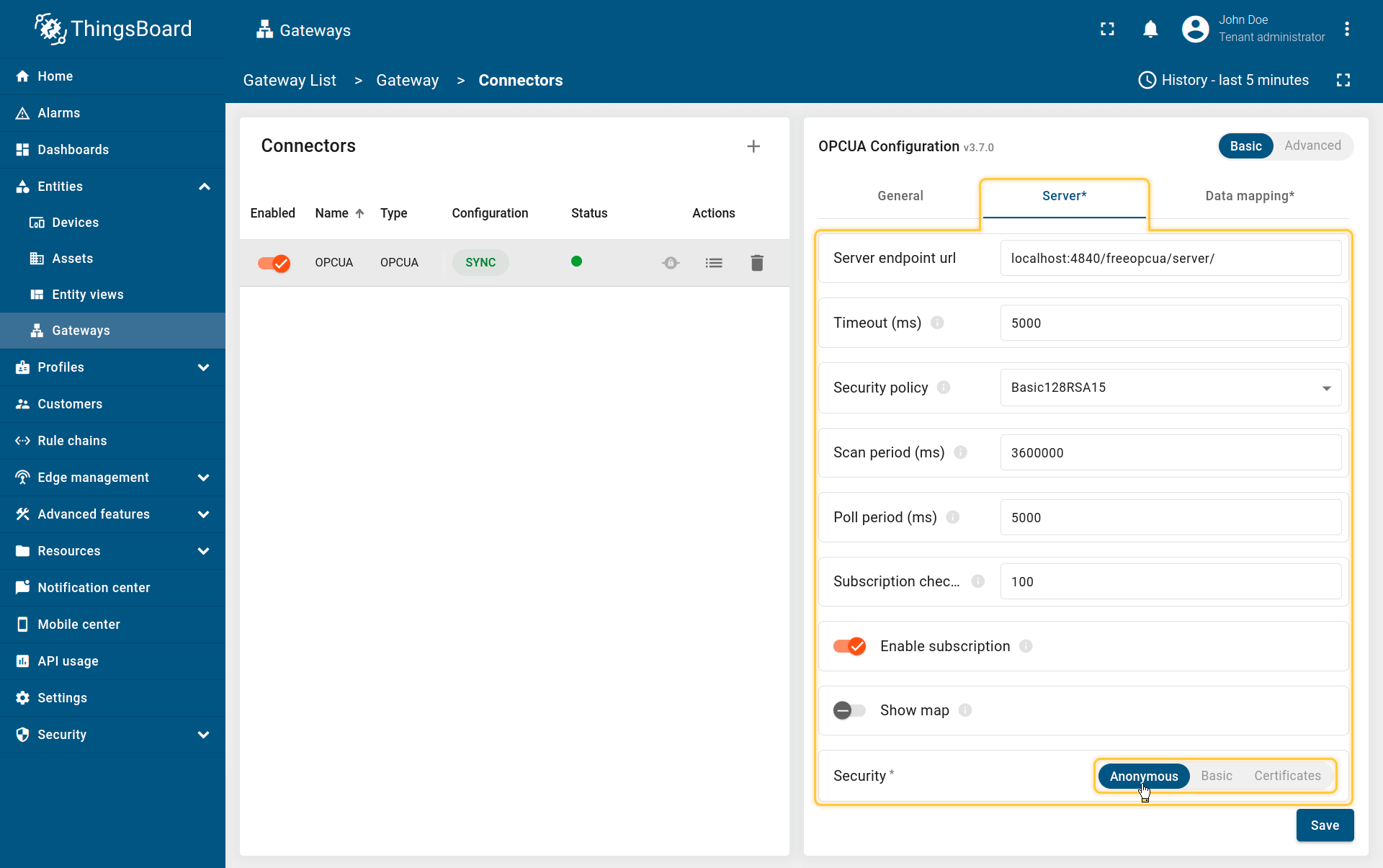

1. anonymous

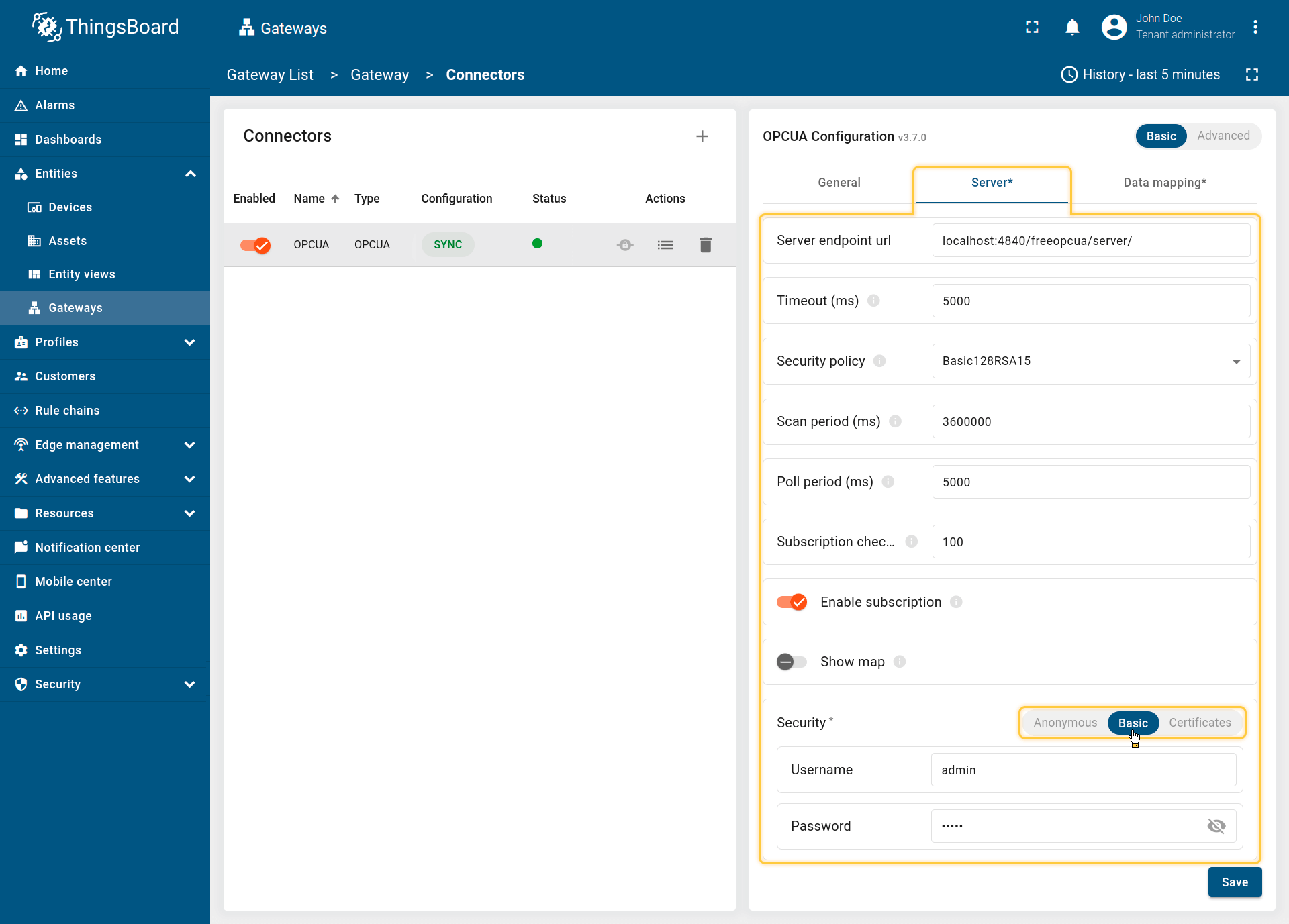

2. username
3. cert.PEM

1
2
3
    "identity": {
      "type": "anonymous"
    },

1
2
3
4
    "identity": {
      "username": "user",
      "password": "5Tr0nG?@$sW0rD"
    },

1
2
3
4
5
6
7
8
9

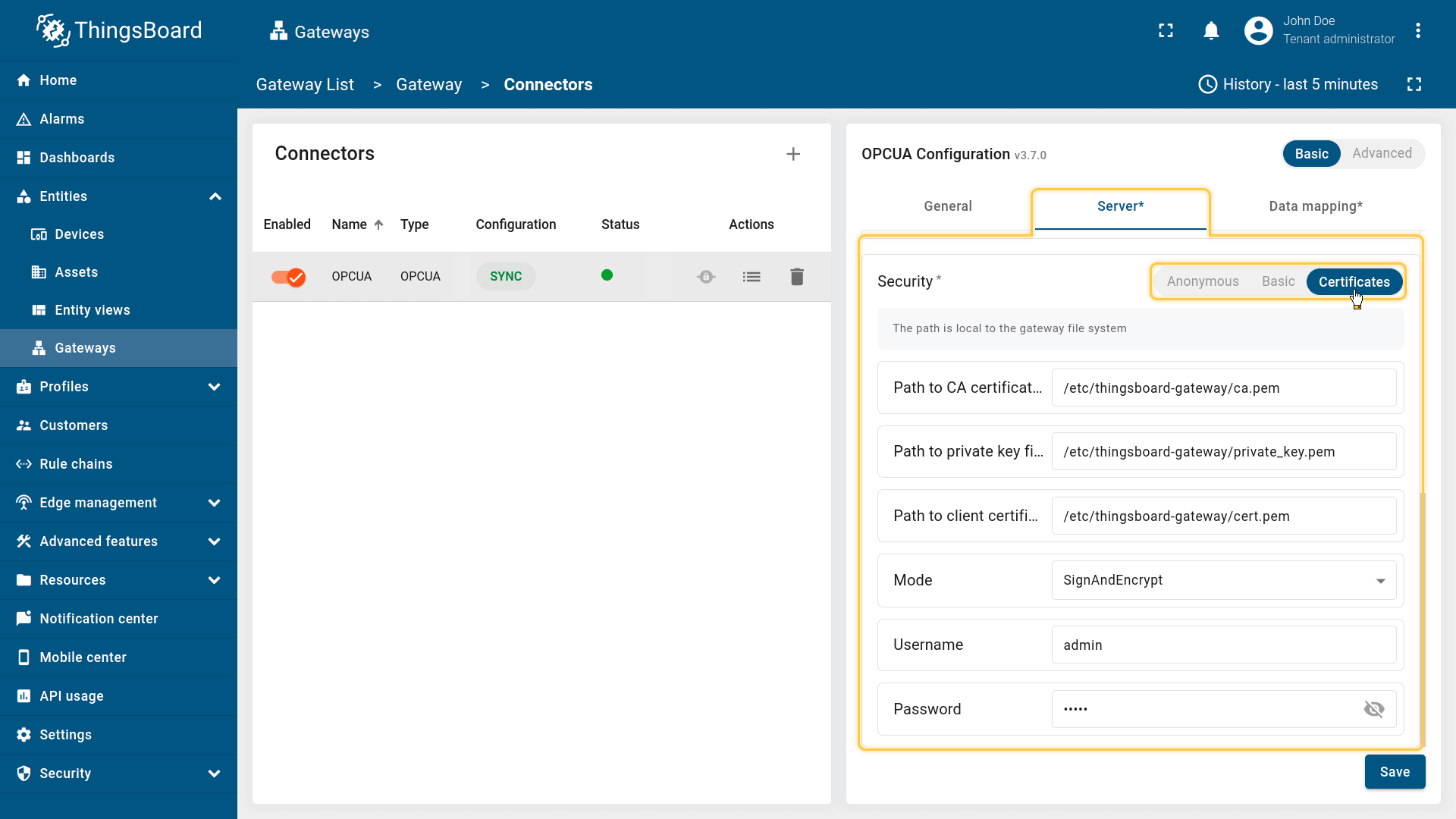

    "identity": {
      "type": "cert.PEM",
      "caCert": "etc/thingsboard-gateway/ca.pem",
      "privateKey": "etc/thingsboard-gateway/private_key.pem",
      "cert": "etc/thingsboard-gateway/cert.pem",
      "mode": "SignAndEncrypt",
      "username": "user",
      "password": "5Tr0nG?@$sW0rD"
    },

Section “mapping”

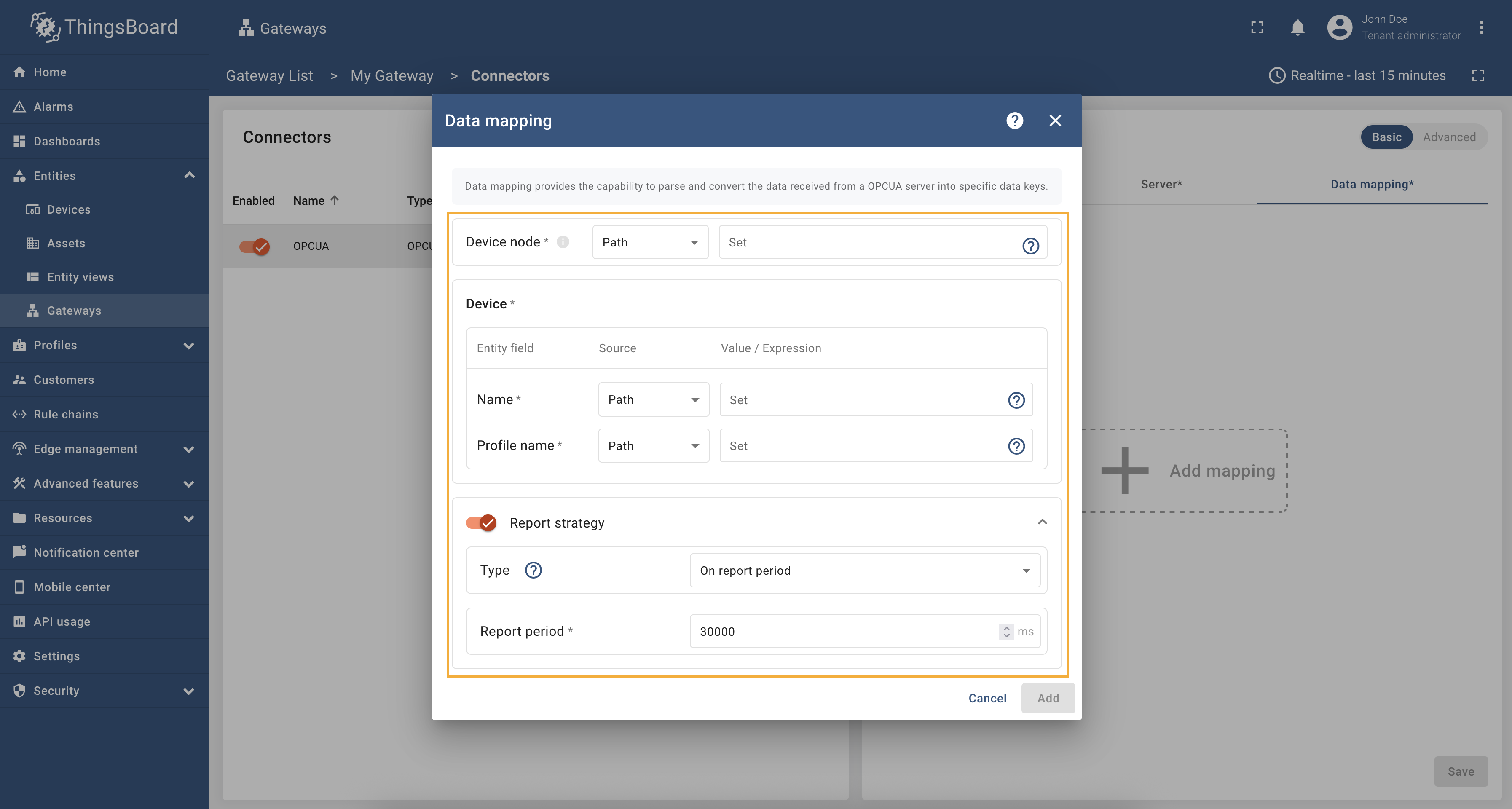

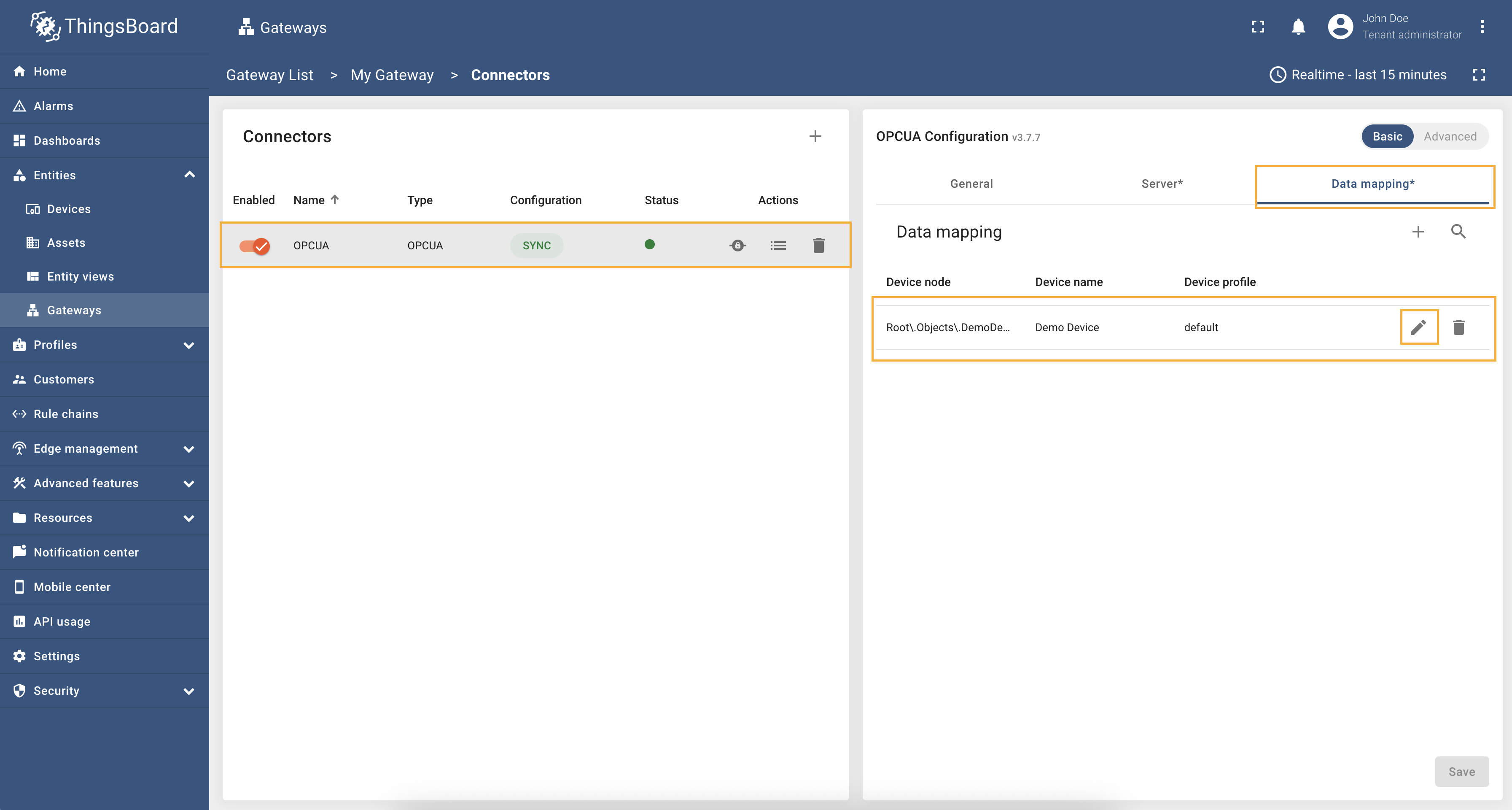

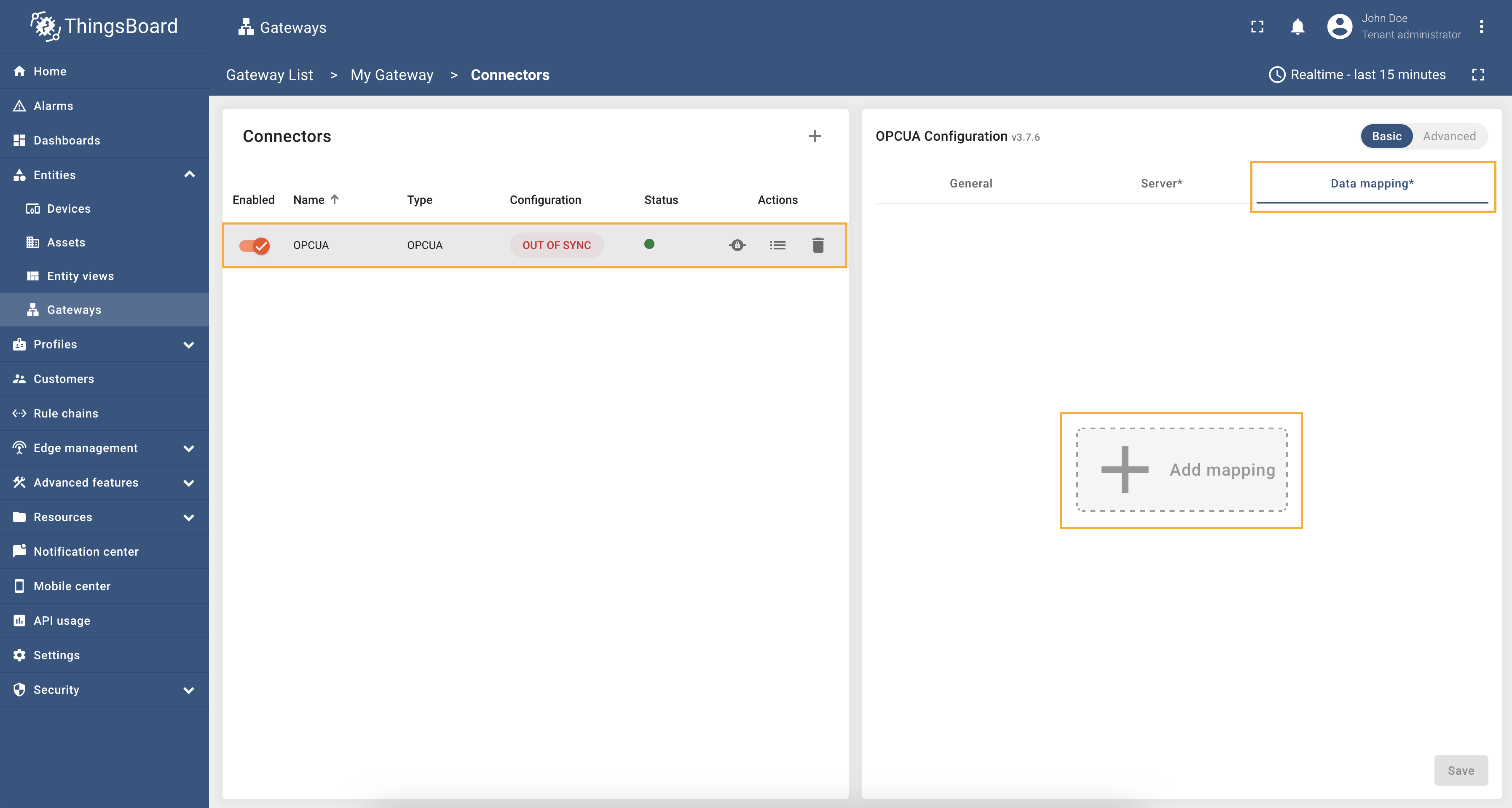

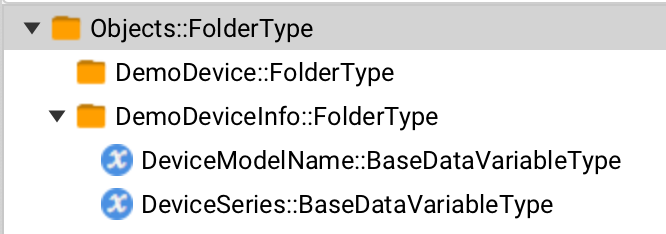

This configuration section contains array of nodes that the gateway will subscribe to after connecting to the OPC-UA server and settings about processing data from these nodes.

This part of configuration will look like:

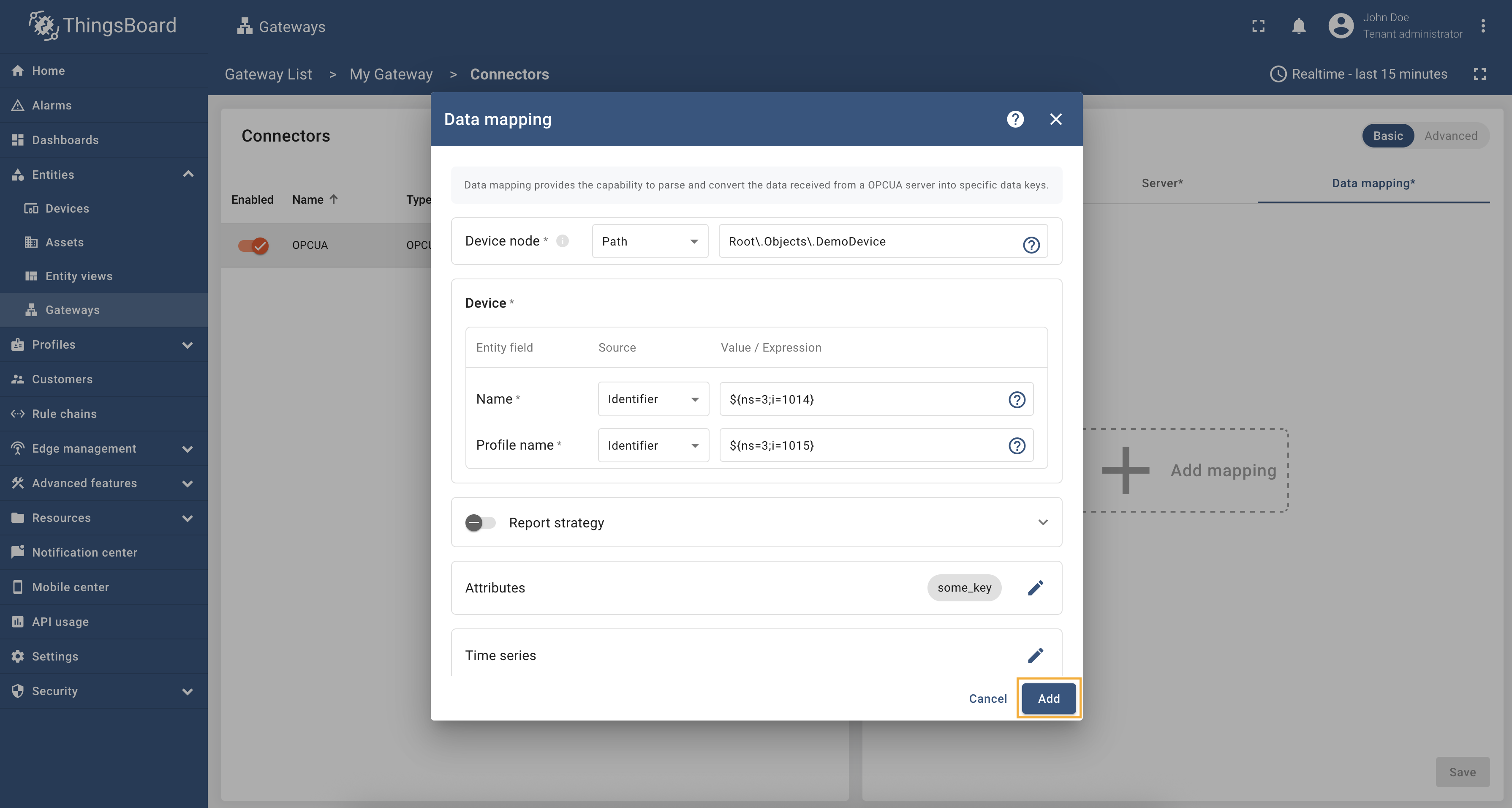

1
2

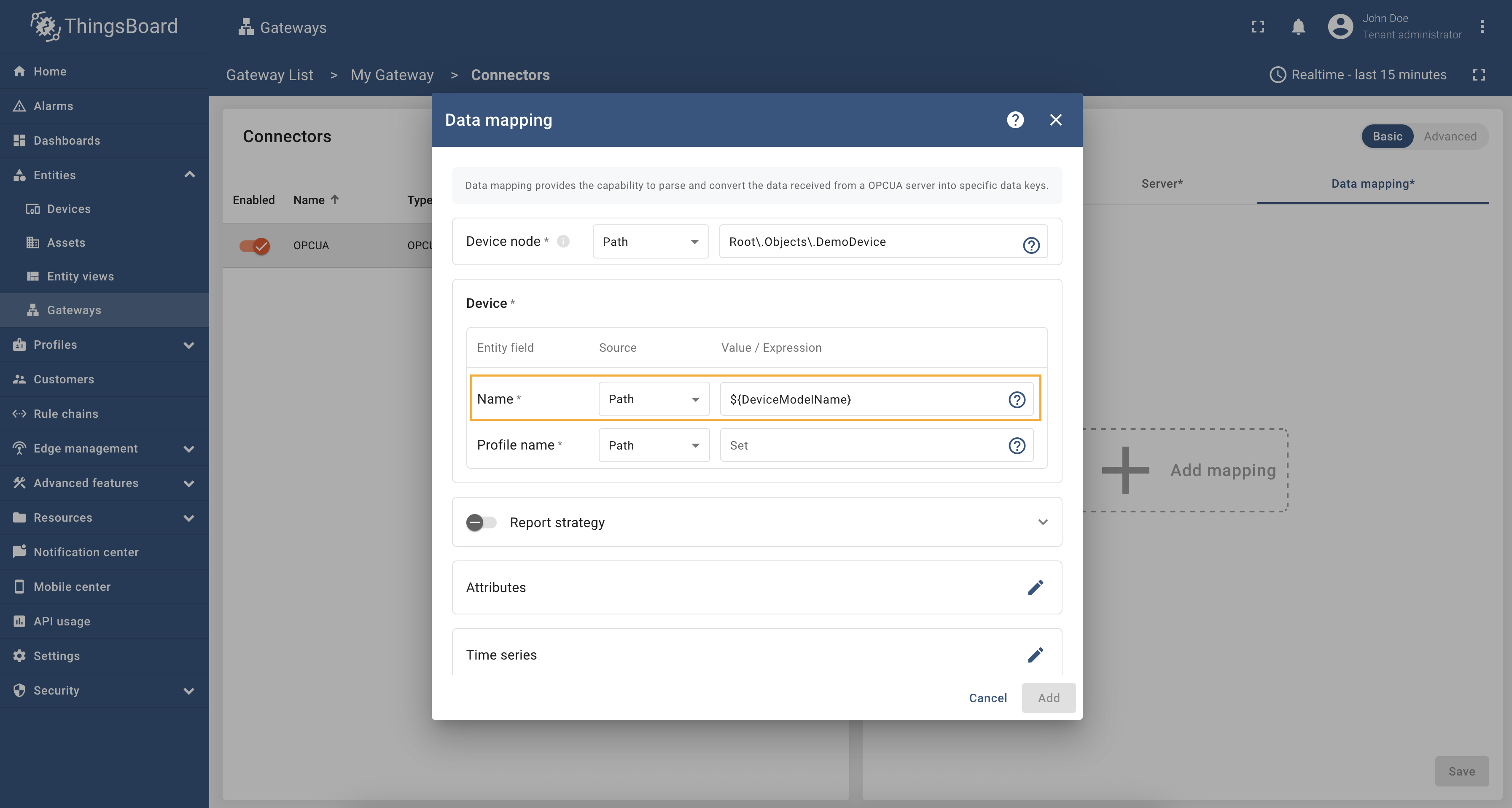

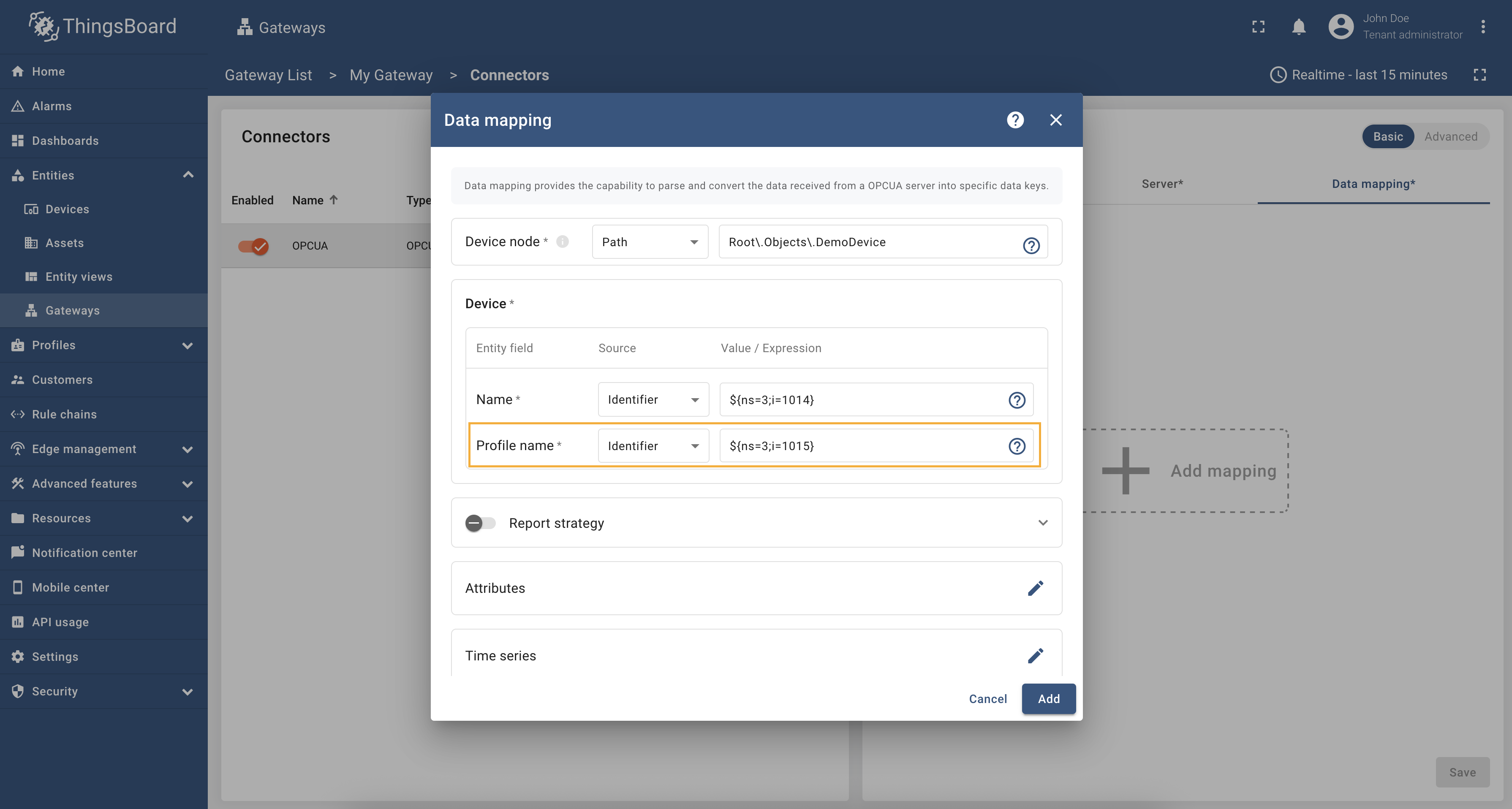

        "deviceNodePattern": "Root\\.Objects\\.Device1",
        "deviceNamePattern": "Device ${Root\\.Objects\\.Device1\\.serialNumber}",

Optionally, you can add in this section parameter “converter” for using custom converter.


Let’s look an example.

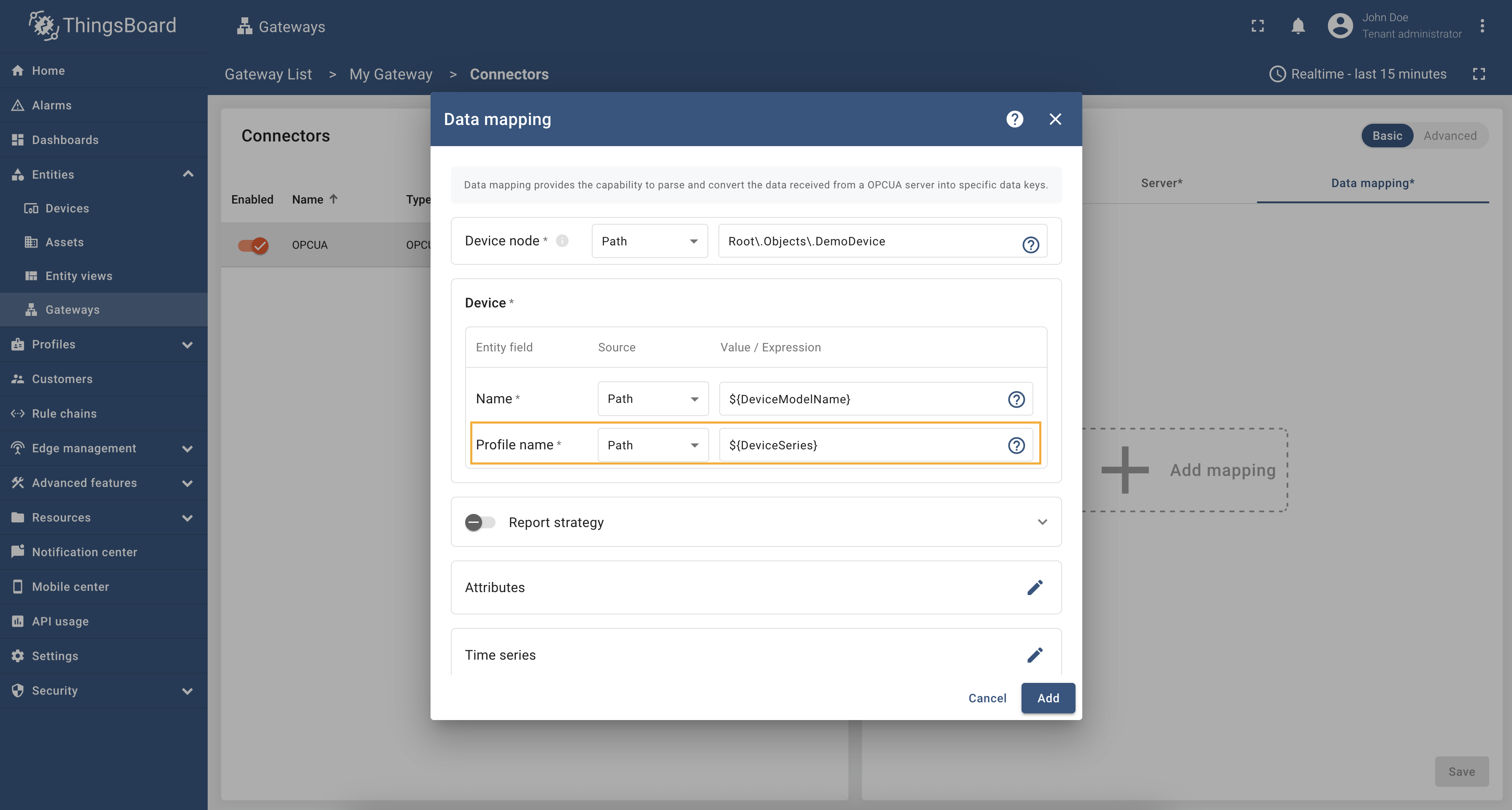

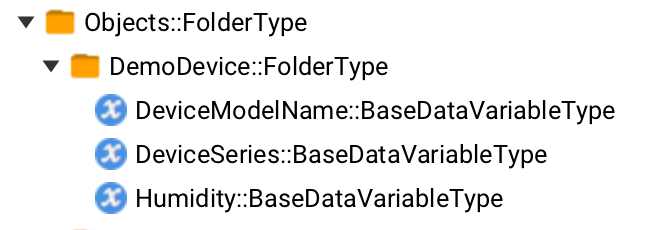

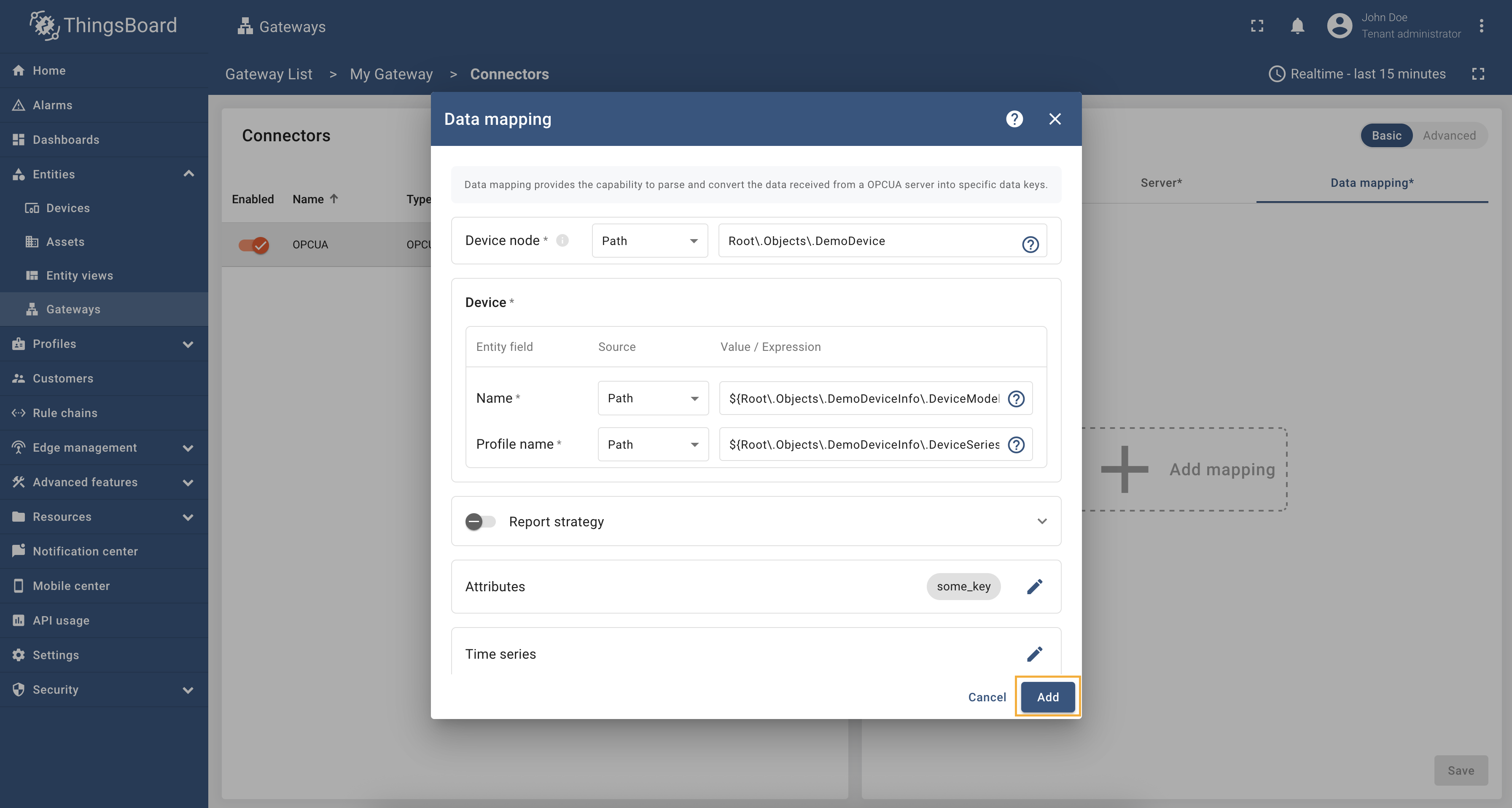

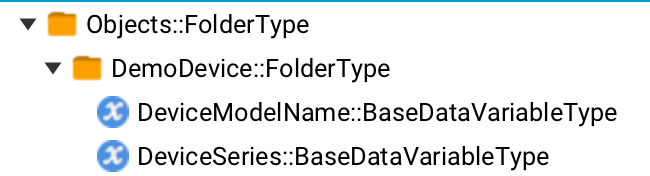

Specify deviceNodePattern as on our test server. In this example it is “Root\.Objects\.Simulation”.

deviceNamePattern specify as “Device OPC-UA”.

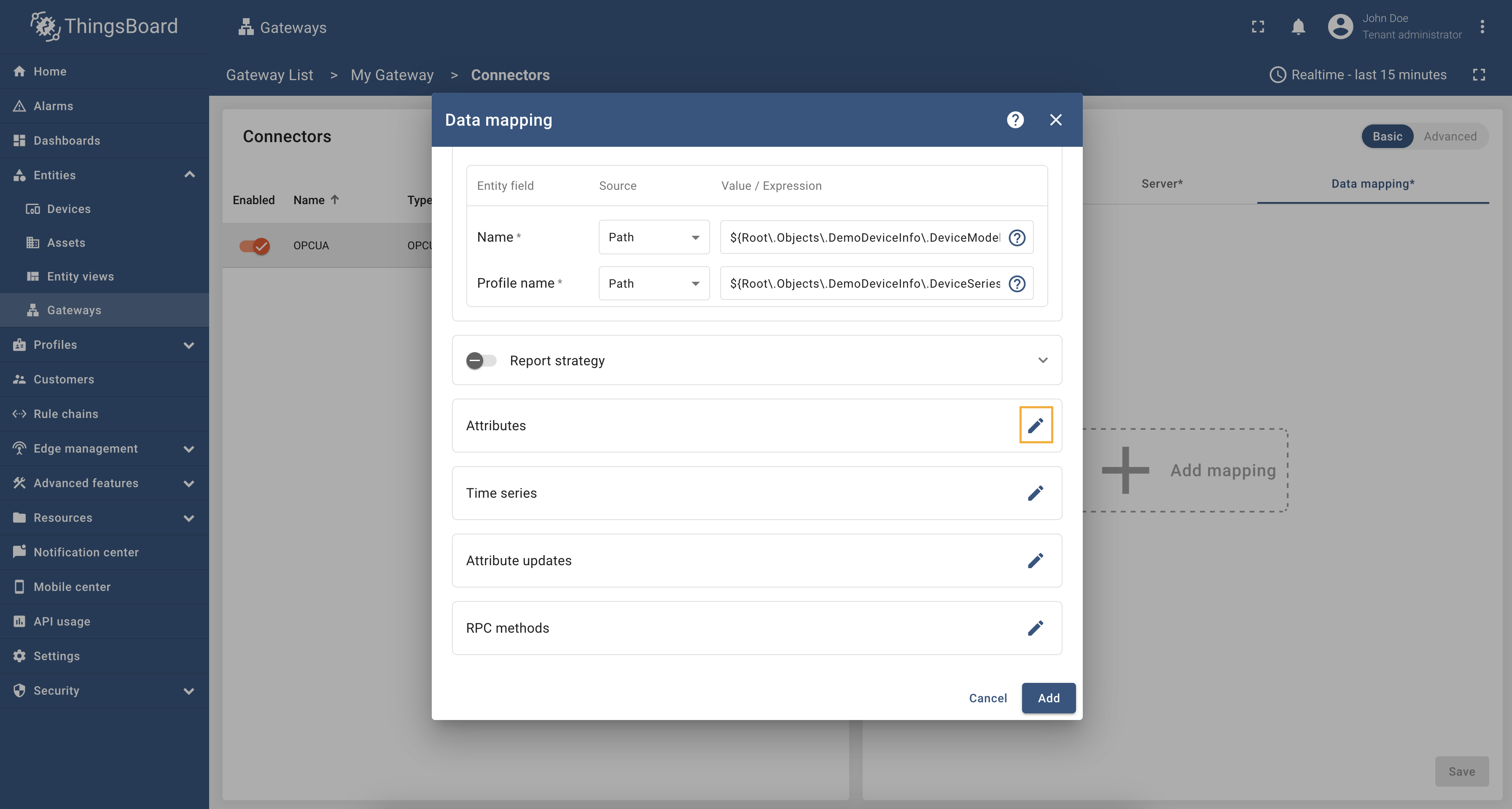

In this example, the mapping section would look like this:

1
2
        "deviceNodePattern": "Root\\.Objects\\.Simulation",
        "deviceNamePattern": "Device OPC-UA",

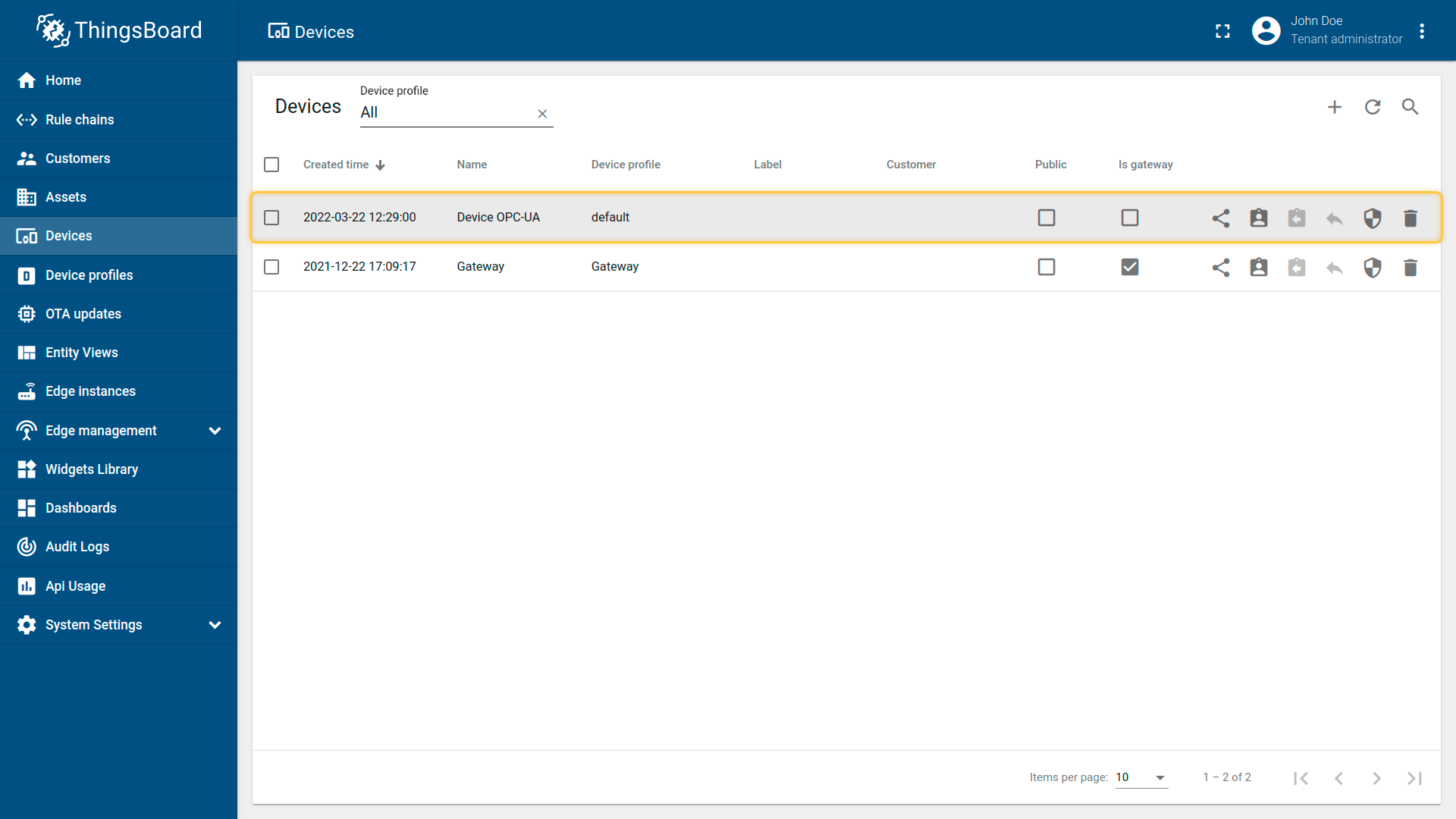

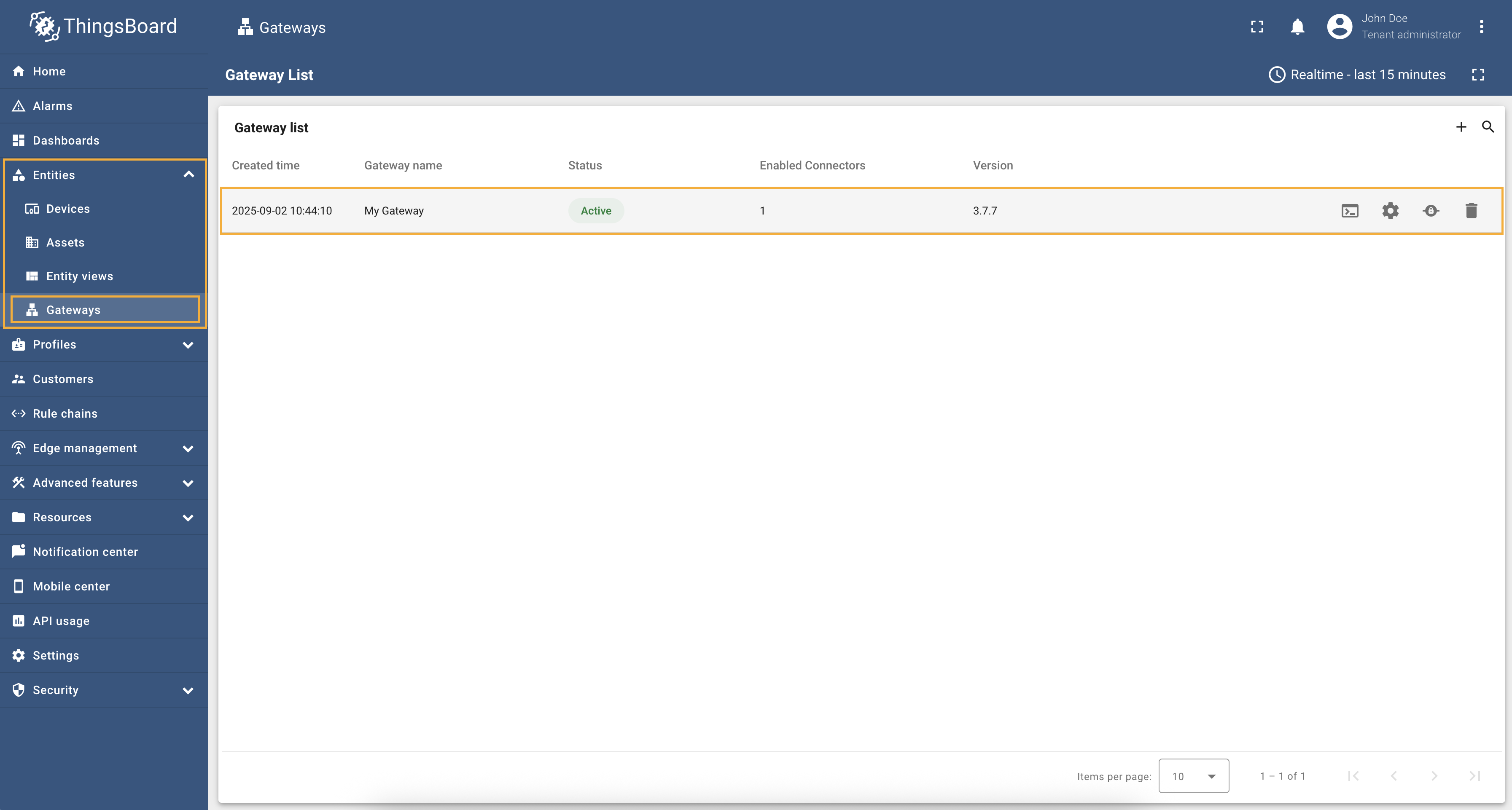

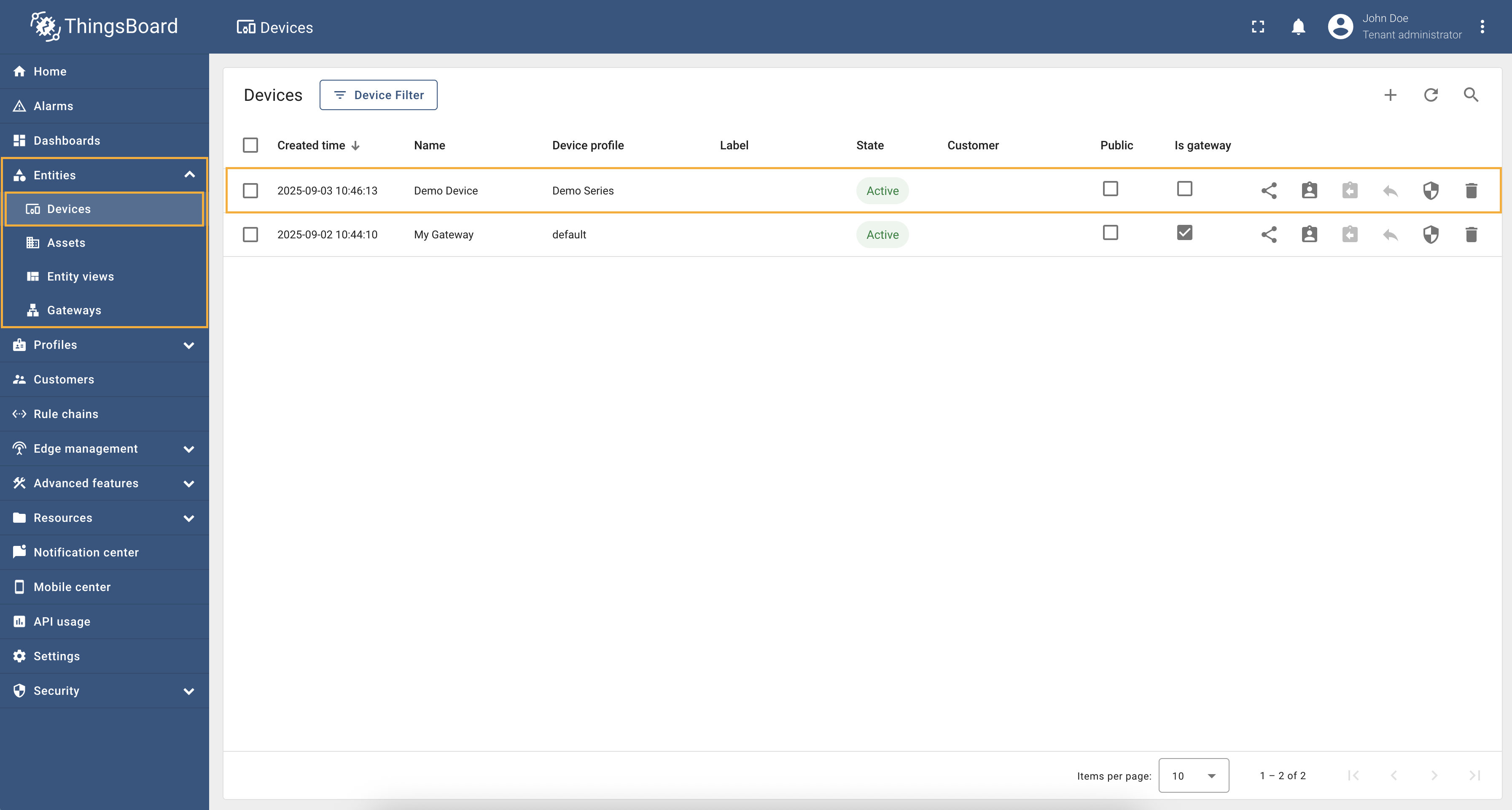

After running ThingsBoard IoT gateway, you see the new device Device OPC-UA in your ThingsBoard instance.

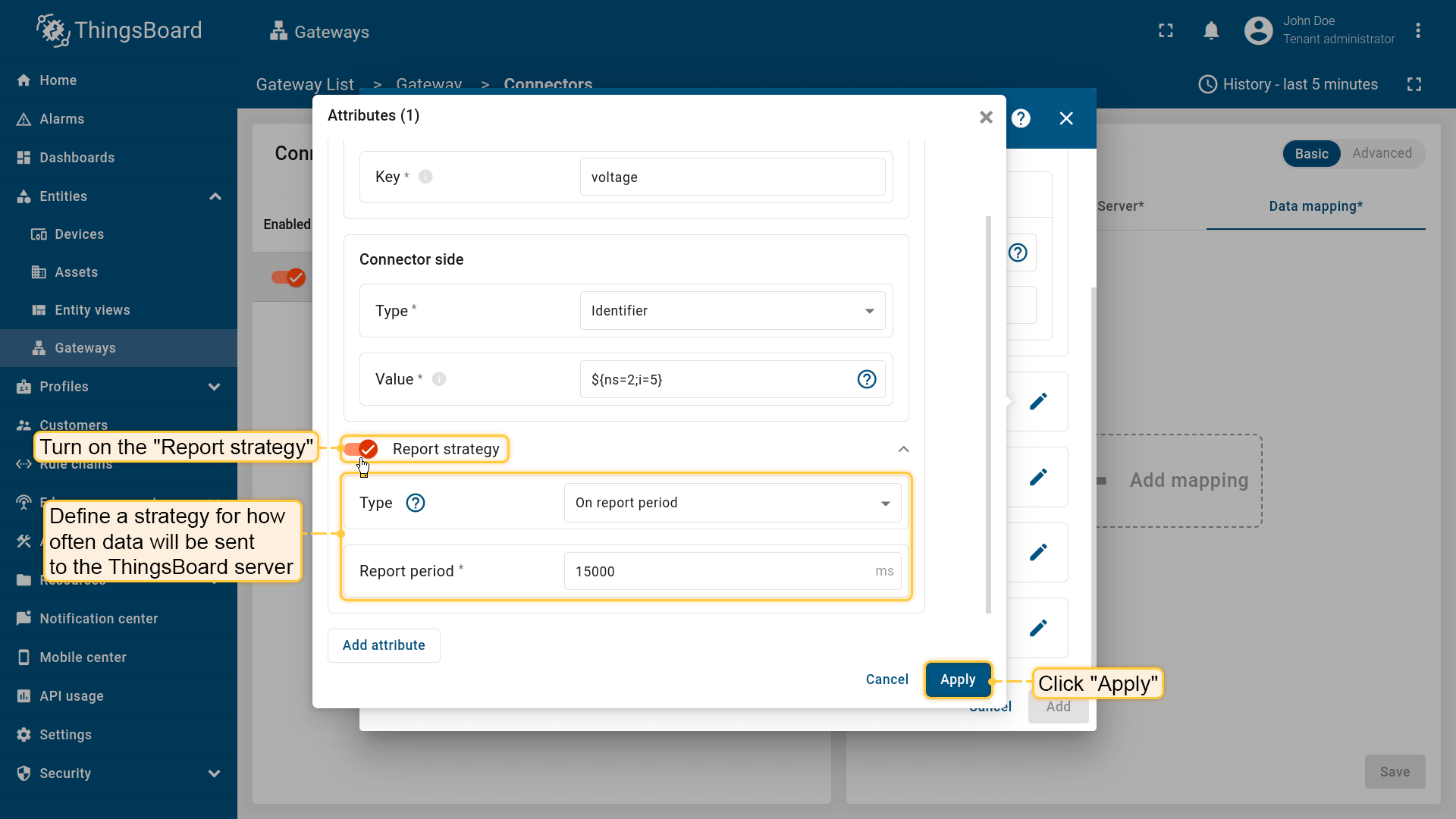

Subsection “attributes”

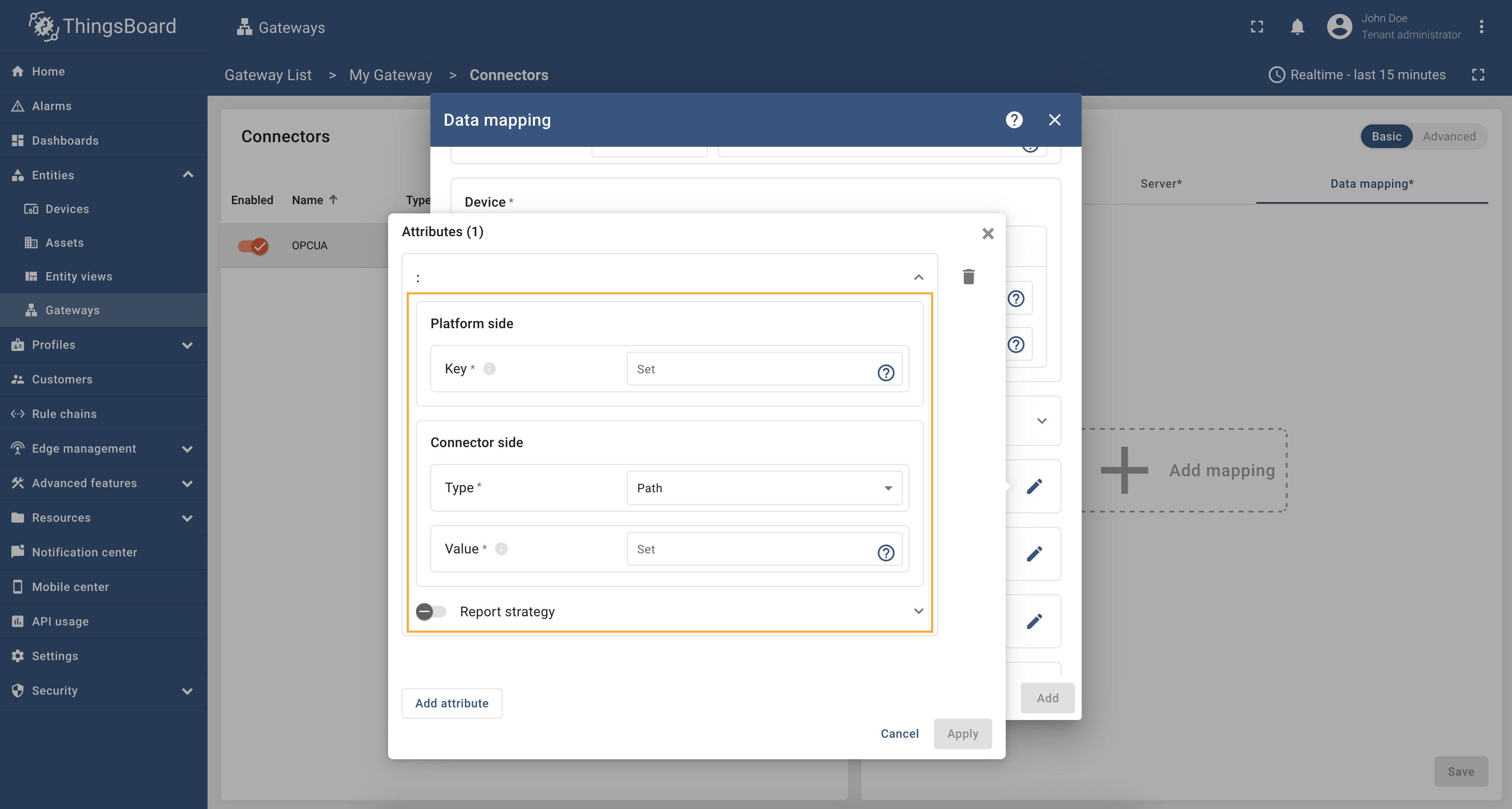

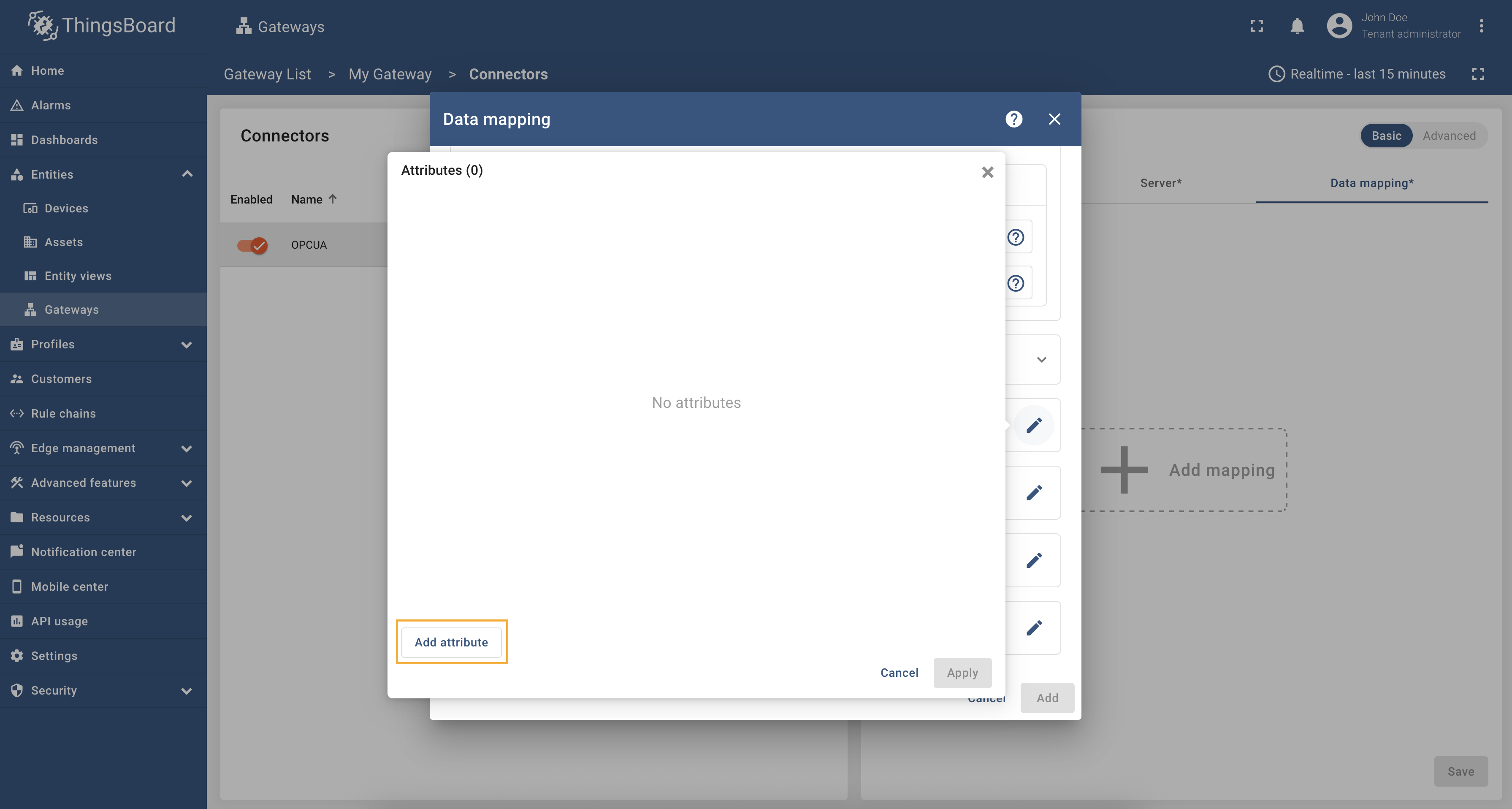

This subsection contains configurations for variables of the object, that will be interpreted as attributes for the device.

If you don’t specify the “key” parameter, the node name will use instead

** * ** You can put here some expression for search like:

1. Full path to node - ${Root\.Objects\.Device1\.TemperatureAndHumiditySensor\.CertificateNumber}
2. Relative path from device object - ${TemperatureAndHumiditySensor\.CertificateNumber}
3. Some regular expression to search - ${Root\.Objects\.Device\d*\.TemperatureAndHumiditySensor\.CertificateNumber}
4. Namespace identifier and node identifier - ${ns=2;i=5}

This part of configuration will look like:

1
2
3
4
5
6

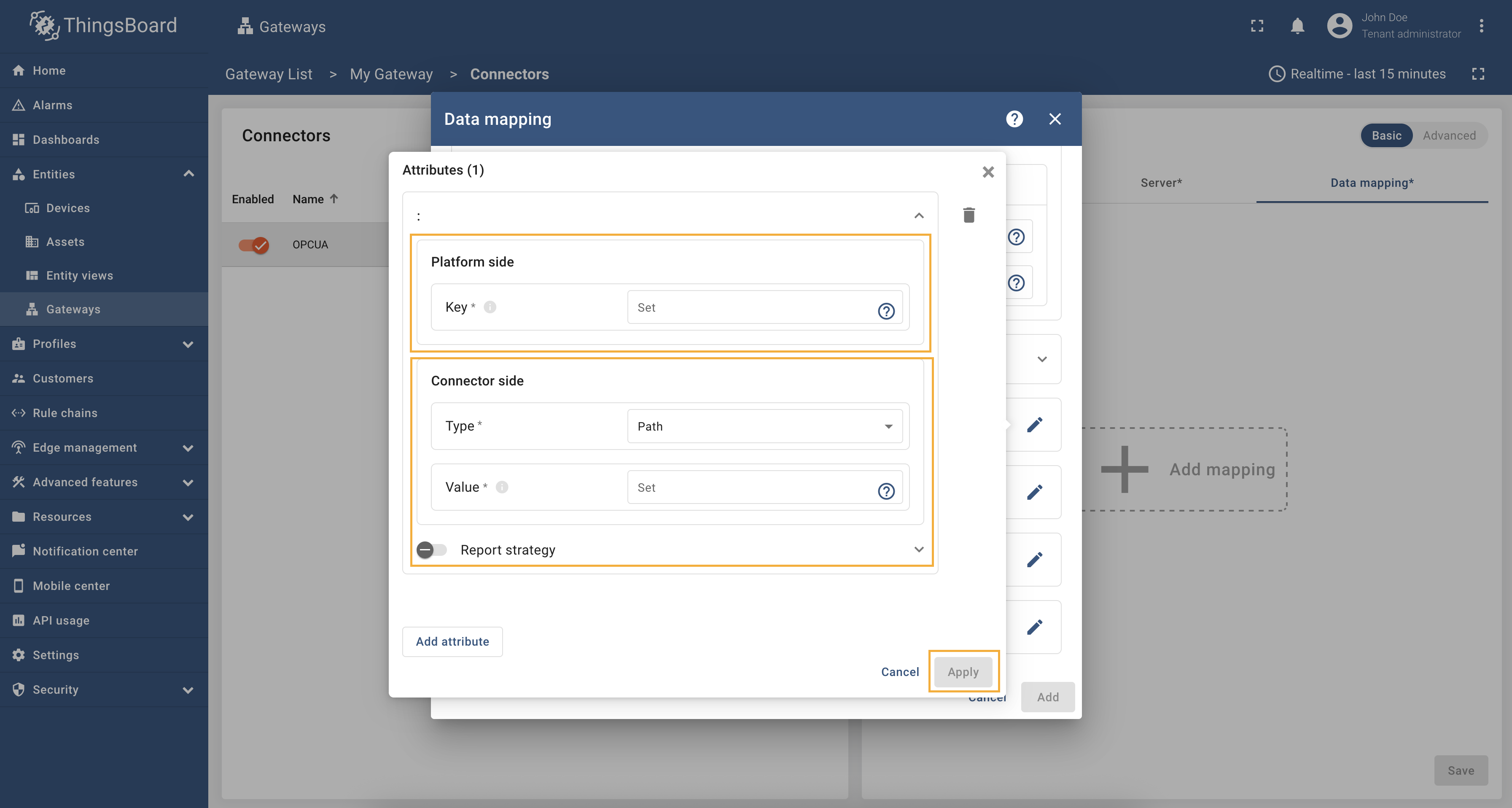

        "attributes": [
          {
            "key": "CertificateNumber",
            "path": "${ns=2;i=5}"
          }
        ],

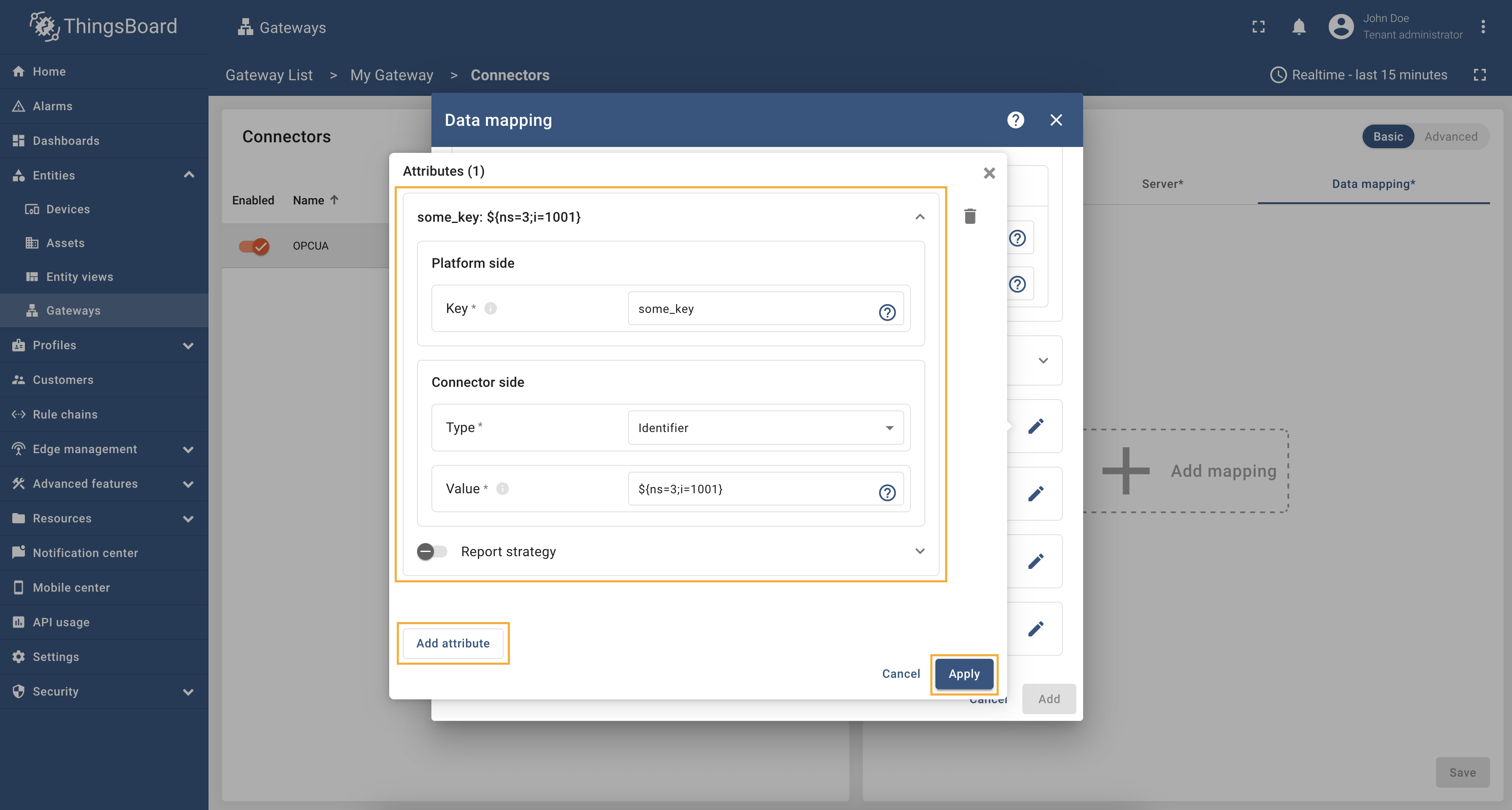

Let’s look an example.

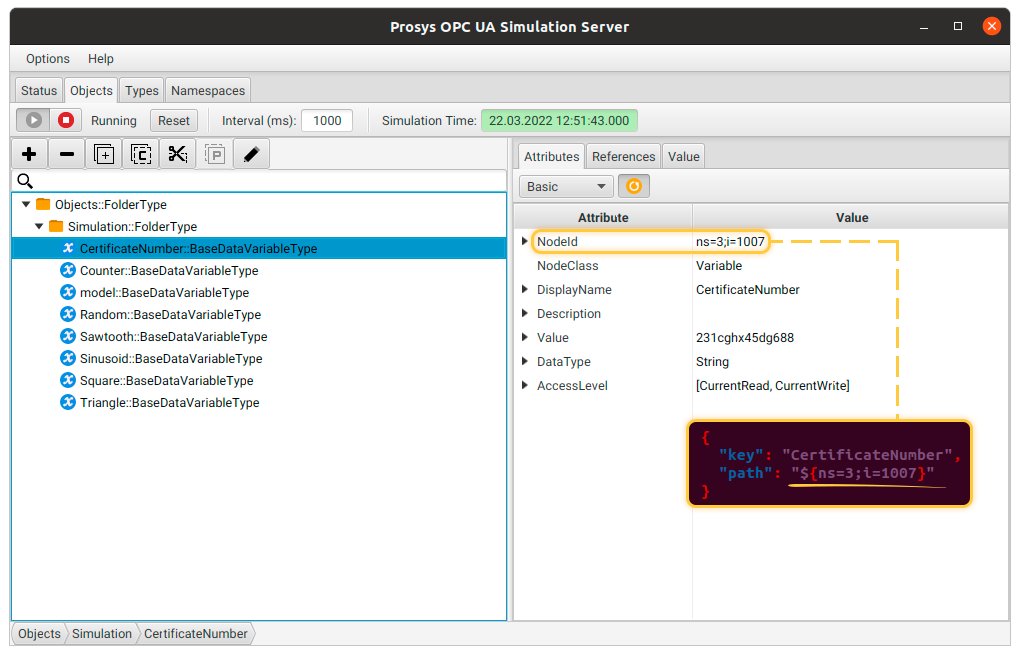

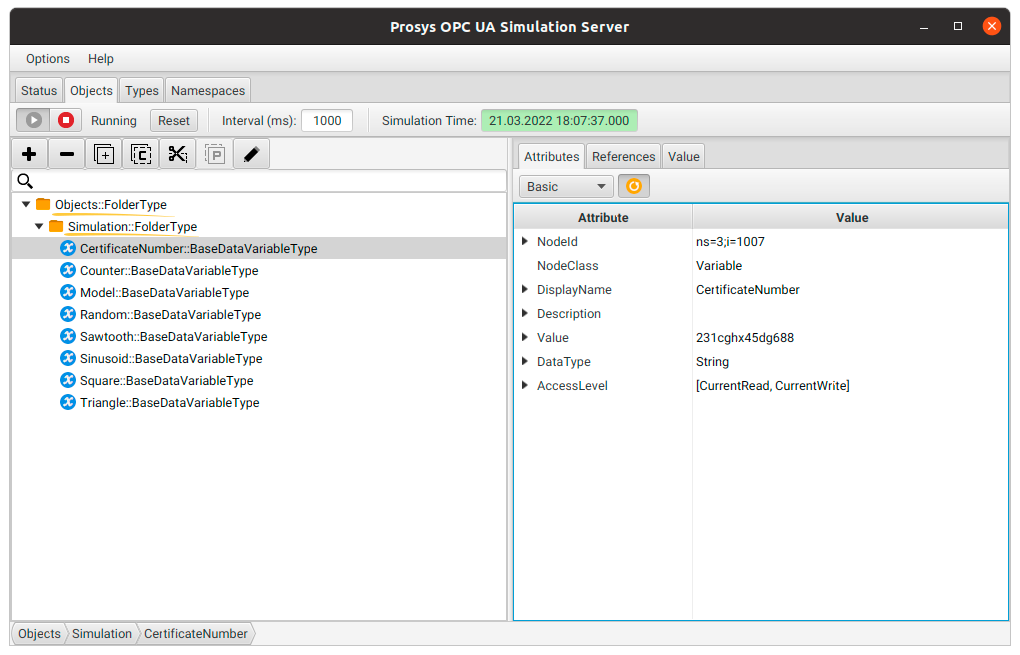

In the “path” line set the NodeId value taken from our test server.

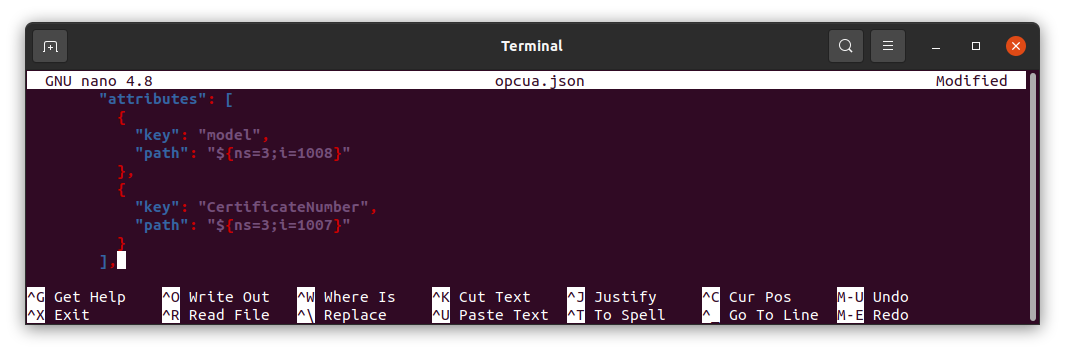

In this example, the attributes section would look like this:

1
2
3
4
5
6
7
8
9
10
        "attributes": [
          {
            "key": "model",
            "path": "${ns=3;i=1008}"
          },
          {
            "key": "CertificateNumber",
            "path": "${ns=3;i=1007}"
          }
        ],

You must see the attributes you sent to ThingsBoard in the Attributes section of your device.:

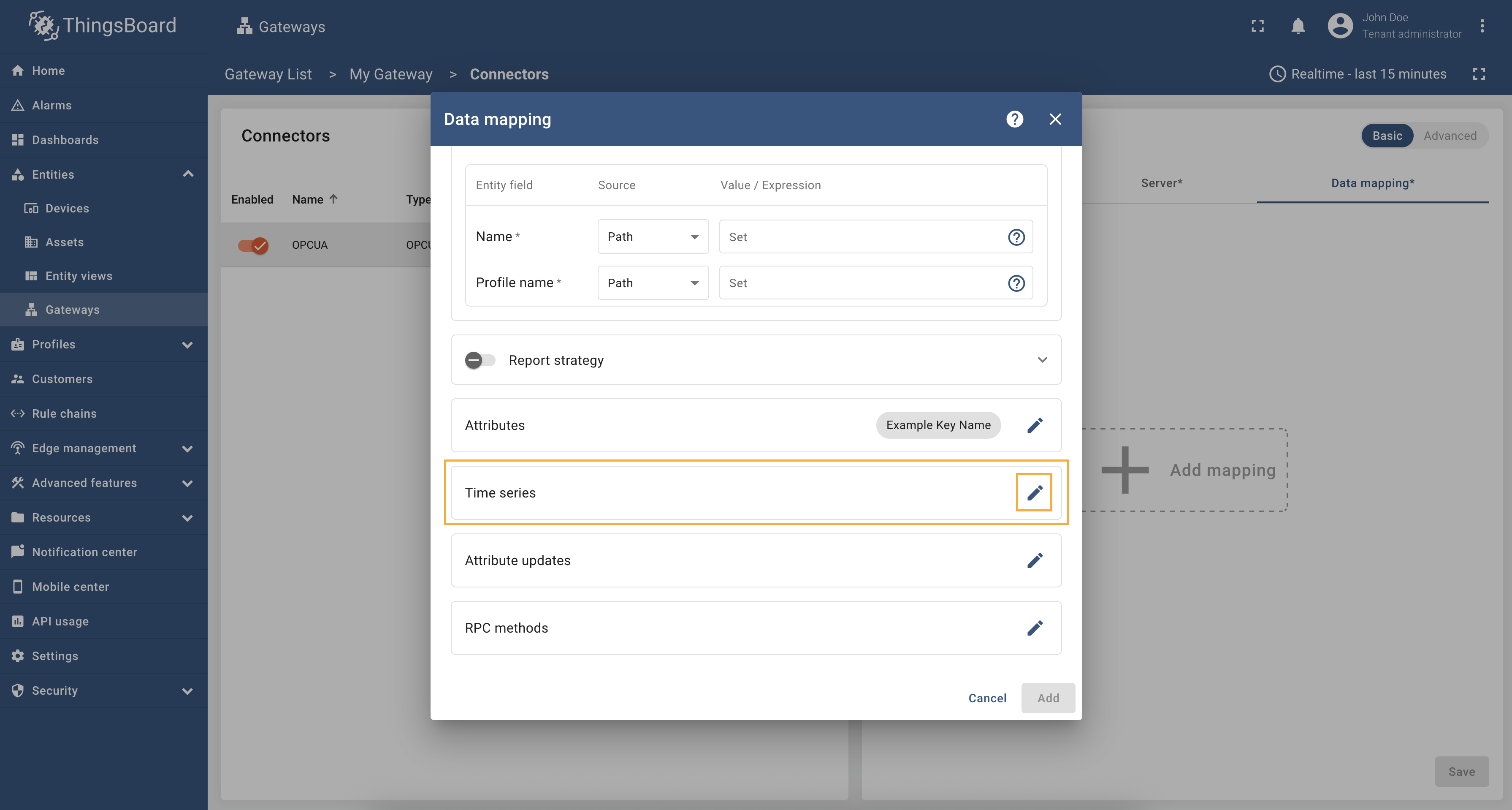

Subsection “timeseries”

This subsection contains configurations for variables of the object, that will be interpreted as telemetry for the device.

** * ** You can put here some expression for search like:

1. Full path to node - ${Root\.Objects\.Device1\.TemperatureAndHumiditySensor\.Temperature}
2. Relative path from device object - ${TemperatureAndHumiditySensor\.Temperature}
3. Some regular expression to search - ${Root\.Objects\.Device\d*\.TemperatureAndHumiditySensor\.Temperature}
4. Namespace identifier and node identifier - ${ns=2;i=5}

This part of configuration will look like:

1
2
3
4
5
6

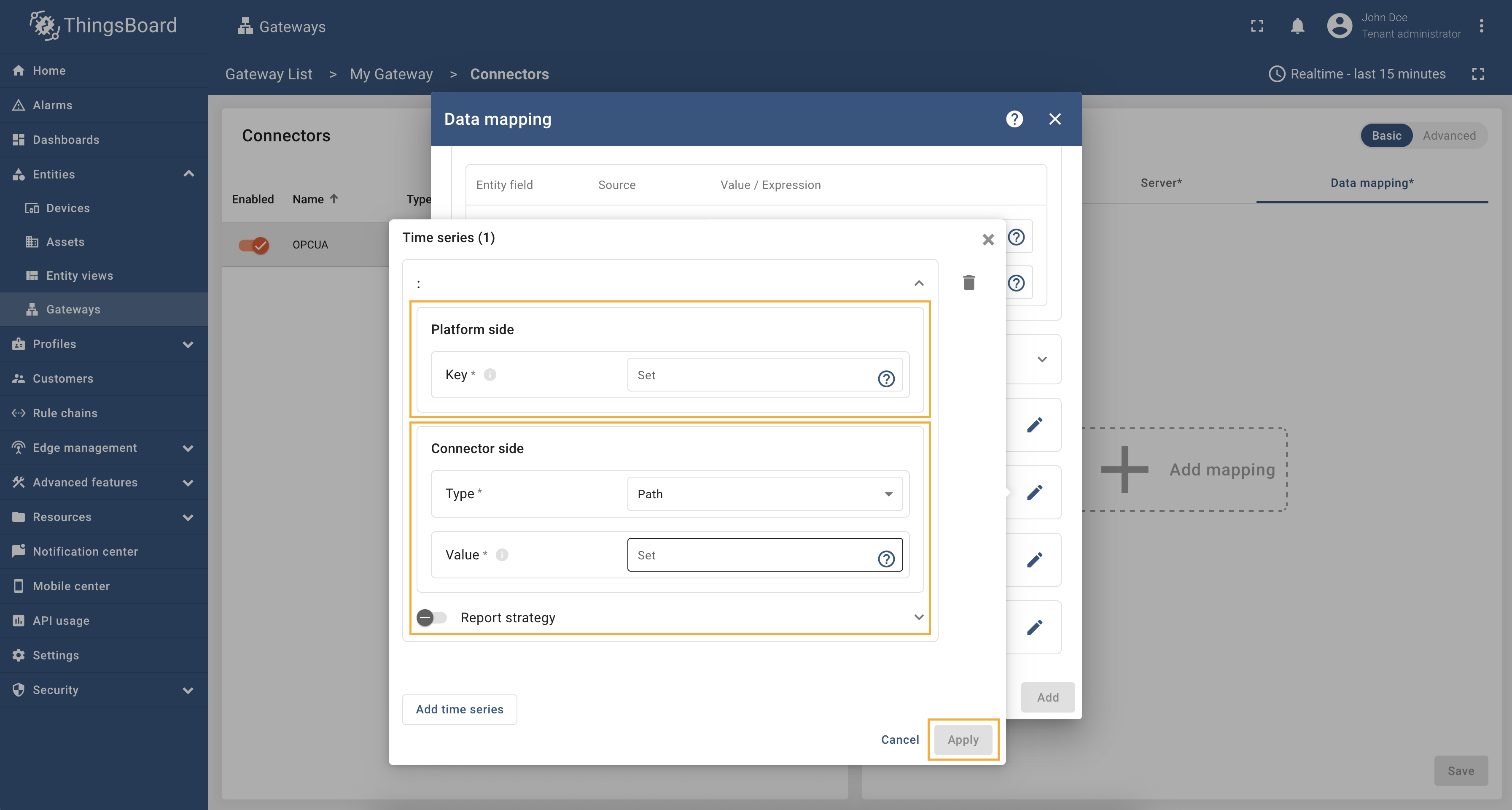

        "timeseries": [
          {
            "key": "temperature °C",
            "path": "${Root\\.Objects\\.Device1\\.TemperatureAndHumiditySensor\\.Temperature}"
          }
        ],

Let’s look an example.

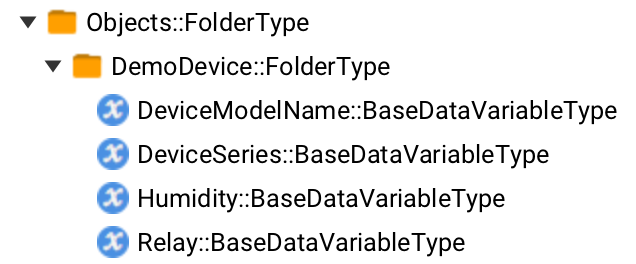

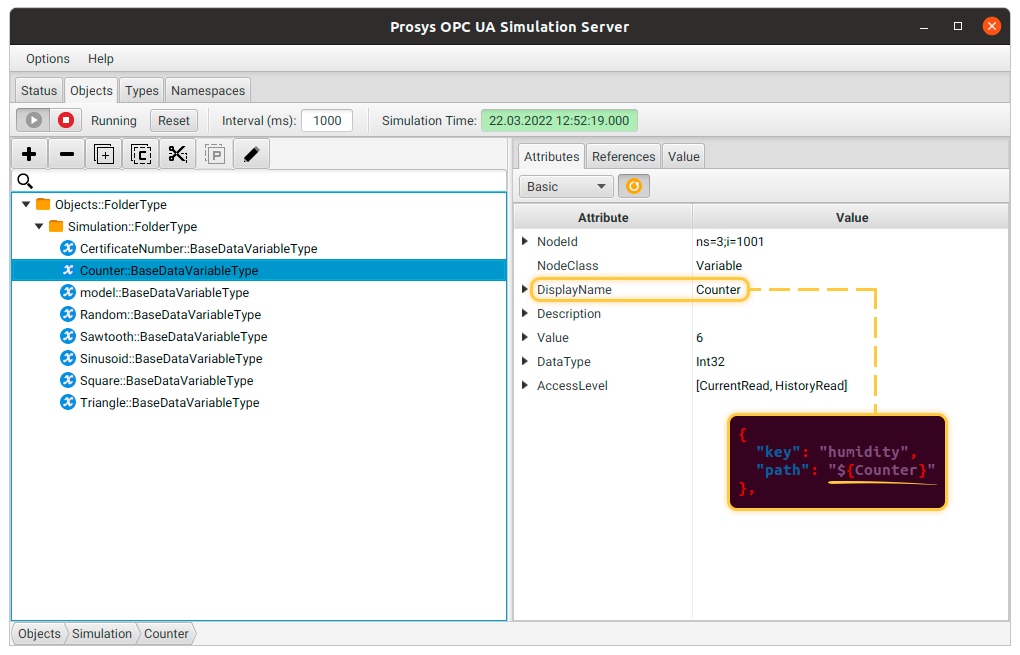

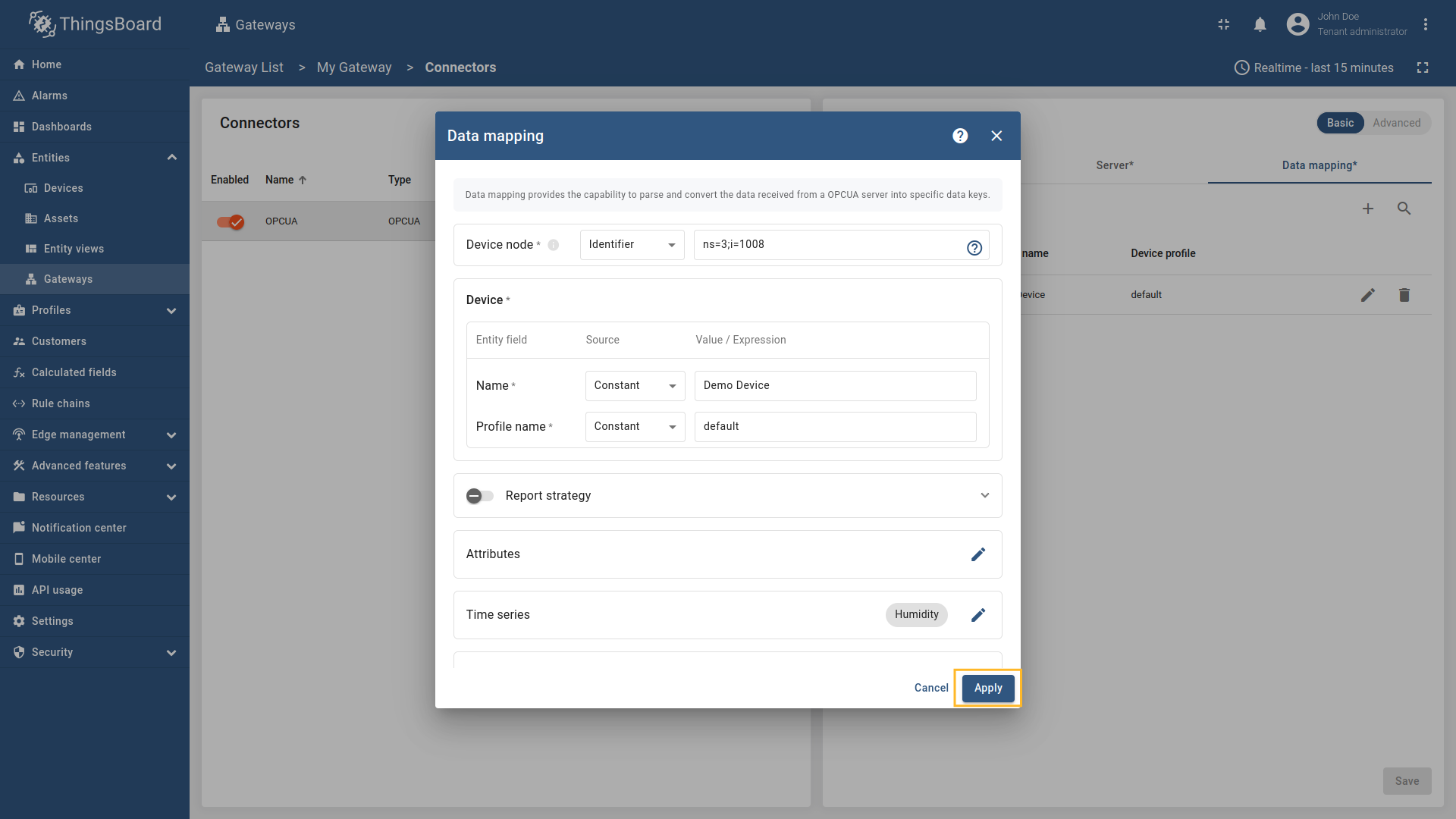

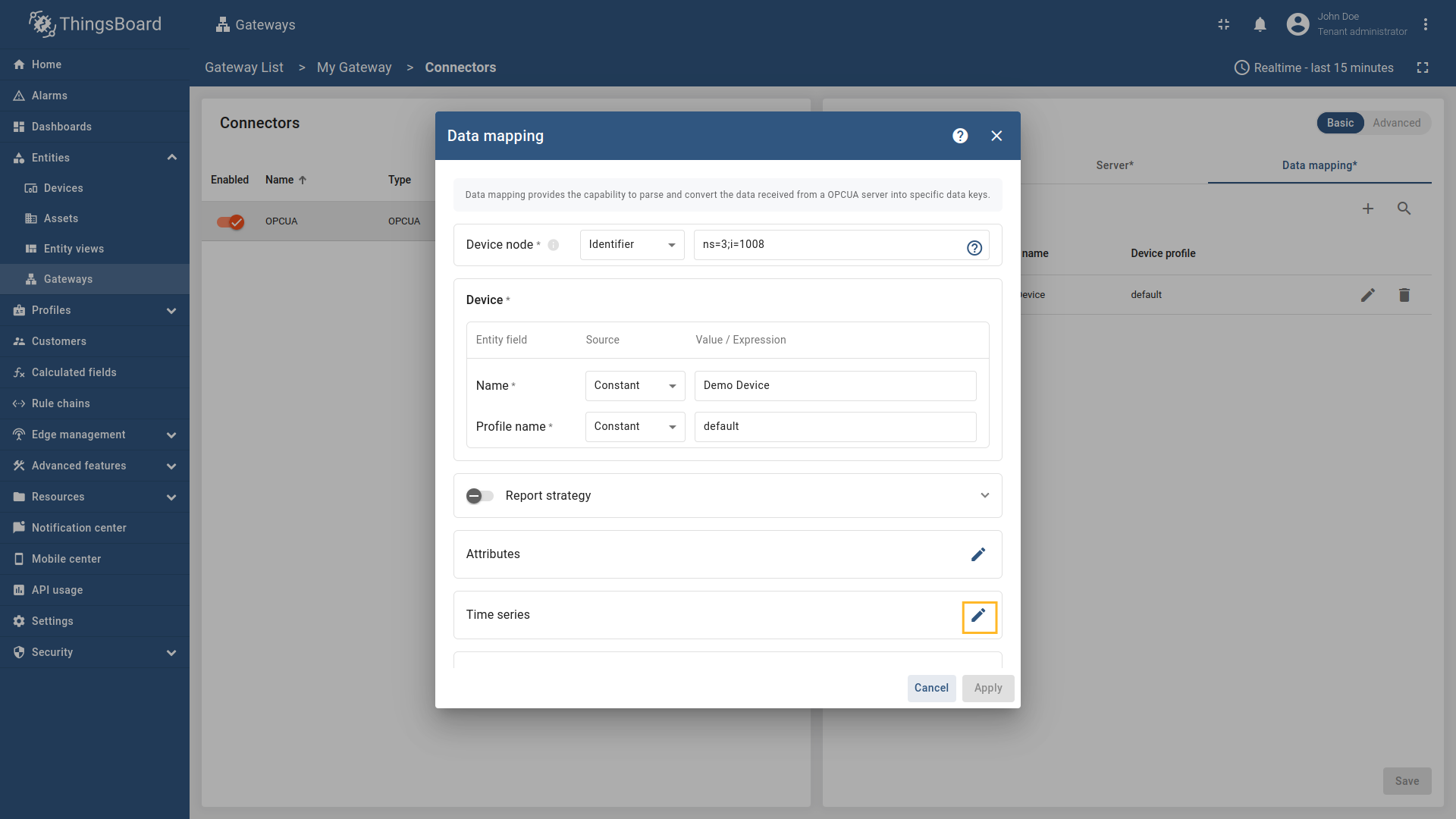

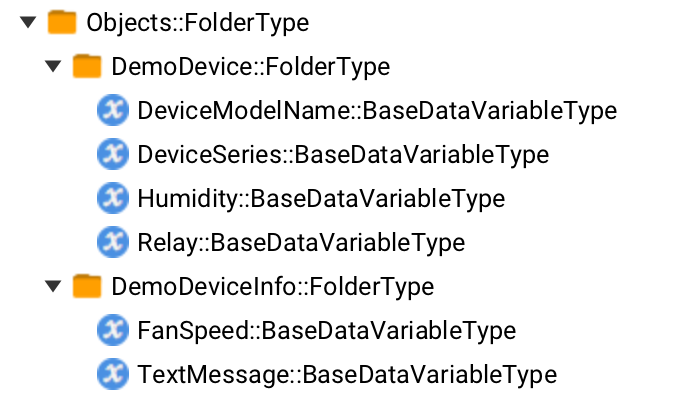

Replace “path” value to the “NodeId” value, relative path from device object or Display Name identifier, taken from our test server.

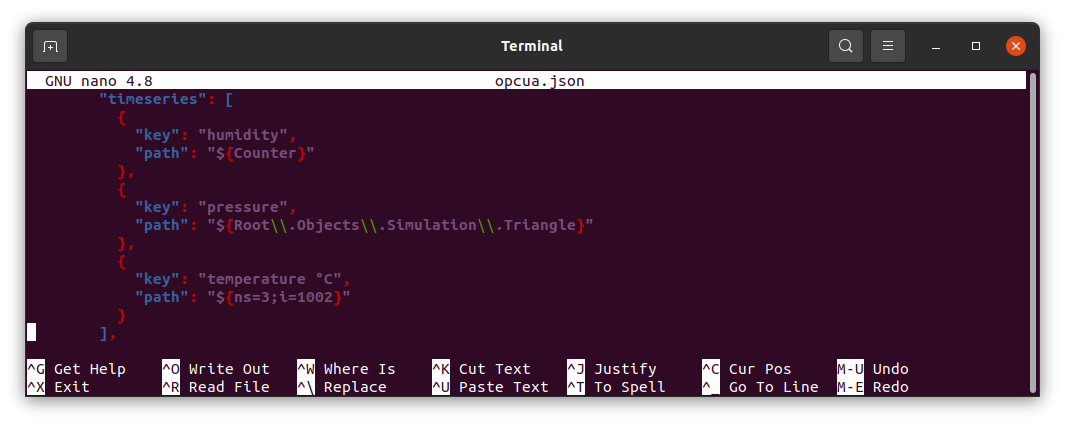

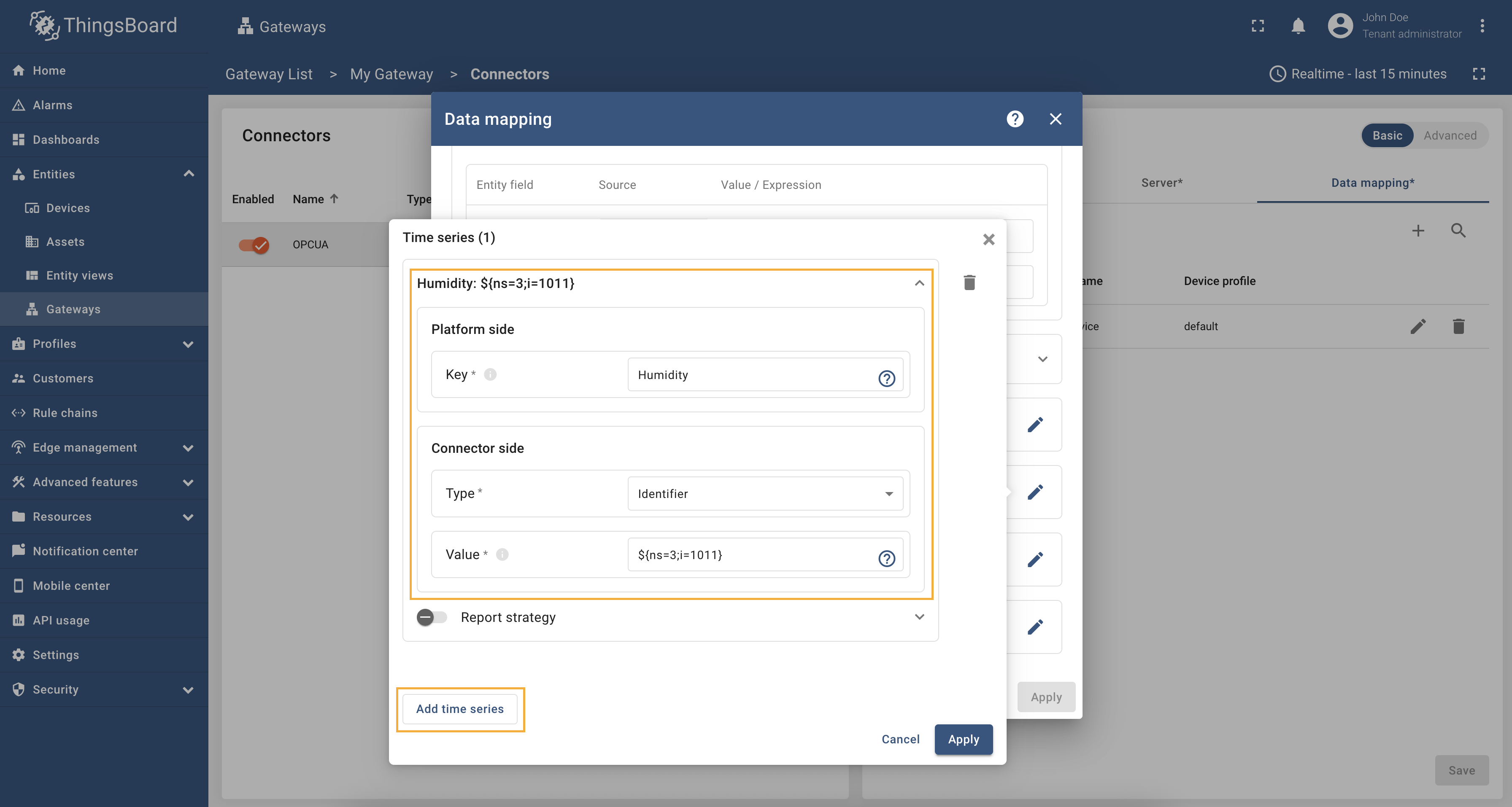

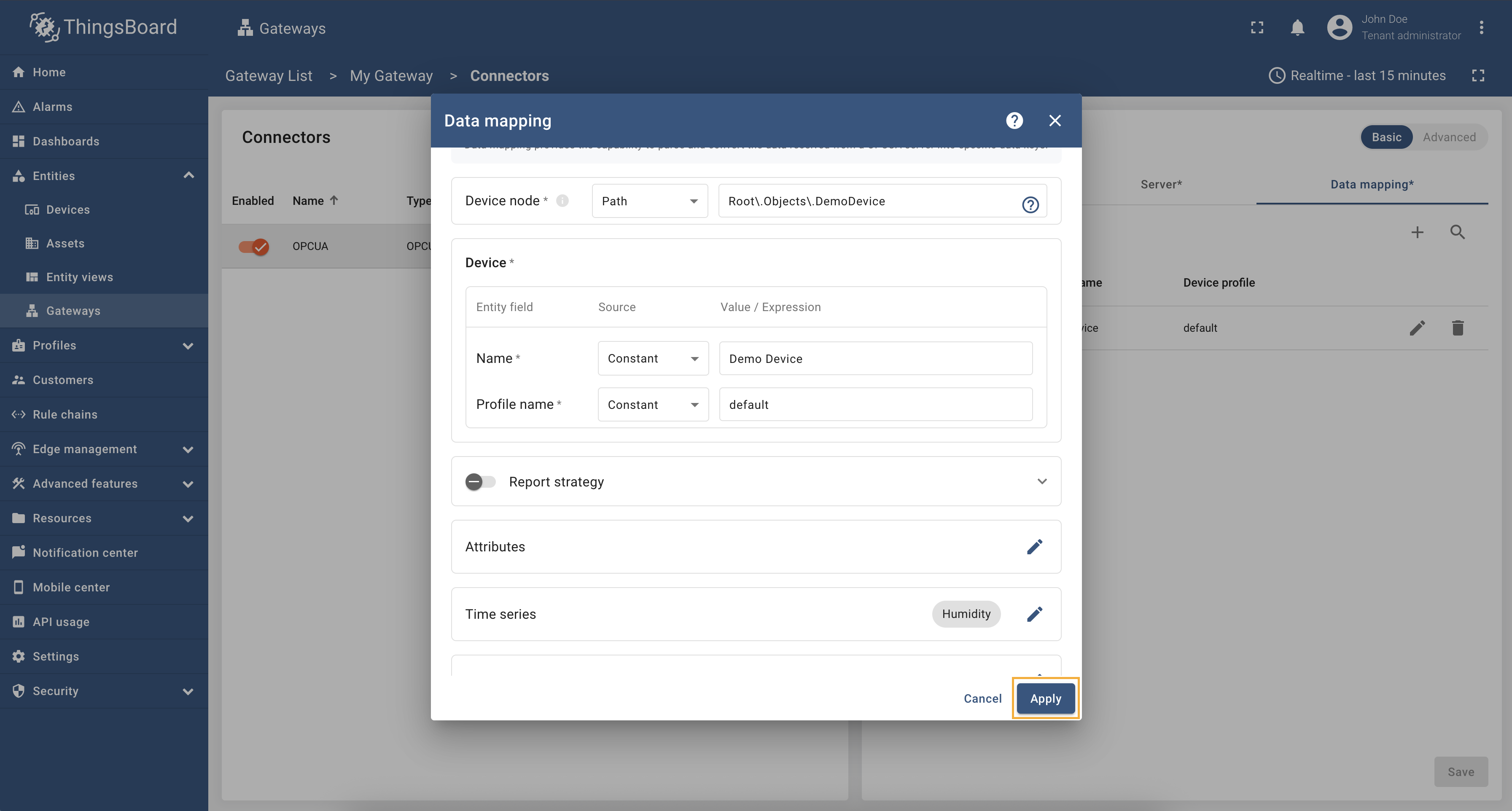

In this example, the timeseries section would look like this:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

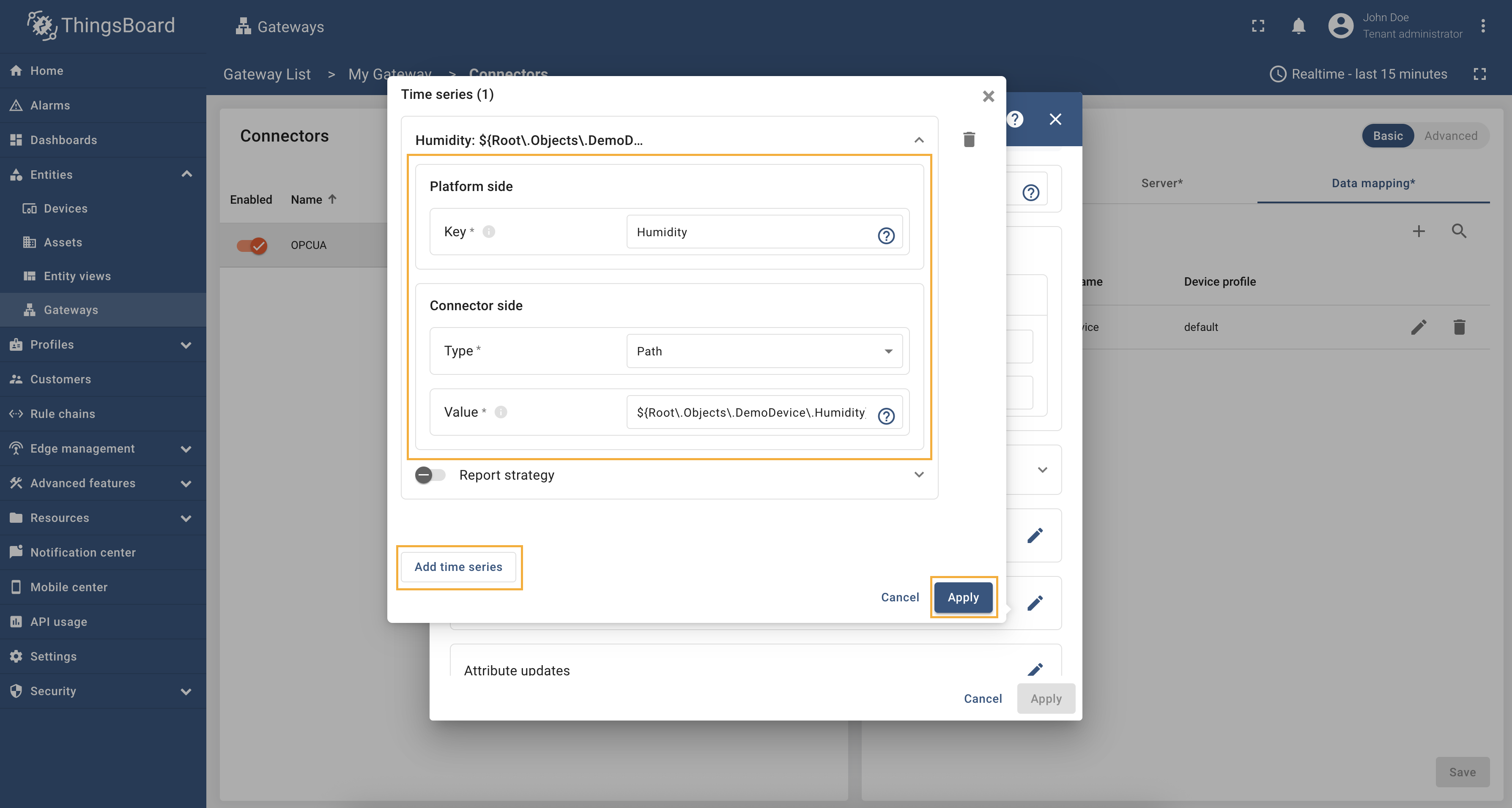

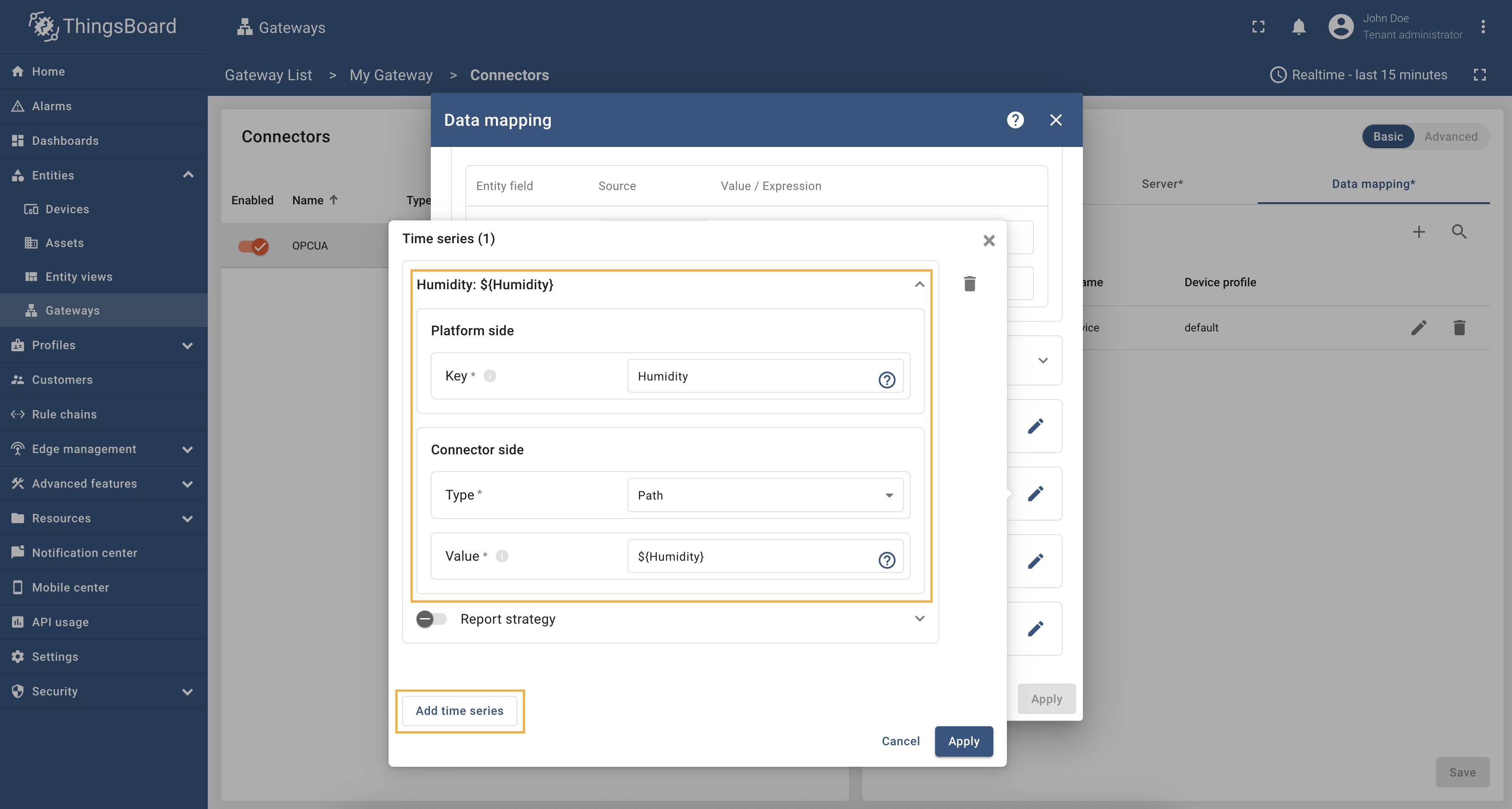

        "timeseries": [
          {
            "key": "humidity",
            "path": "${Counter}"
          },
          {
            "key": "pressure",
            "path": "${Root\\.Objects\\.Simulation\\.Triangle}"
          },
          {
            "key": "temperature °C",
            "path": "${ns=3;i=1002}"
          }
        ],

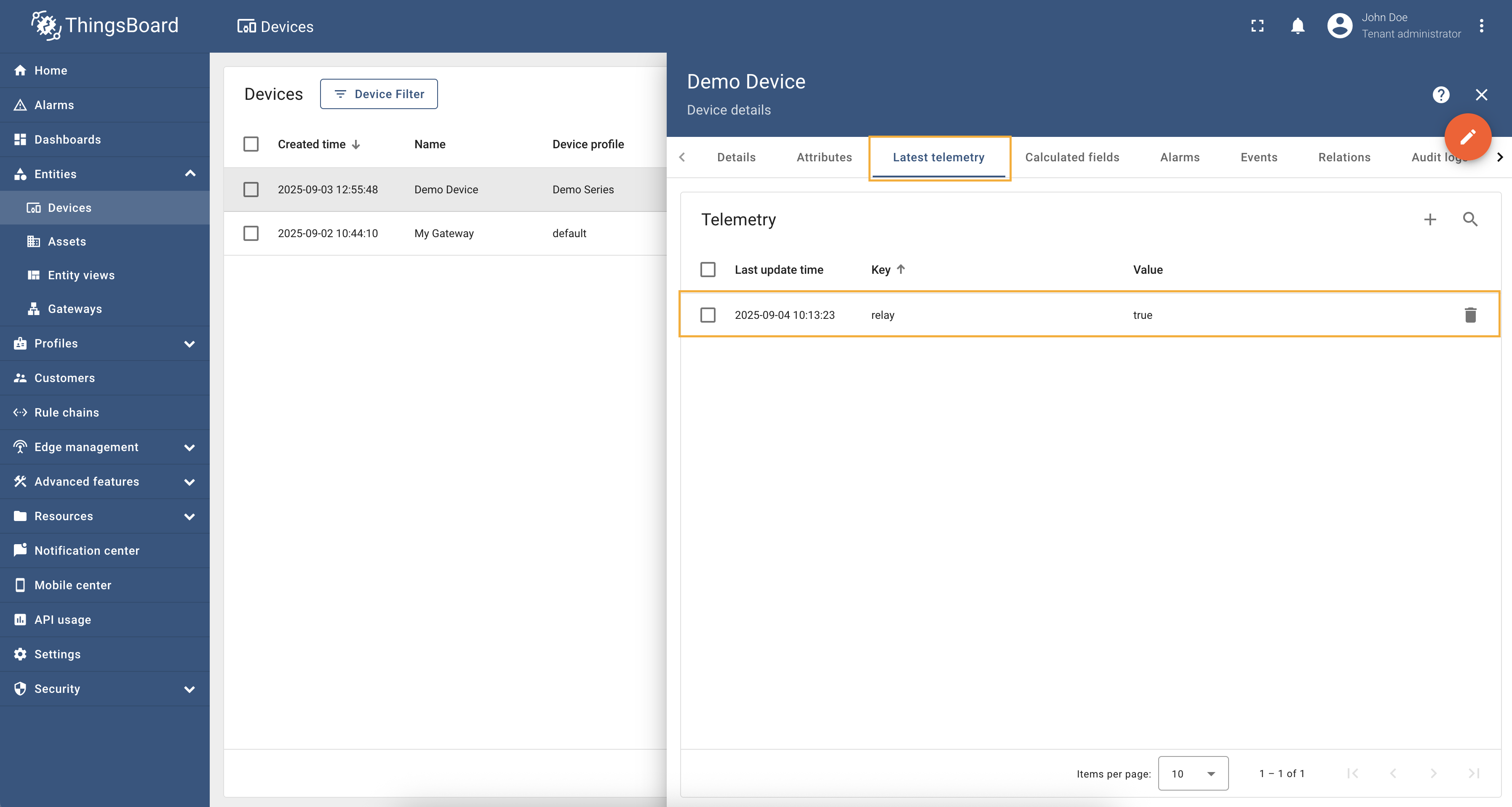

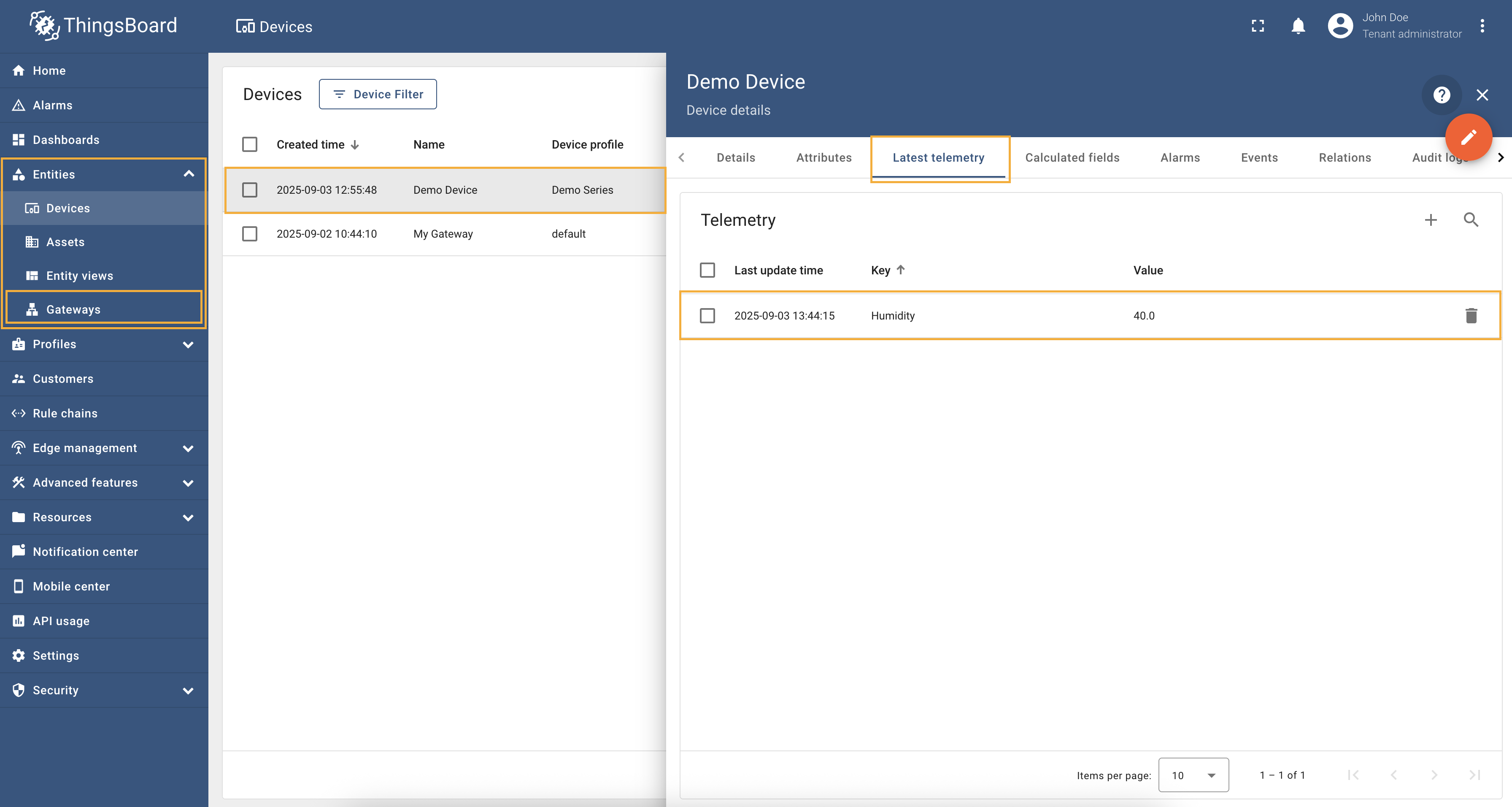

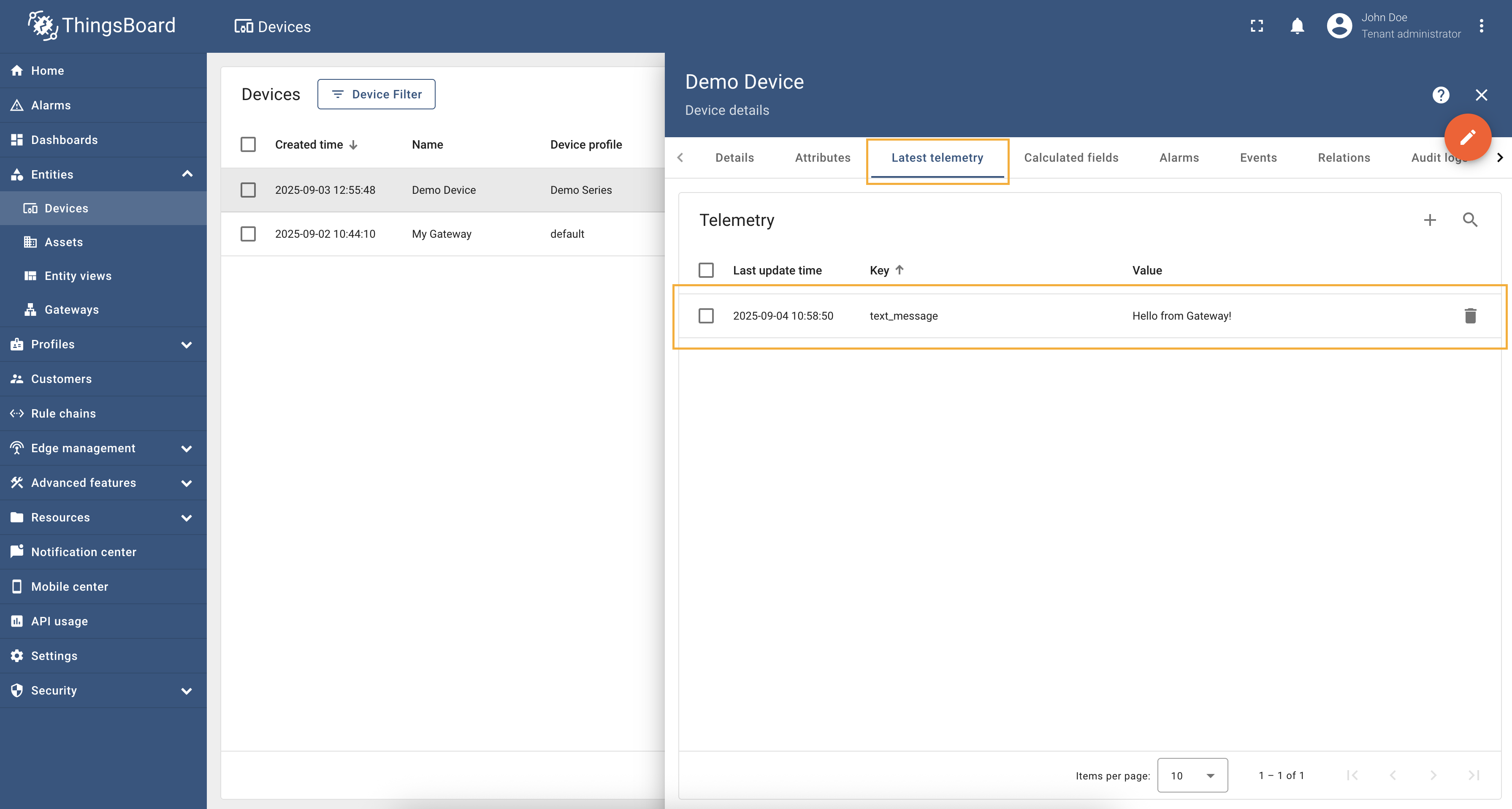

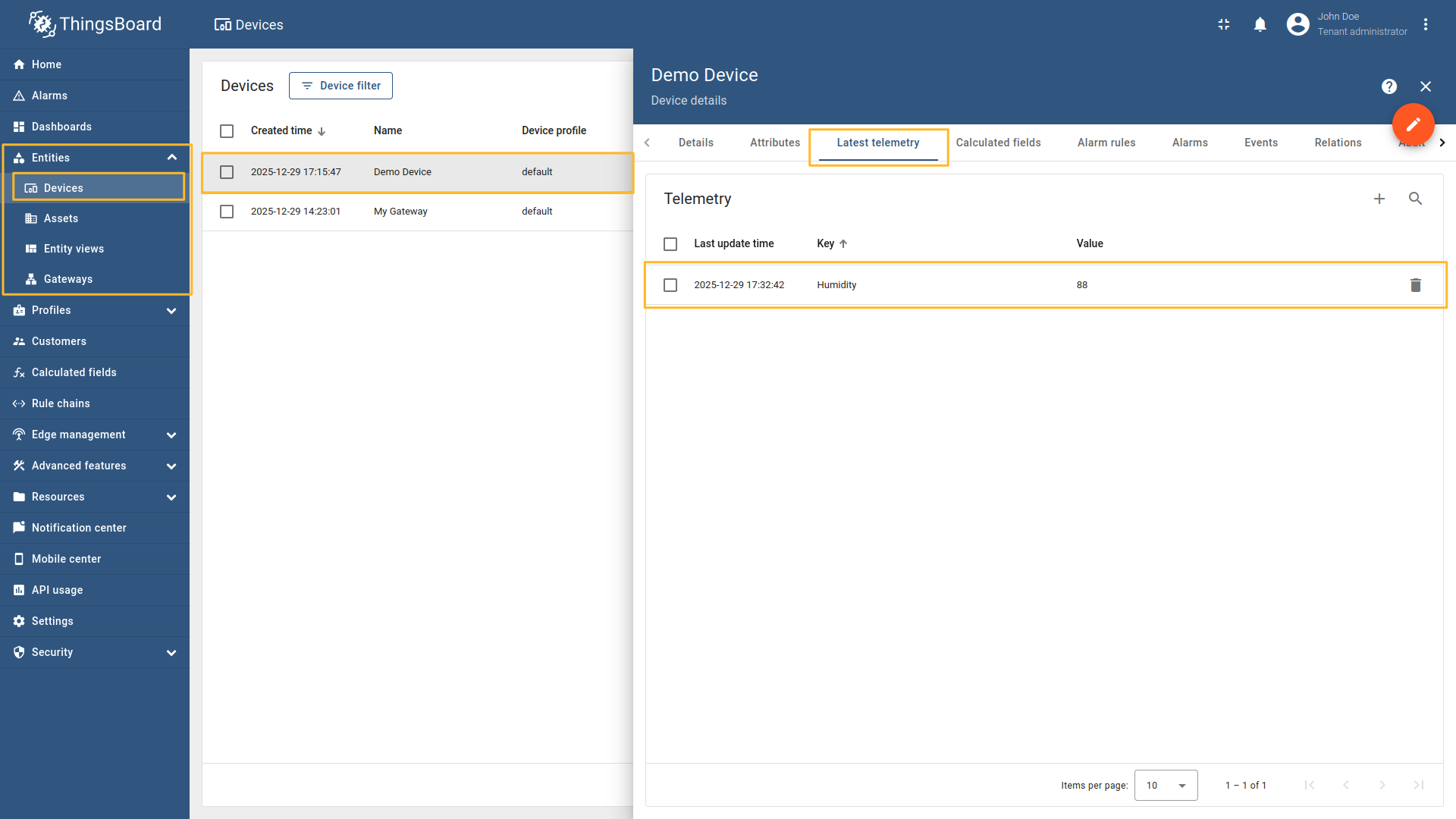

You must see the telemetry you sent to ThingsBoard in the Latest telemetry section of your device:

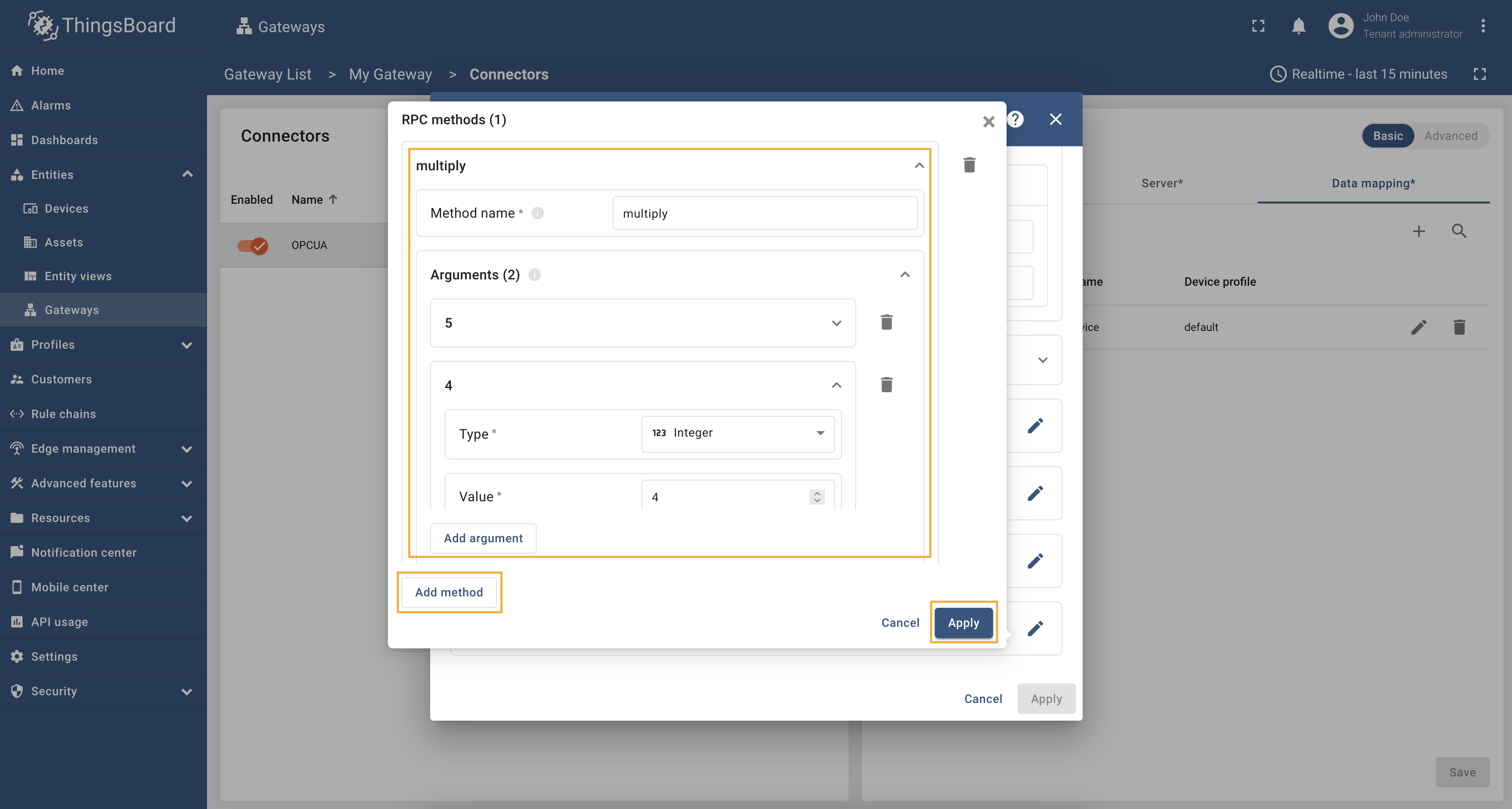

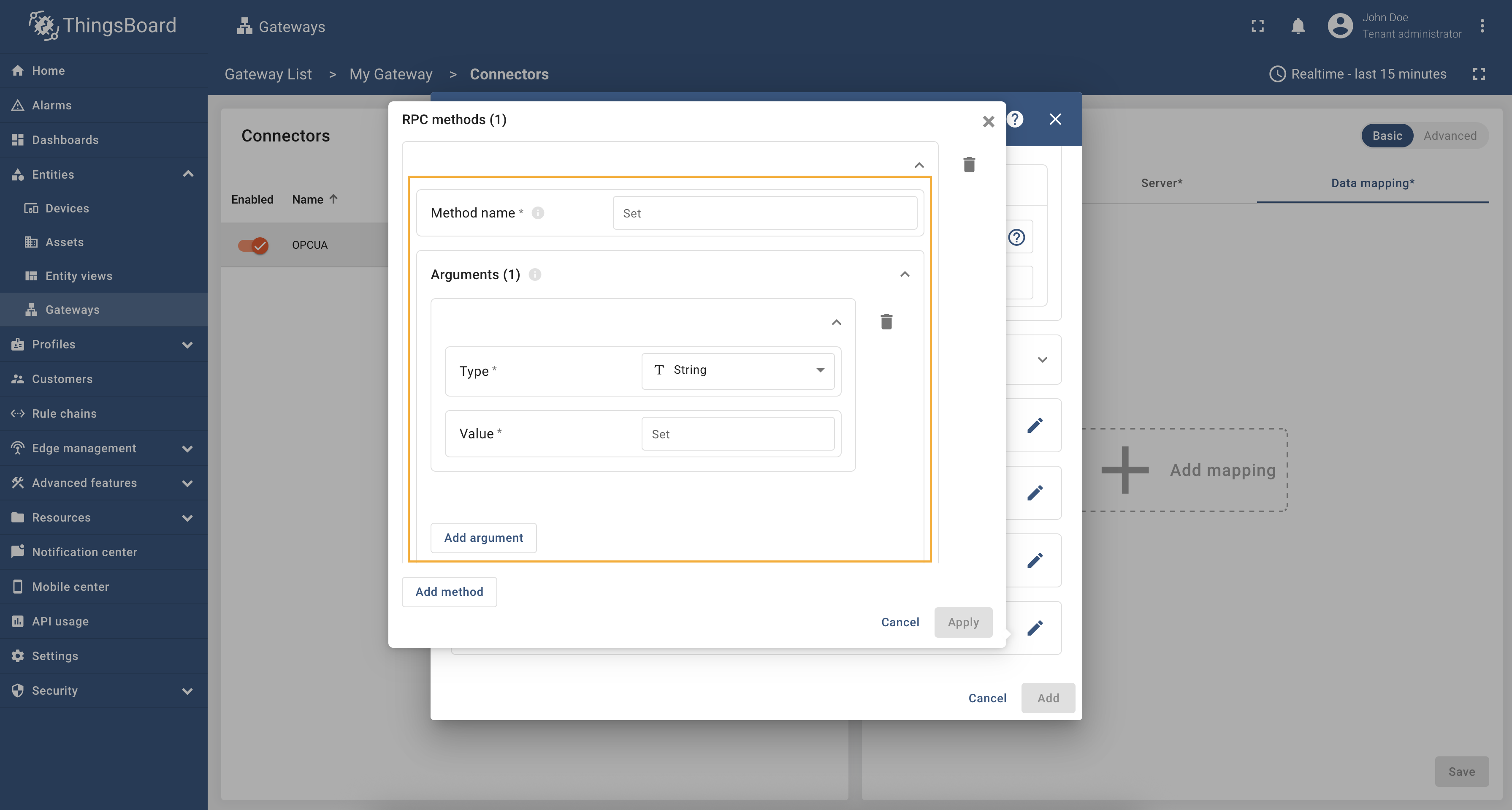

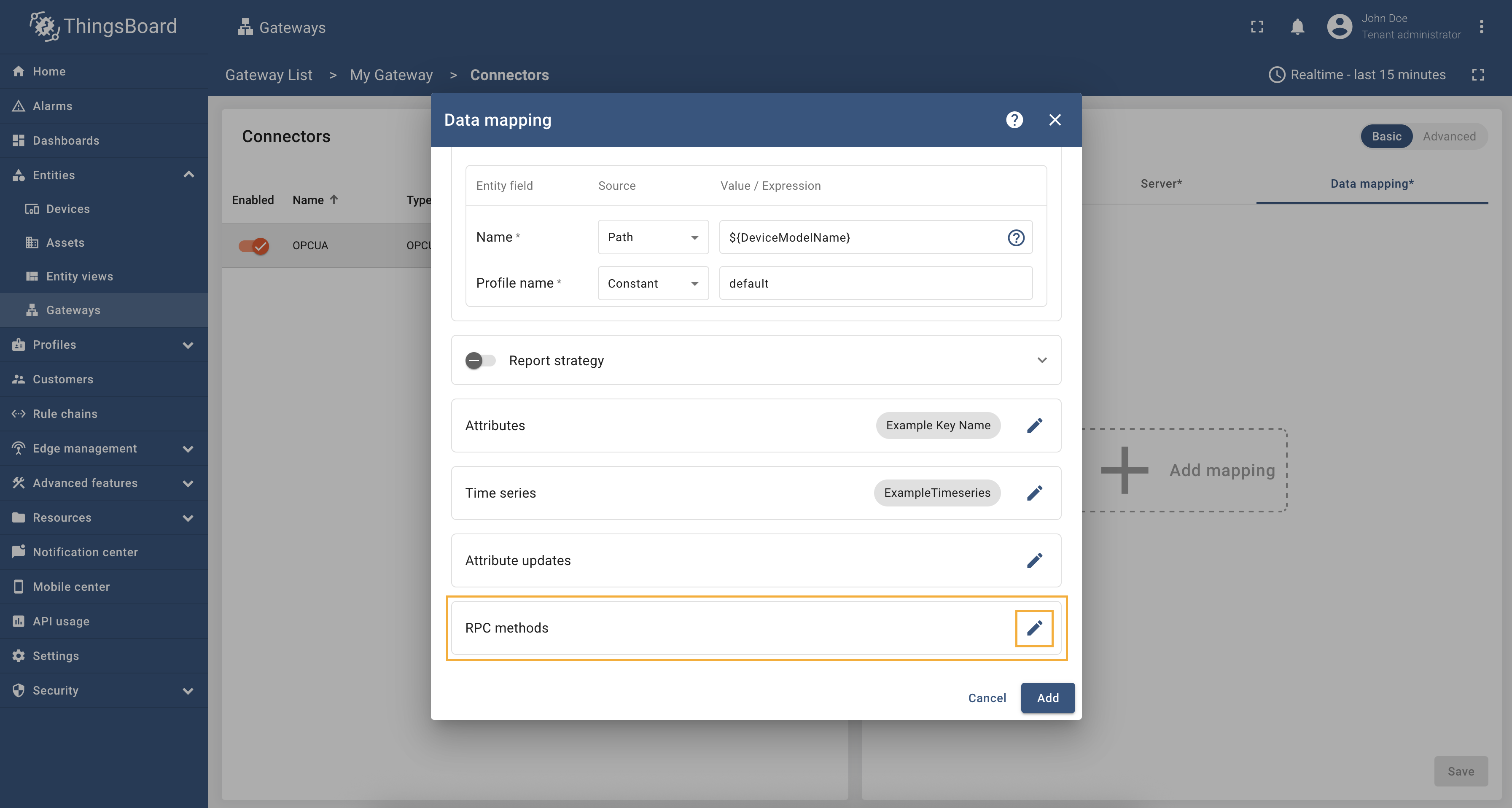

Subsection “rpc_methods”

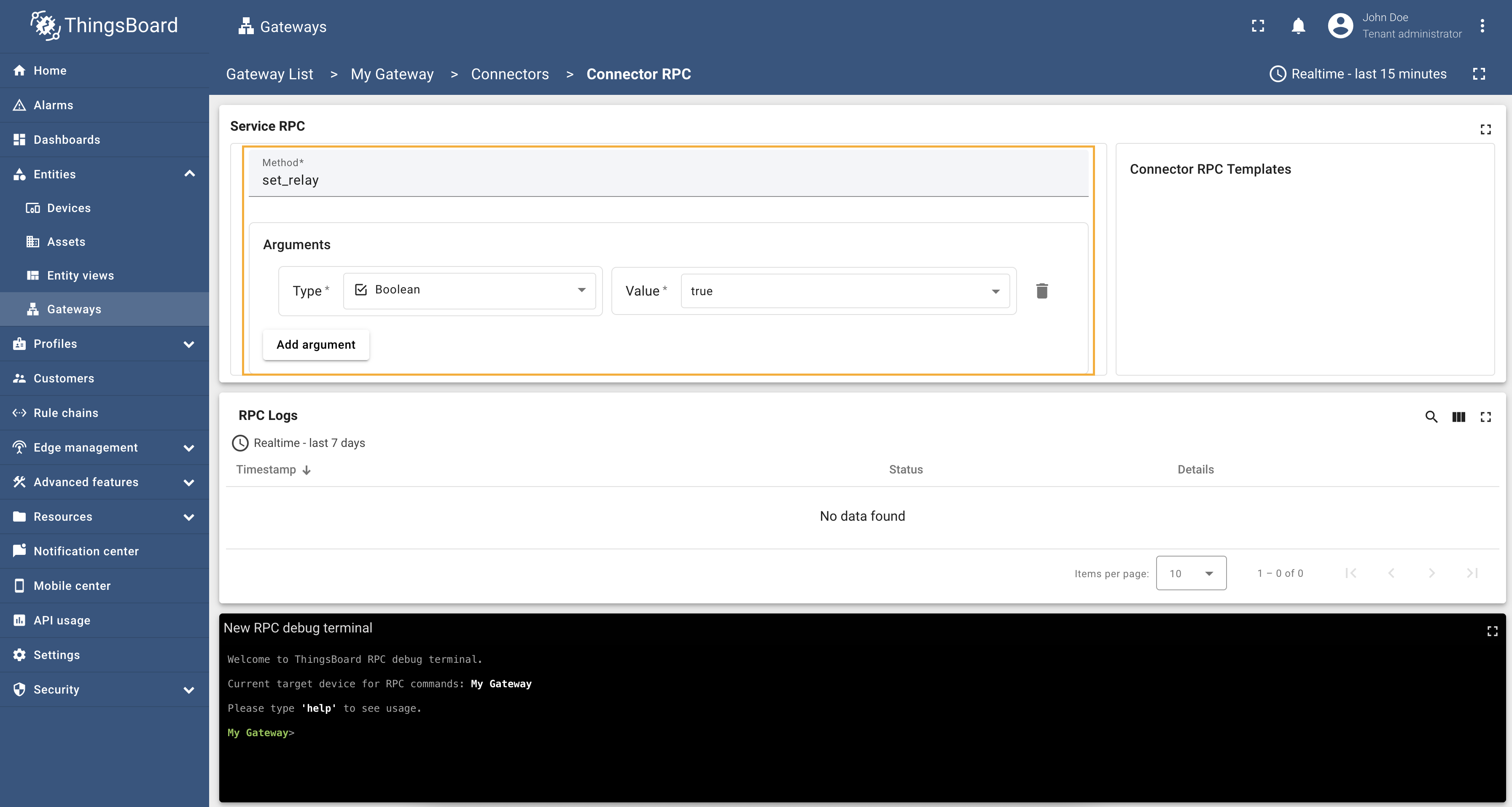

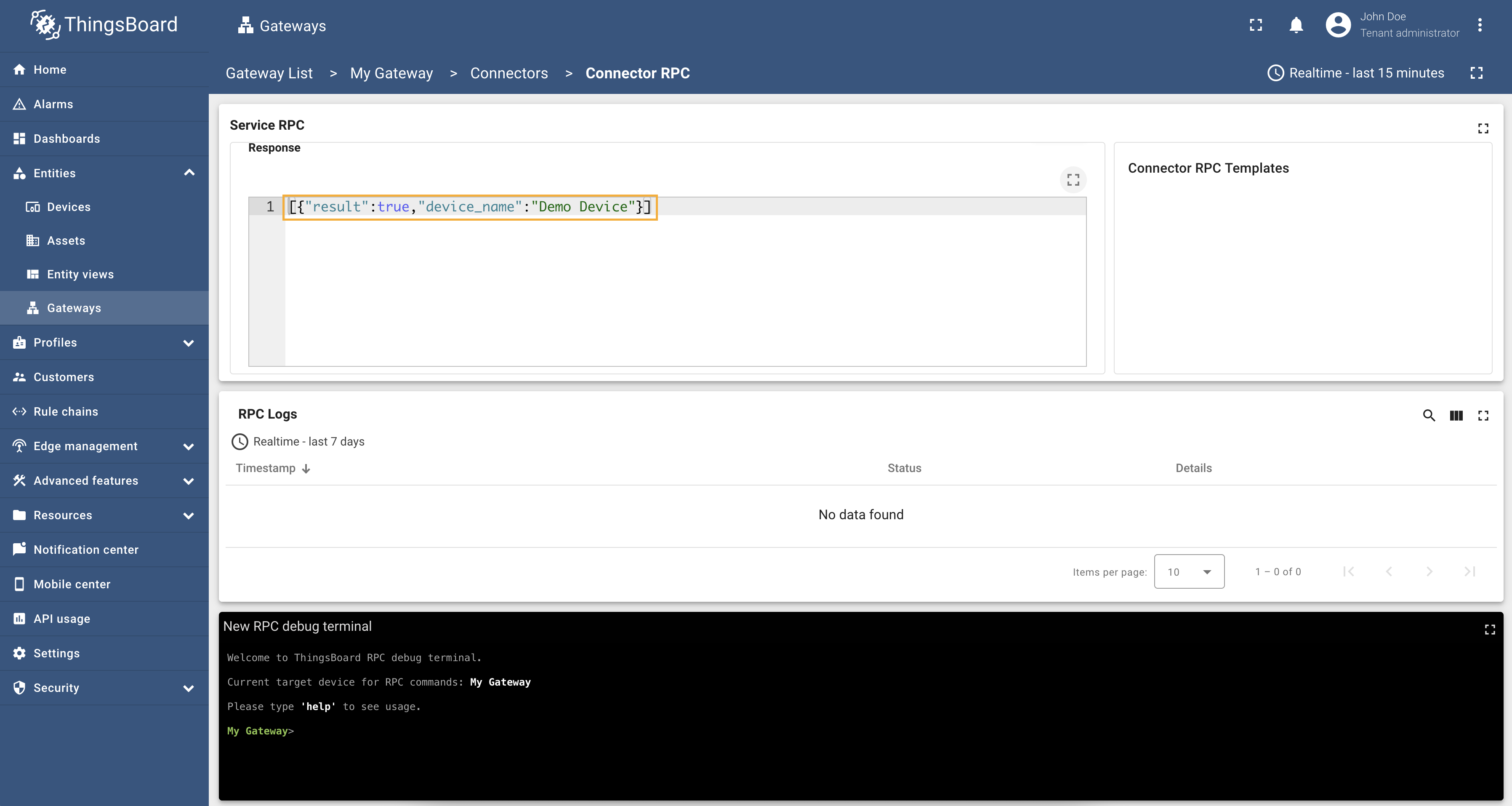

This subsection contains configuration for RPC request from ThingsBoard platform instance.

This part of configuration will look like:

1
2
3
4
5
6

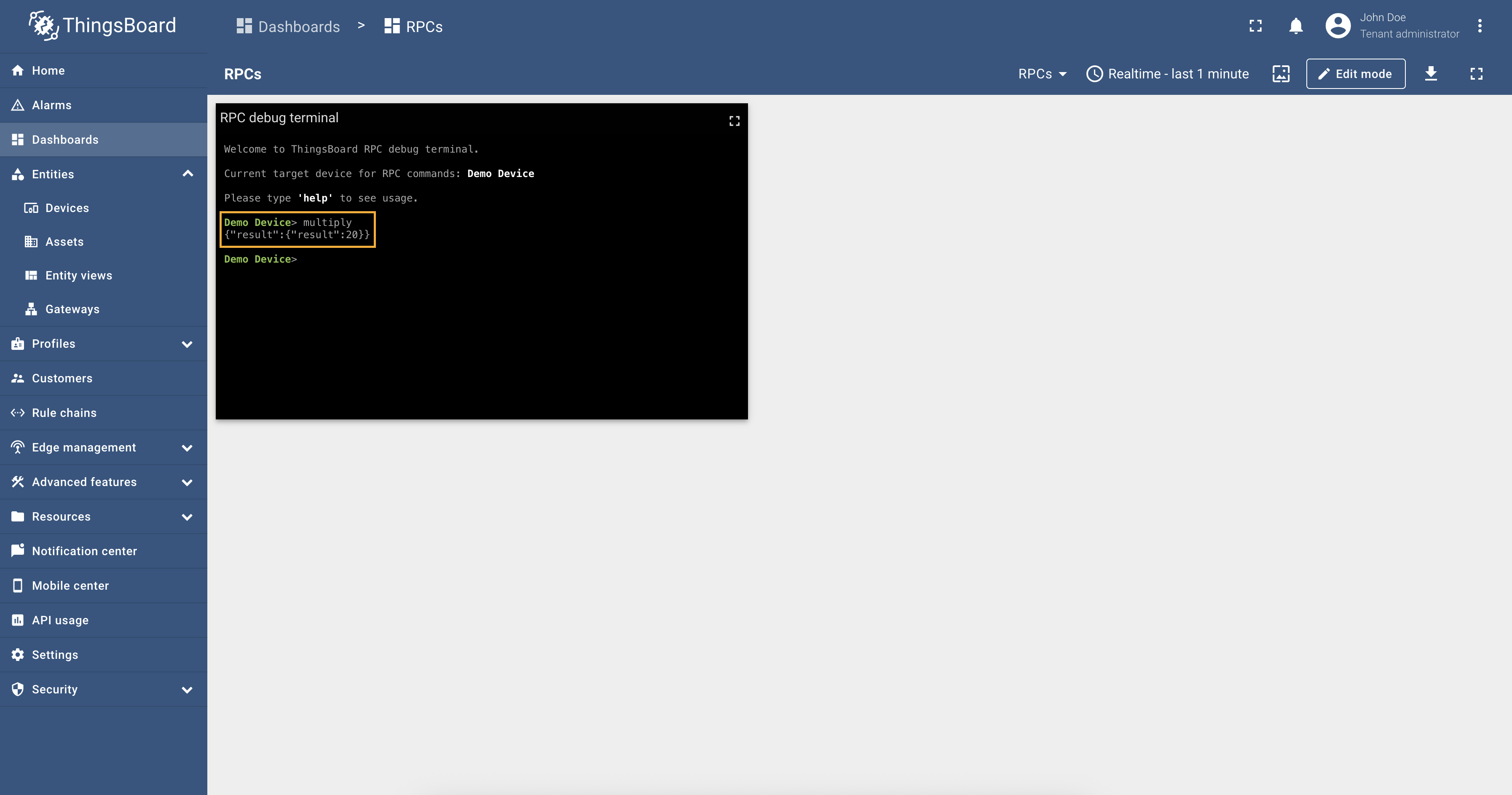

        "rpc_methods": [
          {
            "method": "multiply",
            "arguments": [2, 4]
          }
        ]

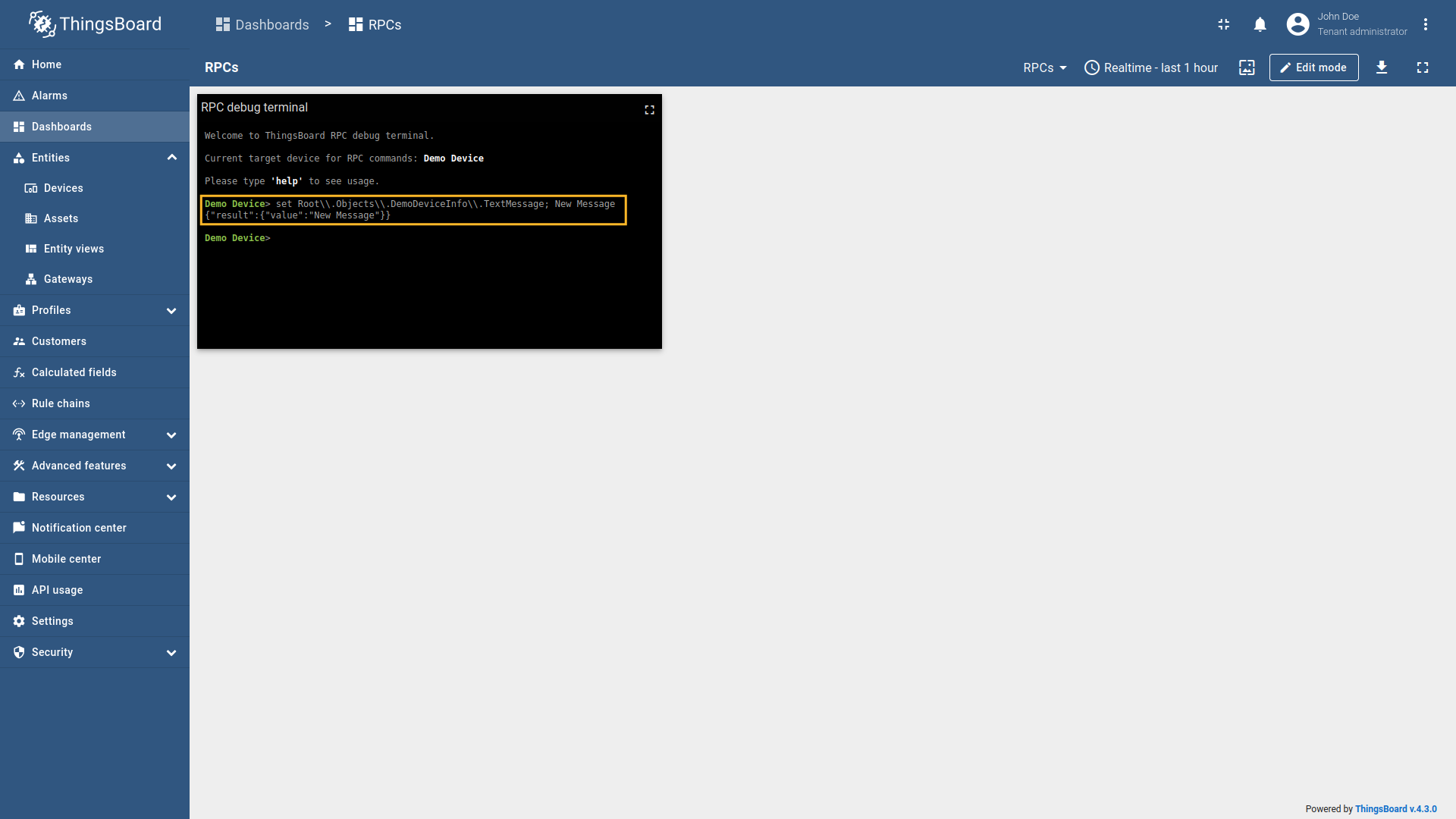

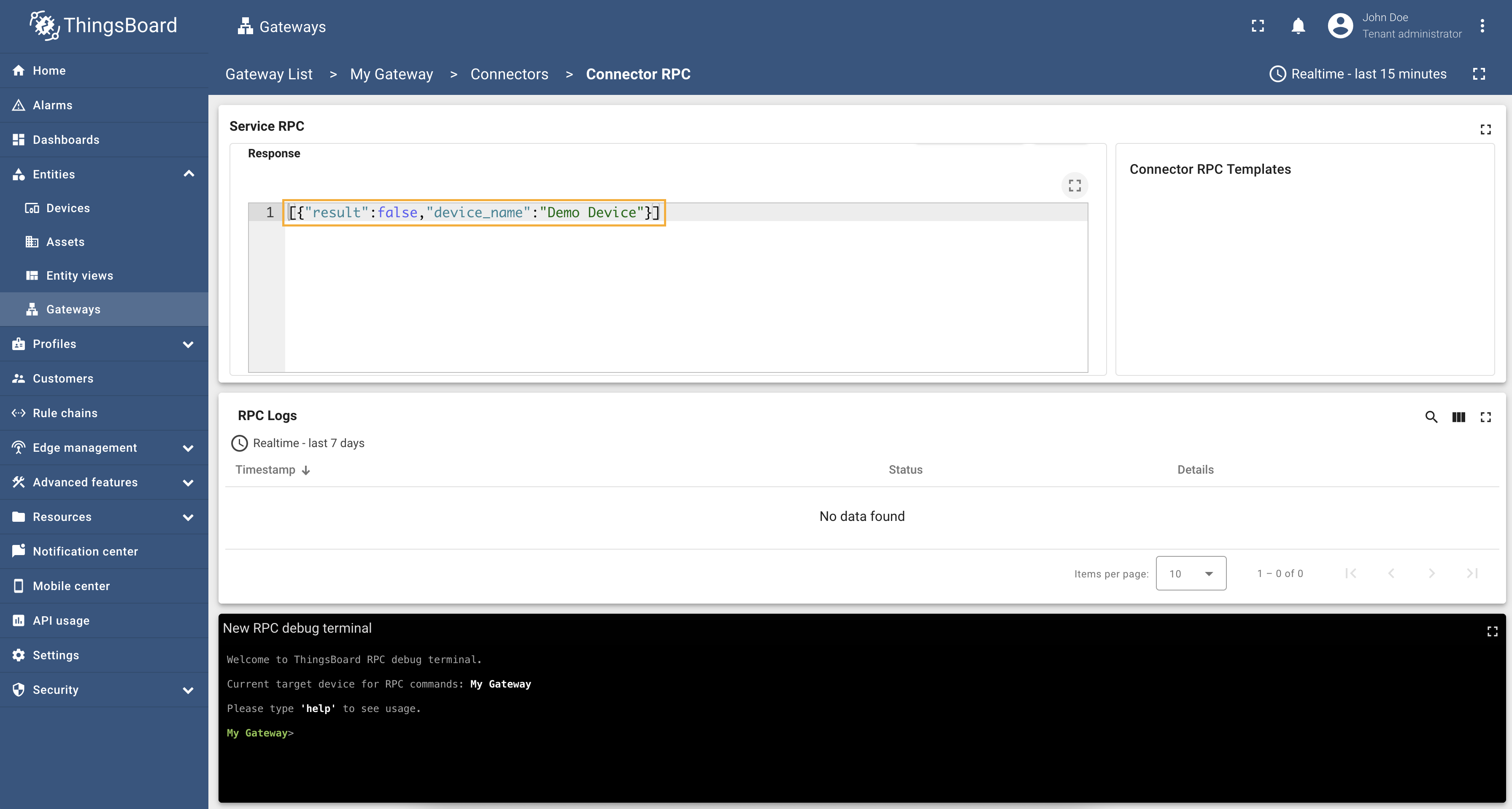

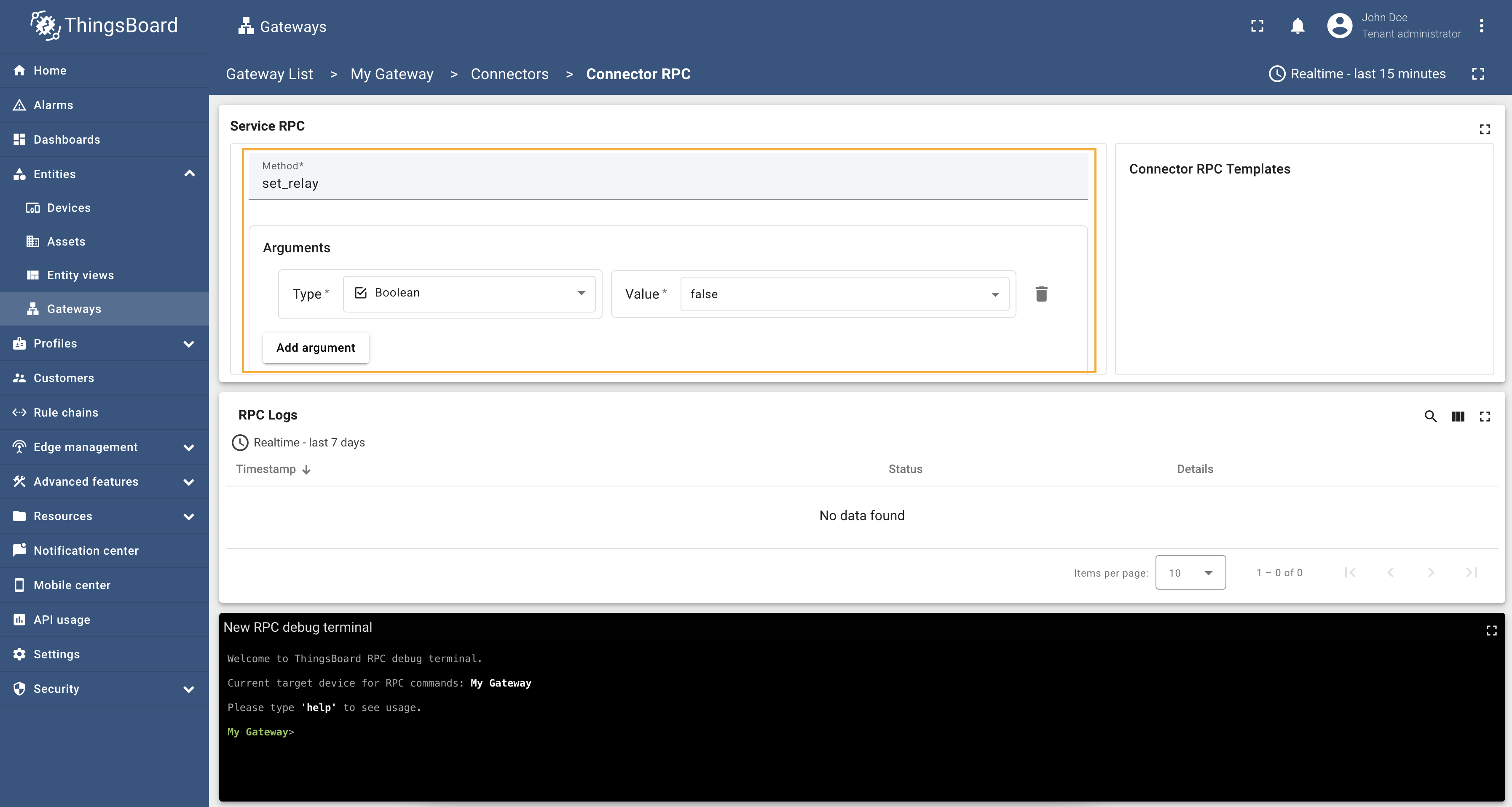

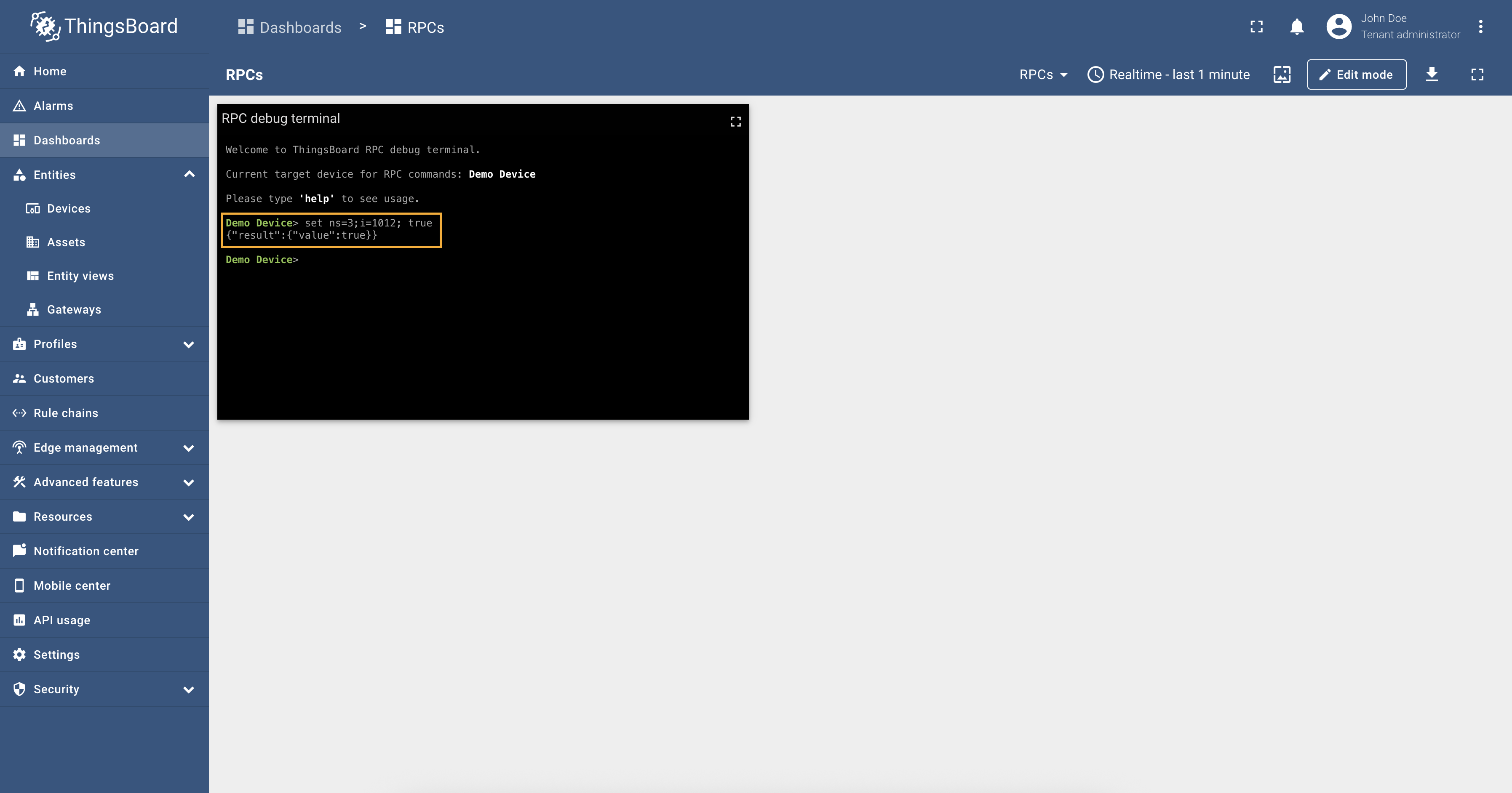

Also, every telemetry and attribute parameter has built-in GET and SET RPC methods out of the box, so you don’t need to configure it manually. See the guide.

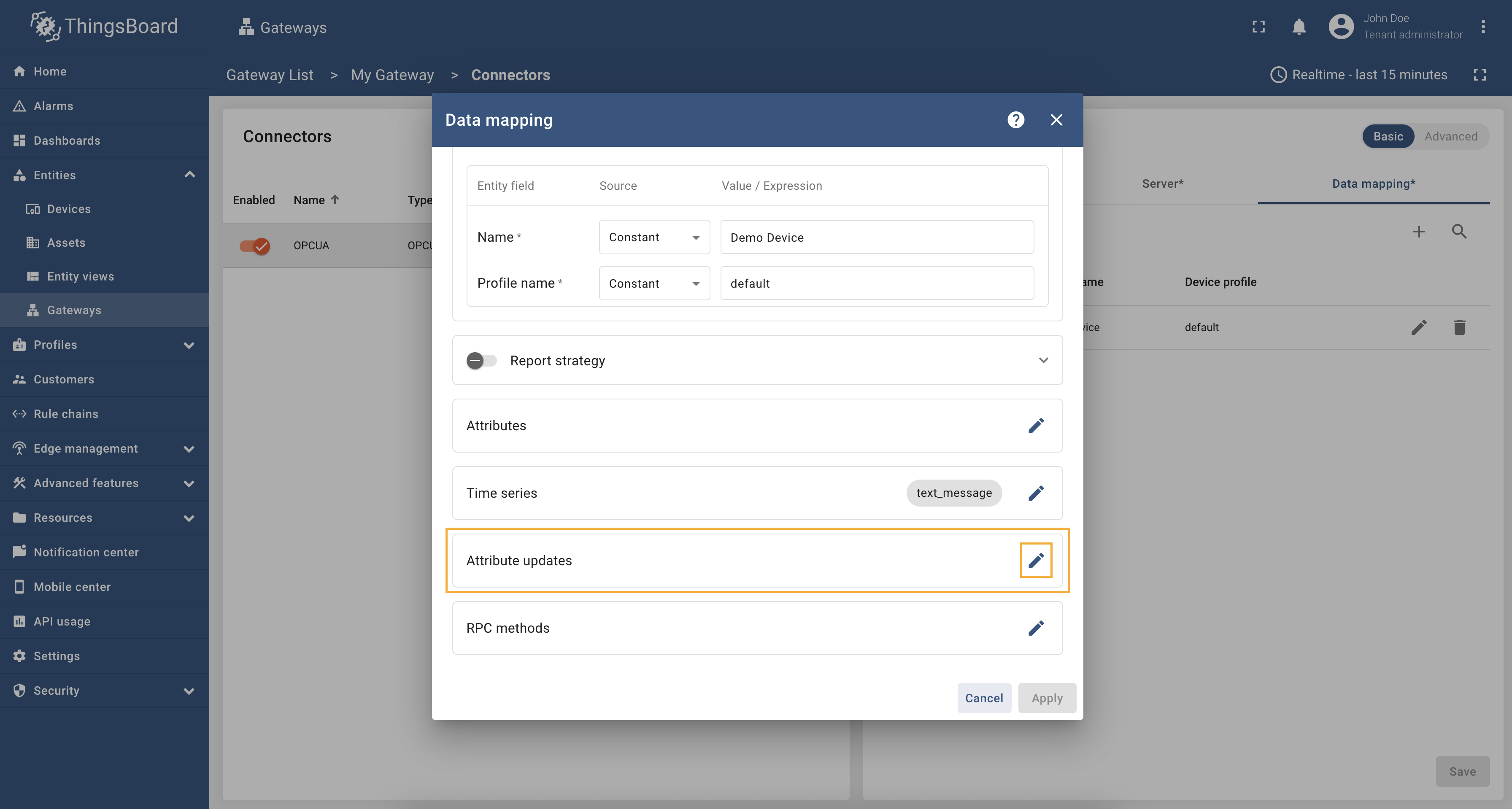

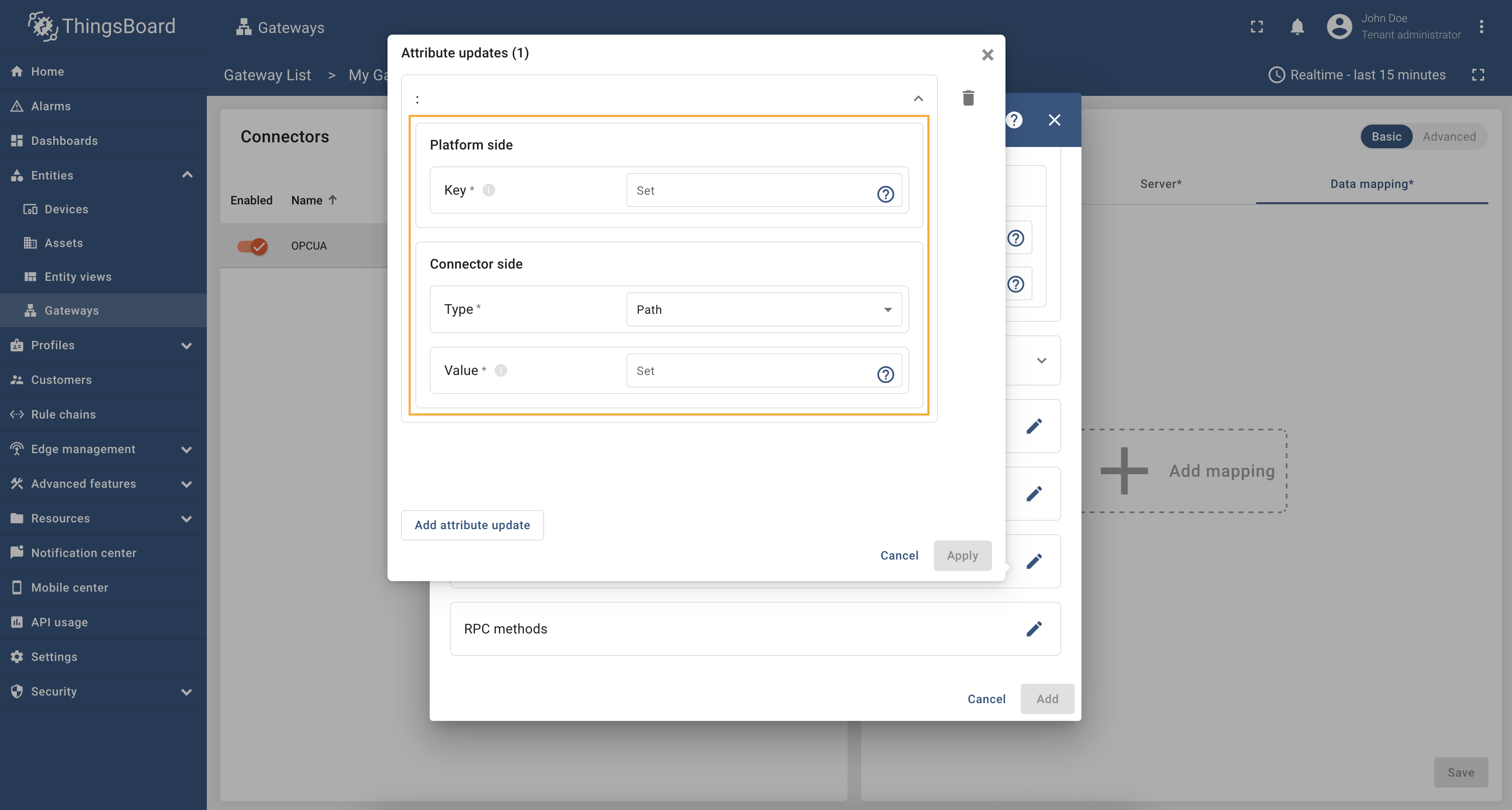

Subsection “attributes_updates”

This subsection contains configuration for attribute updates request from ThingsBoard platform instance.

This part of configuration will look like:

1
2
3
4
5
6

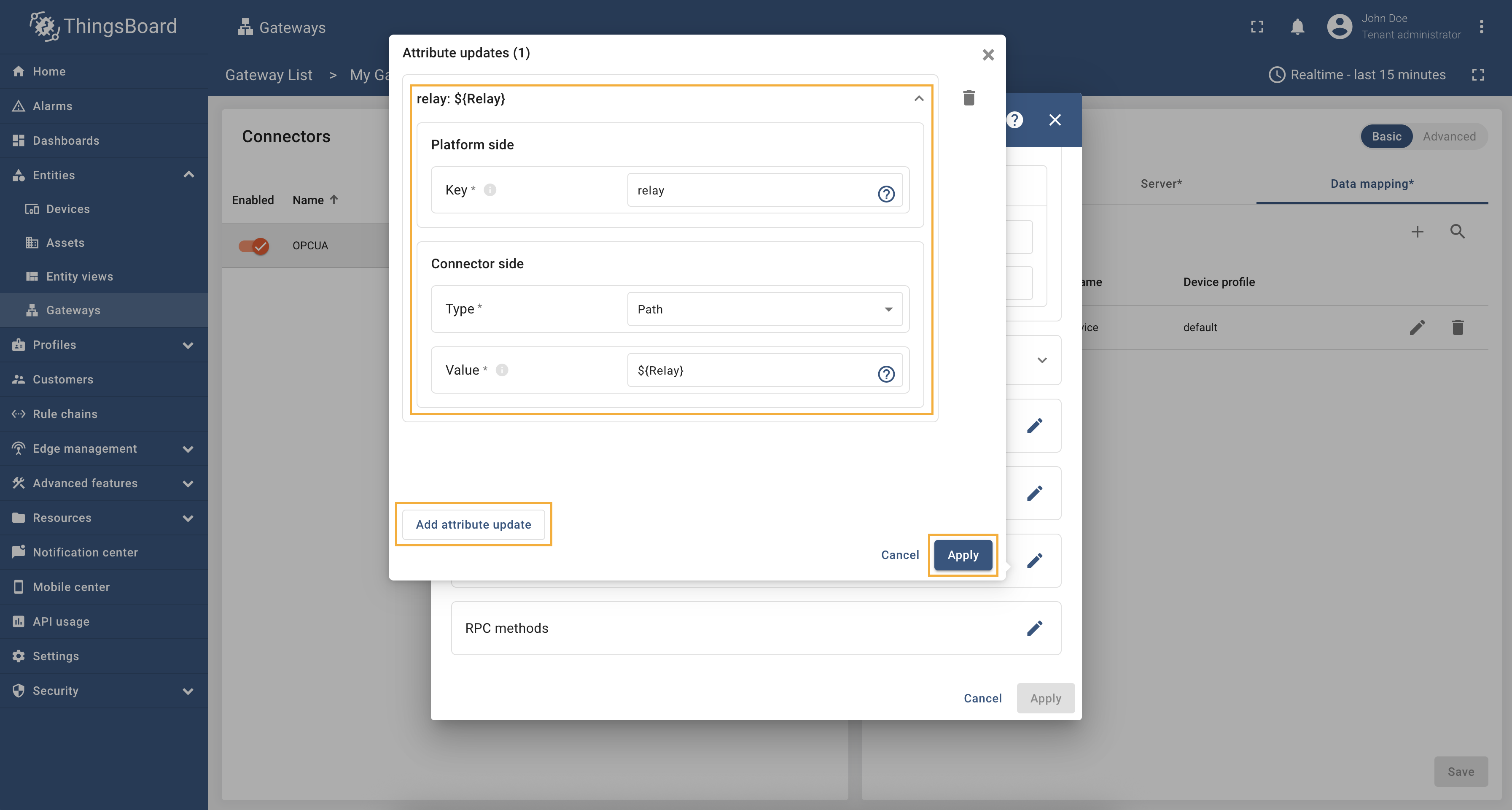

        "attributes_updates": [
          {
            "attributeOnThingsBoard": "deviceName",
            "attributeOnDevice": "Root\\.Objects\\.Device1\\.serialNumber"
          }
        ]

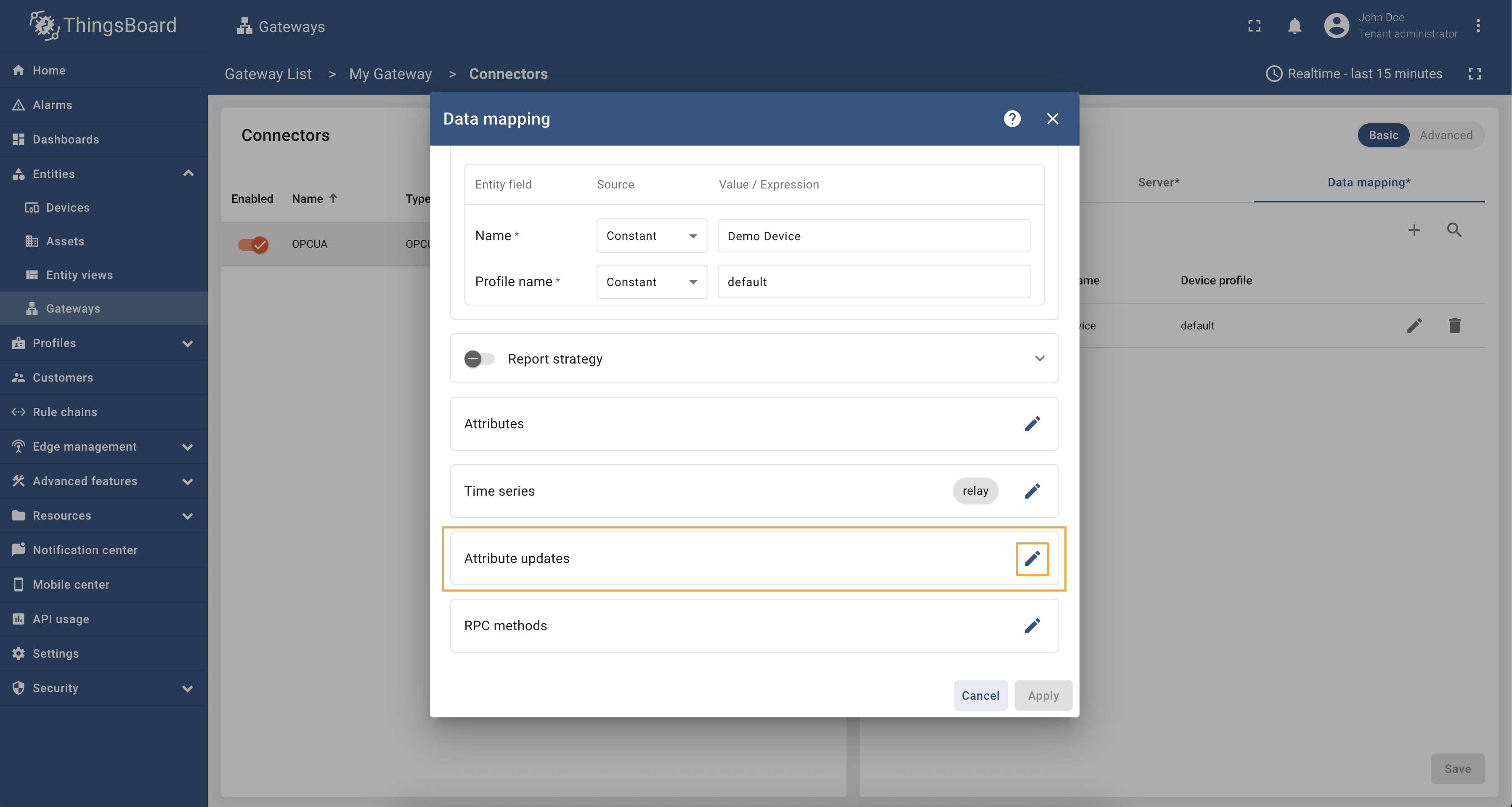

Let’s look an example.

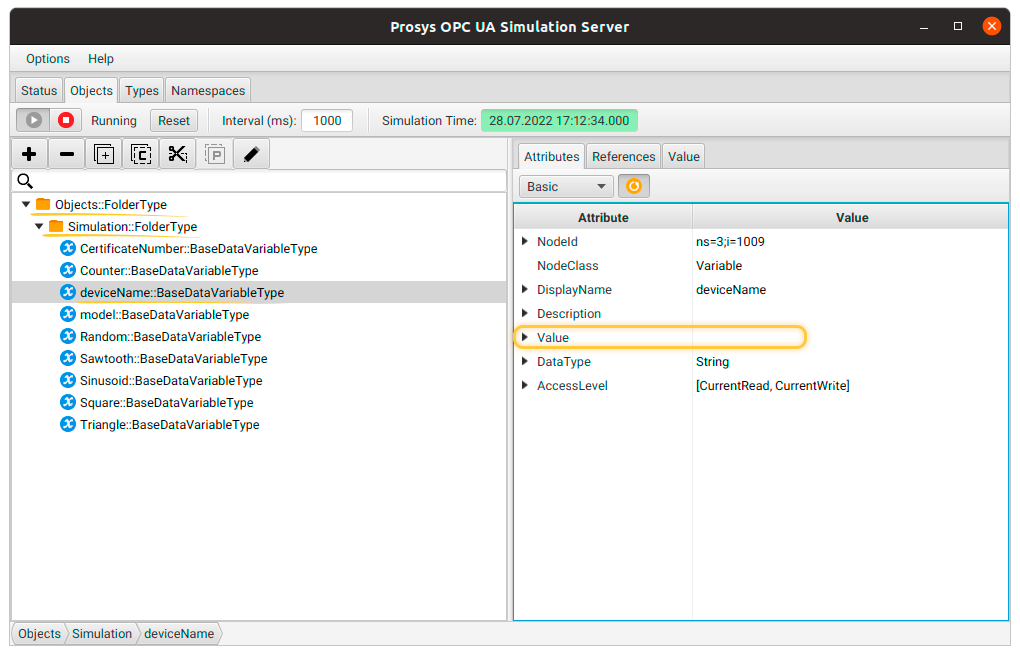

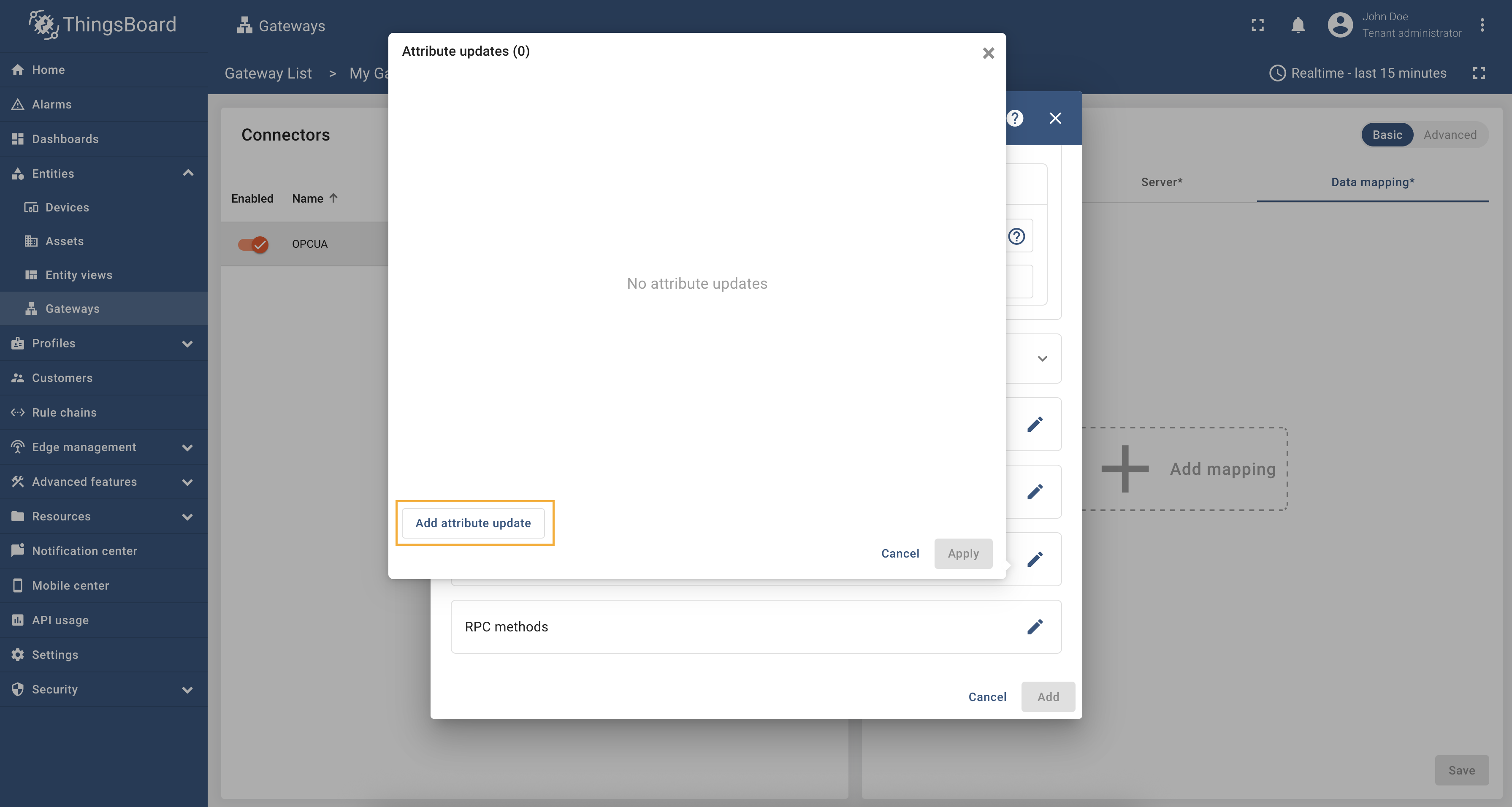

Suppose you want to set the value of the “deviceName” attribute. Currently, the attribute hasn’t any value.

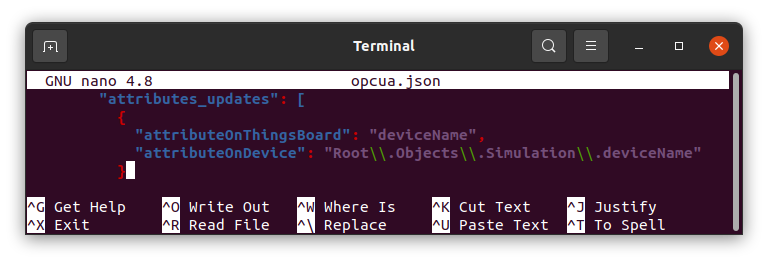

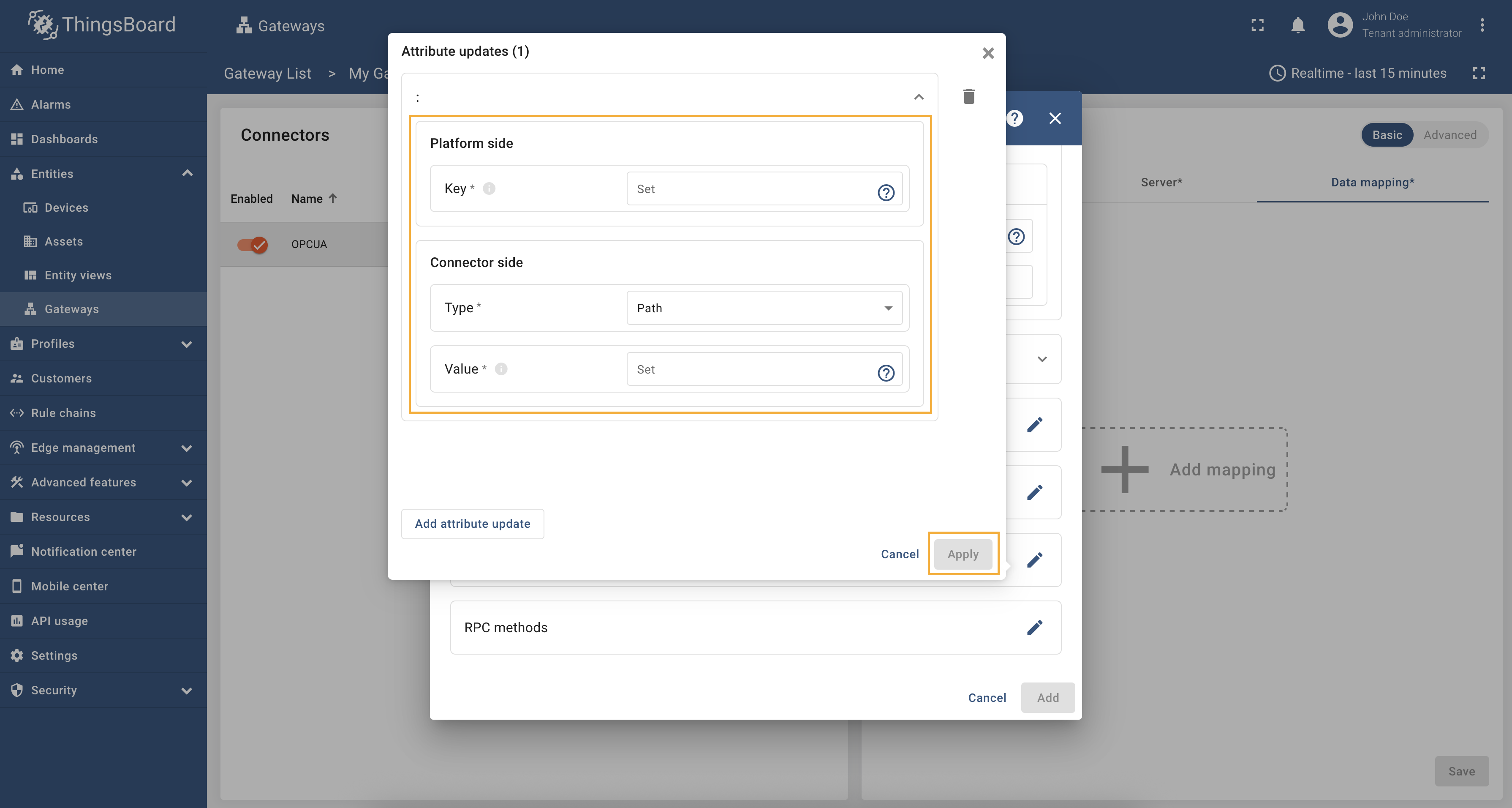

In the OPC-UA Connector configuration file (opcua.json) change “attributeOnDevice” value to the full path to the node “deviceName”.

In this example it is “Root\.Objects\.Simulation\.deviceName”.

Our attributes_updates section would look like this:

1
2
3
4
5
6
  "attributes_updates": [
    {
      "attributeOnThingsBoard": "deviceName",
      "attributeOnDevice": "Root\\.Objects\\.Simulation\\.deviceName"
    }
  ]

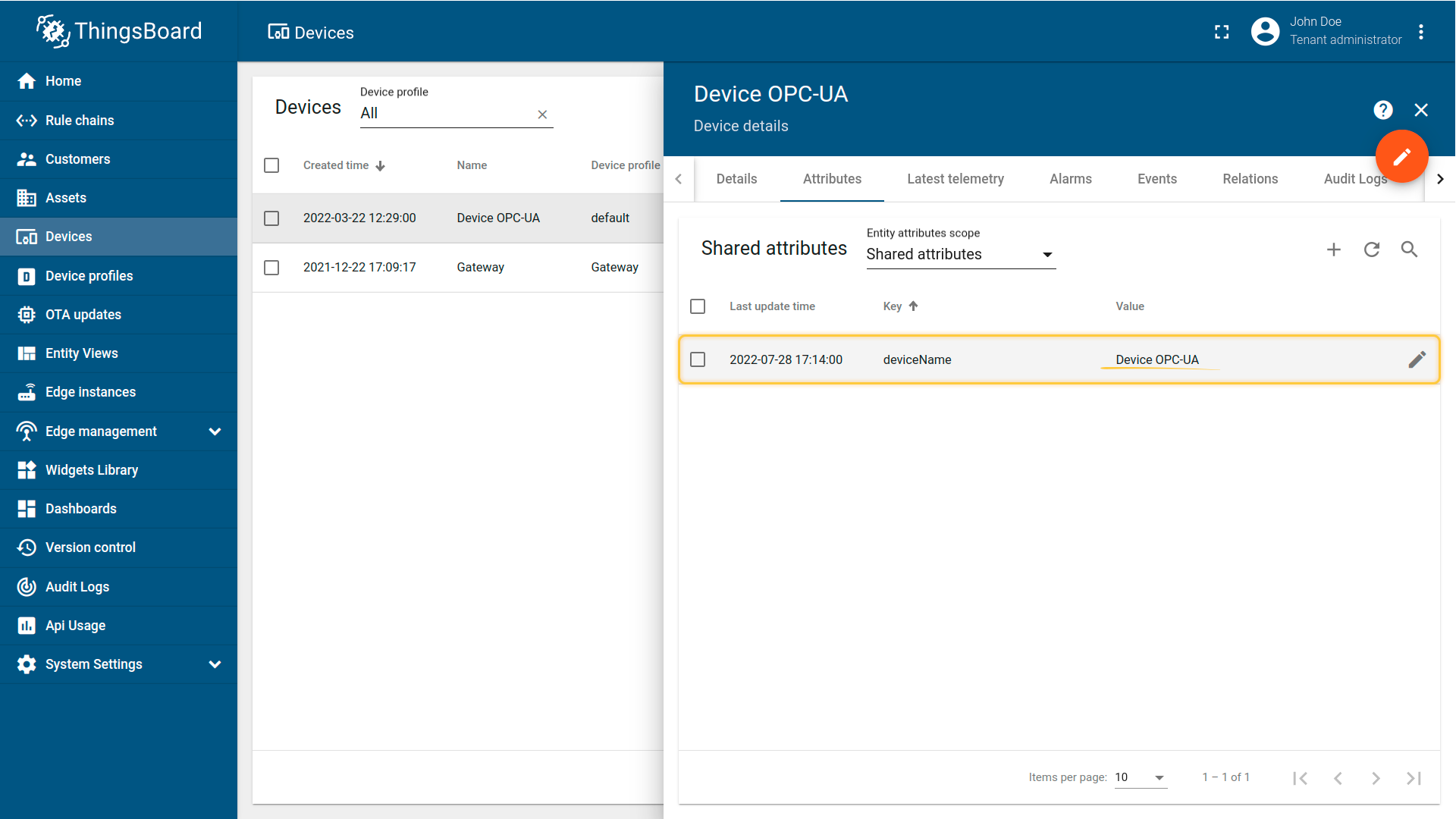

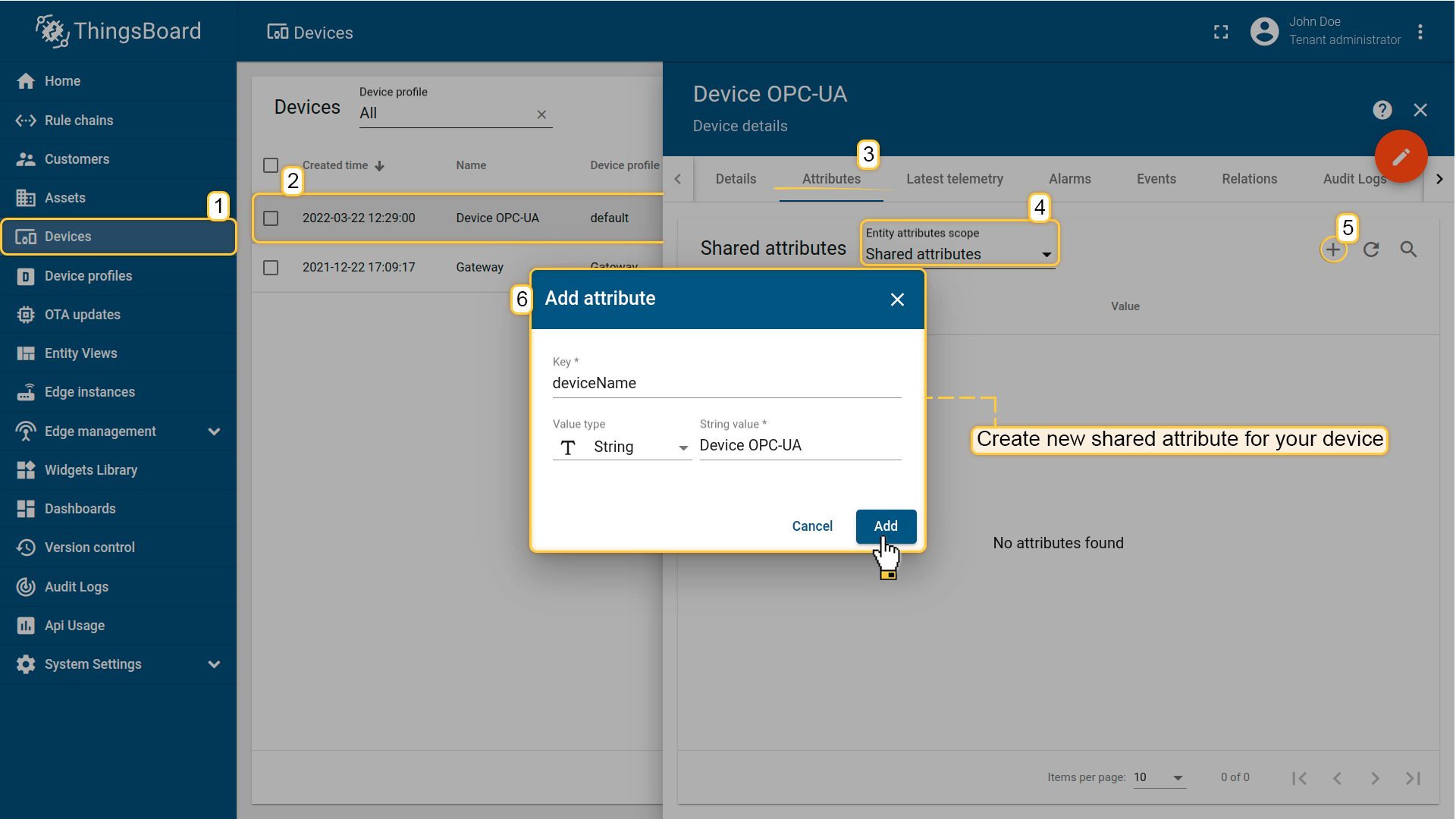

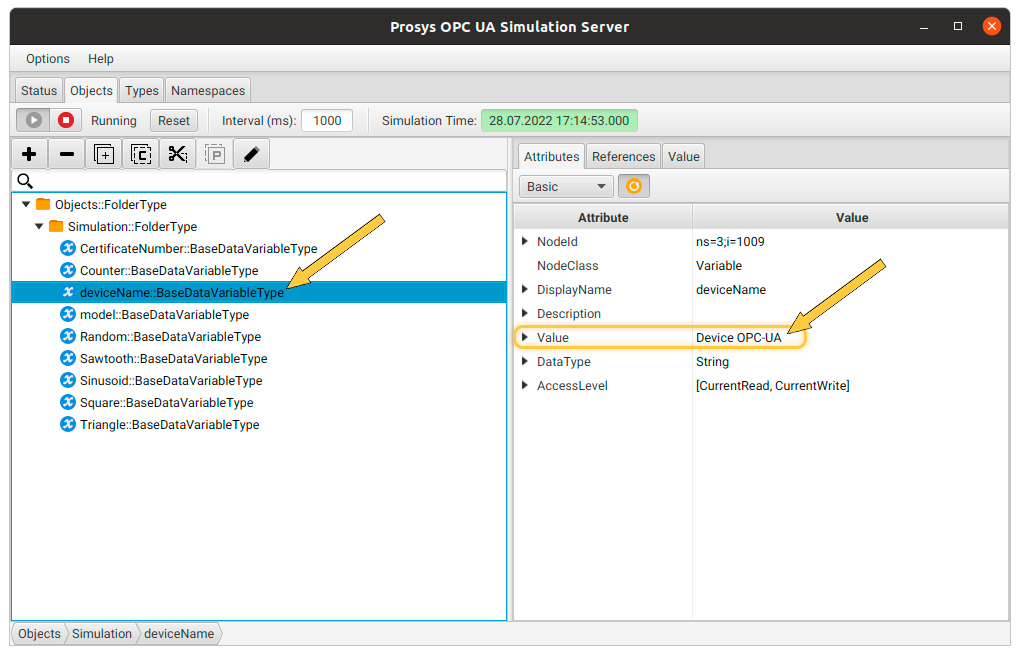

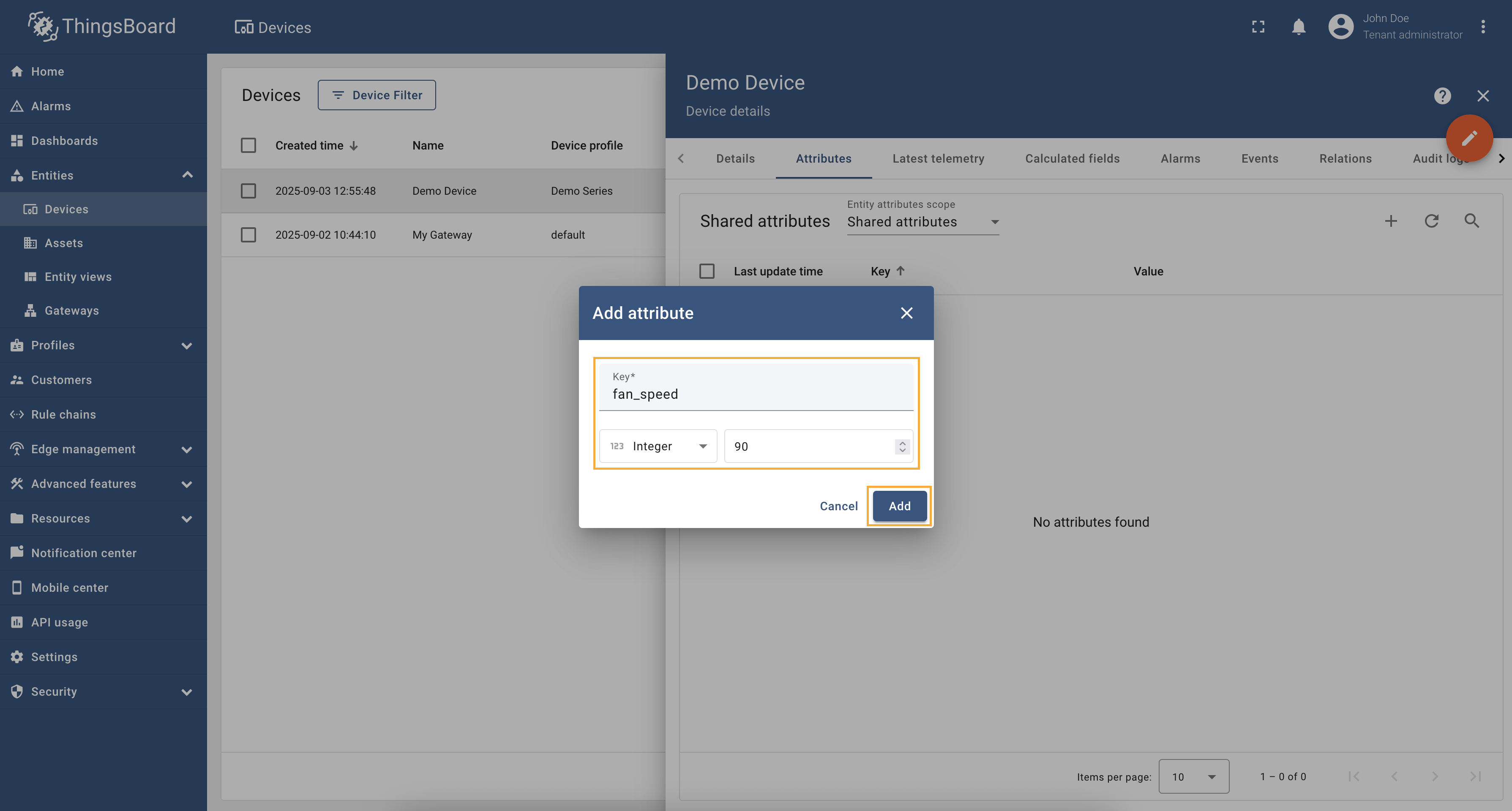

Go to “Shared attributes” and create a new one for your device in the ThingsBoard instance.

Specify the key name - deviceName, value type - String, string value - Device OPC-UA.

Now go to OPC UA server and make sure the value of the deviceName node is updated.
