This guide will help you to get familiar with FTP Connector configuration for ThingsBoard IoT Gateway. Use general configuration to enable this Connector. The purpose of this Connector is to connect to external FTP server and get data from files from specific paths. Connector is also able to push data to FTP server files based on the updates/commands from ThingsBoard.

This connector is useful when you have some FTP server in your device or some data in external resource and you would like to push this data to the ThingsBoard.

We will describe connector configuration file below.

Connector configuration: ftp.json

Connector configuration is a JSON file that contains information about how to connect to external FTP server, what paths to use when reading data and how to process the data.
Let’s review the format of the configuration file using example below.

Example of FTP Connector config file. Press to expand.

Example listed below will connect to FTP server in a local network deployed on server with IP 0.0.0.0. Connector will use basic FTP auth using username and password. Then, connector will subscribe to a list of paths from mapping section. See more info in a description below.

{
  "host": "0.0.0.0",
  "port": 21,
  "TLSSupport": false,
  "security": {
    "type": "basic",
    "username": "admin",
    "password": "admin"
  },
  "paths": [
    {
      "devicePatternName": "asd",
      "devicePatternType": "Device",
      "delimiter": ",",
      "path": "fol/*_hello*.txt",
      "readMode": "FULL",
      "maxFileSize": 5,
      "pollPeriod": 5,
      "txtFileDataView": "SLICED",
      "withSortingFiles": true,
      "attributes": [
        {
          "key": "temp",
          "value": "[1:]"
        },
        {
          "key": "tmp",
          "value": "[0:1]"
        }
      ],
      "timeseries": [
        {
          "type": "int",
          "key": "[0:1]",
          "value": "[0:1]"
        },
        {
          "type": "int",
          "key": "temp",
          "value": "[1:]"
        }
      ]
    }
  ],
  "attributeUpdates": [
    {
      "path": "fol/hello.json",
      "deviceNameFilter": ".*",
      "writingMode": "WRITE",
      "valueExpression": "{'${attributeKey}':'${attributeValue}'}"
    }
  ],
  "serverSideRpc": [
    {
      "deviceNameFilter": ".*",
      "methodFilter": "read",
      "valueExpression": "${params}"
    },
    {
      "deviceNameFilter": ".*",
      "methodFilter": "write",
      "valueExpression": "${params}"
    }
  ]
}

General section

参数	Default value	描述
host	localhost	Domain address or ip of the server.
port	21	Port of the server
TLSSupport	true	Verify or no TLS support on the server if available.

Subsection “security”

Subsection “security” provides configuration for client authorization at FTP Server.

BasicRecommended

AnonymousNo security

One type of security configuration is basic, For authorization will be used combination of username/password, provided in this section in config.

Parameter	Default value	描述
type	basic	Type of authorization.
username	username	Username for authorization.
password	password	Password for authorization.

Security subsection in configuration file will look like this:

    "security": {
      "type": "basic",
      "username": "username",
      "password": "password"
    }

Anonymous auth is the most simple option. It is useful for testing on public FTP servers.

Parameter	Default value	描述
type	anonymous	Type of authorization.

Security subsection in configuration file will look like this:

    "security": {
      "type": "anonymous"
    }

Section “paths”

This configuration section contains array of objects with paths that the gateway will try to read after connecting to the server.
Also this section contains settings about processing incoming messages (converter).

Parameter	Default value	描述
path	data/log.txt	Path to file for reading data.

Note Make sure that your file extension is one of the supporting extensions by FTP connector (.txt, .json, .csv)

The path supports special symbols: ‘*’ to allow to subscribe to multiple paths and files. Let’s look to another example of using path parameter:

Example Name	Path	Comments
Example 1	data/log.txt	Read data from one file (if it exists)
Example 2	data/*/log.txt	Read all log.txt files from all folders that contained data folder
Example 3	data//_log.txt	Read all files that name contain _log.txt from all folders that contained data folder
Example 3	data/.	Read all files with all supporting extensions that included in data folder

Now let’s review another required parameter in path section.

Parameter	Available value	描述
delimiter	,	Symbol that will use to split the data in file
readMode	FULL/PARTIAL	If parameter is equal to FULL, file will be reading from the start to the end. If parameter is equal to PARTIAL, file will be read from the line that was reading at the previous time
maxFileSize	5	The max file size in MB that will be reading (if file size is more than 5 MB, it will be passed)
pollPeriod	60	The period of time (in seconds) that files in the path will be reading
txtFileDataView	TABLE/SLICED	The txtFileDataView parameter is used only for .txt files
withSortingFiles	true/false	Is how the found files in path will append to array
attributes		This subsection contains parameters of the incoming message, that will be interpreted as attributes for the device.
timeseries		This subsection contains parameters of the incoming message, that will be interpreted as telemetry for the device.

Let’s look how we can configure this section for different file extensions:

For .txt with TABLE data view and .csv files

   "paths": [
     {
       "devicePatternName": "${temp}",
       "devicePatternType": "Device",
       "delimiter": ",",
       "path": "fol/*.*",
       "readMode": "FULL",
       "maxFileSize": 5,
       "pollPeriod": 60,
       "txtFileDataView": "TABLE",
       "withSortingFiles": true,
       "attributes": [
         {
           "type": "int",
           "key": "key",
           "value": "${temp}"
         }
       ],
       "timeseries": [
         {
           "type": "int",
           "key": "${hum}",
           "value": "${temp}"
         },
         {
           "type": "int",
           "key": "temp",
           "value": "${hum}"
         }
       ]
     }
   ]

That mean that FTP converter will look for the next file structure:

 temp,hum
 1,2
 23,34

For .txt file with SLICED data view

   "paths": [
     {
       "devicePatternName": "DeviceName",
       "devicePatternType": "[0:1]",
       "delimiter": ",",
       "path": "fol/table.txt",
       "readMode": "FULL",
       "maxFileSize": 5,
       "pollPeriod": 60,
       "txtFileDataView": "SLICED",
       "withSortingFiles": true,
       "attributes": [
         {
           "key": "temp",
           "value": "[1:]"
         },
         {
           "key": "tmp",
           "value": "[0:1]"
         }
       ],
       "timeseries": [
         {
           "type": "int",
           "key": "[0:1]",
           "value": "[0:1]"
         },
         {
           "type": "int",
           "key": "temp",
           "value": "[1:]"
         }
       ]
     }
   ]

That mean that FTP converter will look for the next file structure:

 1,2
 23,34

For .json file

 "paths": [
     {
       "devicePatternName": "${temp}",
       "devicePatternType": "Device",
       "delimiter": ",",
       "path": "fol/*.json",
       "readMode": "FULL",
       "maxFileSize": 5,
       "pollPeriod": 60,
       "withSortingFiles": true,
       "attributes": [
         {
           "type": "int",
           "key": "key",
           "value": "${temp}"
         }
       ],
       "timeseries": [
         {
           "type": "int",
           "key": "key",
           "value": "${temp}"
         },
         {
           "type": "int",
           "key": "temp",
           "value": "${tmp}"
         }
       ]
     }
   ]

Combine attributes, telemetry and serverSideRpc section, for example .json file:

  "paths": [
       {
         "devicePatternName": "${temp}",
         "devicePatternType": "Device",
         "delimiter": ",",
         "path": "fol/*.json",
         "readMode": "FULL",
         "maxFileSize": 5,
         "pollPeriod": 60,
         "withSortingFiles": true,
         "attributes": [],
         "timeseries": [
           {
             "type": "int",
             "key": "hum",
             "value": "${hum}"
           },
           {
             "type": "int",
             "key": "temp",
             "value": "${tmp}"
           },
           {
             "type": "string",
             "key": "combine",
             "value": "${tmp}::${hum}"
           }
         ]
       }
     ]

Section “attributeUpdates”

This configuration section is optional. ThingsBoard allows to provision device attributes and fetch some of them from the device application. You can treat this as a remote configuration for devices. Your devices are able to request shared attributes from ThingsBoard. See user guide for more details.

The “attributeRequests” configuration allows configuring the format of the corresponding attribute data that will be written to the specific files.

参数	Default value	描述
path	fol/${attributeKey}/${attributeValue}.txt	JSON-path expression that uses for finding specific files
deviceNameFilter	.*	Regular expression device name filter, uses to determine, which function to execute.
writingMode	OVERRIDE/WRITE	If writingMode is equal to OVERRIDE, the found files will we overwrite. If writingMode is equal to WRITE, a new data will be appended at the end of found files
valueExpression	,,,,${attributeKey},,,${attributeValue}	Expression uses for creating the message data that will send to FTP server. In this case ‘,’ has a role as the delimiter and before him, you can insert your data.

This section in configuration file looks like:

  "attributeUpdates": [
    {
      "path": "fol/${attributeKey}/${attributeValue}.txt",
      "deviceNameFilter": ".*",
      "writingMode": "OVERRIDE",
      "valueExpression": ",,,,${attributeKey},,,${attributeValue}"
    }
  ]

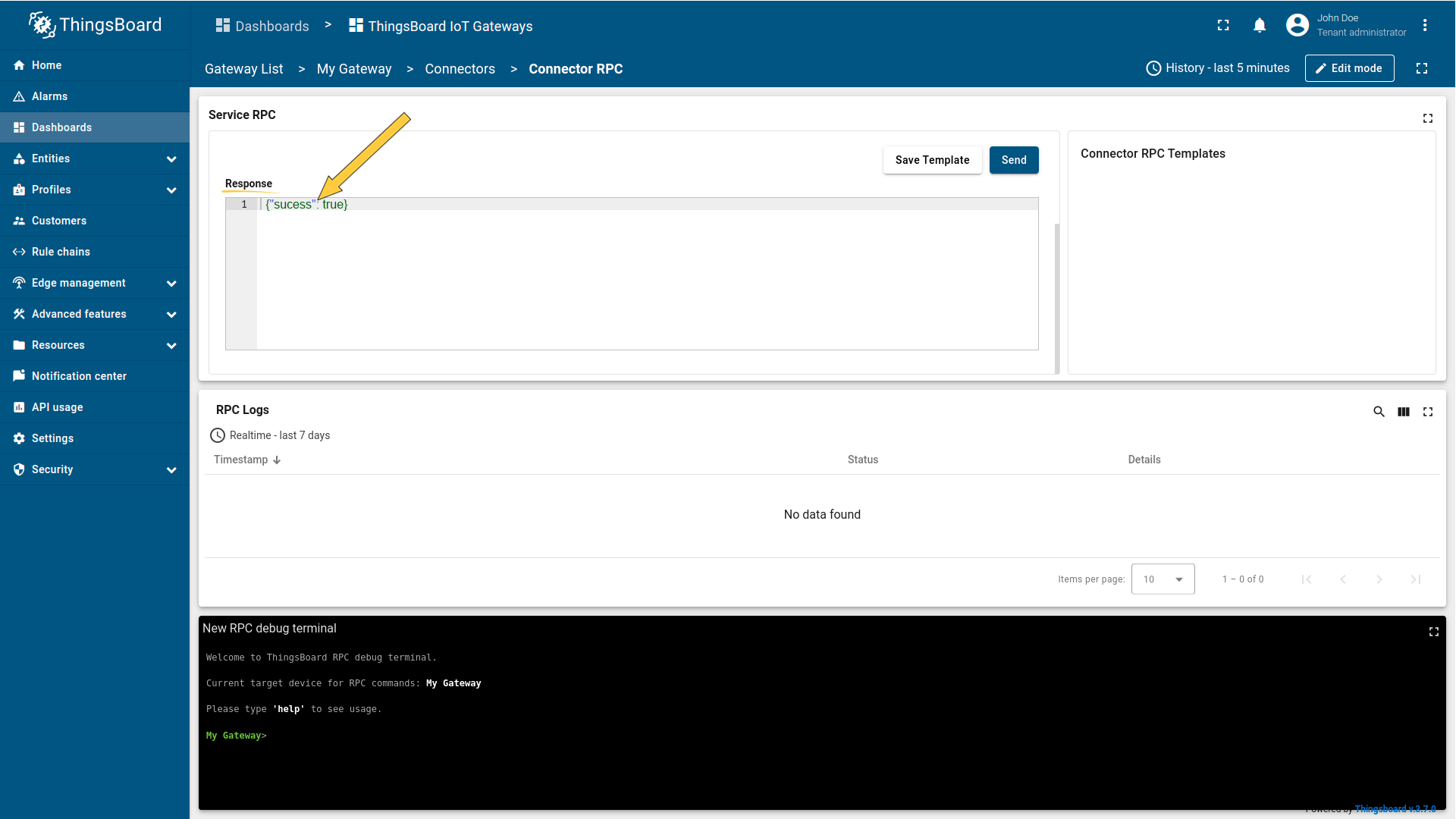

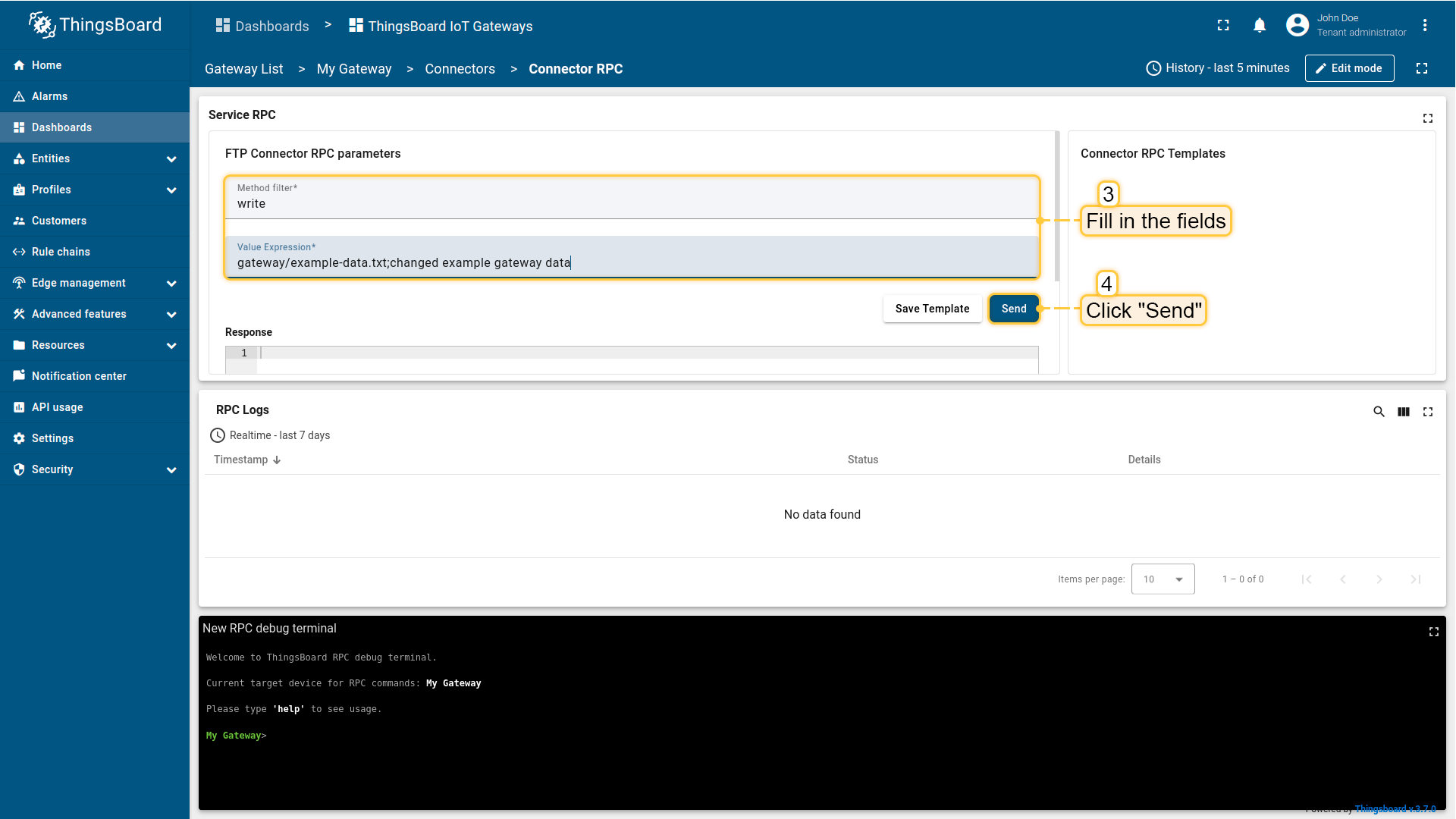

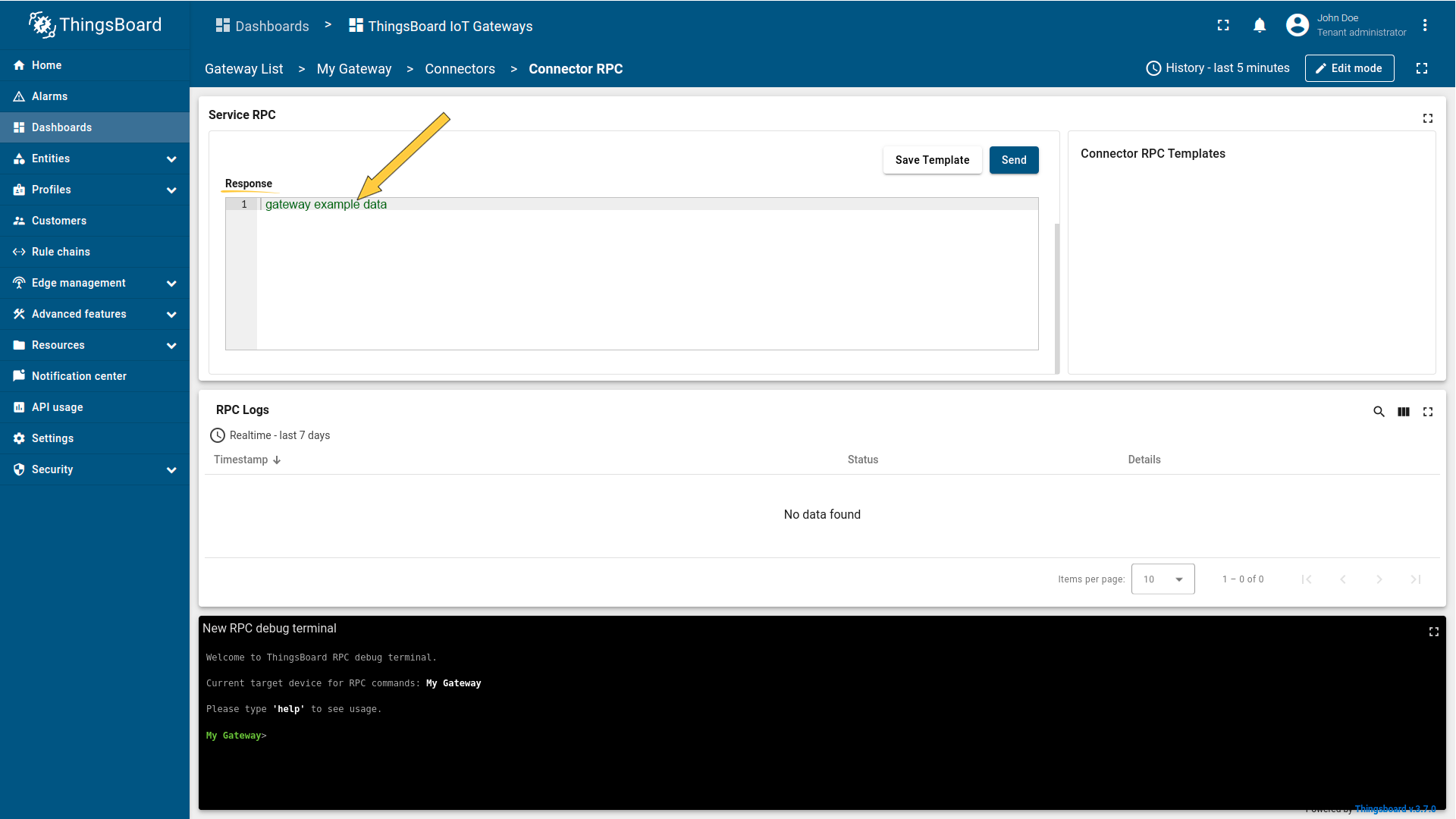

Server side RPC commands

ThingsBoard allows sending RPC commands to the device that is connected to ThingsBoard directly or via Gateway.

Configuration, provided in this section uses for sending RPC requests from ThingsBoard to device.

参数	Default value	描述
deviceNameFilter	.*	Regular expression device name filter, uses to determine, which function to execute.
methodFilter	read/write	Mode for opening file
valueExpression	,,,,${attributeKey},,,${attributeValue}	JSON-path expression, uses for creating data for sending to FTP server, if methodFilter equal to write. If methodFilter is equal to read, this field will be passing.
