This guide will help you to install and start ThingsBoard Gateway using Docker on Windows.

Prerequisites

• Install Docker Toolbox for Windows

Running

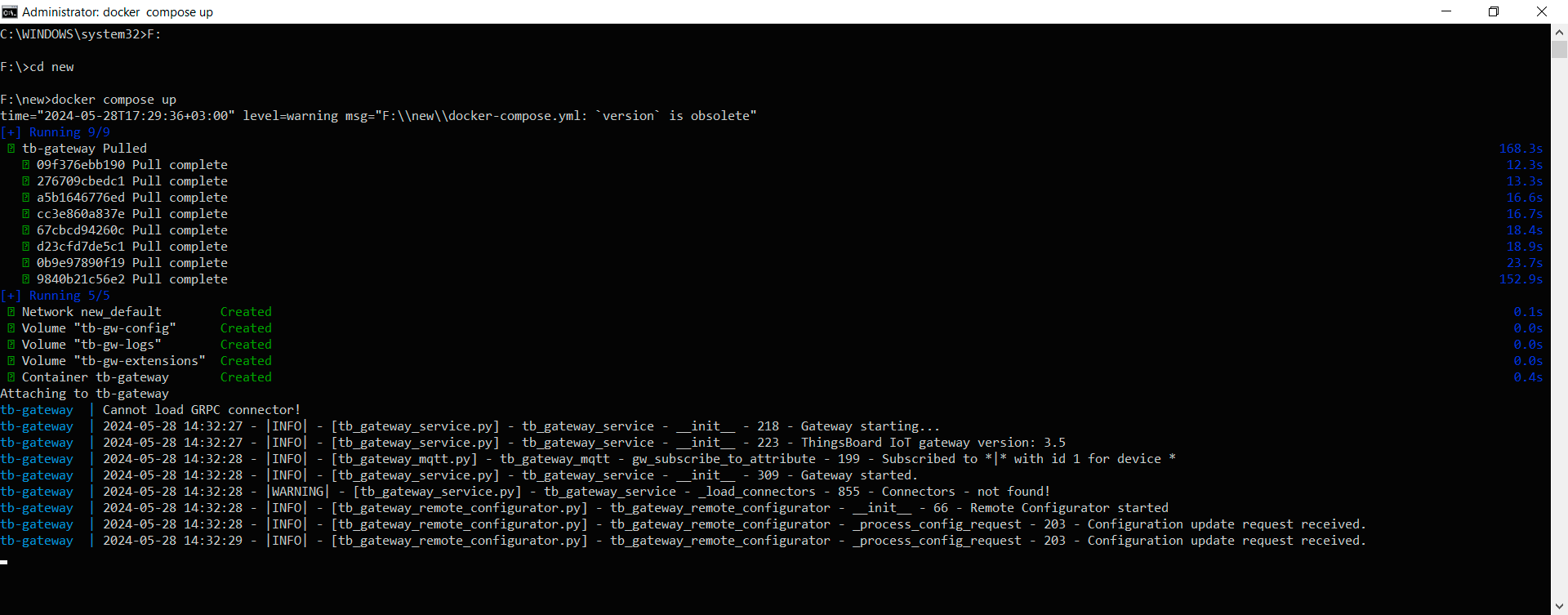

Click the Docker QuickStart icon to launch a pre-configured Docker Toolbox terminal.

Make sure your have logged in to docker hub using command line.

Execute the following command to run this docker directly:

1
docker run -it -v %HOMEPATH%\tb-gateway\config:/thingsboard_gateway/config -v %HOMEPATH%\tb-gateway\extensions:/thingsboard_gateway/extensions -v %HOMEPATH%\tb-gateway\logs:/thingsboard_gateway/logs --name tb-gateway --restart always thingsboard/tb-gateway

Where:

• docker run - run this container
• -it - attach a terminal session with current Gateway process output
• -v %HOMEPATH%\tb-gateway\config:/thingsboard_gateway/config - mounts the host’s dir %HOMEPATH%\tb-gateway\config to Gateway config directory
• -v %HOMEPATH%\tb-gateway\extensions:/thingsboard_gateway/extensions - mounts the host’s dir %HOMEPATH%\tb-gateway\extensions to Gateway extensions directory
• -v %HOMEPATH%\tb-gateway\logs:/thingsboard_gateway/logs - mounts the host’s dir %HOMEPATH%\tb-gateway\logs to Gateway logs directory
• --name tb-gateway - friendly local name of this machine
• --restart always - automatically start ThingsBoard in case of system reboot and restart in case of failure.
• thingsboard/tb-gateway - docker image
• $HOME - current user’s home dir(%HomePath%)

Running (with ENV variables)

Execute the following command to run docker container with ENV variables:

1
docker run -it -e host=thingsboard.cloud -e port=1883 -e accessToken=ACCESS_TOKEN -v %HOMEPATH%\tb-gateway\config:/thingsboard_gateway/config -v %HOMEPATH%\tb-gateway\extensions:/thingsboard_gateway/extensions -v %HOMEPATH%\tb-gateway\logs:/thingsboard_gateway/logs --name tb-gateway --restart always thingsboard/tb-gateway

Available ENV variables:

Detaching, stop and start commands

You can detach from session terminal with Ctrl-p Ctrl-q - the container will keep running in the background.

To reattach to the terminal (to look at Gateway logs) run:

1
docker attach tb-gateway

To stop the container:

1
docker stop tb-gateway

To start the container:

1
docker start tb-gateway

Gateway configuration

Stop the container:

1
docker stop tb-gateway

Open the directory with configuration files:

%HOMEPATH%\tb-gateway\config

Configure gateway to work with your instance of ThingsBoard, using this guide:

Start the container after made changes:

1
docker start tb-gateway

Upgrading

In order to update to the latest image, execute the following commands:

1
2
3
4
$ docker pull thingsboard/tb-gateway
$ docker stop tb-gateway
$ docker rm tb-gateway
$ docker run -it -v %HOMEPATH%\tb-gateway\config:/thingsboard-gateway/config -v %HOMEPATH%\tb-gateway\extensions:/var/lib/thingsboard_gateway/extensions -v %HOMEPATH%\tb-gateway\logs:/var/log/thingsboard-gateway --name tb-gateway --restart always thingsboard/tb-gateway

Build local docker image

In order to build local docker image, follow the next steps:

1. Copy thingsboard_gateway/ folder to docker/ folder, so the final view of the directory structure will look like:

   1
   2
   3
   4
   5
   6
   7
    /thingsboard-gateway/docker
            thingsboard_gateway/
            docker-compose.yml
            Dockerfile
            LICENSE
            setup.py
            requirements.txt


2. From project root folder execute the following command:

   1
    docker build -t local-gateway docker
