基本MQTT认证

使用MQTT连接的设备可采用MQTT认证。需将设备凭证类型从\u201cAccessToken\u201d改为\u201cMQTTBasic\u201d。 BasicMQTT凭证包含可选的clientid、username和password。详见MQTTAPI。

下面说明如何修改设备凭证以及客户端如何用这些凭证连接设备。 可选方案包括：

仅基于clientid的认证

启用此方式时，只需在设备凭证中填写clientid。MQTT客户端在指定正确clientid后即可连接。

以下示例命令仅使用MQTT clientid向ThingsBoard Cloud发布telemetry读数。 命令使用plainMQTT，不启用TLS：

1

mosquitto_pub -d -q 1 -h "mqtt.eu.thingsboard.cloud" -p "1883" -t "v1/devices/me/telemetry" -i "YOUR_CLIENT_ID" -m {"temperature":25}

其中：

  • YOUR_CLIENT_ID替换为您的clientid。


ThingsBoard提供\u201cCheckConnectivity\u201d功能，会根据host和您提供的设备凭证自动生成命令，您只需复制并执行即可。

以下示例仅使用MQTT clientid发布telemetry。首先，将设备凭证类型从\u201cAccessToken\u201d改为\u201cMQTTBasic\u201d：

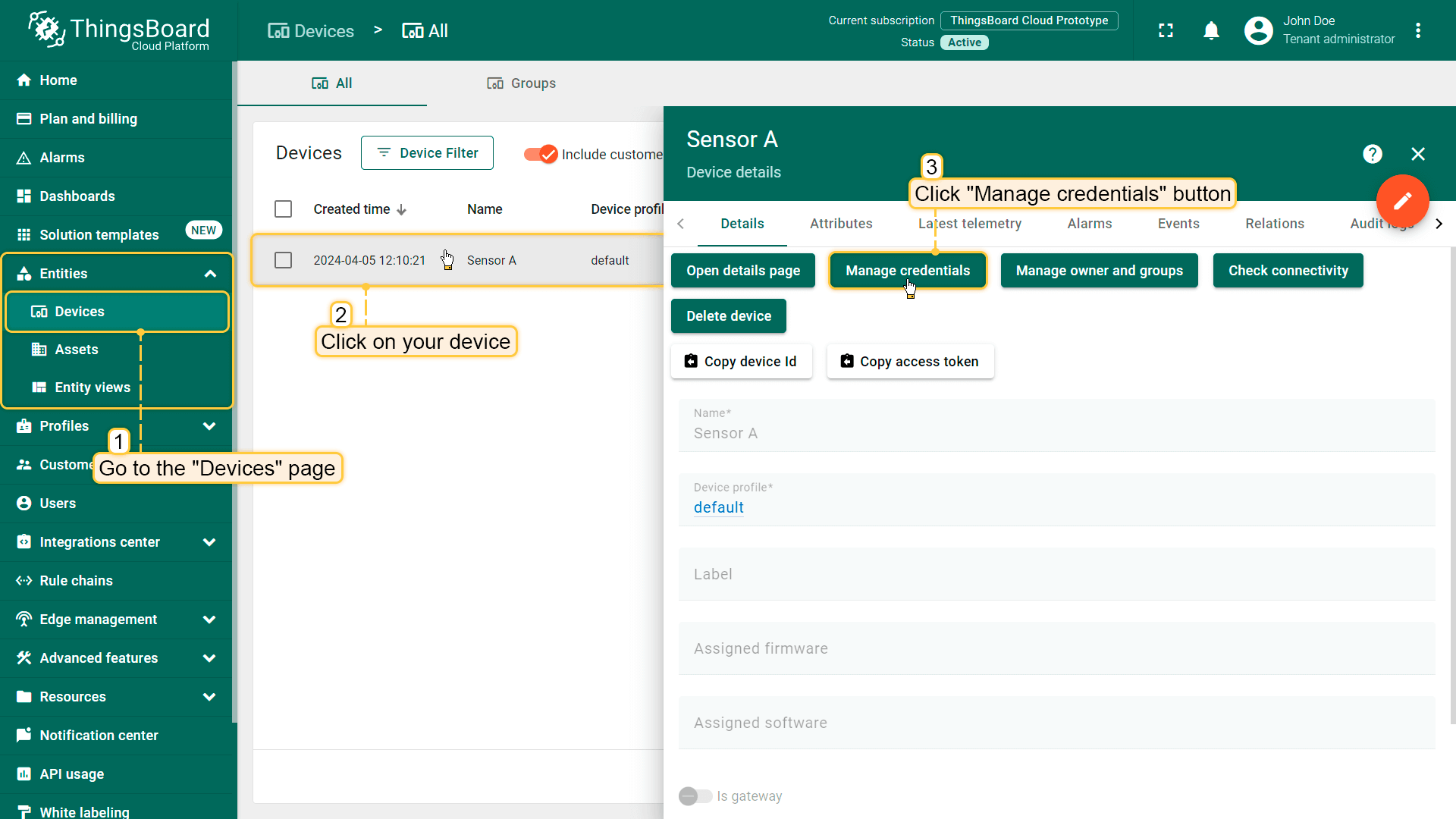

  • Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;

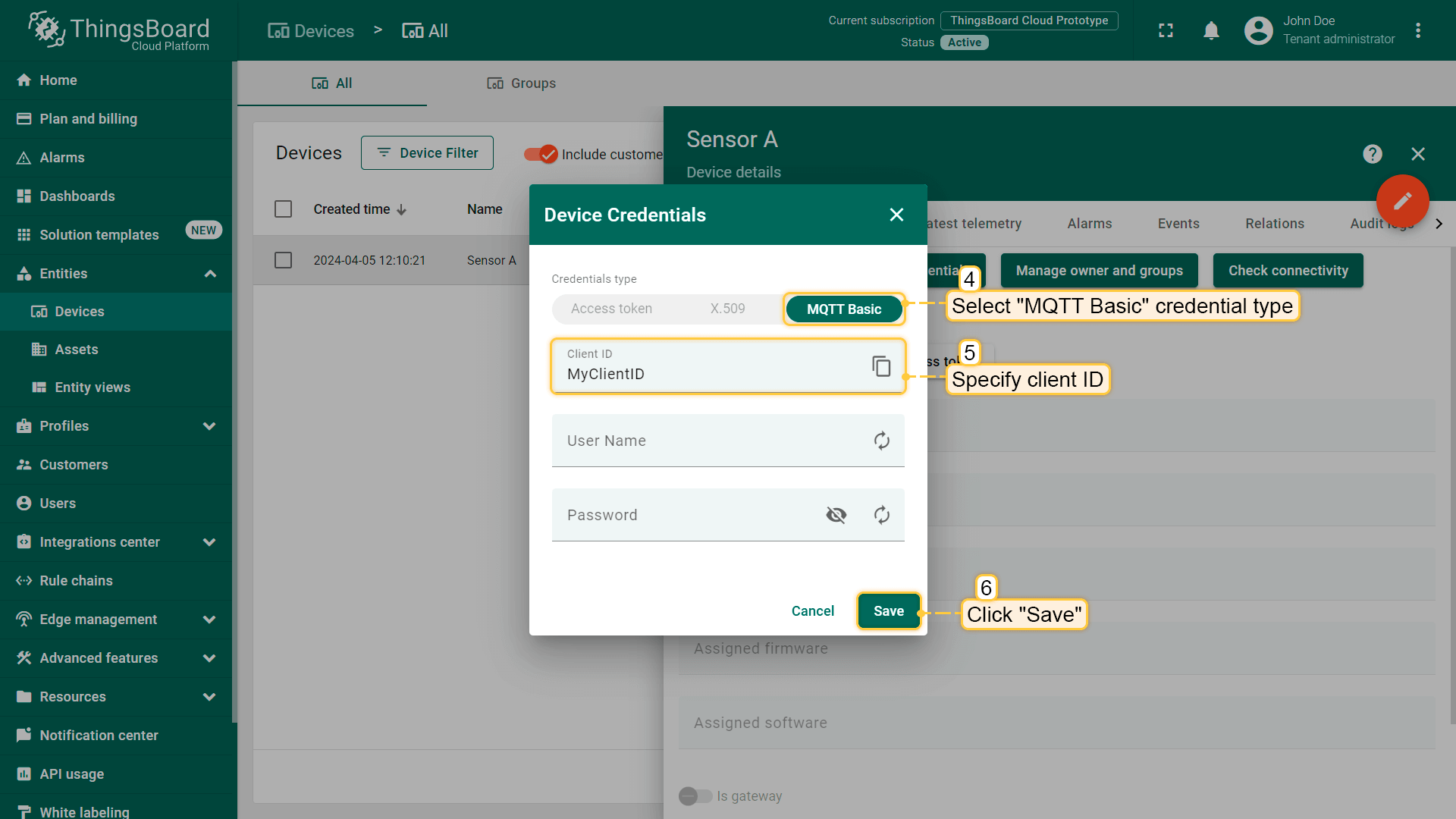

  • In the "Device Credentials" window, select "MQTT Basic" credential type, and specify client ID. Click "Save".
Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
In the "Device Credentials" window, select "MQTT Basic" credential type, and specify client ID. Click "Save".
In the "Device Credentials" window, select "MQTT Basic" credential type, and specify client ID. Click "Save".

修改设备凭证后，使用\u201cCheck connectivity\u201d功能发布telemetry：

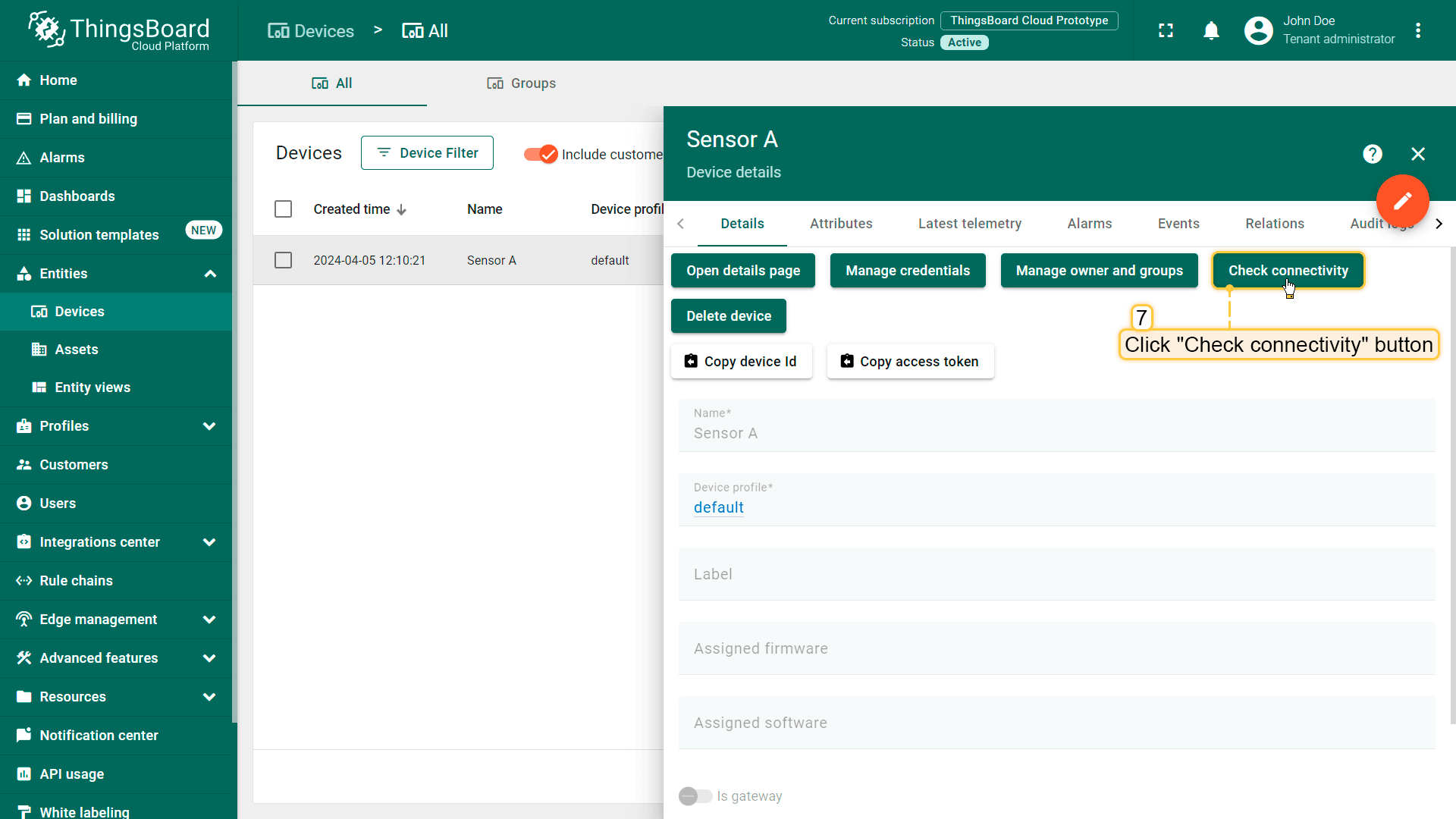

  • 点击\u201cCheck connectivity\u201d按钮打开对应窗口；

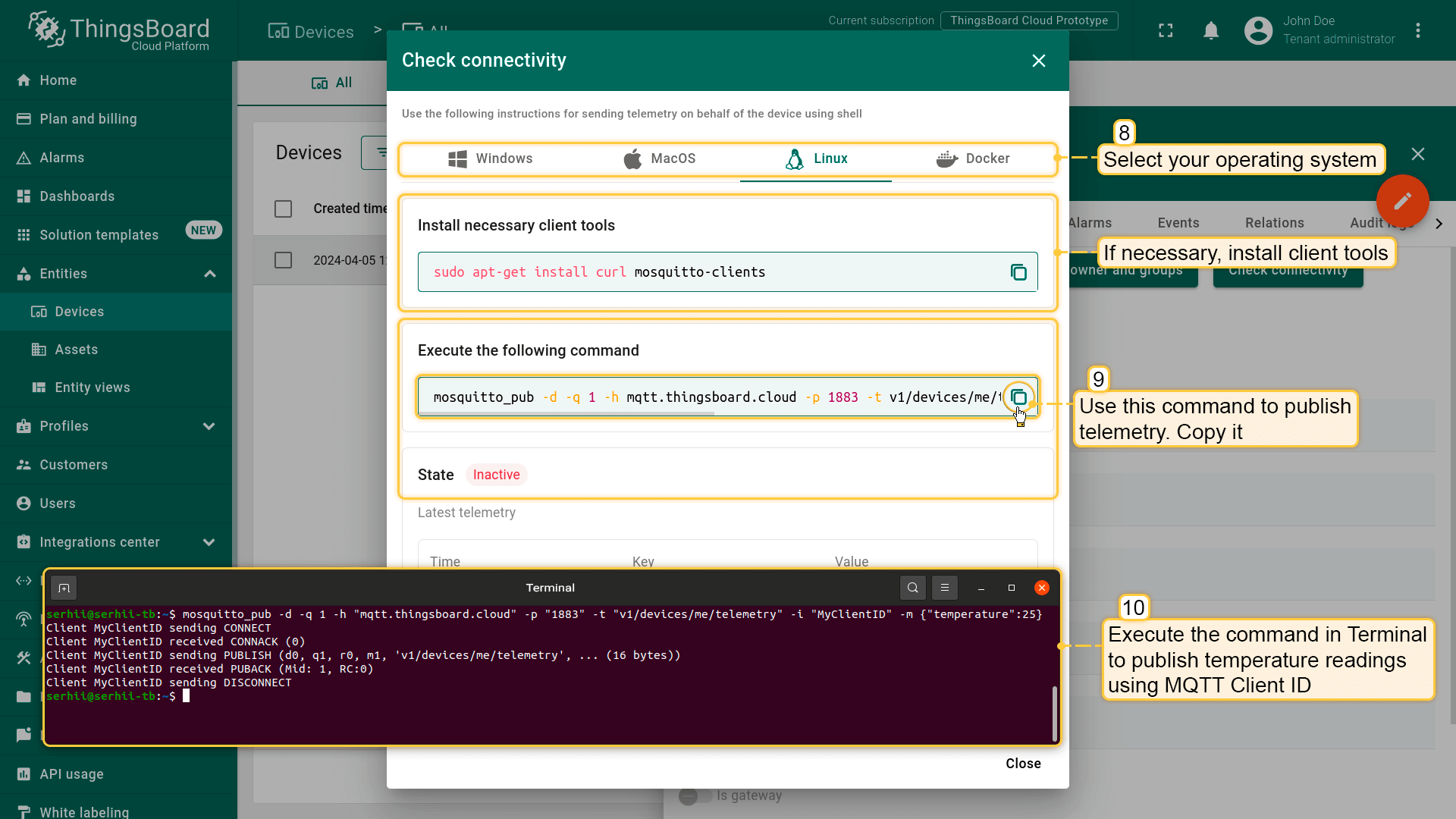

  • 在弹出窗口中选择操作系统；
  • 按指南命令安装客户端工具；
  • 复制并执行发布telemetry的命令；

命令执行成功后，应能看到已发布的temperature读数。

Click "Check connectivity" button to open the corresponding window;
Click "Check connectivity" button to open the corresponding window;
In the opened window select your operating system, and install the necessary client tools using the command from the guide. Copy and run the command to publish telemetry;
In the opened window select your operating system, and install the necessary client tools using the command from the guide. Copy and run the command to publish telemetry;
Once you have successfully executed the command, you should see the published "temperature" readings.
Once you have successfully executed the command, you should see the published "temperature" readings.

基于username和password的认证

只需在凭证表单中填写username和password。 MQTT客户端在指定正确的username和password后即可连接。

以下示例命令使用MQTT clientusername和password向ThingsBoard Cloud发布telemetry读数。命令使用plainMQTT，不启用TLS：

1

mosquitto_pub -d -q 1 -h "mqtt.eu.thingsboard.cloud" -p "1883" -t "v1/devices/me/telemetry" -u "YOUR_CLIENT_USERNAME" -P "YOUR_CLIENT_PASSWORD" -m {"temperature":25}

其中：

  • YOUR_CLIENT_USERNAME、YOUR_CLIENT_PASSWORD替换为您的clientusername和password。


\u201cCheckConnectivity\u201d会根据您提供的host和设备凭证自动生成命令，您只需复制并执行即可。

以下示例使用MQTT clientusername和password发布telemetry。首先，将设备凭证类型从\u201cAccessToken\u201d改为\u201cMQTTBasic\u201d：

  • Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
  • In the "Device Credentials" window, select "MQTT Basic" credential type, and specify username and password. Click "Save".
Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
In the "Device Credentials" window, select "MQTT Basic" credential type, and specify username and password. Click "Save".
In the "Device Credentials" window, select "MQTT Basic" credential type, and specify username and password. Click "Save".

修改设备凭证后，使用\u201cCheck connectivity\u201d功能发布telemetry：

  • 点击\u201cCheck connectivity\u201d按钮打开对应窗口；

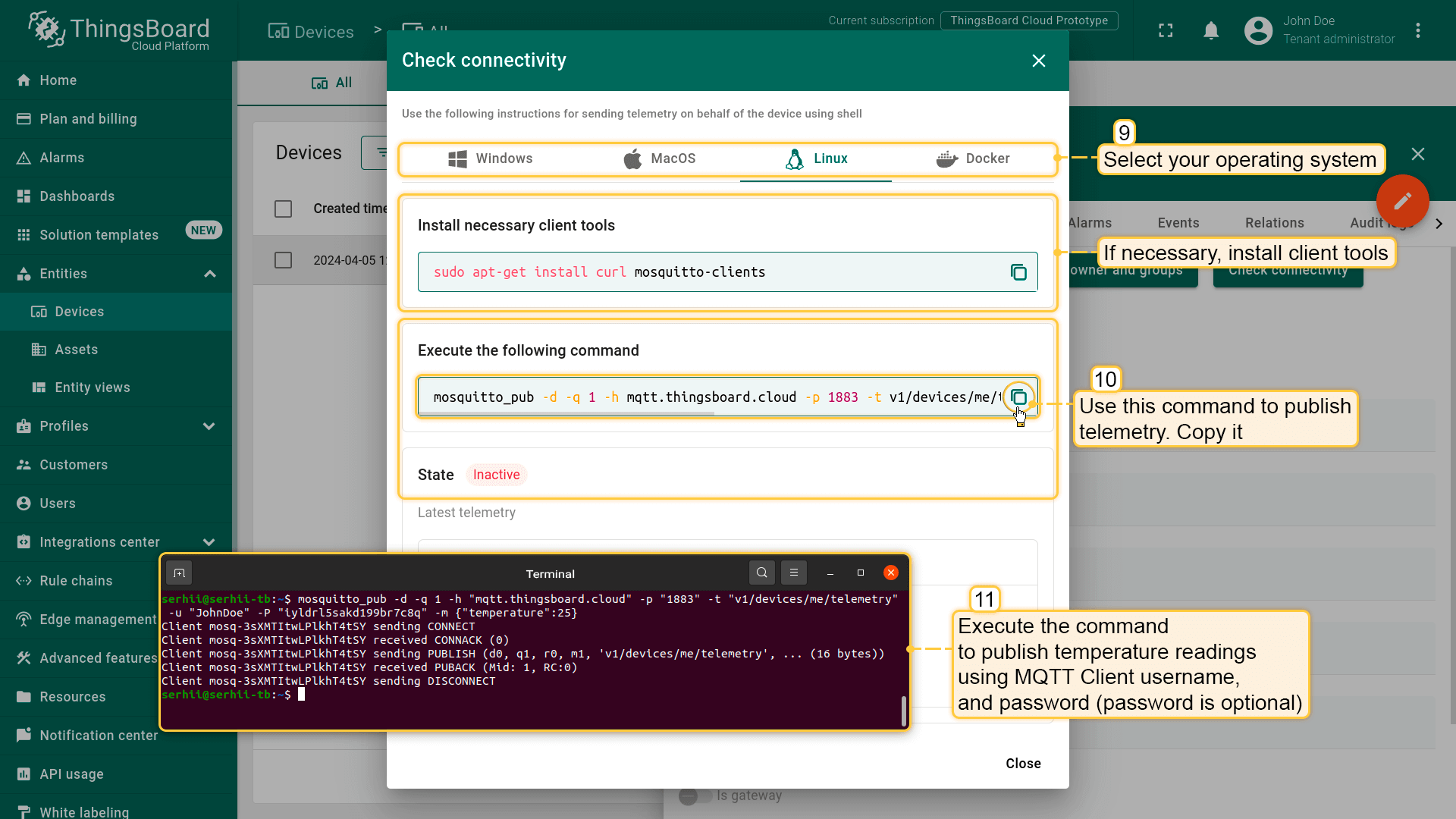

  • 在弹出窗口中选择操作系统；
  • 按指南命令安装客户端工具；
  • 复制并执行发布telemetry的命令；

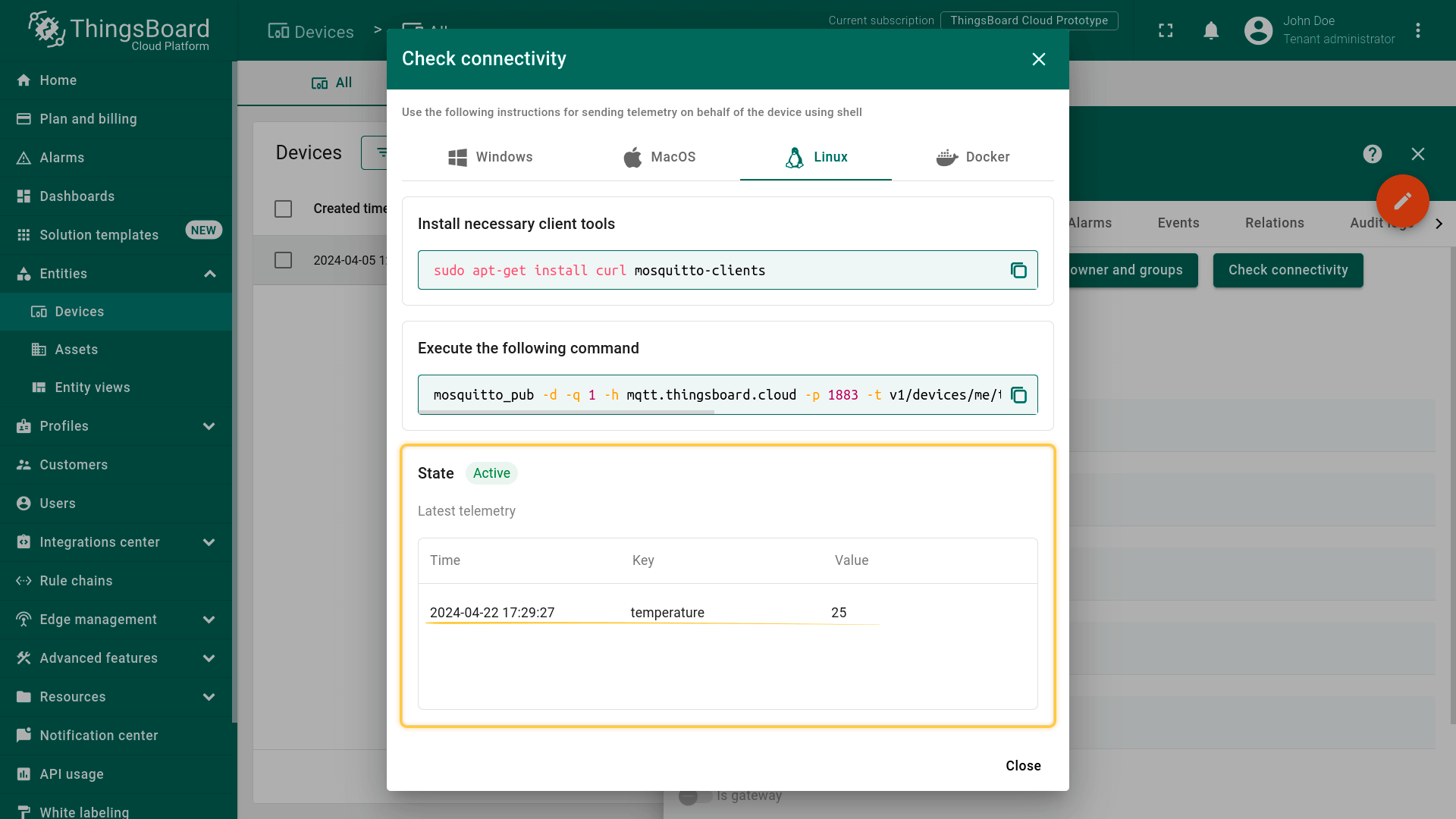

命令执行成功后，应能看到已发布的temperature读数。

Click "Check connectivity" button to open the corresponding window;
Click "Check connectivity" button to open the corresponding window;
In the opened window select your operating system, and install the necessary client tools using the command from the guide. Copy and run the command to publish telemetry;
In the opened window select your operating system, and install the necessary client tools using the command from the guide. Copy and run the command to publish telemetry;
Once you have successfully executed the command, you should see the published "temperature" readings.
Once you have successfully executed the command, you should see the published "temperature" readings.

基于clientid、username和password的认证

在此选项中，需填写ClientID、Username和Password。MQTT客户端在指定正确的clientid、username和password组合后可连接。

以下示例命令使用MQTT clientid、username和password向ThingsBoard Cloud发布telemetry读数。命令使用plainMQTT，不启用TLS：

1

mosquitto_pub -d -q 1 -h "mqtt.eu.thingsboard.cloud" -p "1883" -t "v1/devices/me/telemetry" -i "YOUR_CLIENT_ID" -u "YOUR_CLIENT_USERNAME" -P "YOUR_CLIENT_PASSWORD" -m {"temperature":25}

其中：

  • YOUR_CLIENT_ID替换为您的clientid；
  • YOUR_CLIENT_USERNAME、YOUR_CLIENT_PASSWORD替换为您的clientusername和password。


\u201cCheckConnectivity\u201d会根据您提供的host和设备凭证自动生成命令，您只需复制并执行即可。

以下示例使用MQTT clientid、username和password发布telemetry。首先，将设备凭证类型从\u201cAccessToken\u201d改为\u201cMQTTBasic\u201d：

  • Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
  • In the "Device Credentials" window, select "MQTT Basic" credential type, and specify client ID, username and password. Click "Save".
Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
In the "Device Credentials" window, select "MQTT Basic" credential type, and specify client ID, username and password. Click "Save".
In the "Device Credentials" window, select "MQTT Basic" credential type, and specify client ID, username and password. Click "Save".

修改设备凭证后，使用\u201cCheck connectivity\u201d功能发布telemetry：

  • 点击\u201cCheck connectivity\u201d按钮打开对应窗口；
  • 在弹出窗口中选择操作系统；
  • 按指南命令安装客户端工具；
  • 复制并执行发布telemetry的命令；

命令执行成功后，应能看到已发布的temperature读数。

Click "Check connectivity" button to open the corresponding window;
Click "Check connectivity" button to open the corresponding window;
In the opened window select your operating system, and install the necessary client tools using the command from the guide. Copy and run the command to publish telemetry;
In the opened window select your operating system, and install the necessary client tools using the command from the guide. Copy and run the command to publish telemetry;
Once you have successfully executed the command, you should see the published "temperature" readings.
Once you have successfully executed the command, you should see the published "temperature" readings.

MQTTS（MQTT over TLS）

单向SSL认证是标准模式，客户端通过服务器证书验证服务器身份。\u8be5\u8bc1\u4e66\u7528\u4e8eMQTT\u5ba2\u6237\u7aef\u9a8c\u8bc1\u670d\u52a1\u5668\u8bc1\u4e66\u3002

使用\u201cCheckConnectivity\u201d下载CA根证书并发布telemetry。首先，将设备凭证类型从\u201cAccessToken\u201d改为\u201cMQTTBasic\u201d：

  • Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
  • In the "Device Credentials" window, select "MQTT Basic" credential type, and specify device credentials. Click "Save".
Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
Go to the "Devices" page, click on your device to open the device details window, and click the "Manage credentials" button;
In the "Device Credentials" window, select "MQTT Basic" credential type, and specify device credentials. Click "Save".
In the "Device Credentials" window, select "MQTT Basic" credential type, and specify device credentials. Click "Save".

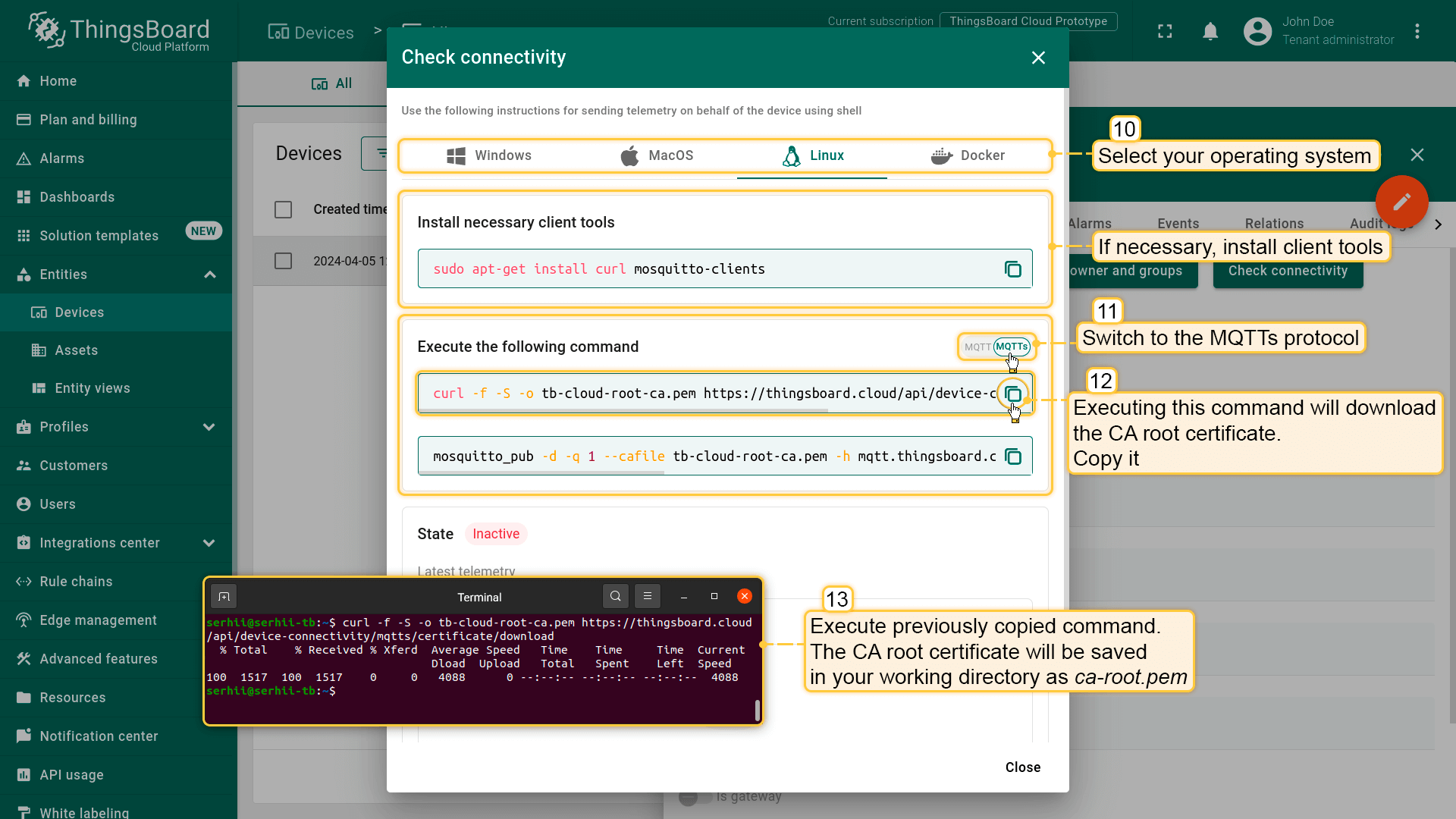

  • 点击\u201cCheckConnectivity\u201d按钮。在弹出窗口中选择操作系统，并按指南命令安装客户端工具；
  • 切换到\u201cMQTTs\u201d协议。复制并执行第一条命令下载有效CA证书；

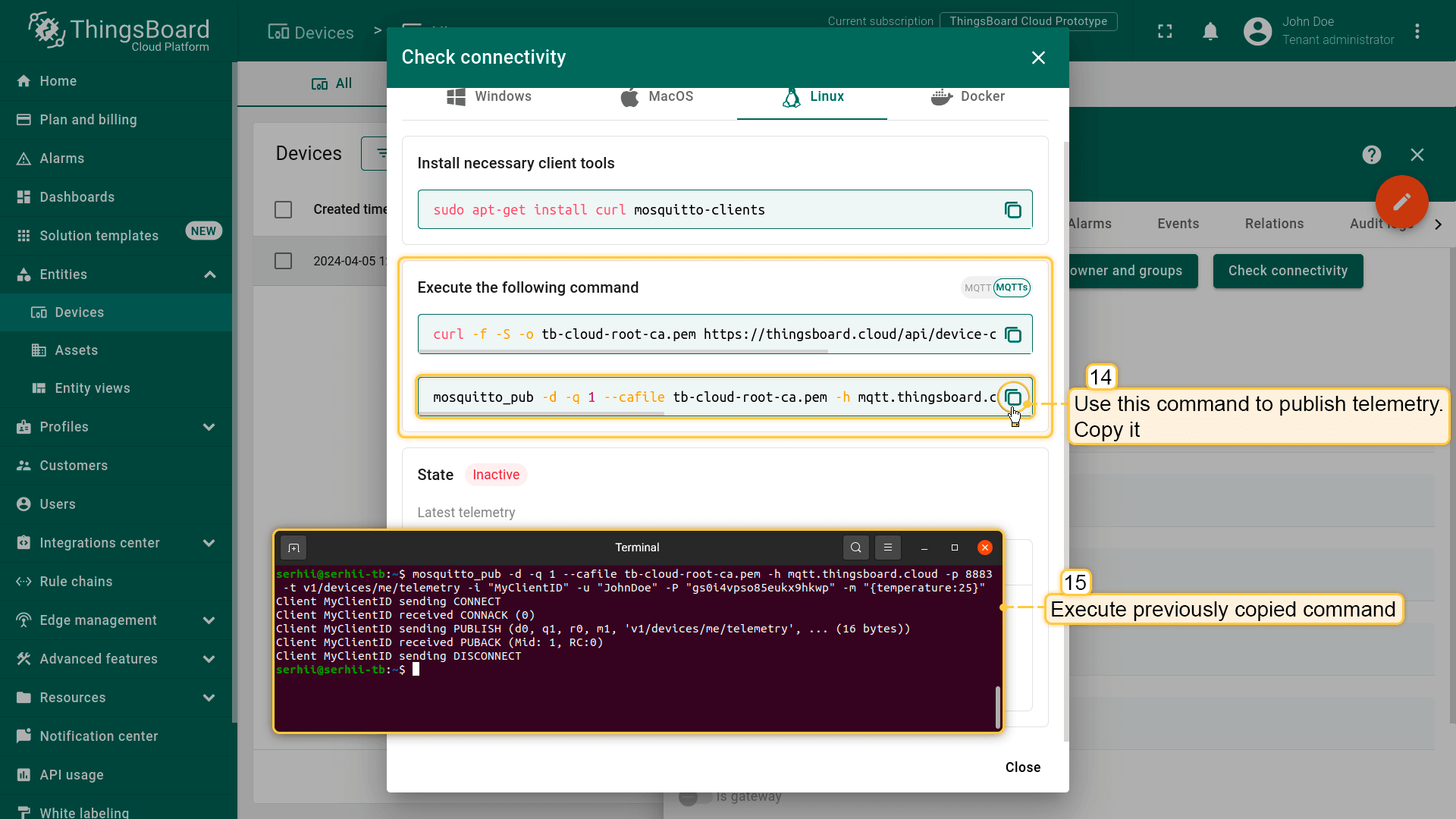

  • 从工作目录（证书保存位置）复制并执行第二条命令发布telemetry。该命令使用tb-cloud-root-ca.pem证书与ThingsBoard Cloud建立安全连接，并使用您为设备配置的凭证进行认证。

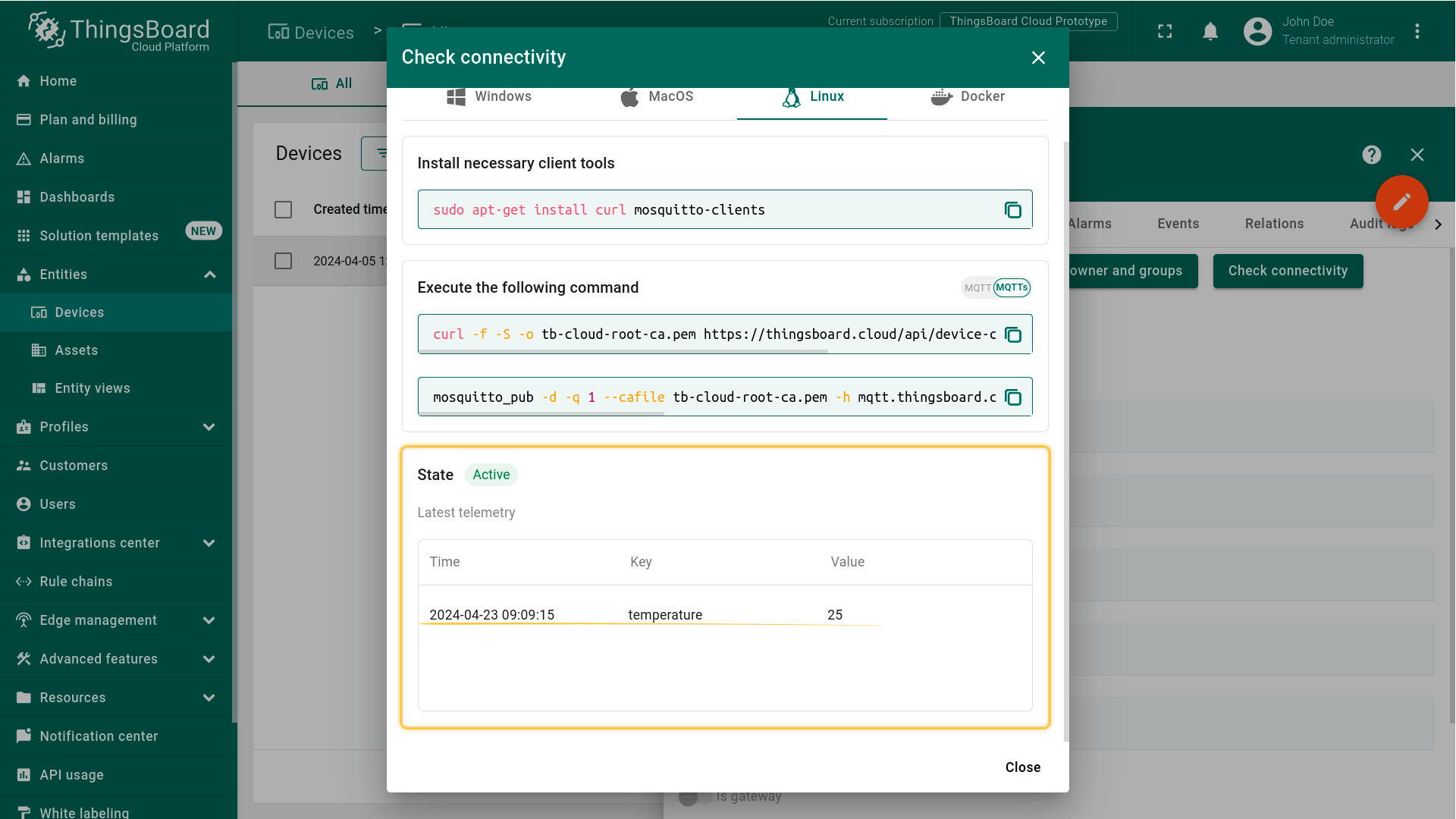

命令执行成功后，应能看到已发布的temperature读数。

Click "Check connectivity" button to open the corresponding window;
Click "Check connectivity" button to open the corresponding window;
In the opened window select your operating system, and install the necessary client tools using the command from the guide. Switch to the "MQTTs" protocol. Copy and run the first command to download the valid CA certificate;
In the opened window select your operating system, and install the necessary client tools using the command from the guide. Switch to the "MQTTs" protocol. Copy and run the first command to download the valid CA certificate;
Copy and run the second command to publish telemetry using the tb-cloud-root-ca.pem certificate and the device credentials you specified for its authentication;
Copy and run the second command to publish telemetry using the tb-cloud-root-ca.pem certificate and the device credentials you specified for its authentication;
Once you have successfully executed the command, you should see the published "temperature" readings.
Once you have successfully executed the command, you should see the published "temperature" readings.


以下为使用tb-cloud-root-ca.pem证书、clientid(YOUR_CLIENT_ID)以及所选设备的clientusername和password(YOUR_CLIENT_USERNAME/YOUR_CLIENT_PASSWORD)发布telemetry的示例命令：

1

mosquitto_pub -d -q 1 --cafile tb-cloud-root-ca.pem -h mqtt.eu.thingsboard.cloud -p 8883 -t v1/devices/me/telemetry -i "YOUR_CLIENT_ID" -u "YOUR_CLIENT_USERNAME" -P "YOUR_CLIENT_PASSWORD" -m {"temperature":25}
