Overview
ThingsBoard allows you to provide Single Sign On functionality for your customers and automatically create tenants, customers or subcustomers using external user management platforms, that supports OAuth 2.0 protocol.
This guide is only for the Azure Active Directory OAuth.
Scenario description
In this guide we will configure the OAuth with the Azure Active Directory for the authentication. User is going to be logged into the Tenant and Tenant name is going to be equal to the users email. If Tenant does not exist in the system, the new Tenant will be created.
To map those external user infos from Auth0 platform we are going to use built-in basic mapper.
If basic mapper functionality will not fit your business needs, you can configure the custom mapper so that you are able to add an implementation that fits under your specific needs.
In case if you require to have an advanced customization you can refer to the Microsoft identity platform and OpenID Connect protocol documentation.
Login with Azure Active Directory
Preparations
The Azure Active Directory does require to use the SSL. Please, make sure that you have configured the HTTPS for the domain of yours, so that those can be configured with the Azure Active Directory.
In case if SSL is not configured please, follow this guide to install HAProxy and generate valid SSL certificate using Let’s Encrypt.
To apply the configurations properly, we need to obtain the clientName, clientId and clientSecret first.

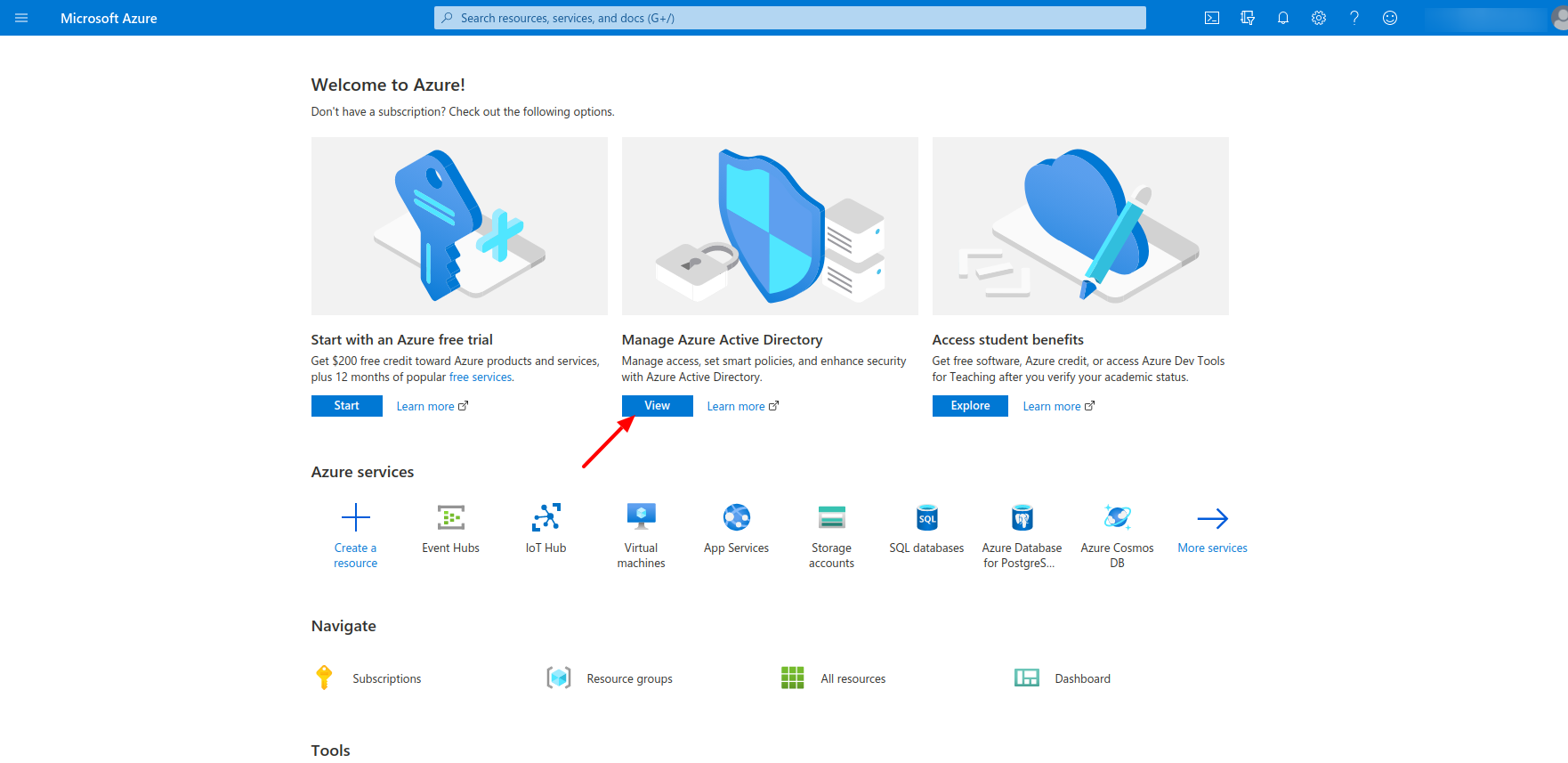

For those reasons we first go for the Azure Active Directory.

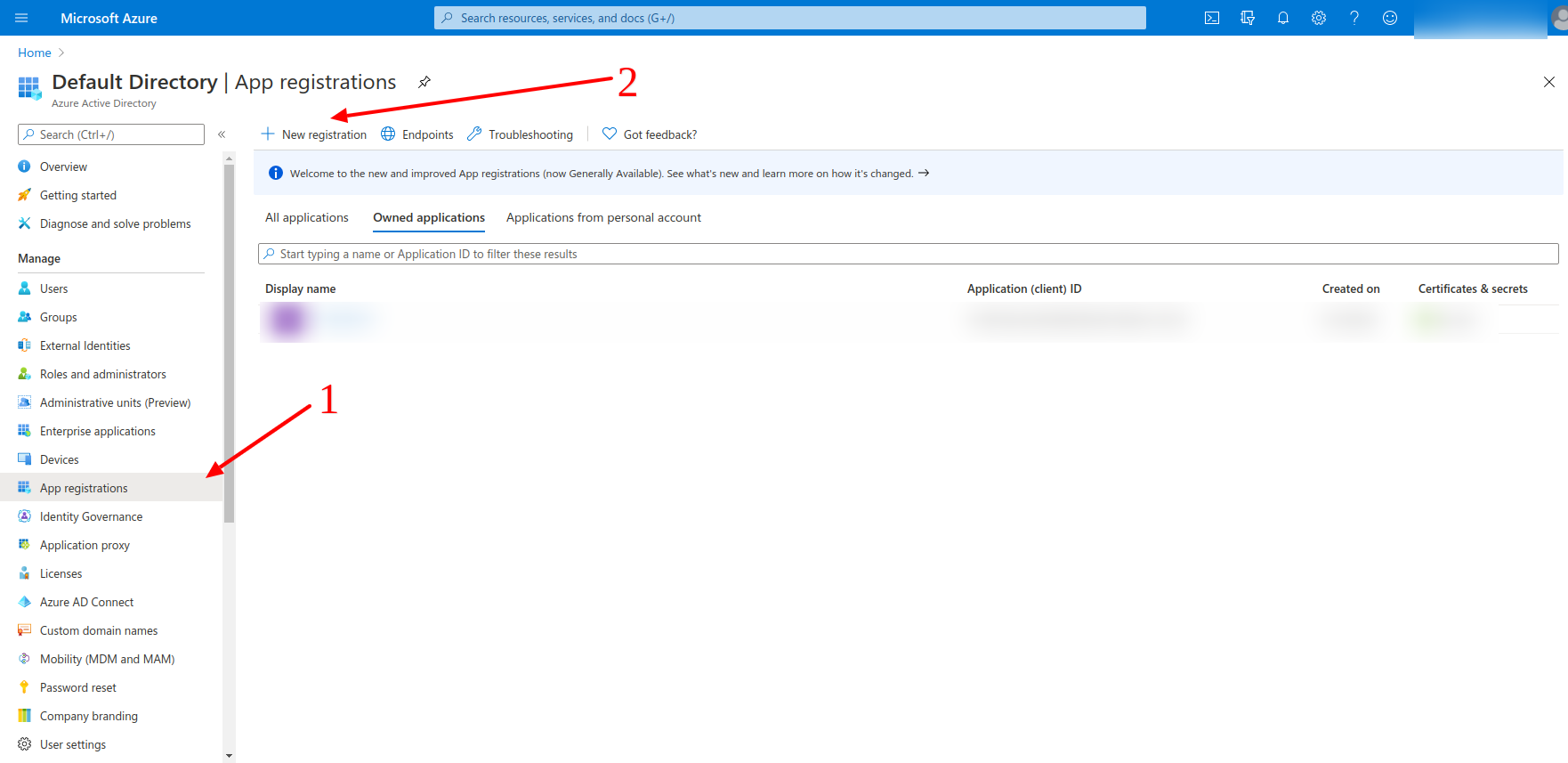

Now we need to create the application.

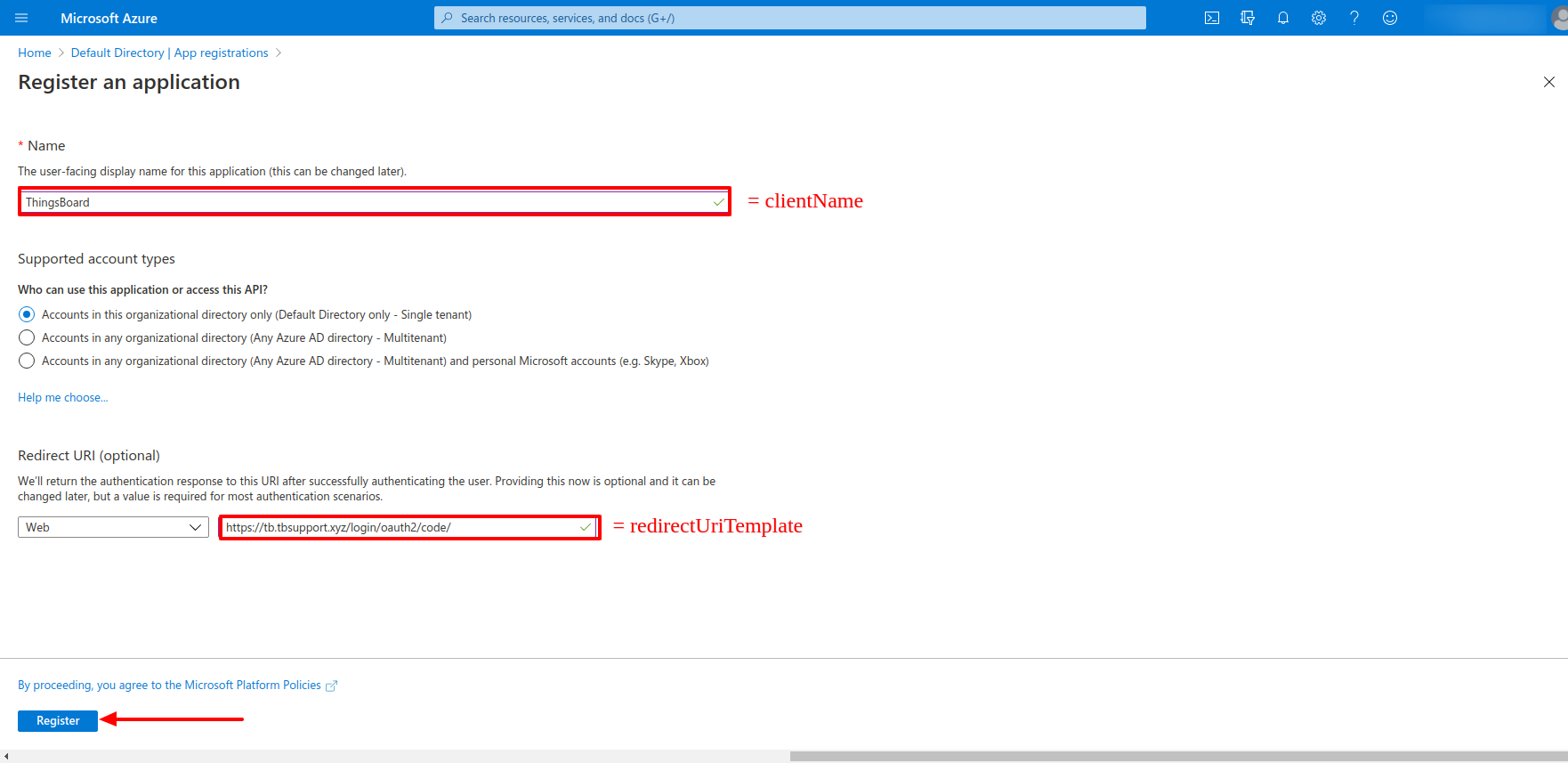

Then we need to go for the application registration and register the application of ours.
The platform type equals to Web in our case.
The name equals the clientName, and the Login Redirect URIs equals to the redirectUriTemplate from ours side.
The redirectUriTemplate can be found in the thingsboard.yml
1
https://domain:port/login/oauth2/code/
Where under the domain, please, specify the current domain of yours and for the port please specify the port to have an HTTPS access to the ThingsBoard instance of yours.
For the example of ours, we have the domain equals to the tb.tbsupport.xyz and the port 443, so that there is no need to specify the port additionally.
Then we need to confirm the registration of the application.

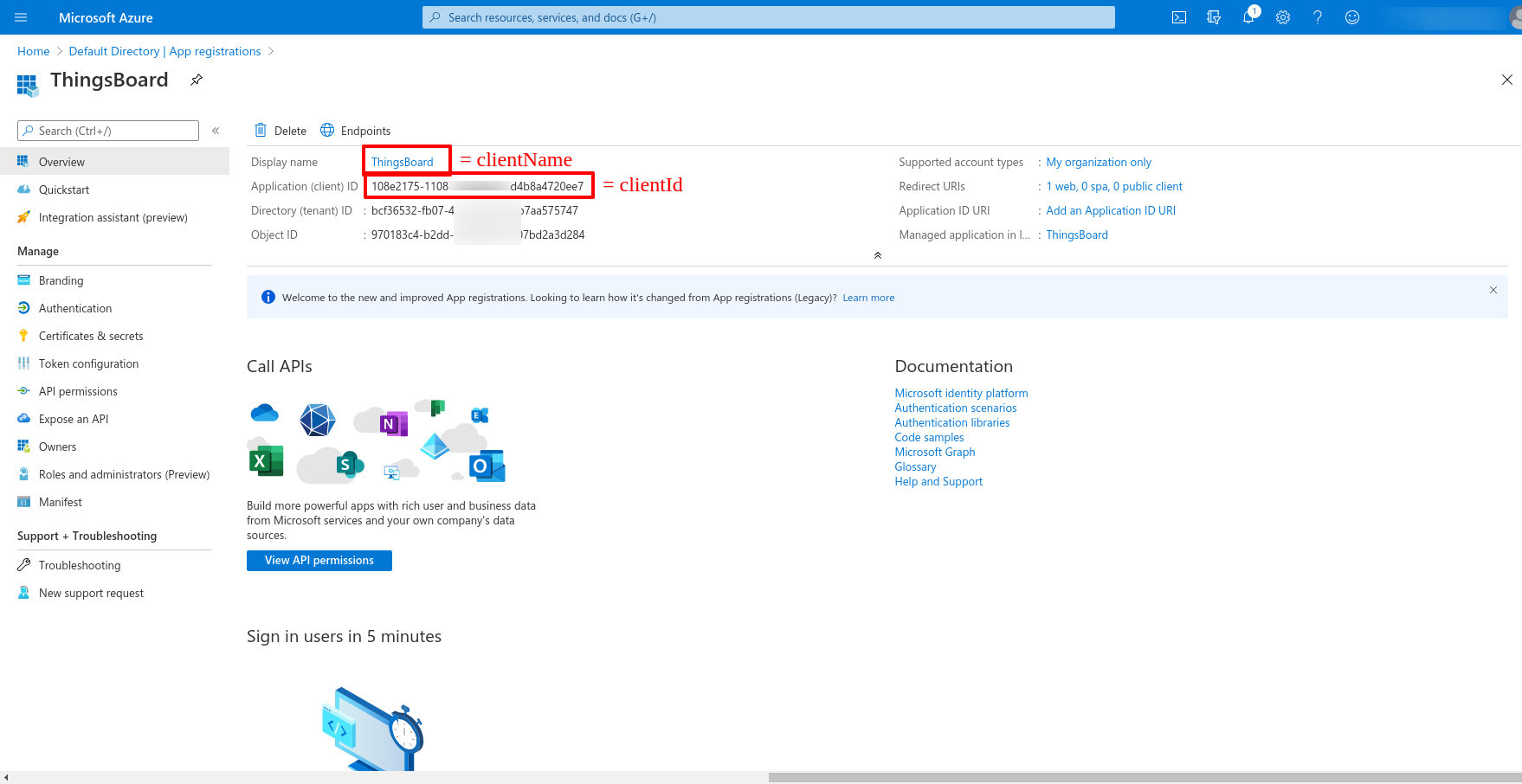

Now we are on the general page of ours, where we can find the clientId, and the clientName which we previously specified.

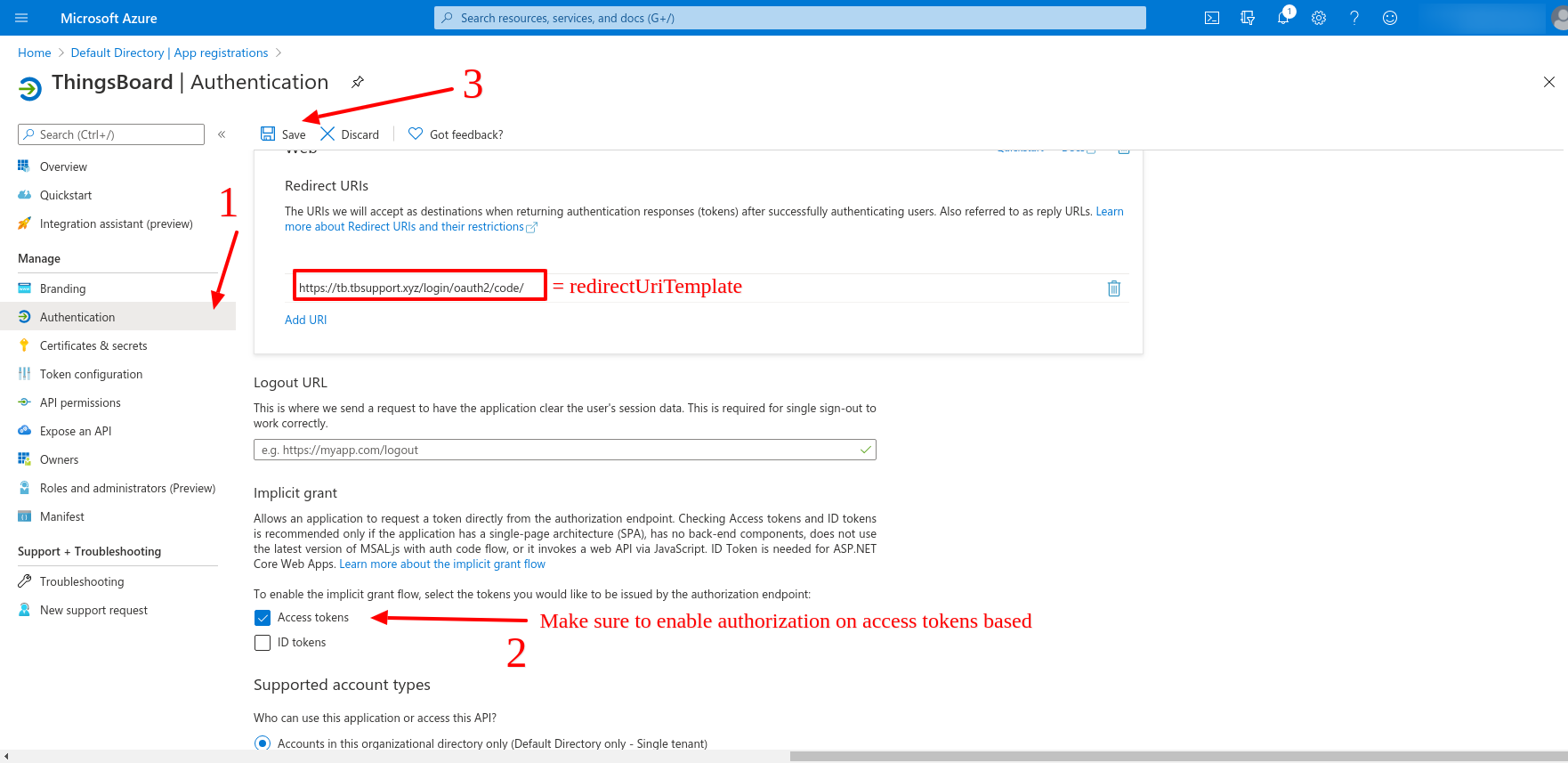

Now let us go for the Authentication tab. Here we can find the redirectUriTemplate, and we need to specify the token for the authorization endpoint. We will specify the access token for the example reasons, and we need to save the changes which we have applied.

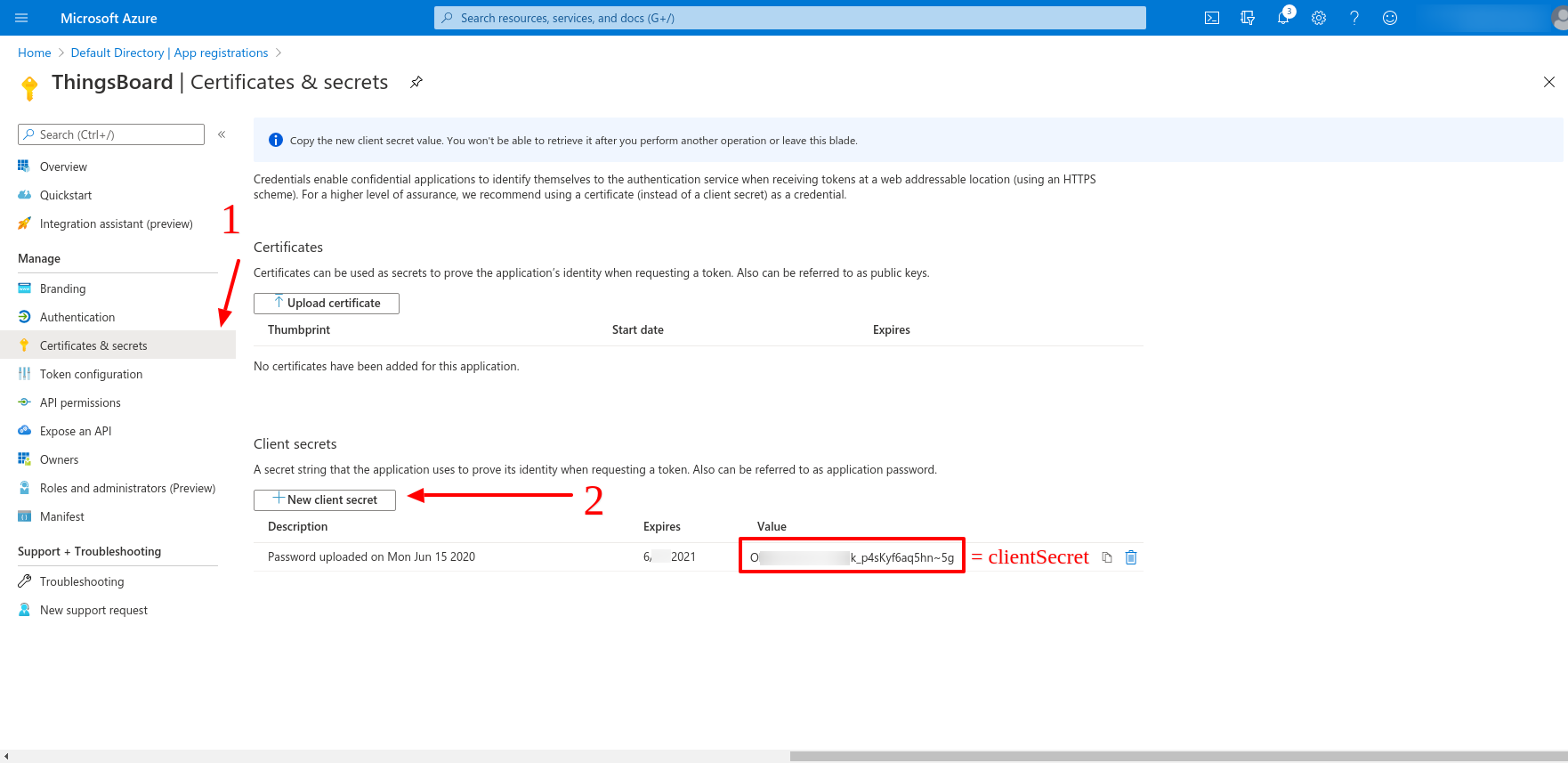

Then we are going for the Certificates & secrets tab and create the clientSecret
We also need to acquire the list of the links for the next variables:
1
2
3
SECURITY_OAUTH2_DEFAULT_ACCESS_TOKEN_URI
SECURITY_OAUTH2_DEFAULT_AUTHORIZATION_URI
SECURITY_OAUTH2_DEFAULT_JWK_SET_URI

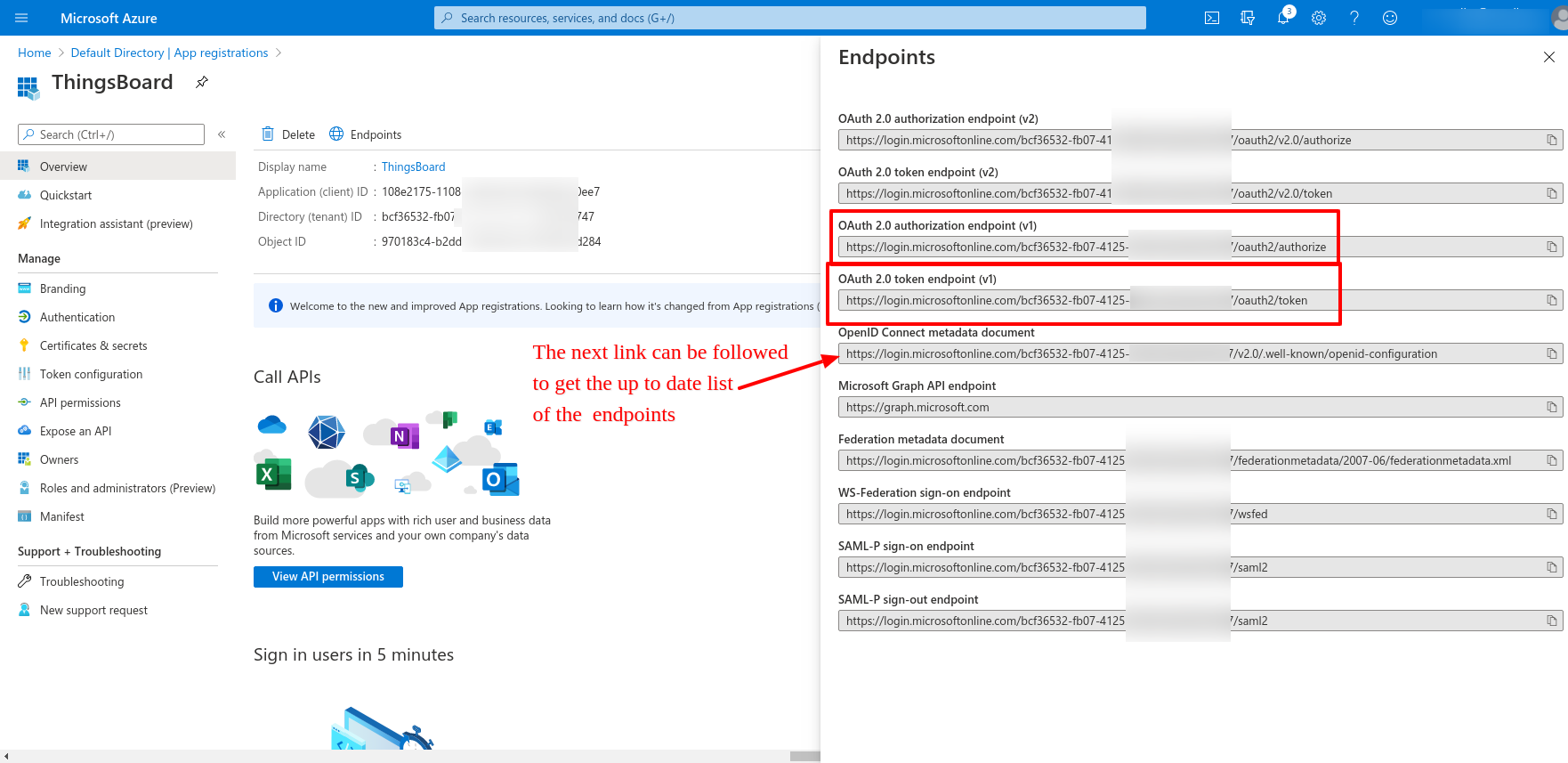

The up to date list of those can be found on OpenID Connect metadata document link.
So that we can refer to next values for the variables of ours.
1
2
3
SECURITY_OAUTH2_DEFAULT_ACCESS_TOKEN_URI=https://login.microsoftonline.com/example-tenant-id/oauth2/token
SECURITY_OAUTH2_DEFAULT_AUTHORIZATION_URI=https://login.microsoftonline.com/example-tenant-id/oauth2/authorize
SECURITY_OAUTH2_DEFAULT_JWK_SET_URI=https://login.microsoftonline.com/example-tenant-id/discovery/keys
In the example of ours those equals:
1
2
3
clientName=ThingsBoard
clientId=XXXXXXXX
clientSecret=YYYYYYYY
Result
So that, the resulted thingsboard.yml equals the below one.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
...
# Security parameters
security:
...
oauth2:
# Enable/disable OAuth 2 login functionality
# For details please refer to https://thingsboard.io/docs/user-guide/oauth-2-support/
enabled: "${SECURITY_OAUTH2_ENABLED:true}"
# Redirect URL where access code from external user management system will be processed
loginProcessingUrl: "${SECURITY_OAUTH2_LOGIN_PROCESSING_URL:/login/oauth2/code/}"
# List of SSO clients
clients:
default:
# Label that going to be show on login button - 'Login with {loginButtonLabel}'
loginButtonLabel: "${SECURITY_OAUTH2_DEFAULT_LOGIN_BUTTON_LABEL:Azure Active Directory}"
# Icon that going to be show on login button. Material design icon ID (https://material.angularjs.org/latest/api/directive/mdIcon)
loginButtonIcon: "${SECURITY_OAUTH2_DEFAULT_LOGIN_BUTTON_ICON:}"
clientName: "${SECURITY_OAUTH2_DEFAULT_CLIENT_NAME:ThingsBoard}"
clientId: "${SECURITY_OAUTH2_DEFAULT_CLIENT_ID:XXXXXXXX}"
clientSecret: "${SECURITY_OAUTH2_DEFAULT_CLIENT_SECRET:YYYYYYYY}"
accessTokenUri: "${SECURITY_OAUTH2_DEFAULT_ACCESS_TOKEN_URI:https://login.microsoftonline.com/example-tenant-id/oauth2/token}"
authorizationUri: "${SECURITY_OAUTH2_DEFAULT_AUTHORIZATION_URI:https://login.microsoftonline.com/example-tenant-id/oauth2/authorize}"
scope: "${SECURITY_OAUTH2_DEFAULT_SCOPE:openid,email,profile}"
# Redirect URL that must be in sync with 'security.oauth2.loginProcessingUrl', but domain name added
redirectUriTemplate: "${SECURITY_OAUTH2_DEFAULT_REDIRECT_URI_TEMPLATE:https://tb.tbsupport.xyz/login/oauth2/code/}"
jwkSetUri: "${SECURITY_OAUTH2_DEFAULT_JWK_SET_URI:https://login.microsoftonline.com/example-tenant-id/discovery/keys}"
# 'authorization_code', 'implicit', 'refresh_token' or 'client_credentials'
authorizationGrantType: "${SECURITY_OAUTH2_DEFAULT_AUTHORIZATION_GRANT_TYPE:authorization_code}"
clientAuthenticationMethod: "${SECURITY_OAUTH2_DEFAULT_CLIENT_AUTHENTICATION_METHOD:post}" # basic or post
userInfoUri: "${SECURITY_OAUTH2_DEFAULT_USER_INFO:}"
userNameAttributeName: "${SECURITY_OAUTH2_DEFAULT_USER_NAME_ATTRIBUTE_NAME:email}"
mapperConfig:
# Allows to create user if it not exists
allowUserCreation: "${SECURITY_OAUTH2_DEFAULT_MAPPER_ALLOW_USER_CREATION:true}"
# Allows user to setup ThingsBoard internal password and login over default Login window
activateUser: "${SECURITY_OAUTH2_DEFAULT_MAPPER_ACTIVATE_USER:false}"
# Mapper type of converter from external user into internal - 'basic' or 'custom'
type: "${SECURITY_OAUTH2_DEFAULT_MAPPER_TYPE:basic}"
basic:
# Key from attributes of external user object to use as email
emailAttributeKey: "${SECURITY_OAUTH2_DEFAULT_MAPPER_BASIC_EMAIL_ATTRIBUTE_KEY:email}"
firstNameAttributeKey: "${SECURITY_OAUTH2_DEFAULT_MAPPER_BASIC_FIRST_NAME_ATTRIBUTE_KEY:}"
lastNameAttributeKey: "${SECURITY_OAUTH2_DEFAULT_MAPPER_BASIC_LAST_NAME_ATTRIBUTE_KEY:}"
# Strategy for generating Tenant from external user object - 'domain', 'email' or 'custom'
# 'domain' - name of the Tenant will be extracted as domain from the email of the user
# 'email' - name of the Tenant will email of the user
# 'custom' - please configure 'tenantNamePattern' for custom mapping
tenantNameStrategy: "${SECURITY_OAUTH2_DEFAULT_MAPPER_BASIC_TENANT_NAME_STRATEGY:domain}"
# %{attribute_key} as placeholder for attribute value of attributes of external user object
tenantNamePattern: "${SECURITY_OAUTH2_DEFAULT_MAPPER_BASIC_TENANT_NAME_PATTERN:}"
# If this field is not empty, user will be created as a user under defined Customer
# %{attribute_key} as placeholder for attribute value of attributes of external user object
customerNamePattern: "${SECURITY_OAUTH2_DEFAULT_MAPPER_BASIC_CUSTOMER_NAME_PATTERN:}"
# If this field is not empty, user will be created with default defined Dashboard
defaultDashboardName: "${SECURITY_OAUTH2_DEFAULT_MAPPER_BASIC_DEFAULT_DASHBOARD_NAME:}"
# If this field is set 'true' along with non-empty 'defaultDashboardName', user will start from the defined Dashboard in fullscreen mode
alwaysFullScreen: "${SECURITY_OAUTH2_DEFAULT_MAPPER_BASIC_ALWAYS_FULL_SCREEN:false}"
custom:
url: "${SECURITY_OAUTH2_DEFAULT_MAPPER_CUSTOM_URL:}"
username: "${SECURITY_OAUTH2_DEFAULT_MAPPER_CUSTOM_USERNAME:}"
password: "${SECURITY_OAUTH2_DEFAULT_MAPPER_CUSTOM_PASSWORD:}"
After all the changes being applied, please, make sure to have the ThingsBoard restart. The ThingsBoard restart can be invoked with the next command on the Linux Server:
1
$ sudo service thingsboard restart

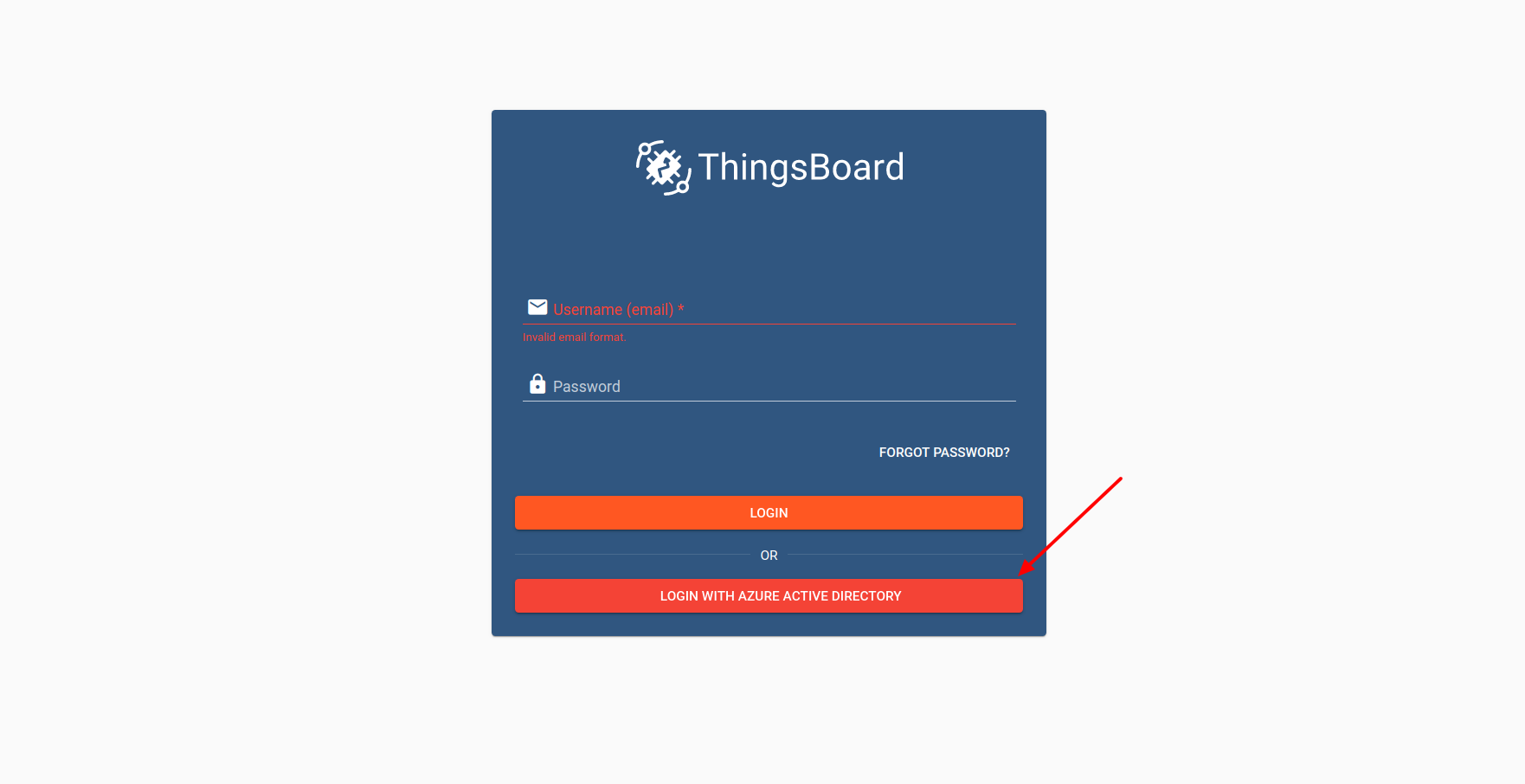

After that, proceed to the User Interface of yours, to make sure there are no troubles, press the Login With Azure Active Directory.
In case of the troubleshooting with those, please, contact us using the contact us form.
