Please note that this guide is for ThingsBoard versions prior v2.0.
Old rules and plugins functionality is replaced by new rule engine components (rule chains and rule nodes).
Please review new rule engine documentation to learn how to adopt new functionality.
We are doing our best to modify this guide to v2.0 components. Contributions are welcome.
Overview
Kafka plugin is responsible for sending messages to Kafka brokers triggered by specific rules
Configuration
You can specify following configuration parameters:
- bootstrap servers - list of kafka brokers
- number of attempts to reconnect to kafka if connection fails
- number of messages to unit into batch on client
- time to buffer locally before sending to kafka broker (in ms)
- buffer max size on client
- minimum number of replicas that must acknowledge a write
- topic key serializer by default - org.apache.kafka.common.serialization.StringSerializer
- topic value serializer by default - org.apache.kafka.common.serialization.StringSerializer
- any other additional properties could be provided for kafka broker connection
Server-side API
This plugin does not provide any server-side API.
Example
In this example, we are going to demonstrate how you can configure this extension to be able to send a message to Kafka topic every time new telemetry message for the device arrives.
Prerequisites before contining Kafka extension configuration:
- Kafka broker is up and running
- Appropriate Kafka Topic created
- ThingsBoard is up and running
Kafka Plugin Configuration

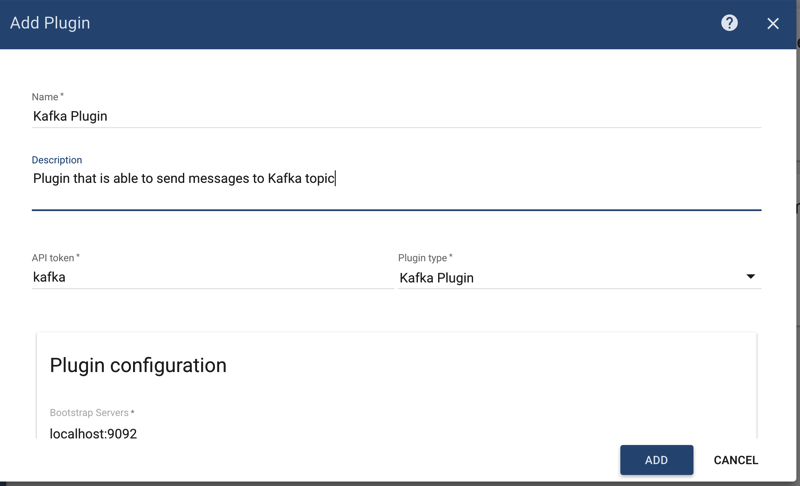

Let’s configure Kafka plugin first. Go to Plugins menu and create new plugin:

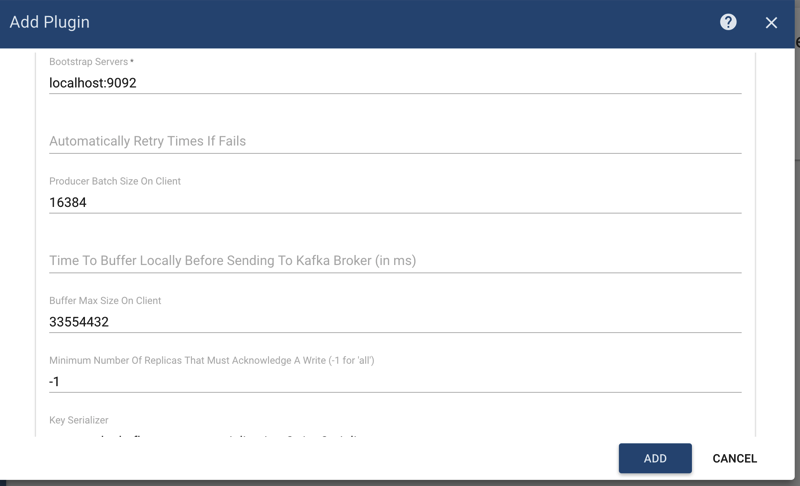

Please set correctly Kafka Bootstrap Servers URL and any other parameters located in plugin configuration section that is suitable for your case so Kafka extension is able to connect to Kafka broker.

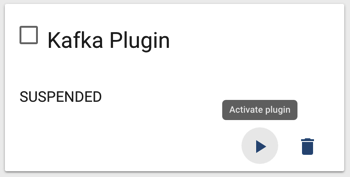

Click on ‘Activate’ plugin button:
Kafka Rule Configuration

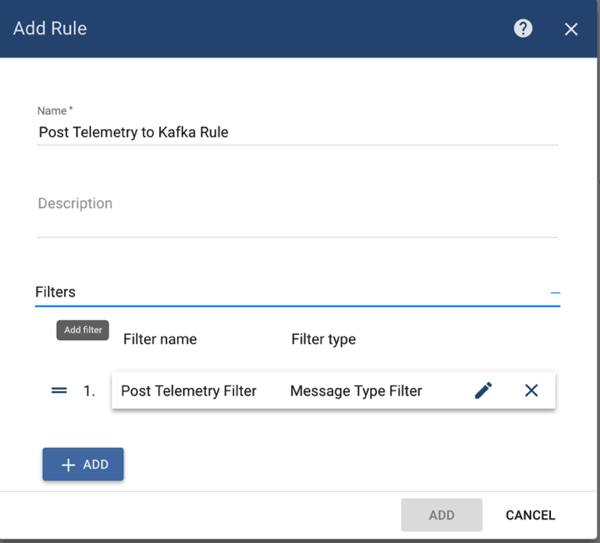

Now it’s time to create appropriate Rule.

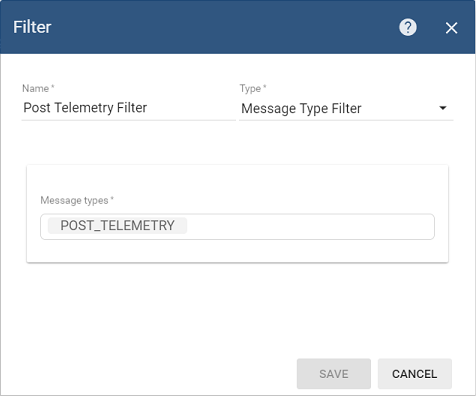

Add filter for POST_TELEMETRY message type:
Click ‘Add’ button to add filter.

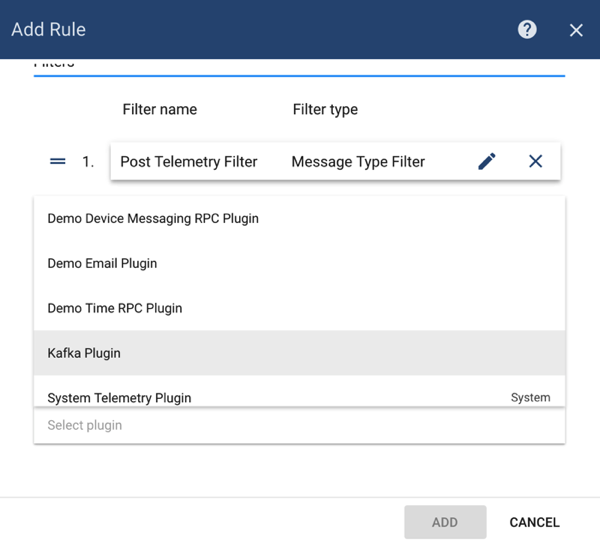

Then select ‘Kafka Plugin’ in the drop-down box for the Plugin field:

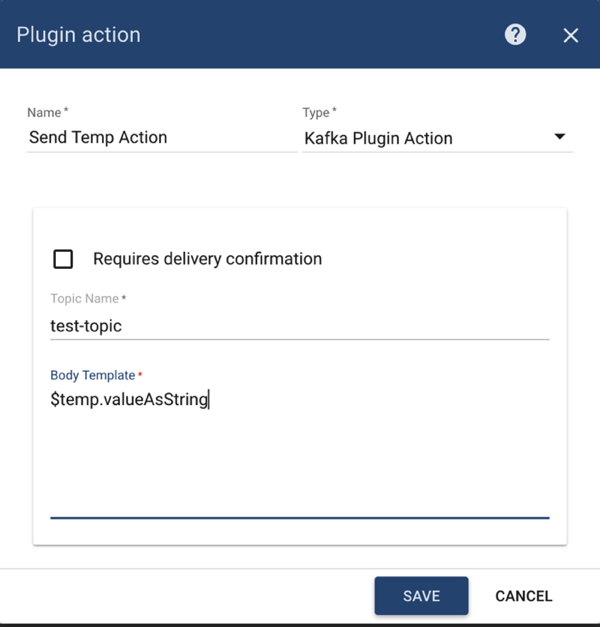

Add action that will send temperature telemetry of device to particular kafka topic:
Click ‘Add’ button and then activate Rule.
Sending Temperature Telemetry
Now you can send Telemetry message that contains ‘temp’ telemetry for any of your devices:
1
{"temp":73.4}
You should see ‘73.4’ message in appropriate Kafka topic once you’ll post this message.
Here is an example of a command that publish single telemetry message to locally installed ThingsBoard:
1
mosquitto_pub -d -h "localhost" -p 1883 -t "v1/devices/me/telemetry" -u "$ACCESS_TOKEN" -m '{"temp":73.4}'
