ThingsBoard US Cloud历史订阅计划

实体限制
API限制
字段计算限制
速率限制
白标
如何切换到新订阅计划？
如何取消订阅？

历史内容：本页记录2026年1月20日之前创建账号的订阅计划。

为何升级？新版订阅计划更灵活，可按需充值实体与API限制。还支持将ThingsBoard Edge和Trendz Analytics作为插件启用，便于在一处管理整个IoT基础设施。

这些计划已不再接受新订阅。若需查看当前套餐与限制，请访问最新订阅页面。

实体限制

下表对比历史订阅计划的实体限制。

参数名	Maker	Prototype	Startup	Business	Business+	说明
Devices	30	100	500	1000	2000	设备最大数量
Assets	30	100	500	1000	2000	资产最大数量
Customers	2	50	100	500	1000	客户最大数量
Users	5	50	100	500	1000	用户最大数量
Dashboards	25	100	200	500	1000	仪表板最大数量
Rule chains	5	20	50	100	200	规则链最大数量
Integrations	1	5	10	20	40	集成最大数量
Converters	5	25	50	100	200	转换器最大数量
Scheduler events	5	20	50	100	200	调度事件最大数量

API限制

下表对比历史订阅计划的API限制。除非另有说明，数值均为月度限制。

参数名	Maker	Prototype	Startup	Business	Business+	说明
Transport messages	5M	50M	250M	500M	1B	任一传输服务（MQTT、HTTP、CoAP等）或集成接收的消息总数
Transport data points	10M	100M	500M	1B	2B	遥测或属性传输消息中包含的键值对总数
Rule Engine executions	25M	250M	1B	2B	4B	规则节点任意执行的总次数。单条遥测消息处理可能触发多次Rule Engine执行。平台也会统计Generator节点产生的周期消息等。
JavaScript executions	1M	10M	50M	100M	200M	用户自定义函数任意执行的总次数，如“Script”过滤器或转换节点的处理、数据转换器调用等。
Default storage TTL	60 days	180 days	365 days	365 days	365 days	用于存储时序数据的"生存时间"参数默认值。可在"Save Timeseries"规则节点或消息的"TTL"元数据字段中覆盖。便于优化存储消耗。TTL最大允许值为5年。例如：可将"原始"数据存3个月、聚合数据存3年
Data point storage days	300M	10B	100B	200B	400B	针对所有存入数据库的时序数据点计算存储天数。平台将数据点数量乘以存储天数。 TTL参数用于确定存储天数。例如：1M数据点存30天即为30M数据点存储天数
Alarms TTL	60 days	180 days	365 days	365 days	365 days	告警在数据库中保存的天数
RPC TTL	60 days	180 days	365 days	365 days	365 days	持久化RPC在数据库中保存的天数
Alarms	200	4K	20K	40K	60K	每月创建的告警总数
Emails	100	2K	10K	40K	80K	发送的邮件总数
SMS	0	100	500	1000	2000	发送的SMS总数

其中”K“表示1千，”M“表示1百万，”B“表示10亿。

字段计算限制

下表对比历史订阅计划的字段计算限制。

参数名	Maker	Prototype	Startup	Business	Business+	说明
Calculated fields per entity maximum number	5	5	5	5	5	单实体允许的字段计算最大数量。
Max data points number in rolling arguments	1000	1000	1000	1000	1000	滚动参数支持的数据点最大数量。
Arguments per calculated field max number	10	10	10	10	10	单个字段计算可使用的输入参数最大数量。
State maximum size in KB	32	32	32	32	32	存储状态数据允许的最大大小（以KB计）。
Single value argument maximum size in KB	2	2	2	2	2	单个参数值的最大大小（以KB计）。

速率限制

平台的速率限制策略旨在保证可预测的服务质量，并在峰值负载下保持运行韧性。限制在租户层面（所有设备与用户的聚合活动）和单设备层面同时生效，采用每秒、每分钟、每小时的统一时间窗口，在突发容忍与持续吞吐上限之间取得平衡。阈值随套餐（Maker、Prototype、Startup、Business、Business+）变化，与预期流量画像匹配，确保多租户公平使用及SLA达标。

若工作负载超过分配限制，相应请求将被平台临时拒绝，直至速率恢复到策略范围内。此外，发生超限时平台会通知租户管理员。

参数名	Maker	Prototype	Startup	Business	Business+	说明
All Transport messages (Tenant)	Up to 200 per second, not exceeding 6,000 per minute, and capped at 140,000 per hour	Up to 2,000 per second, not exceeding 60,000 per minute, and capped at 1,400,000 per hour	Up to 10,000 per second, not exceeding 300,000 per minute, and capped at 6,000,000 per hour	Up to 20,000 per second, not exceeding 600,000 per minute, and capped at 12,000,000 per hour	Up to 40,000 per second, not exceeding 1,200,000 per minute, and capped at 24,000,000 per hour	任一传输微服务为该租户下所有设备接收的消息总数
Telemetry Transport messages (Tenant)	Up to 100 per second, not exceeding 3,000 per minute, and capped at 70,000 per hour	Up to 1,000 per second, not exceeding 30,000 per minute, and capped at 700,000 per hour	Up to 5,000 per second, not exceeding 150,000 per minute, and capped at 3,500,000 per hour	Up to 10,000 per second, not exceeding 300,000 per minute, and capped at 7,000,000 per hour	Up to 20,000 per second, not exceeding 600,000 per minute, and capped at 14,000,000 per hour	任一传输微服务为该租户下所有设备接收的遥测消息总数
Telemetry Transport data points (Tenant)	Up to 200 per second, not exceeding 6,000 per minute, and capped at 140,000 per hour	Up to 2,000 per second, not exceeding 60,000 per minute, and capped at 1,400,000 per hour	Up to 10,000 per second, not exceeding 300,000 per minute, and capped at 7,000,000 per hour	Up to 20,000 per second, not exceeding 600,000 per minute, and capped at 14,000,000 per hour	Up to 40,000 per second, not exceeding 1,200,000 per minute, and capped at 28,000,000 per hour	任一传输微服务为该租户下所有设备接收的遥测数据点总数
All Transport messages (Device)	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	任一传输微服务为各设备单独接收的消息总数
Telemetry Transport messages (Device)	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	任一传输微服务为各设备单独接收的遥测消息总数
Telemetry Transport data points (Device)	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	Up to 200 per second, not exceeding 6,000 per minute, and capped at 14,000 per hour	任一传输微服务为各设备单独接收的遥测数据点总数
Integration messages (Tenant)	Up to 100 per second, not exceeding 3,000 per minute, and capped at 70,000 per hour	Up to 1,000 per second, not exceeding 30,000 per minute, and capped at 700,000 per hour	Up to 5,000 per second, not exceeding 150,000 per minute, and capped at 3,500,000 per hour	Up to 10,000 per second, not exceeding 300,000 per minute, and capped at 7,000,000 per hour	Up to 20,000 per second, not exceeding 600,000 per minute, and capped at 14,000,000 per hour	任一传输微服务为该租户下所有设备接收的消息总数
Integration messages (Device)	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	Up to 100 per second, not exceeding 3,000 per minute, and capped at 7,000 per hour	任一传输微服务为所有设备接收的遥测消息总数
REST requests (Tenant)	Up to 100 per second, not exceeding 2,000 per minute	Up to 100 per second, not exceeding 2,000 per minute	Up to 100 per second, not exceeding 2,000 per minute	Up to 100 per second, not exceeding 2,000 per minute	Up to 100 per second, not exceeding 2,000 per minute	该租户下任一用户发起的REST API调用总数
REST requests (Customer)	Up to 50 per second, not exceeding 1,000 per minute	Up to 50 per second, not exceeding 1,000 per minute	Up to 50 per second, not exceeding 1,000 per minute	Up to 50 per second, not exceeding 1,000 per minute	Up to 50 per second, not exceeding 1,000 per minute	特定客户下任一用户发起的REST API调用总数
WS updates per session	Up to 1,000 per second, not exceeding 10,000 per minute	Up to 1,000 per second, not exceeding 10,000 per minute	Up to 1,000 per second, not exceeding 10,000 per minute	Up to 1,000 per second, not exceeding 10,000 per minute	Up to 1,000 per second, not exceeding 10,000 per minute	特定WebSocket会话接收的消息总数
WS Sessions (Tenant)	1K	1K	1K	1K	1K	该租户的WebSocket会话最大数量
WS Subscriptions (Tenant)	20K	20K	20K	20K	20K	该租户的WebSocket订阅最大数量
WS Sessions (Customer)	500	500	500	500	500	该客户的WebSocket会话最大数量
WS Subscriptions (Customer)	10K	10K	10K	10K	10K	该客户的WebSocket订阅最大数量
WS Sessions (Public user)	250	250	250	250	250	每位公开用户的会话最大数量
WS Subscriptions (Public user)	5K	5K	5K	5K	5K	每位公开用户的订阅最大数量
WS Sessions (Regular user)	100	100	100	100	100	每位普通用户的会话最大数量
WS Subscriptions (Regular user)	2K	2K	2K	2K	2K	每位普通用户的订阅最大数量
WS queue message (Session)	500	500	500	500	500	每会话的队列消息最大大小

其中”K“表示1千，”M“表示1百万，”B“表示10亿。

白标

ThingsBoard Web界面支持在2分钟内配置公司或产品Logo及配色，无需编码、无需重启服务。详见功能文档。ThingsBoard Cloud扩展了白标能力，支持便捷配置自有域名。详见域名管理。

白标功能在Prototype、Startup和Business的历史订阅计划中可用。

如何切换到新订阅计划？

研究表明约90%的现有客户在现有历史计划下已能满足需求，但不少用户仍可能认为新的按需付费+充值模式更具吸引力且更经济。

切换的主要优势在于灵活性。无需为了提升某项限制（如API调用或SMS数量）而升级到明显更高级的套餐，新模型支持为所需资源单独购买充值。

充值可用范围：

通用充值：API限制及通用实体（如告警、规则链等）的充值自Pilot套餐起可用。
设备与资产充值：设备与资产最大数量的充值仅在Business套餐中提供。

两步即可切换

切换至新模型无需数据迁移，过程简单。

在左侧主导航进入“计划与计费”。
点击“更新计划”按钮。
选择目标套餐并确认。

如何取消订阅？

终止ThingsBoard Cloud订阅可按下述步骤操作：

以租户管理员身份登录ThingsBoard Cloud。

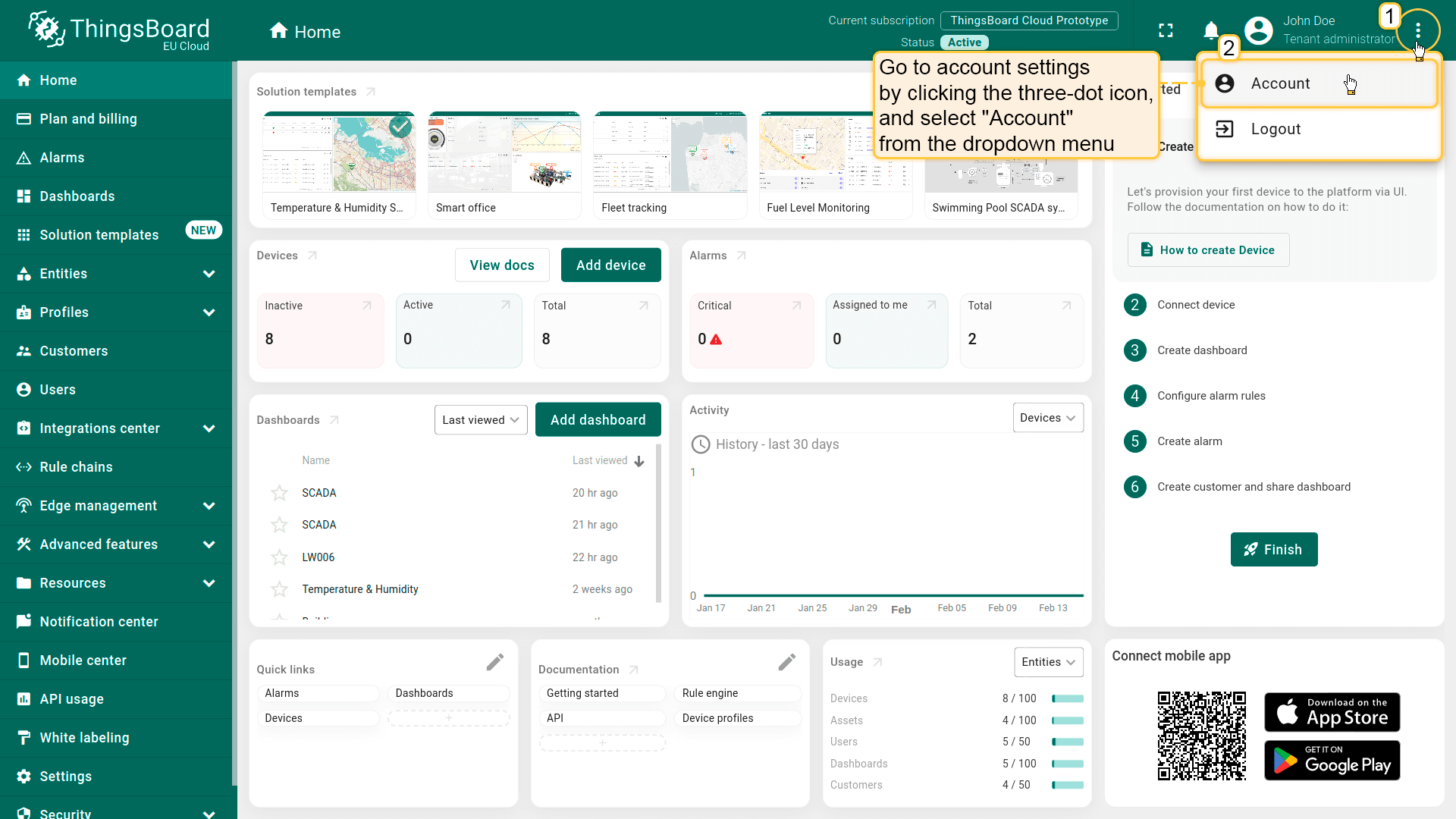

点击屏幕右上角三点图标，在下拉菜单中选择账户进入账户设置。

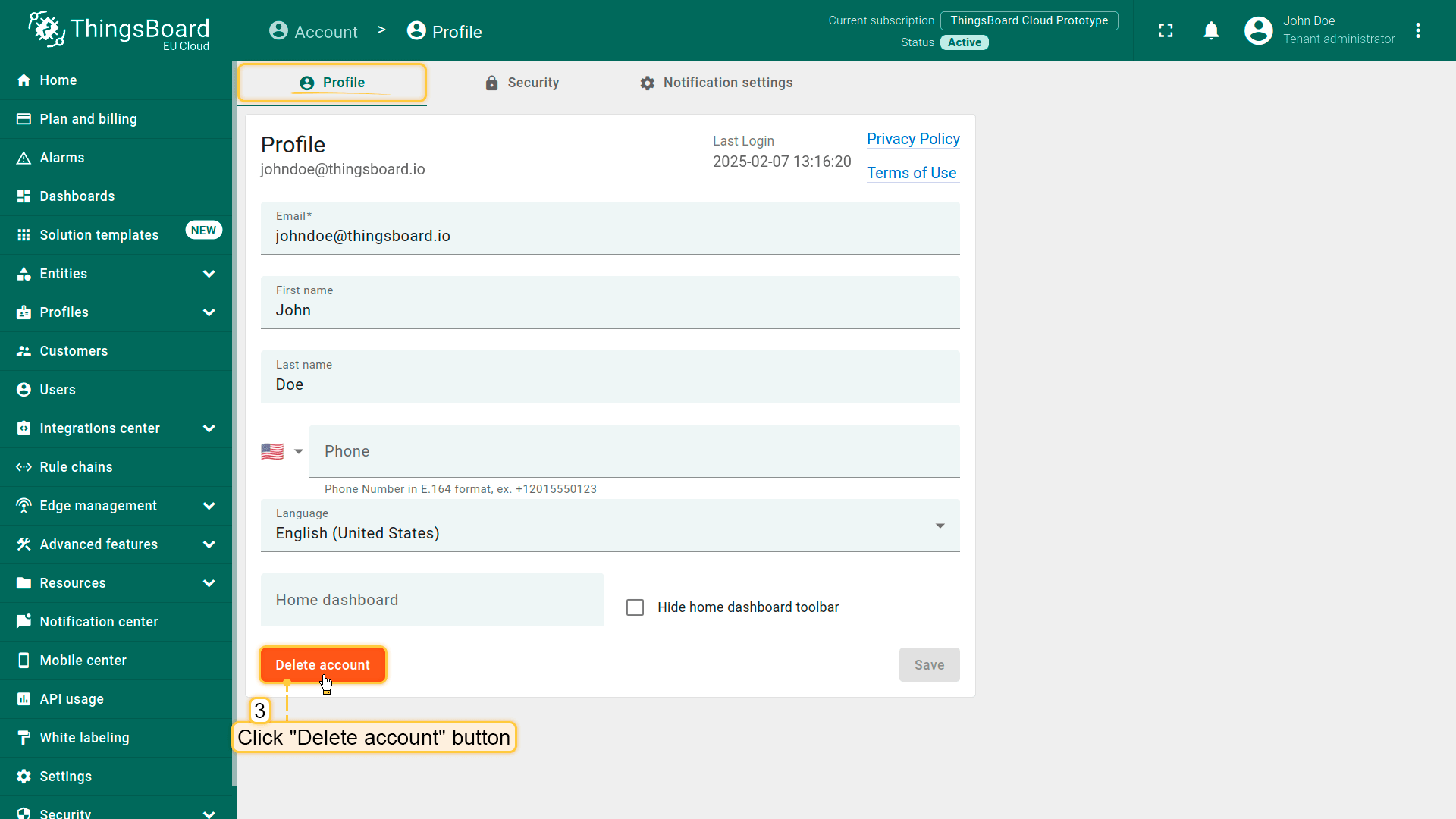

在个人资料标签下点击橙色删除账户按钮。

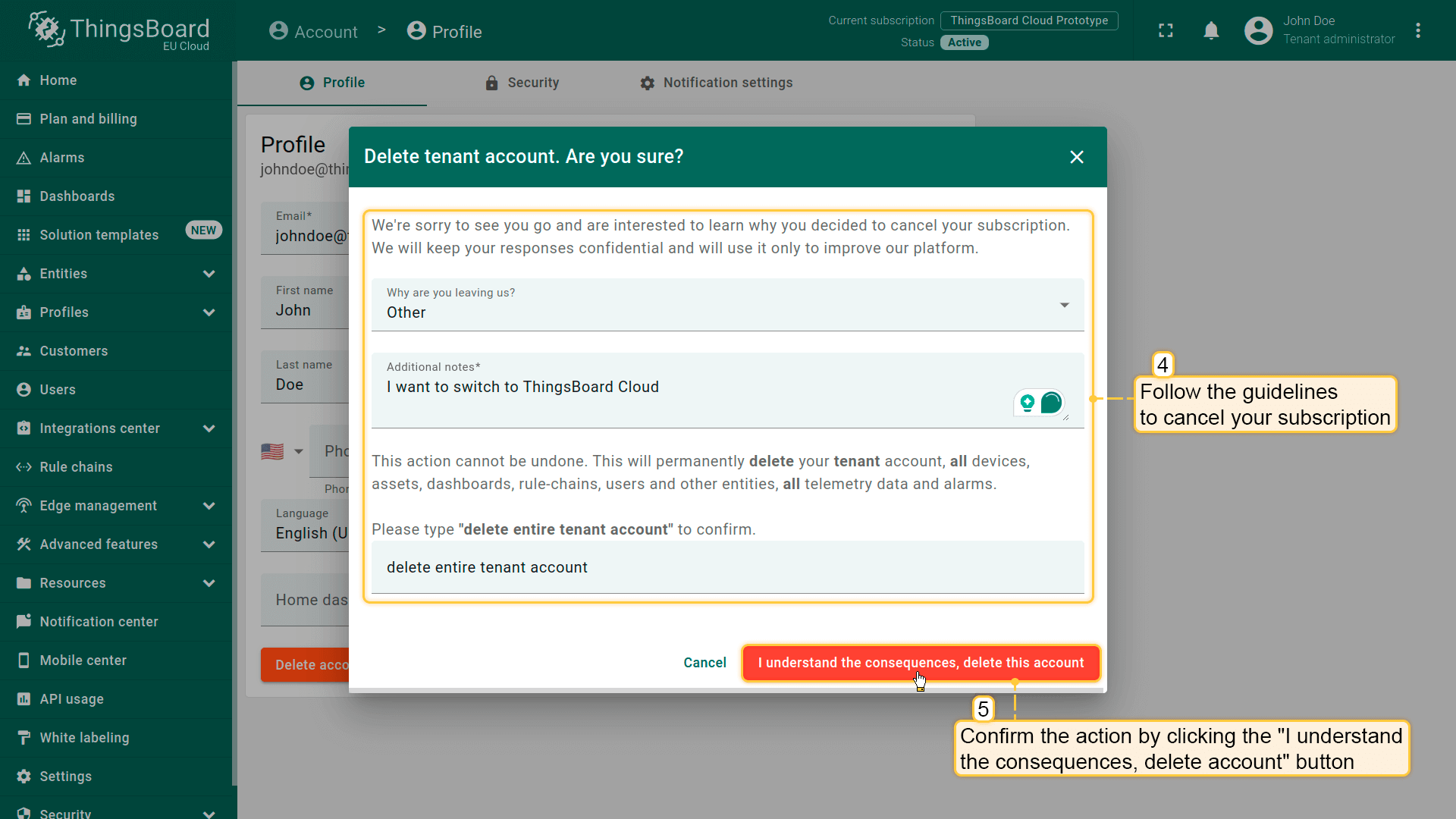

按提示完成取消订阅流程。
在确认对话框中点击“我了解后果，删除账户”完成确认。

之后，订阅终止入口将迁移至ThingsBoard导航菜单中的“计划与计费”页面。

在"Profile"标签下，点击橙色"Delete account"按钮；
