如何将 VS121 AI workplace sensor 连接至 ThingsBoard？
  • Hardware type: Other devices
  • Connectivity: LoRaWAN
  • Industry: Healthcare, Smart Buildings
  • Use cases: Smart Office
  • Platforms: Community Edition, Professional Edition, Cloud

概述

Milesight VS121是一款AI工作场所传感器，用于监测现代工作空间的占用率和利用情况，基于AI算法识别率可达98%。 Milesight VS121提供LoRaWAN®和以太网两种版本，适用于不同应用场景。基于标准LoRaWAN协议，VS121可与Milesight网关配合使用。 设备配备Wi-Fi功能，无需额外配置工具即可轻松配置。将此设备连接到ThingsBoard，可获得更强大的可视化和数据管理能力。


文档信息图标
ThingsBoard PE 功能

仅专业版支持Platform Integrations功能。
请使用ThingsBoard Cloud或自行安装平台实例。

前置条件

继续本指南前，需准备以下内容：

设备连接

根据官方用户手册和本指南，您可以将设备连接到网络，并通过无线连接访问Web UI。 由于该设备只能通过LoRaWAN®网关运行，我们必须先将其连接到已配置ThingsBoard集成的网络服务器。

设备配置

连接并发送数据前，需配置设备和网络服务器。
首先配置设备，并保存网络服务器配置所需信息。
要将设备加入网络服务器并从中获取信息，需准备以下设备参数：

  • Device EUI - 设备标识符
  • Application EUI - 应用标识符
  • Application Key - 用于识别设备的应用密钥。建议使用生成的密钥，而非示例中的密钥！

根据网络服务器要求，可能还需提供接入类型（OTAA）、LoRaWAN版本。

VS121传感器提供友好的Web配置界面，用户可通过Wi-Fi连接访问。设备默认SSID为：Workplace Sensor。

请按以下步骤操作：

  1. 通过Type-C电源口为设备供电；
  2. 在电脑上启用无线网络连接，搜索并连接对应的接入点；
  3. 打开浏览器，输入192.168.1.1访问Web管理界面（需在同一子网内）；
  4. 首次使用时需设置密码，还可选择设置三个安全问题；
  5. 设置完成后，使用用户名（admin）和自定义密码登录传感器。

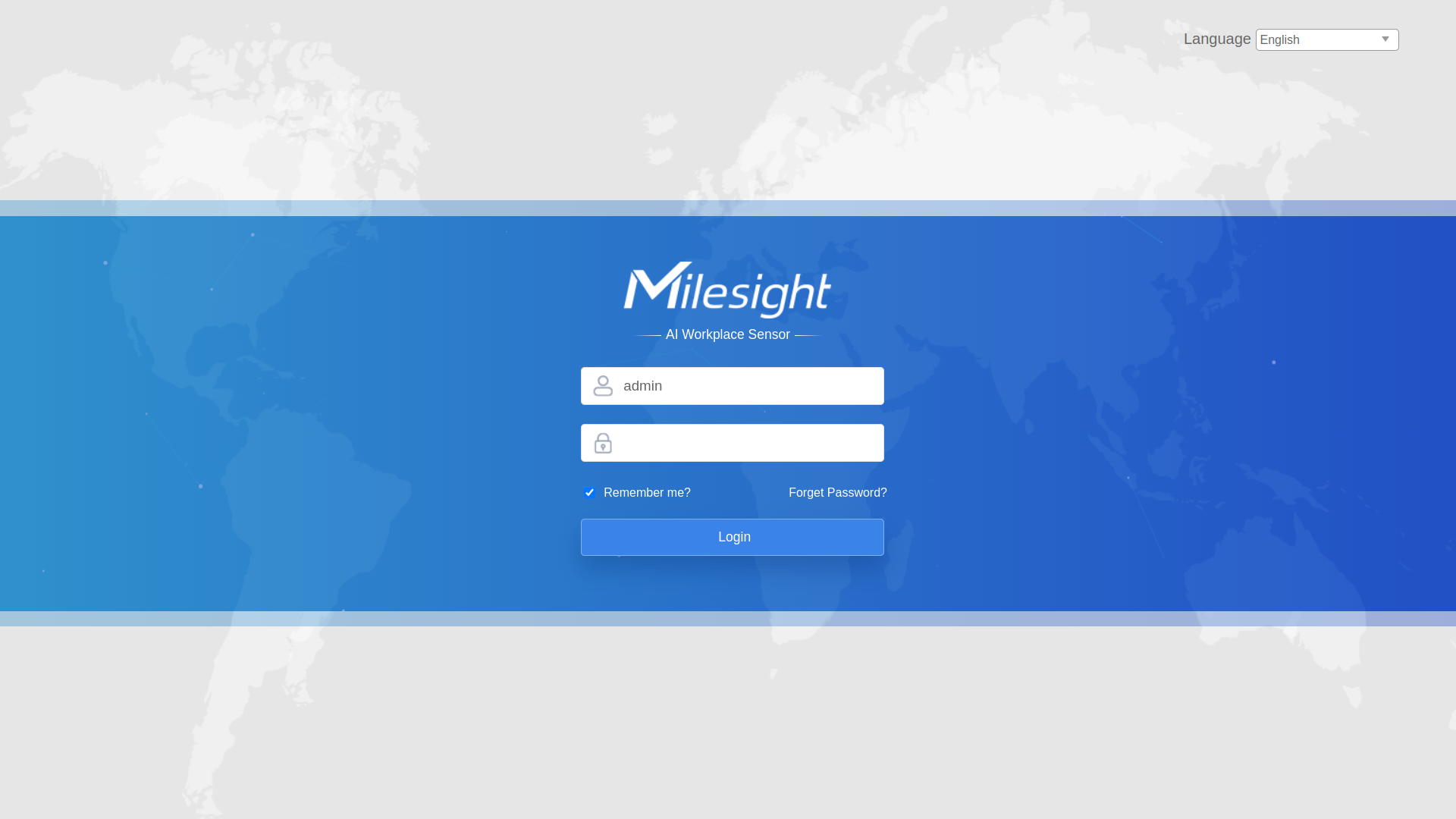

使用用户名（admin）和自定义密码登录传感器Web管理界面。

使用用户名（admin）和自定义密码登录传感器Web管理界面。

要获取所需参数，请按以下步骤操作：

  • 在左侧面板中进入 IoT 页面，切换到 LoRa 选项卡；
  • 记录 Device EUI 和 App EUI；
  • 在 Application Key 字段中生成并输入十六进制格式的新密钥，并记录下来；
  • 向下滚动并点击 Save 按钮。

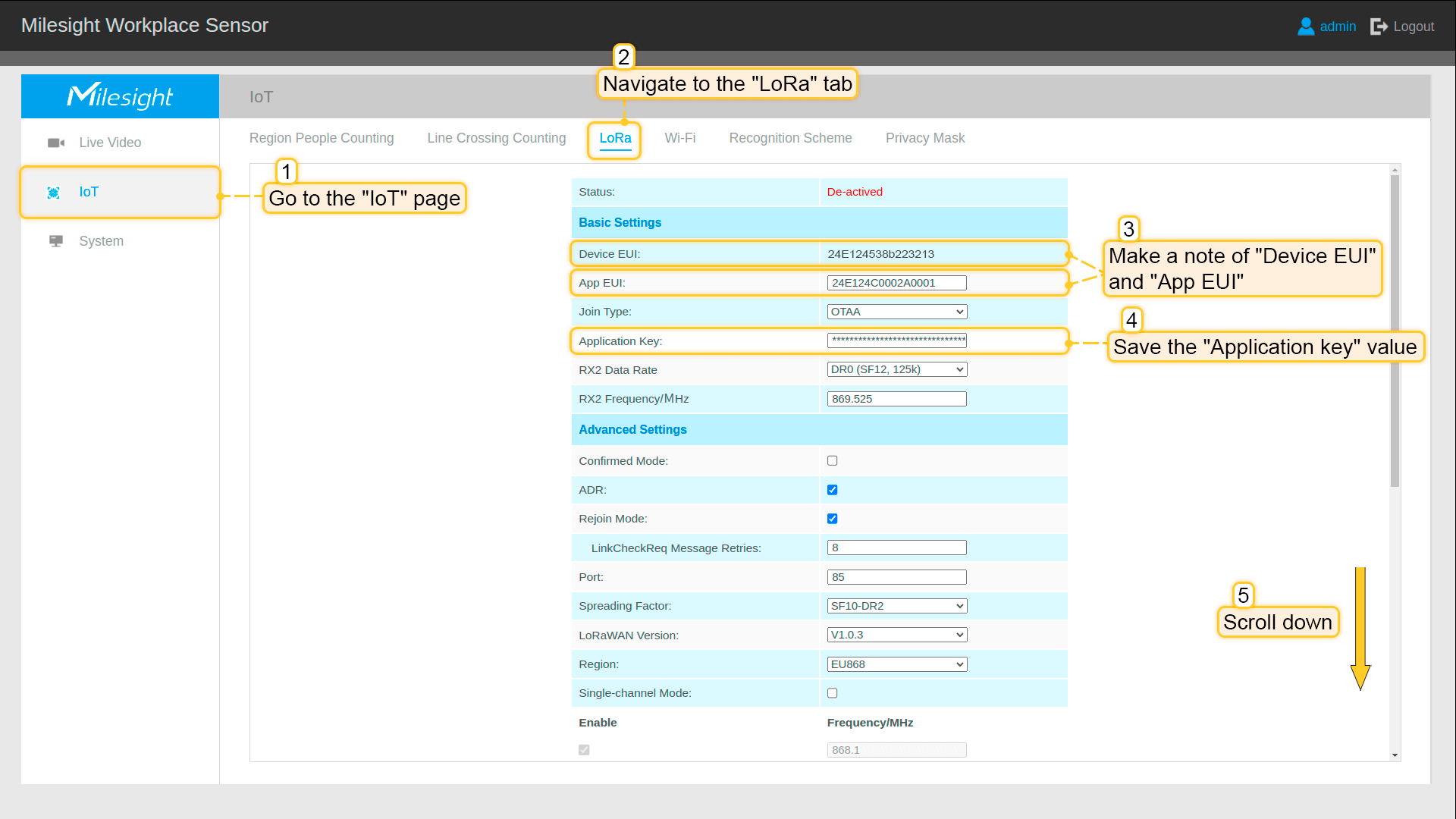

在左侧面板中进入 IoT 页面，切换到 LoRa 选项卡。记录 Device EUI 和 App EUI。在 Application Key 字段中生成并输入十六进制格式的新密钥并记录下来。

在左侧面板中进入 IoT 页面，切换到 LoRa 选项卡。记录 Device EUI 和 App EUI。在 Application Key 字段中生成并输入十六进制格式的新密钥并记录下来。

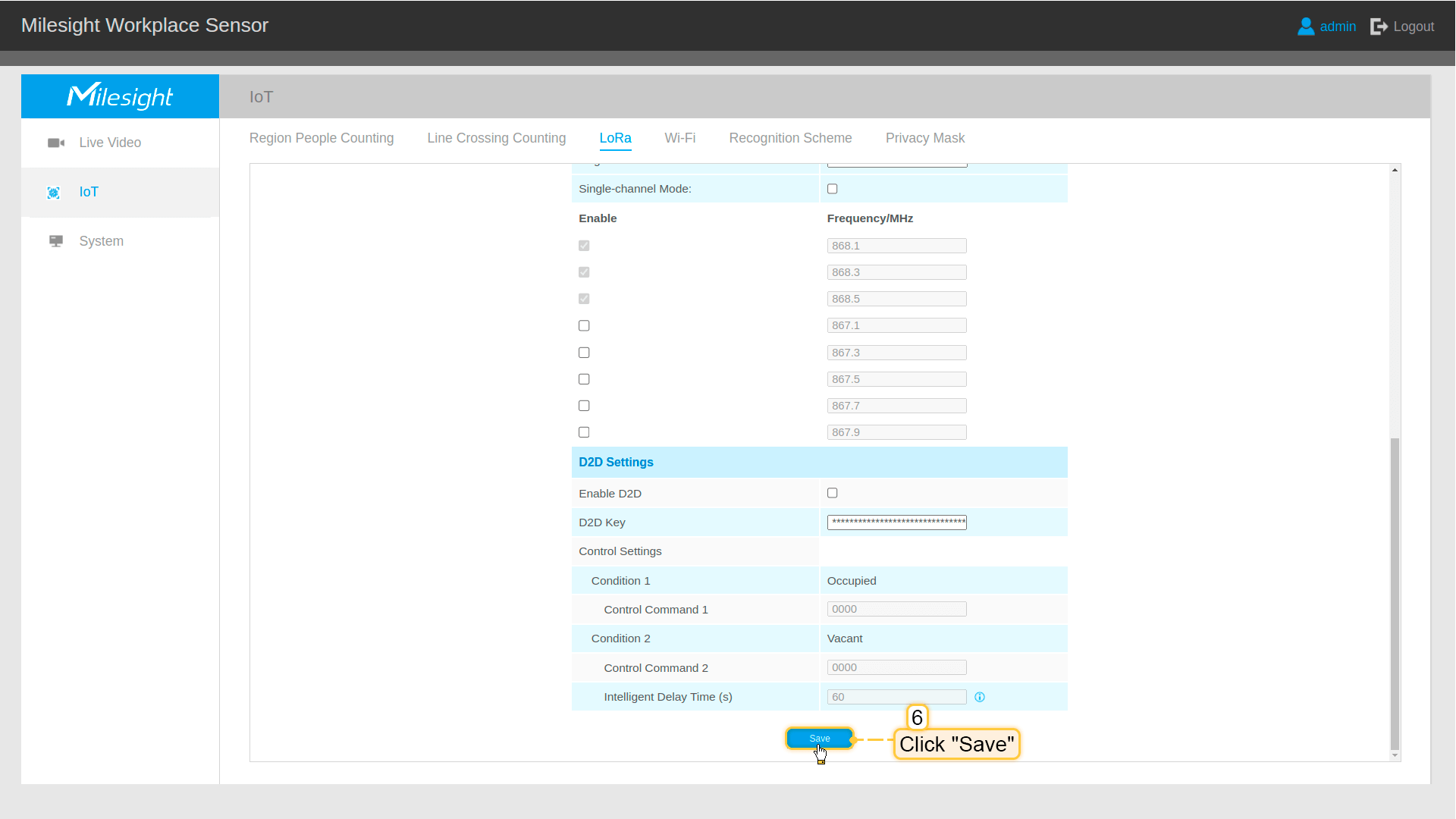

向下滚动并点击 Save 按钮。

向下滚动并点击 Save 按钮。

以上参数为连接所必需。

配置设备时还需要将其添加到网络服务器，请选择您的网关所连接的网络服务器：

ChirpStack
TheThingsStack
TheThingsIndustries
Loriot

在ChirpStack上添加设备

我们需要在 ChirpStack 上添加设备。

要添加设备，请按以下步骤操作：

  • 登录ChirpStack服务器。

  • 进入设备配置页面，点击添加设备配置按钮。

  • 填写字段并点击提交按钮。

  • 进入应用页面，点击您的应用后按添加设备按钮。

  • 使用设备配置中的值填写参数。然后选择之前创建设备配置并点击提交按钮。

  • 将应用密钥填入相应字段并点击提交按钮保存设备。

登录ChirpStack服务器。

登录ChirpStack服务器。

进入设备配置页面，点击添加设备配置按钮。

进入设备配置页面，点击添加设备配置按钮。

填写字段并点击提交按钮。

填写字段并点击提交按钮。

进入应用页面，点击您的应用后按添加设备按钮。

进入应用页面，点击您的应用后按添加设备按钮。

使用设备配置中的值填写参数。然后选择之前创建设备配置并点击提交按钮。

使用设备配置中的值填写参数。然后选择之前创建设备配置并点击提交按钮。

将应用密钥填入相应字段并点击提交按钮保存设备。

将应用密钥填入相应字段并点击提交按钮保存设备。

ThingsBoard集成中的上行数据转换器

由于我们已连接网关并配置了集成，需要修改转换器并添加解析设备上行数据负载的能力。

为此，您可以将代码添加到”解码块“中，该块位于转换器内”// — Decoding code — //“注释之间（若使用ThingsBoard v3.5.2及以上版本的默认转换器）。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146

var historyData = {};
    var decoded = {};
    decoded.hexString = bytesToHex(input);
    for (var i = 0; i < input.length; ) {
        var channel_id = input[i];
        var channel_type = input[i+1];

        i += 2;

        // PROTOCOL VERSION
        if (channel_id == -1 && channel_type == 1) {
            decoded.protocol_version = input[i];
            i += 1;
        }
        // SERIAL NUMBER
        else if (channel_id == -1 && channel_type == 8) {
            var temp = [];
            var last_index_sn = i + 6;
            for (var idxsn = i; idxsn < last_index_sn; idxsn++) {
                temp.push(bytesToHex([input[idxsn] & 0xff]));
            }
            decoded.serialNumber = temp.join("");
            i += 6;
        }
        // HARDWARE VERSION
        else if (channel_id == -1 && channel_type == 9) {
            var temphv = [];
            var last_index_hv = i + 2;
            for (var idxhv = i; idxhv < last_index_hv; idxhv++) {
                temphv.push((input[idxhv] & 0xff).toString());
            }
            decoded.hardwareVersion = temphv.join(".");
            i += 2;
        }
        // FIRMWARE VERSION
        else if (channel_id == -1 && channel_type == 31) {
            var tempfv = [];
            var last_index_fv = i + 4;
            for (var idxfv = i; idxfv < last_index_fv; idxfv++) {
                tempfv.push((input[idxfv] & 0xff).toString());
            }
            decoded.firmwareVersion = tempfv.join(".");
            i += 4;
        }
        // PEOPLE COUNTER
        else if (channel_id == 4 && channel_type == -55) {
            decoded.peopleCountAll = input[i];
            decoded.regionCount = input[i + 1];
            var region = parseBytesToInt(input, i + 2, 2, false);
            for (var idxpc = 0; idxpc < decoded.regionCount; idxpc++) {
                var tmp = "region" + (idxpc + 1);
                decoded[tmp] = (region >> idxpc) & 1;
            }
            i += 4;
        }
        // PEOPLE IN/OUT
        else if (channel_id == 5 && channel_type == -52) {
            decoded.peopleIn = parseBytesToInt(input, i, 2, false);
            decoded.peopleOut = parseBytesToInt(input, i + 2, 2, false);
            i += 4;
        }
        // PEOPLE MAX
        else if (channel_id == 6 && channel_type == -51) {
            decoded.peopleCountMax = input[i];
            i += 1;
        }
        // REGION COUNTER
        else if (channel_id == 7 && channel_type == -43) {
            decoded.region1Count = input[i];
            decoded.region2Count = input[i + 1];
            decoded.region3Count = input[i + 2];
            decoded.region4Count = input[i + 3];
            decoded.region5Count = input[i + 4];
            decoded.region6Count = input[i + 5];
            decoded.region7Count = input[i + 6];
            decoded.region8Count = input[i + 7];
            i += 8;
        }
        // REGION COUNTER
        else if (channel_id == 8 && channel_type == -43) {
            decoded.region9Count = input[i];
            decoded.region10Count = input[i + 1];
            decoded.region11Count = input[i + 2];
            decoded.region12Count = input[i + 3];
            decoded.region13Count = input[i + 4];
            decoded.region14Count = input[i + 5];
            decoded.region15Count = input[i + 6];
            decoded.region16Count = input[i + 7];
            i += 8;
        }
        // A FLOW
        else if (channel_id == 9 && channel_type == -38) {
            decoded.aToA = parseBytesToInt(input, i, 2, false);
            decoded.aToB = parseBytesToInt(input, i + 2, 2, false);
            decoded.aToC = parseBytesToInt(input, i + 4, 2, false);
            decoded.aToD = parseBytesToInt(input, i + 6, 2, false);
            i += 8;
        }
        // B FLOW
        else if (channel_id == 10 && channel_type == -38) {
            decoded.bToA = parseBytesToInt(input, i, 2, false);
            decoded.bToB = parseBytesToInt(input, i + 2, 2, false);
            decoded.bToC = parseBytesToInt(input, i + 4, 2, false);
            decoded.bToD = parseBytesToInt(input, i + 6, 2, false);
            i += 8;
        }
        // C FLOW
        else if (channel_id == 11 && channel_type == -38) {
            decoded.cToA = parseBytesToInt(input, i, 2, false);
            decoded.cToB = parseBytesToInt(input, i + 2, 2, false);
            decoded.cToC = parseBytesToInt(input, i + 4, 2, false);
            decoded.cToD = parseBytesToInt(input, i + 6, 2, false);
            i += 8;
        }
        // D FLOW
        else if (channel_id == 12 && channel_type == -38) {
            decoded.dToA = parseBytesToInt(input, i, 2, false);
            decoded.dToB = parseBytesToInt(input, i + 2, 2, false);
            decoded.dToC = parseBytesToInt(input, i + 4, 2, false);
            decoded.dToD = parseBytesToInt(input, i + 6, 2, false);
            i += 8;
        }
        // TOTAL IN/OUT
        else if (channel_id == 13 && channel_type == -52) {
            decoded.peopleTotalIn = parseBytesToInt(input, i, 2, false);
            decoded.peopleTotalOut = parseBytesToInt(input, i + 2, 2, false);
            i += 4;
        }
        // DWELL TIME
        else if (channel_id == 14 && channel_type == -28) {
            var region1 = input[i];
            decoded.region = region1;
            decoded.dwellTimeAvg = parseBytesToInt(input, i + 1, 2, false);
            decoded.dwellTimeMax = parseBytesToInt(input, i + 3, 2, false);
            i += 5;
        }
        // TIMESTAMP
        else if (channel_id == 15 && channel_type == -123) {
            decoded.timestamp = parseBytesToInt(input, i, 4, false);
            i += 4;
        } else {
            break;
        }
    }

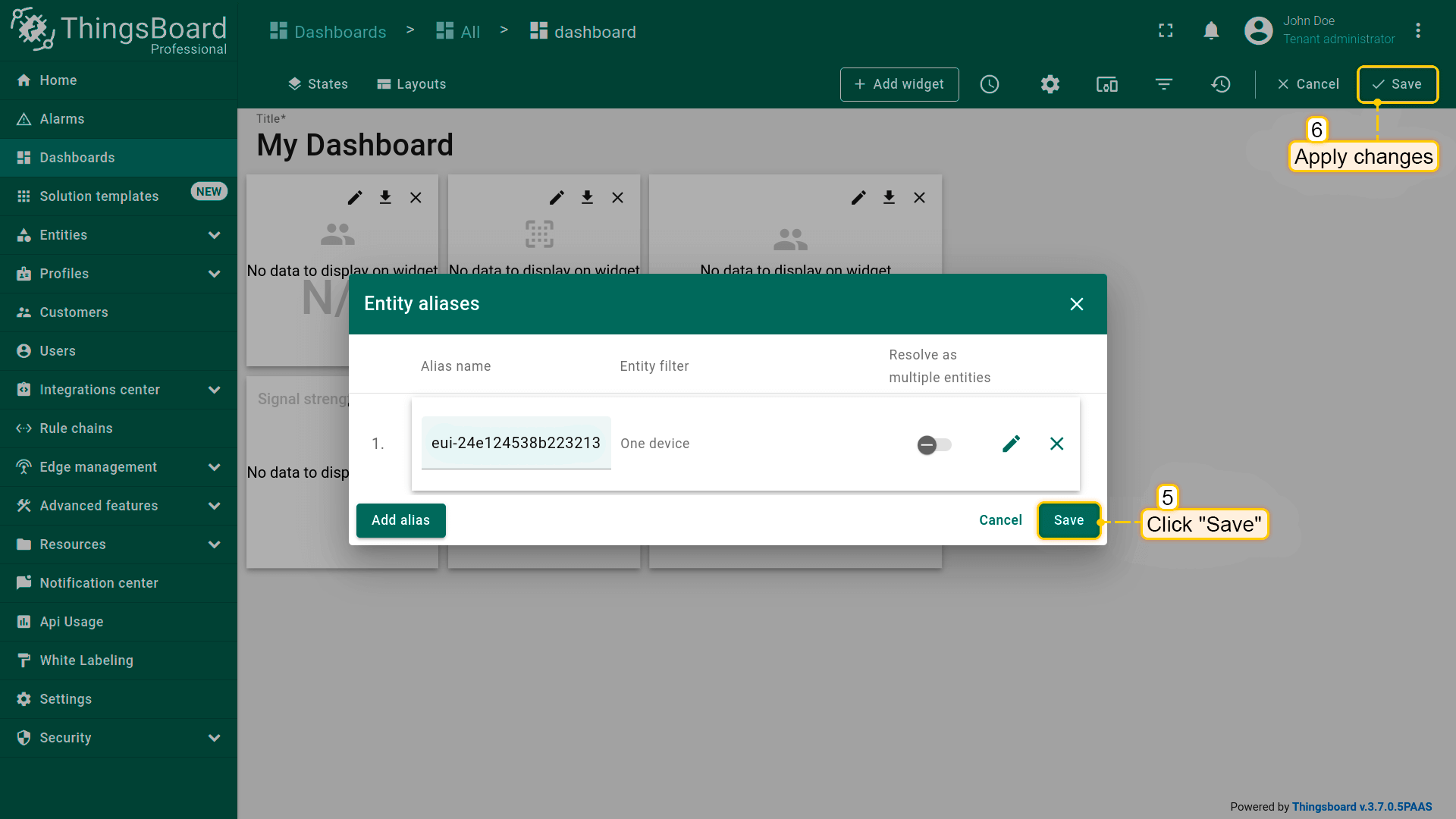

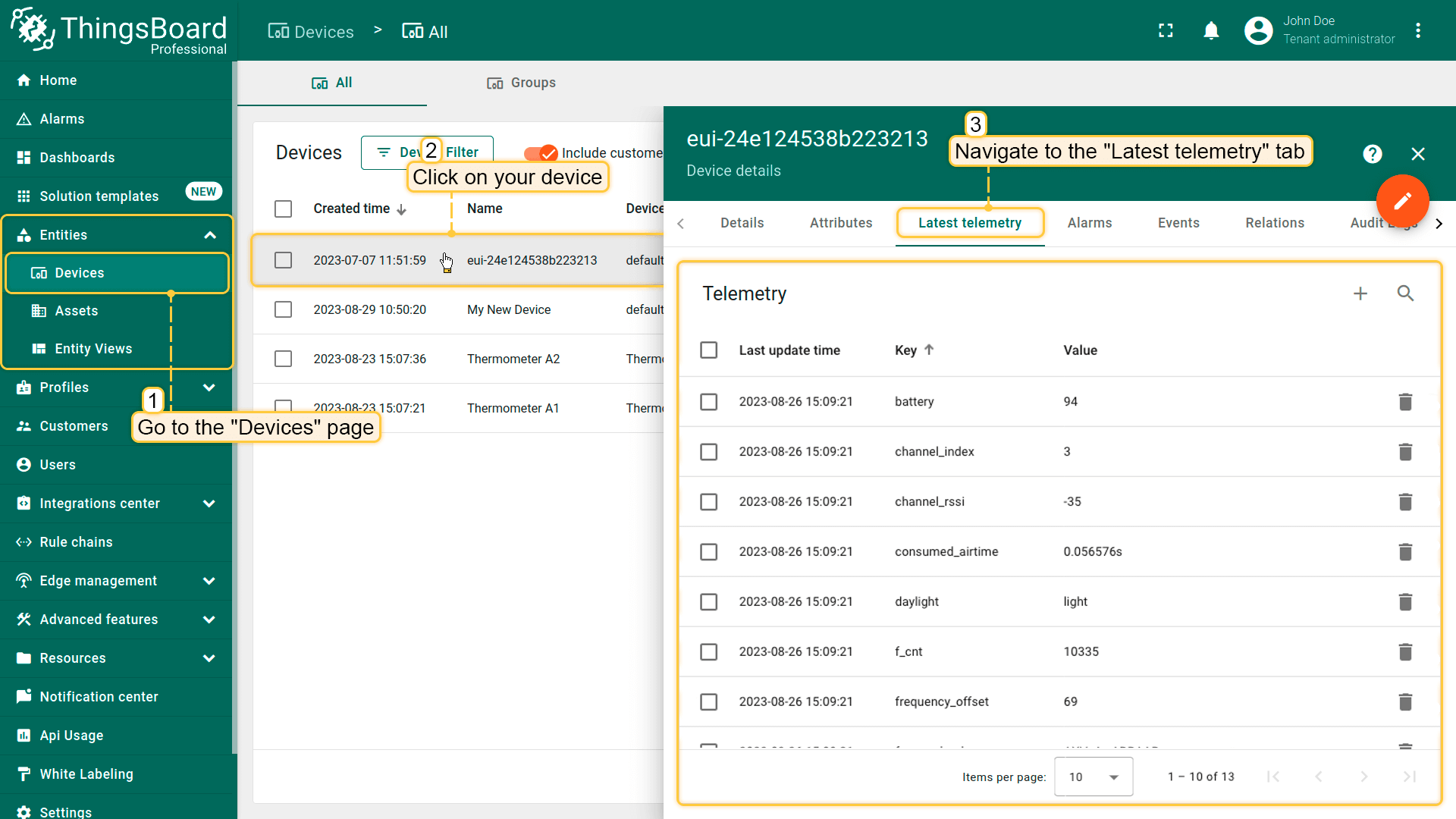

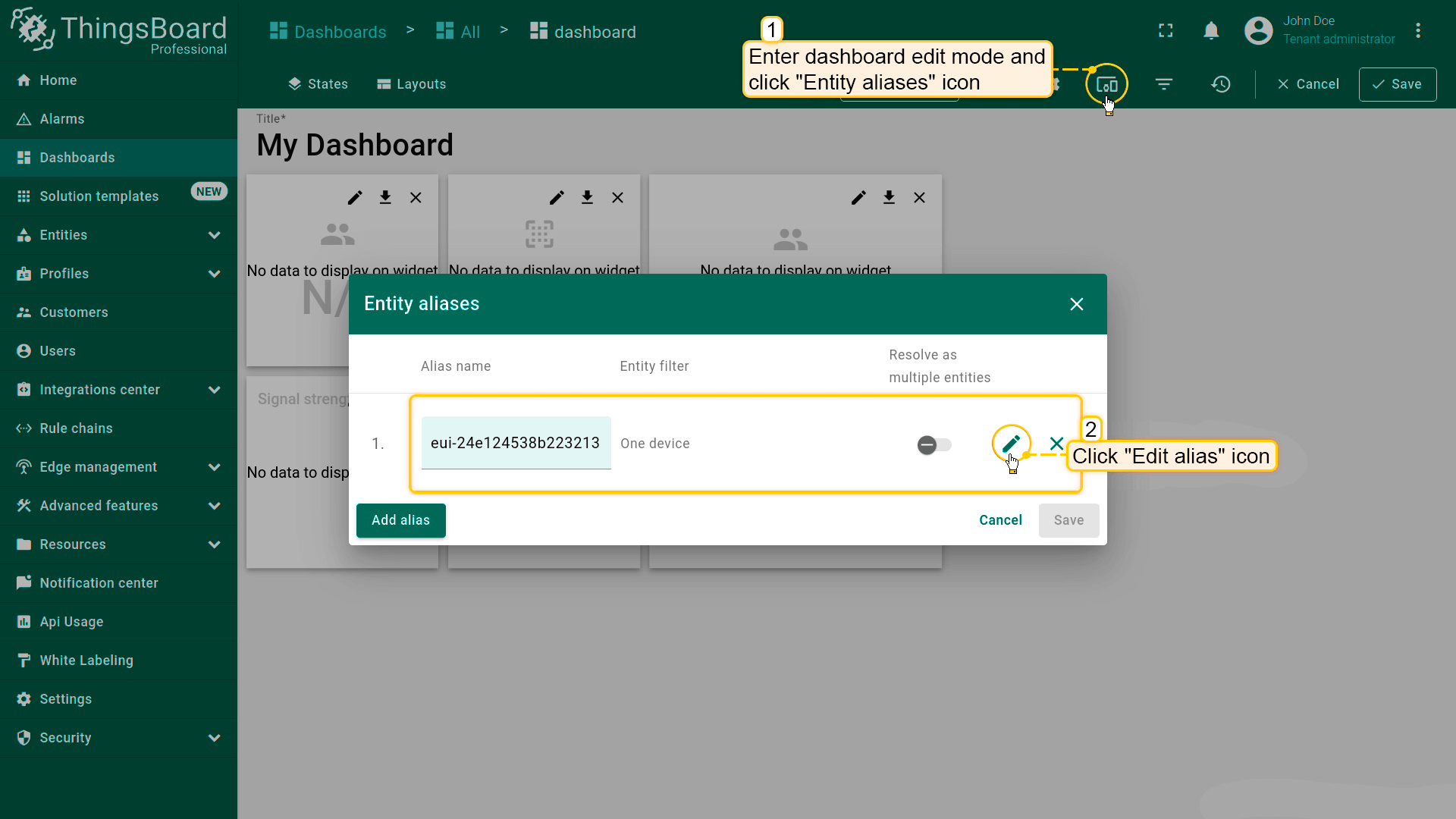

    output.telemetry = decoded;
