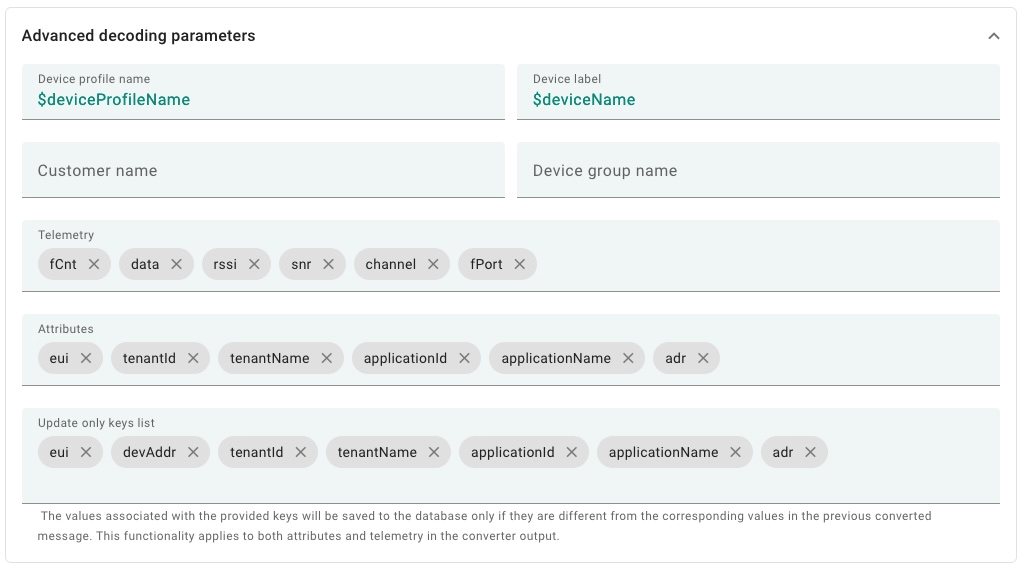

var deviceType = metadata.deviceProfileName;
var fPort = metadata.fPort;

/**
Decodes the incoming payload and returns a structured object containing telemetry data and attributes.

@param {byte[]} input - The raw payload received as an array of bytes.
@returns {Object} output - The structured output with decoded telemetry and attributes.
*/

function decodePayload(input) {
  // Initialize the output object with empty attributes and telemetry for clarity.
  var result = { attributes: {}, telemetry: {}};

  // Decode serial number (SN) from the first 4 bytes of the payload.
  // Press '?' icon in the top right corner to learn more about built in helper functions and capabilities.
  result.attributes.sn = parseBytesToInt(input, 0, 4);

  // Extract the timestamp from metadata (represented in milliseconds).
  var timestamp = metadata.ts; // ts is the timestamp parsed from the incoming message's time, or returns the current time if it cannot be parsed.

  // Initialize an object to store decoded key/value telemetry data.
  var values = {};
  if ((deviceType === 'LRS10701-OTAA') || (deviceType === 'LRS10701-ABP')) {
    if (fPort === 10) {
        // Decode event from the 1st byte of the payload.
        values.event = parseBytesToInt(input, 0, 1);

        // Decode AQI, CO2 and temperature from the 2nd to 5th byte of the payload.
        var AQI_CO2_T = parseBytesToInt(input, 1, 4);
        values.aqi = AQI_CO2_T >> 23;
        values.co2 = (AQI_CO2_T >> 10)&0x1FFF;
        values.temperature = ((AQI_CO2_T & 0x3FF) - 300)*0.1;

        // Decode humidity from the 6th byte of the payload.
        values.humidity = parseBytesToInt(input, 5, 1)*0.5;

        // Decode battery level and EC sensor resolution from the 11th byte of the payload.
        var ecr_bat = parseBytesToInt(input, 10, 1);
        var ec_res = ecr_bat >> 7;
        if (ec_res === 1)
            ec_scale = 10;
        else
            ec_scale = 1000;
        values.battery = ecr_bat & 0x7F;

        // Decode gas sensor readings from the 7th to 8th and 9th to 10th byte of the payload.
        values.gas1 = parseBytesToInt(input, 6, 2)/ec_scale;
        values.gas2 = parseBytesToInt(input, 8, 2)/ec_scale;
      } else if (fPort === 11) {
        // Decode TVOC from the 1st and 2nd byte of the payload.
        values.tvoc = parseBytesToInt(input, 0, 2);
        // Decode PM1.0 from the 3rd to 5th byte of the payload.
        values["pm1.0"] = parseBytesToInt(input, 2, 3)/1000;
        // Decode PM2.5 from the 6th to 8th byte of the payload.
        values["pm2.5"] = parseBytesToInt(input, 5, 3)/1000;
        // Decode PM10 from the 8th to 11th byte of the payload.
        values.pm10 = parseBytesToInt(input, 8, 3)/1000;
      }
  }

  if ((deviceType === 'LRS20100-OTAA') || (deviceType === 'LRS20100-ABP')) {
    if (fPort === 10 && parseBytesToInt(input, 0, 1) === 1) {
        // Decode event from the 2nd byte of the payload.
        values.event = parseBytesToInt(input, 1, 1);

        // Decode temperature from the 4th and 5th byte of the payload.
        var temperature = parseBytesToInt(input, 3, 2);
        if (temperature > 32767)
            temperature = temperature - 65536;
        values.temperature = temperature/10;

        // Decode humidity from the 6th and 7th byte of the payload.
        values.humidity = parseBytesToInt(input, 5, 2)/10;

        // Decode battery level the 3rd byte of the payload.
        values.battery = parseBytesToInt(input, 2, 1);
    }
  }

  // Combine the timestamp with values and add it to the telemetry.
  result.telemetry = {
    ts: timestamp,
    values: values
  };

  // Return the fully constructed output object.
  return result;

}

var result = decodePayload(payload);

return result;
