别忘了在 docker compose 文件中暴露端口 47808。 同时，在设备高级配置中，将设备 host 添加到 Alternative responses address 数组。

• Open the ThingsBoard in your browser and log in. Go to “Entities” > “Gateways” tab in the sidebar and click on “+” button. Fill in “Name” and “Device profile” fields and click “Create” button;

• Start gateway using launch command;

• The gateway has been created. Click on the “Connectors configuration” button in the sidebar menu;

• Click on “+” button to add a new connector;

• Select “BACnet” connector type, fill in the “Name” field and click “Add” button;

• The connector has been created;

• In the created connector go to “Devices” tab and delete default device;

• Click on “Add device” button;

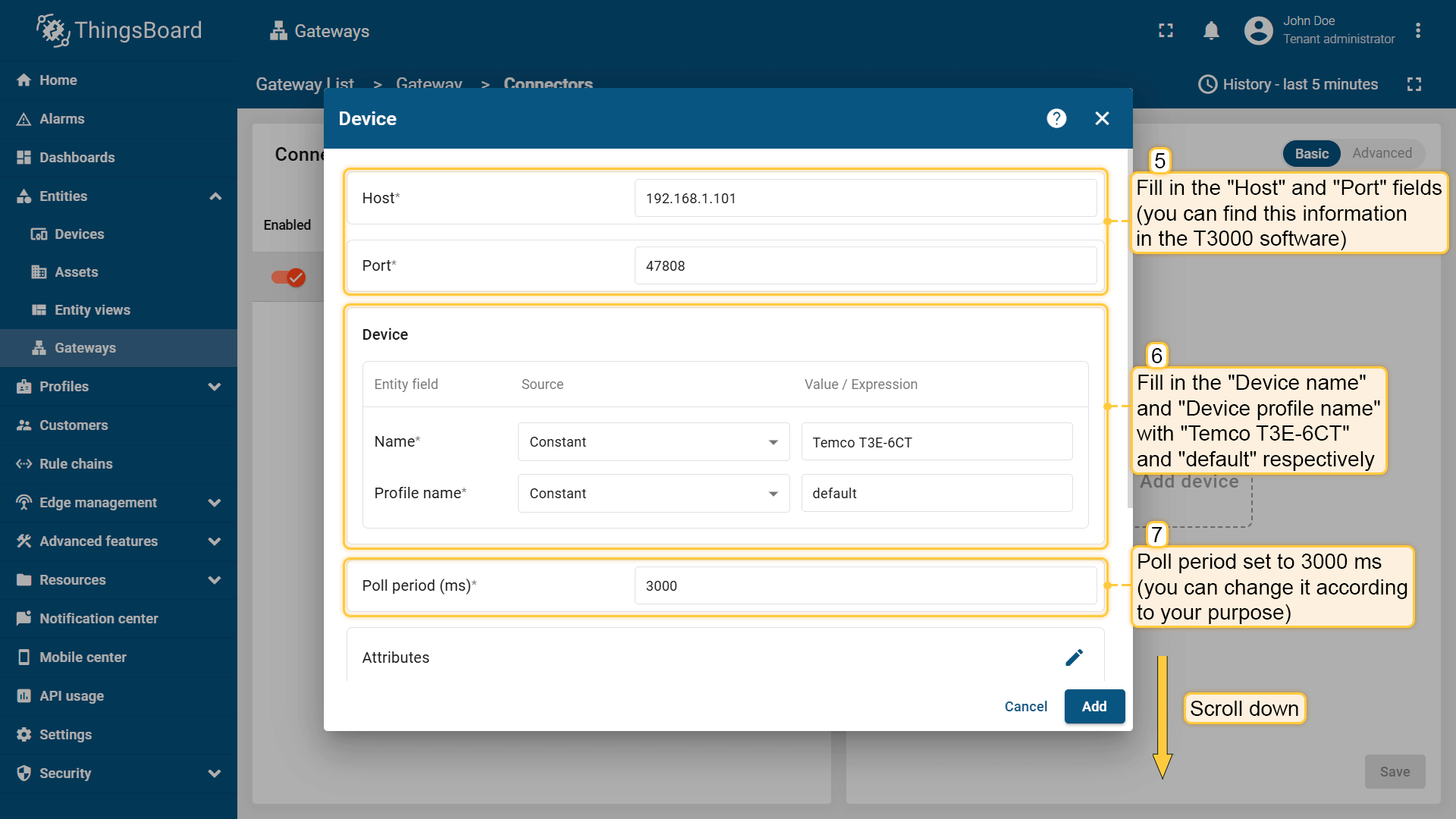

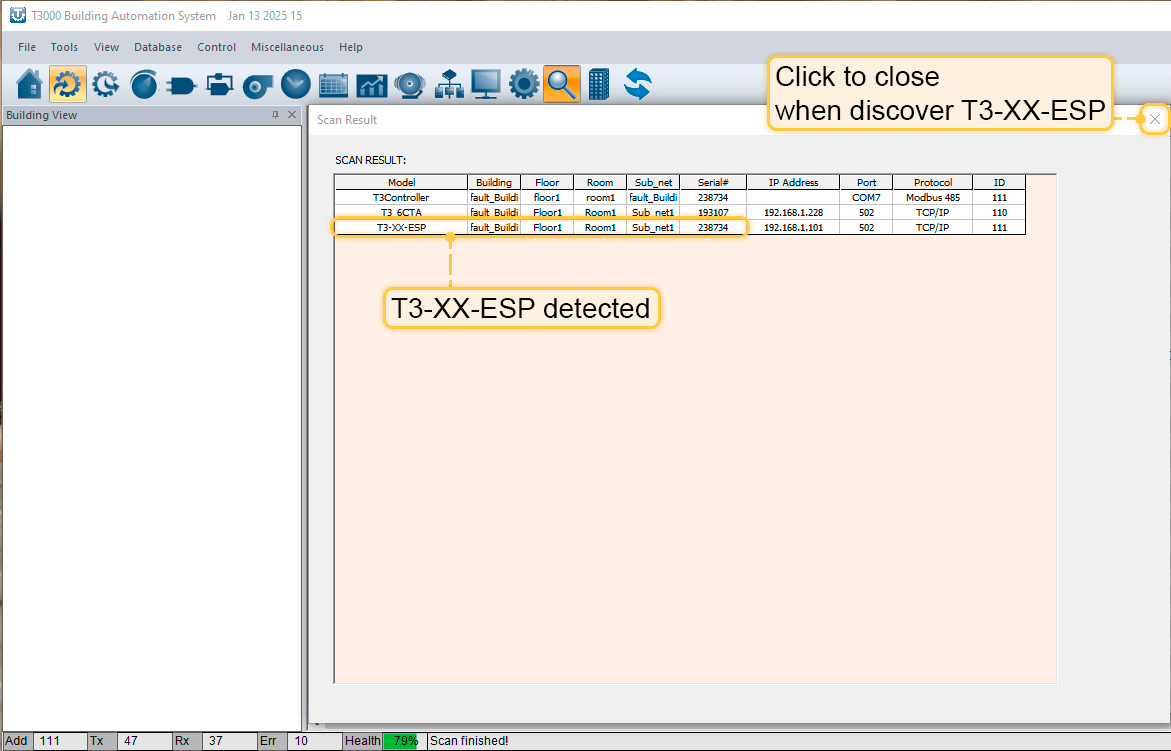

• Fill in the “Host” and “Port” fields (you can find this information in the T3000 software). Fill in the “Device name” and “Device profile name” with “Temco T3E-6CT” and “default” respectively. Poll period is set to 3000 ms (you can change it according to your needs);

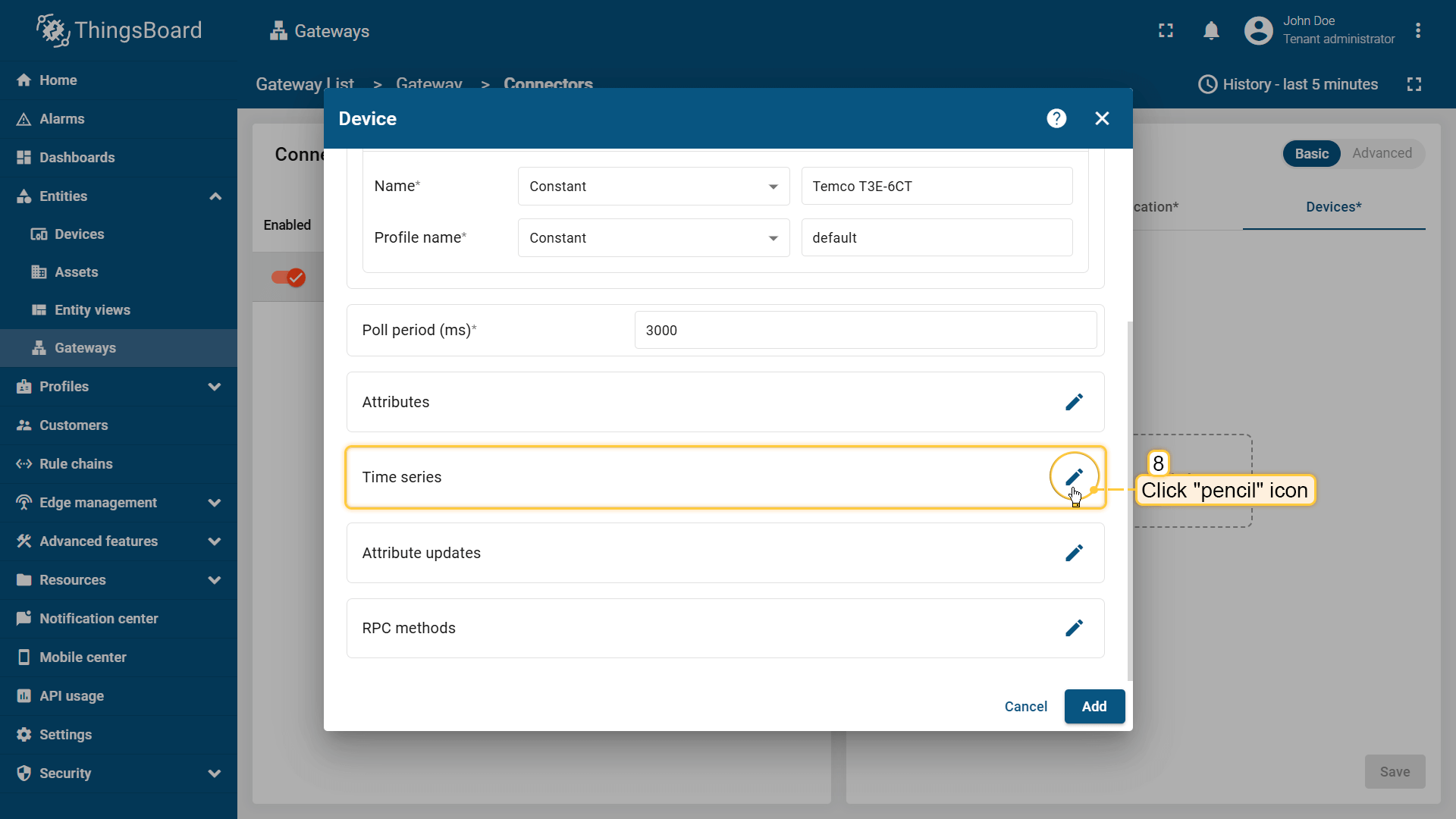

• Click on “Time series pencil” icon;

• Click on “Add time series” button in the opened window;

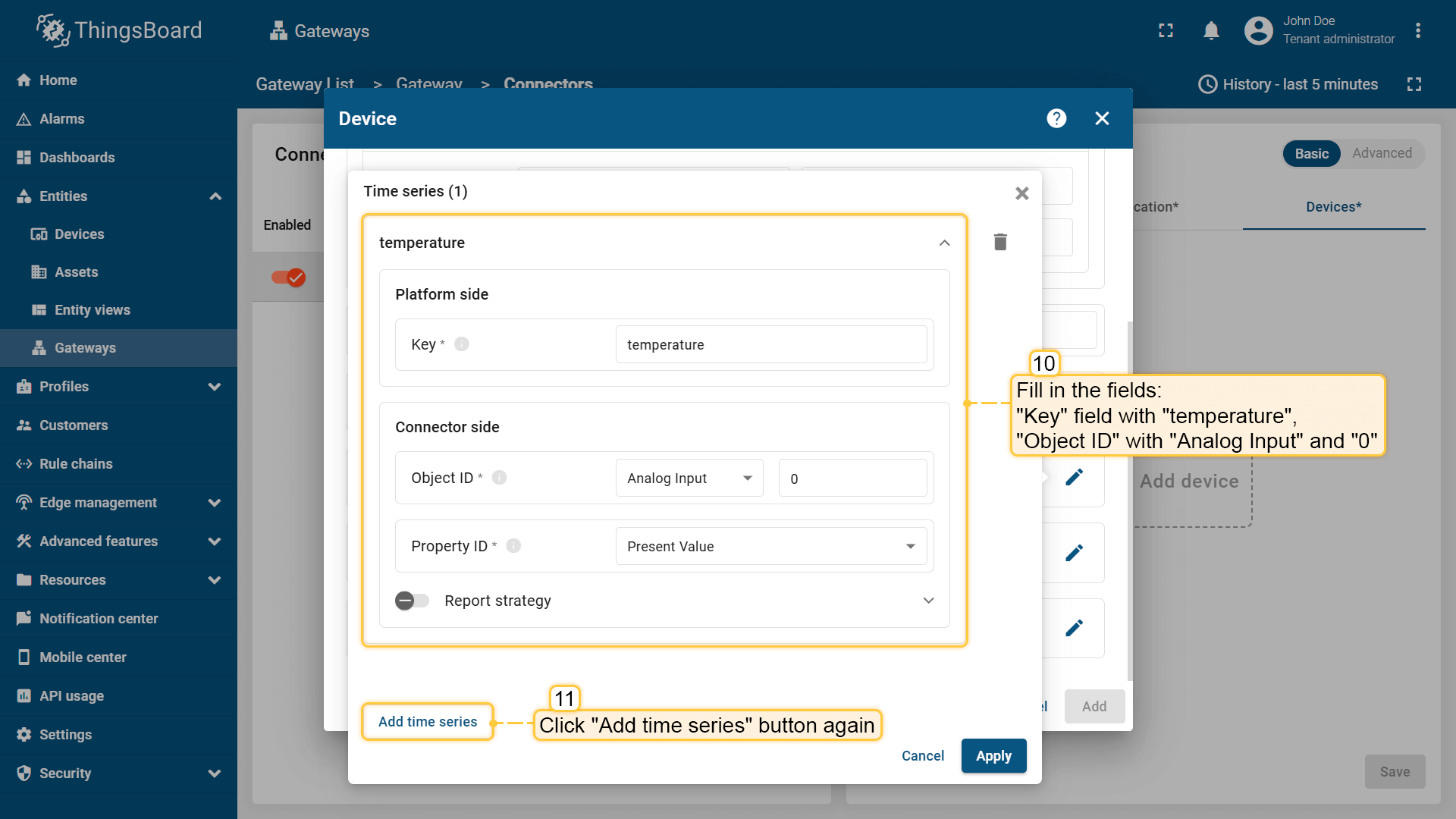

• Fill in the “Key” field with “temperature”, “Object ID” with “Analog Input” and “0”. Click “Add time series” button;

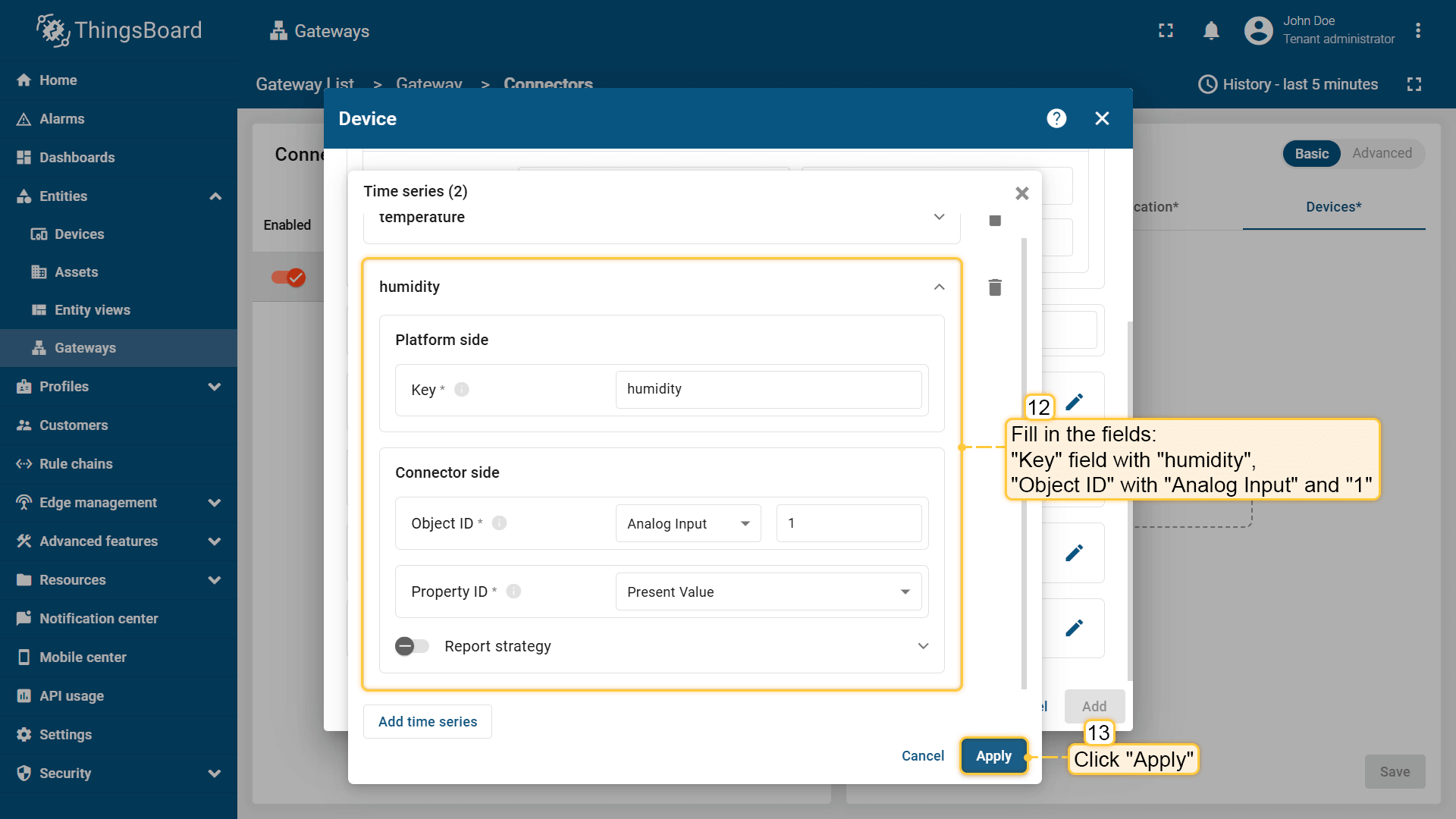

• Fill in the “Key” field with “humidity”, “Object ID” with “Analog Input” and “1”;

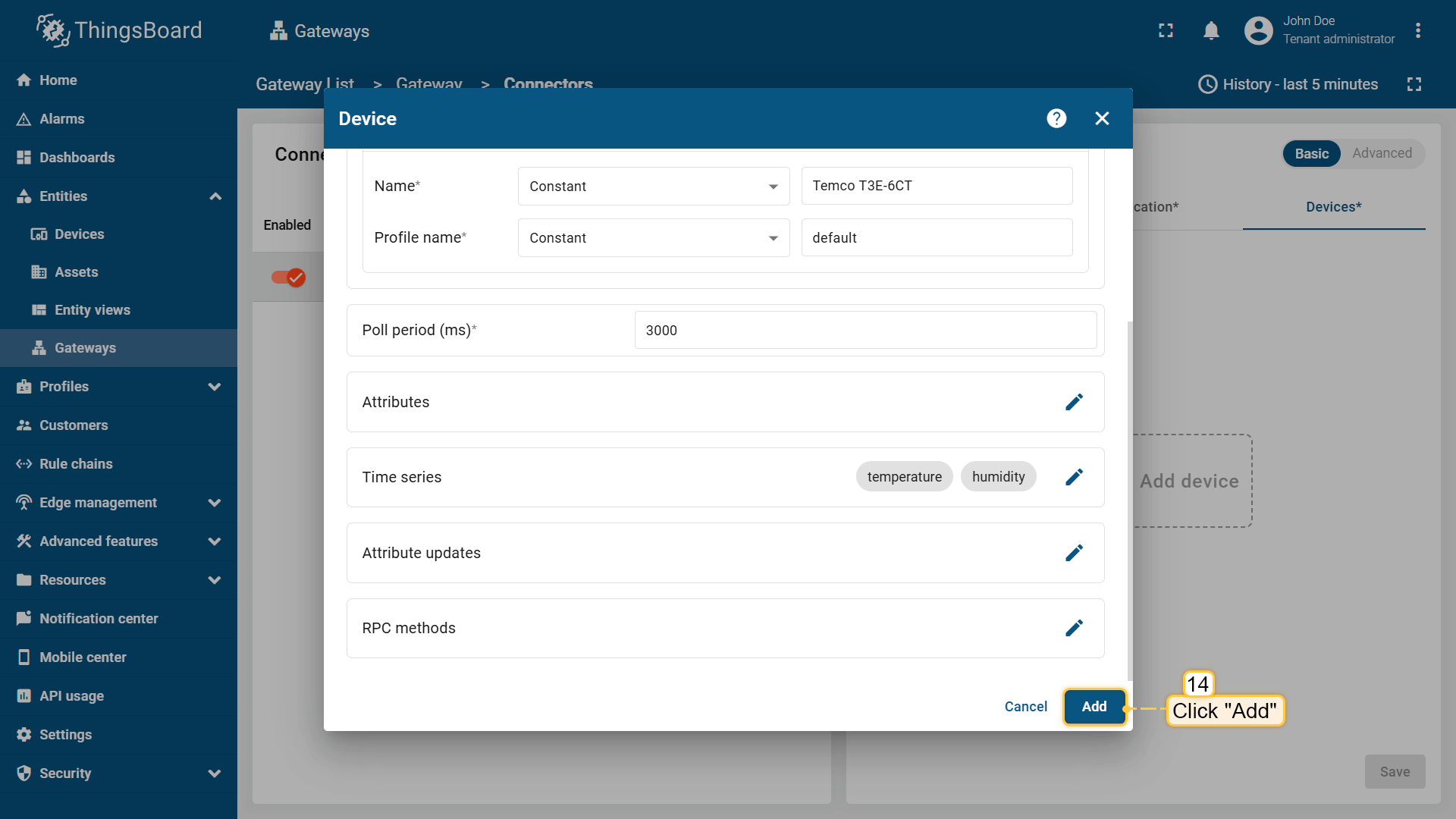

• Click “Add” button;

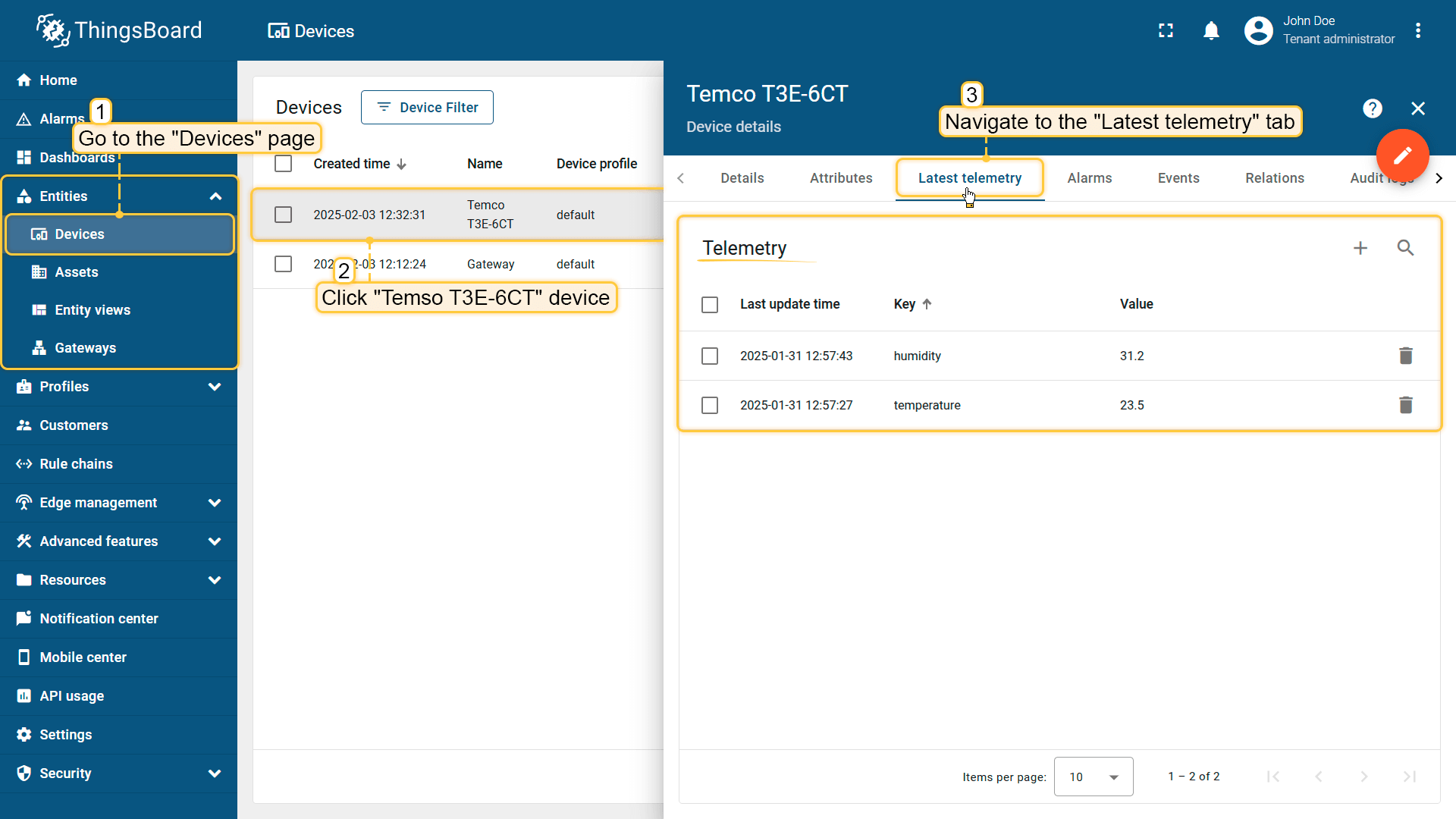

• The Device has been added.

此外，Temco T3E-6CT 提供两个可通过网关控制输出继电器。我们将创建新的 RPC 命令以控制继电器。请按以下步骤操作：

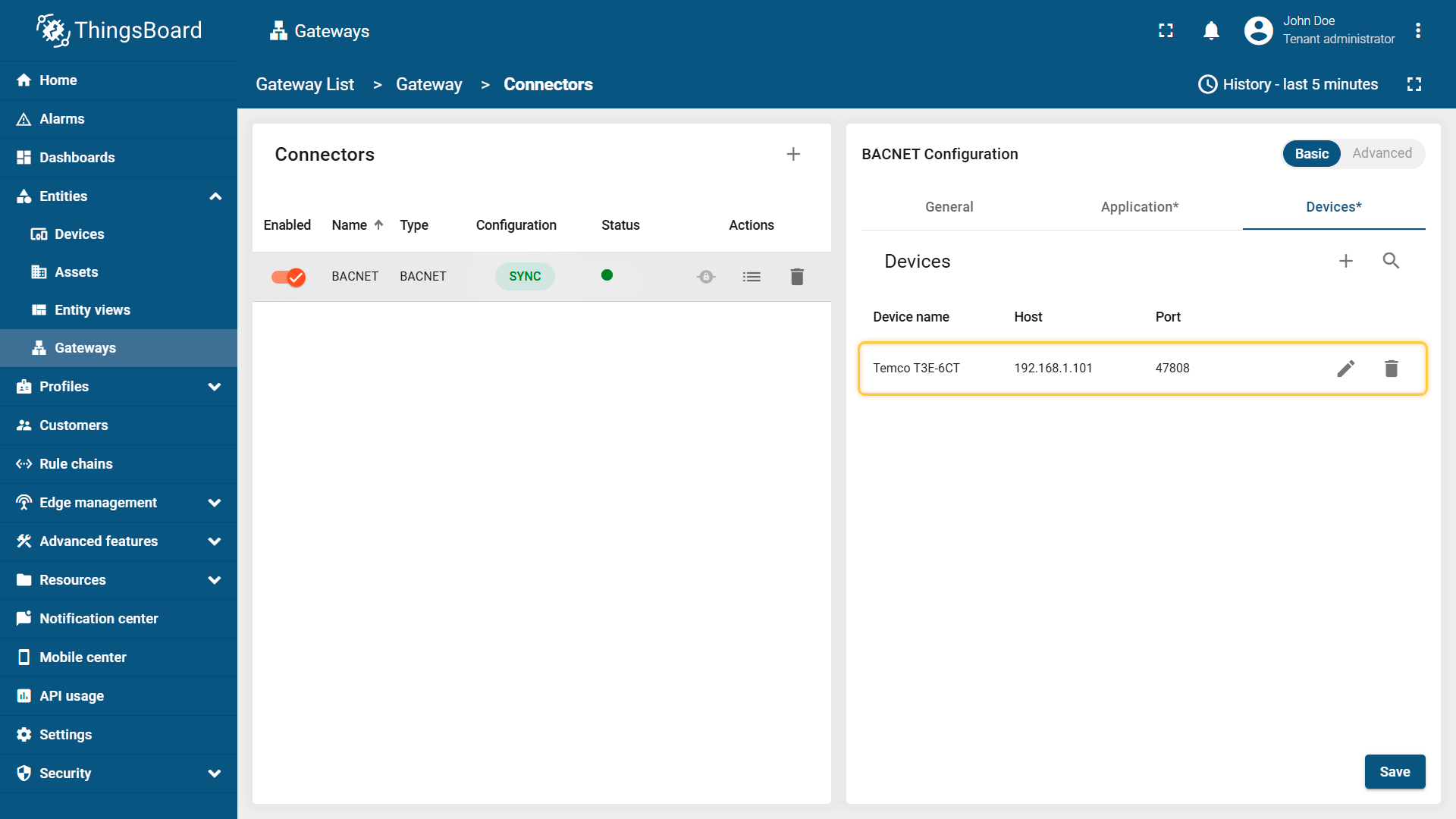

• Select created device in the device list of BACnet connector. Click on “pencil” icon;

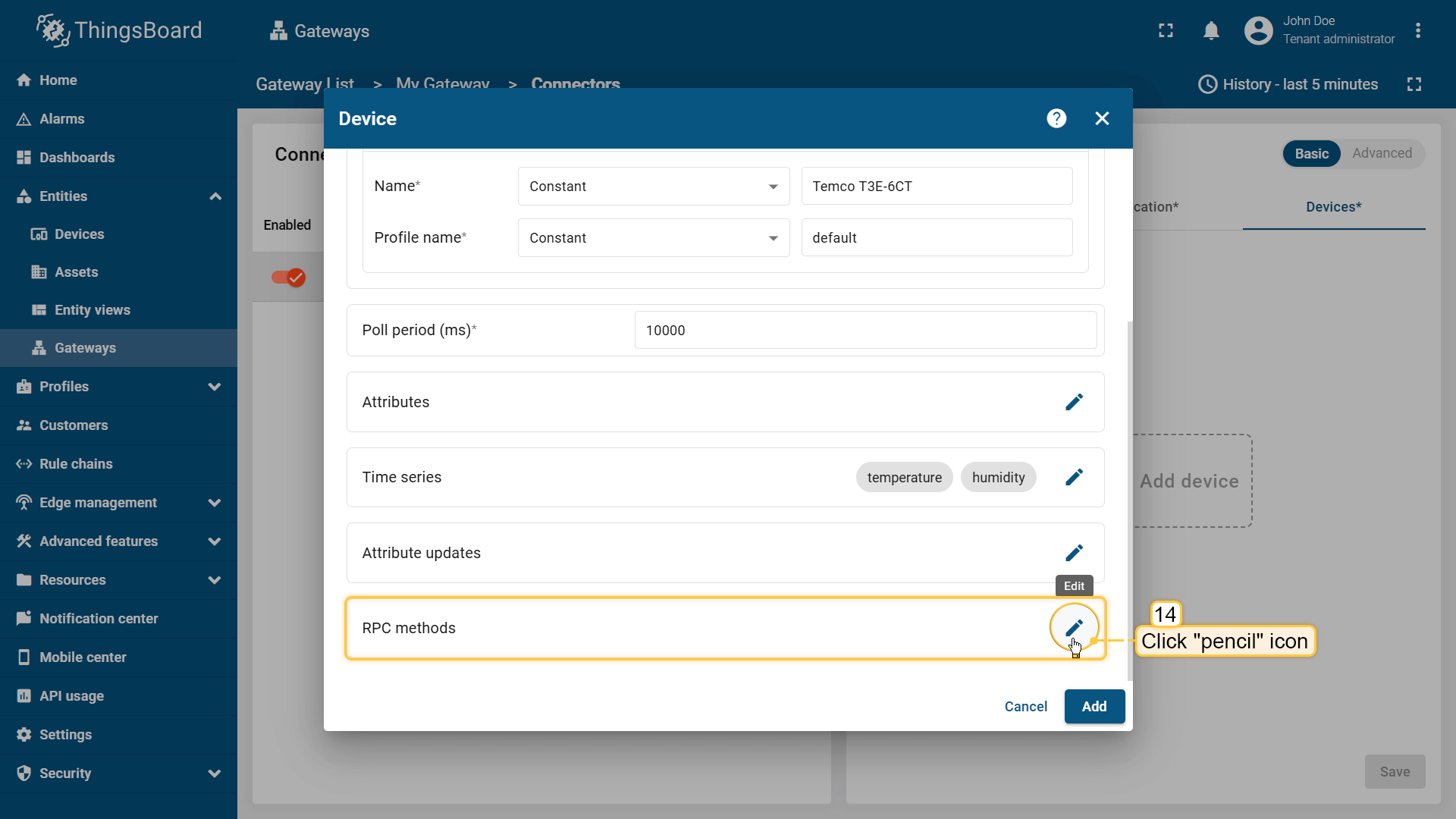

• In the window that opens, scroll down to the “RPC methods” section and click on “pencil” icon;

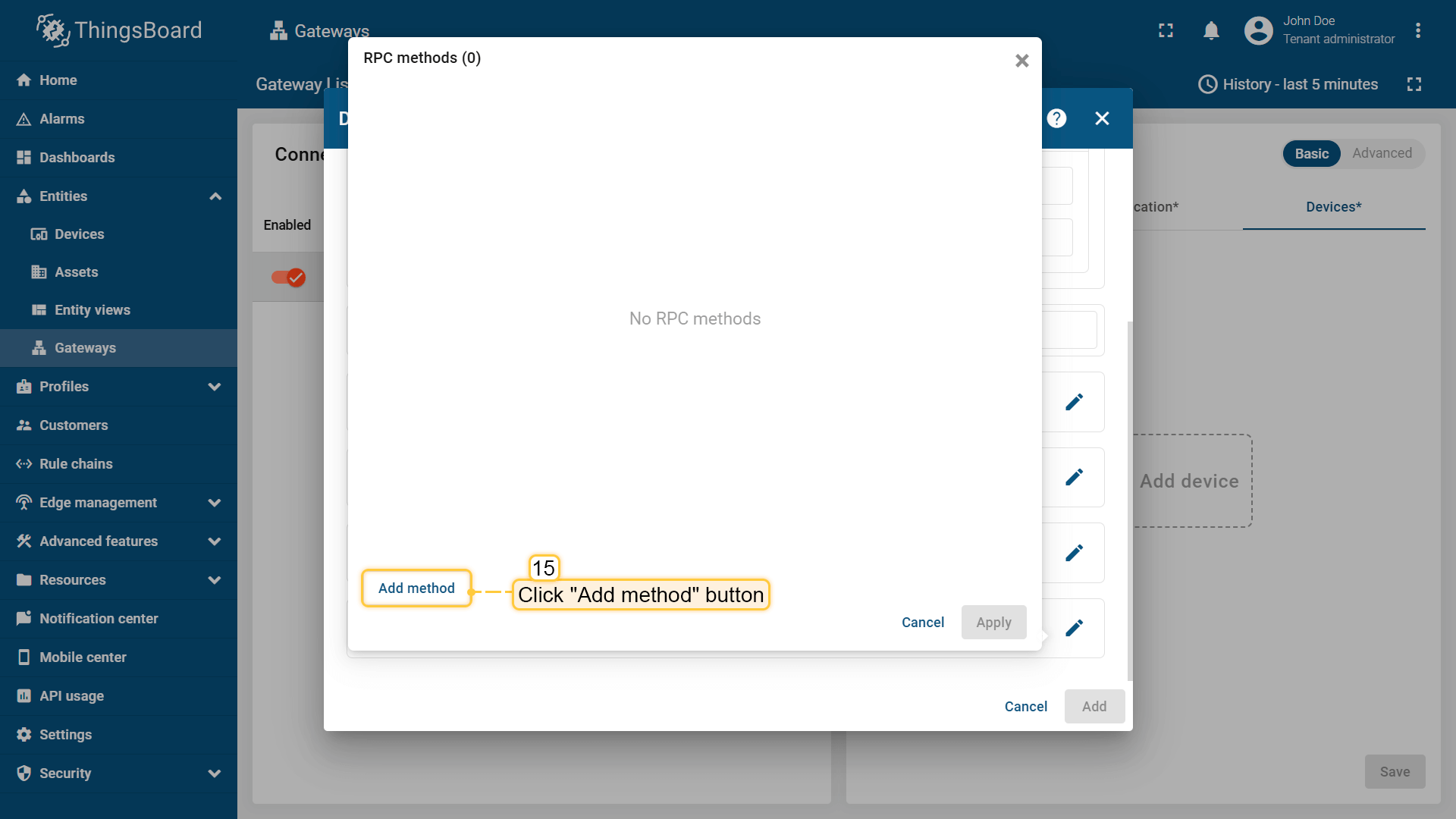

• Click on “Add method” button;

• Fill in the “Method” field with “setRelay1”, “Object ID” with “Binary Output” and “0”. Click “Add method” button;

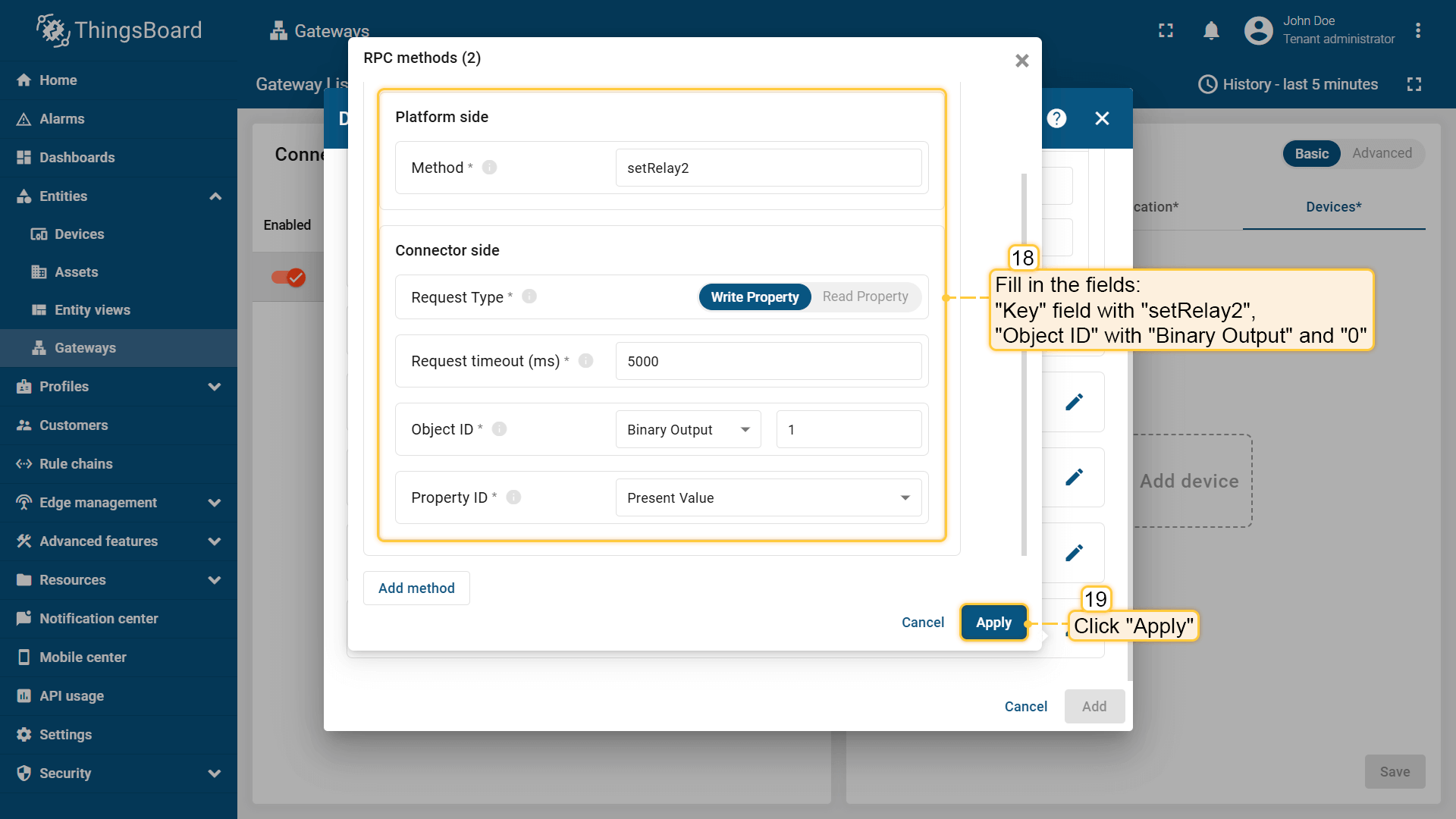

• Click on “Add method” button and fill in the “Method” field with “setRelay2”, “Object ID” with “Binary Output” and “1”. Click “Apply” button;;

• Click “Save” button.

• 在浏览器中打开 ThingsBoard 并登录。在侧边栏进入「实体」>「网关」选项卡，点击「+」按钮。填写「名称」和「设备档案」字段并点击「创建」按钮；

• 使用启动命令启动网关；

• 网关已创建。点击侧边栏菜单中的「连接器配置」按钮；

• 点击「+」按钮添加新连接器；

• 选择「BACnet」连接器类型，填写「名称」字段，禁用默认值填充配置，点击「添加」按钮；

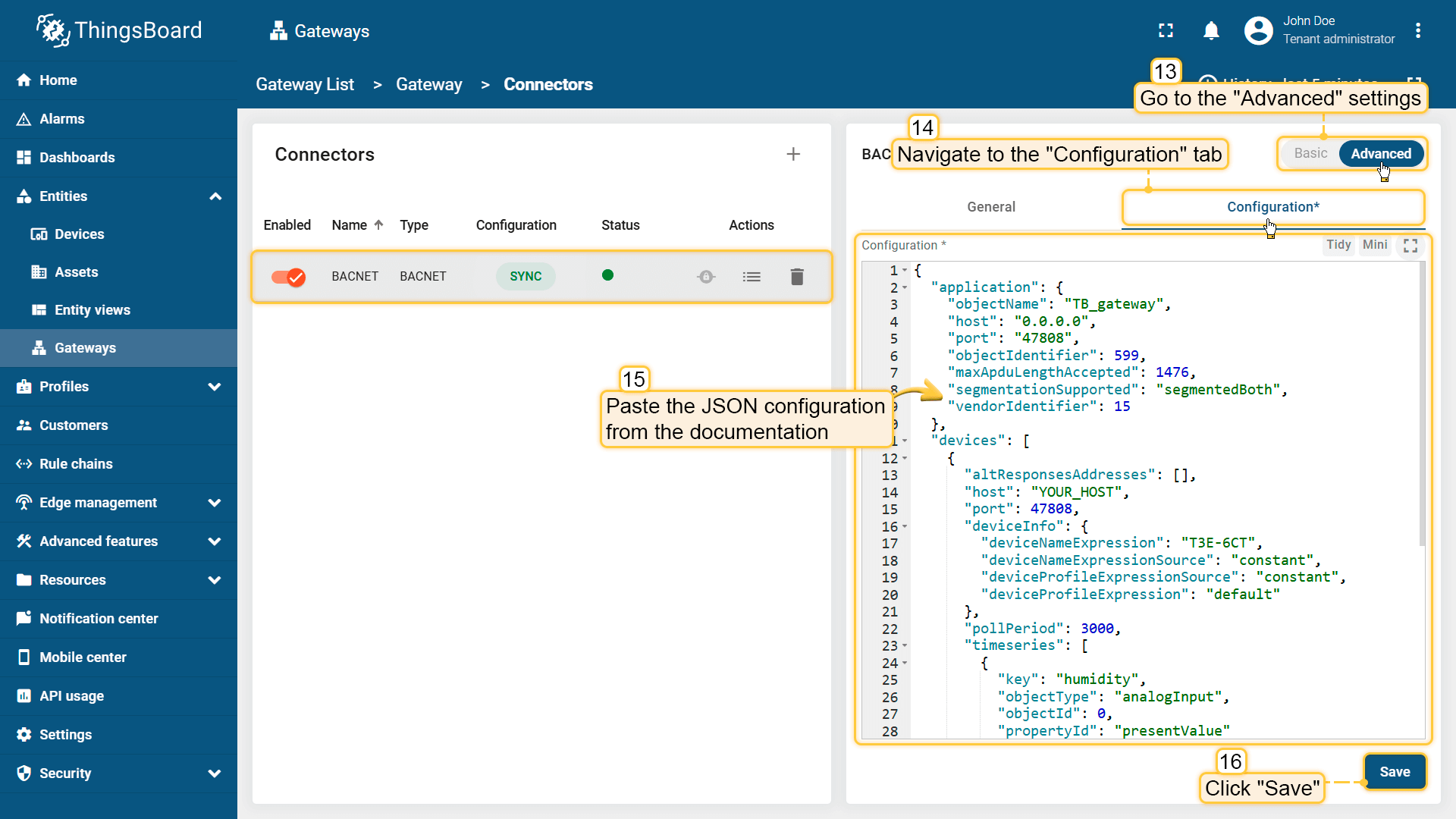

• 在已创建的连接器中，进入「高级」部分并粘贴下方的 JSON 配置。将 host 和 port 配置参数值替换为设备的 host 和 port。同时将「altResponsesAddresses」中的「DEVICE_HOST」替换为设备 host。点击「保存」按钮。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
{
  "application": {
    "objectName": "TB_gateway",
    "host": "0.0.0.0",
    "port": "47808",
    "objectIdentifier": 599,
    "maxApduLengthAccepted": 1476,
    "segmentationSupported": "segmentedBoth",
    "vendorIdentifier": 15
  },
  "devices": [
    {
      "altResponsesAddresses": ["DEVICE_HOST"],
      "host": "DEVICE_HOST",
      "port": 47808,
      "deviceInfo": {
        "deviceNameExpression": "T3E-6CT",
        "deviceNameExpressionSource": "constant",
        "deviceProfileExpressionSource": "constant",
        "deviceProfileExpression": "default"
      },
      "pollPeriod": 10000,
      "timeseries": [
        {
          "key": "humidity",
          "objectType": "analogInput",
          "objectId": 0,
          "propertyId": "presentValue"
        },
        {
          "key": "temperature",
          "objectType": "analogInput",
          "objectId": 1,
          "propertyId": "presentValue"
        }
      ],
      "attributes": [],
      "attributeUpdates": [],
      "serverSideRpc": [
        {
          "method": "setRelay1",
          "objectType": "binaryOutput",
          "objectId": 0,
          "propertyId": "presentValue",
          "requestTimeout": 5000,
          "requestType": "writeProperty"
        },
        {
          "method": "setRelay2",
          "objectType": "binaryOutput",
          "objectId": 1,
          "propertyId": "presentValue",
          "requestTimeout": 5000,
          "requestType": "writeProperty"
        }
      ]
    }
  ]
}

导入仪表盘

下载 检查设备数据仪表盘 并导入。

您可导入 JSON 格式的仪表盘。操作方式：进入「仪表盘」组，点击页面右上角的 「+」 按钮，选择 「导入仪表盘」。 仪表盘导入窗口将弹出，提示您上传 JSON 文件并点击 「导入」。

导入后，我们需要为设备选择实体别名。 首先点击 「铅笔」 图标，选择实体别名，选择 「My device」 别名，再次点击 「铅笔」 图标打开编辑。 然后，从下拉列表中选择已创建设备并保存实体别名。完成后即可查看设备数据。

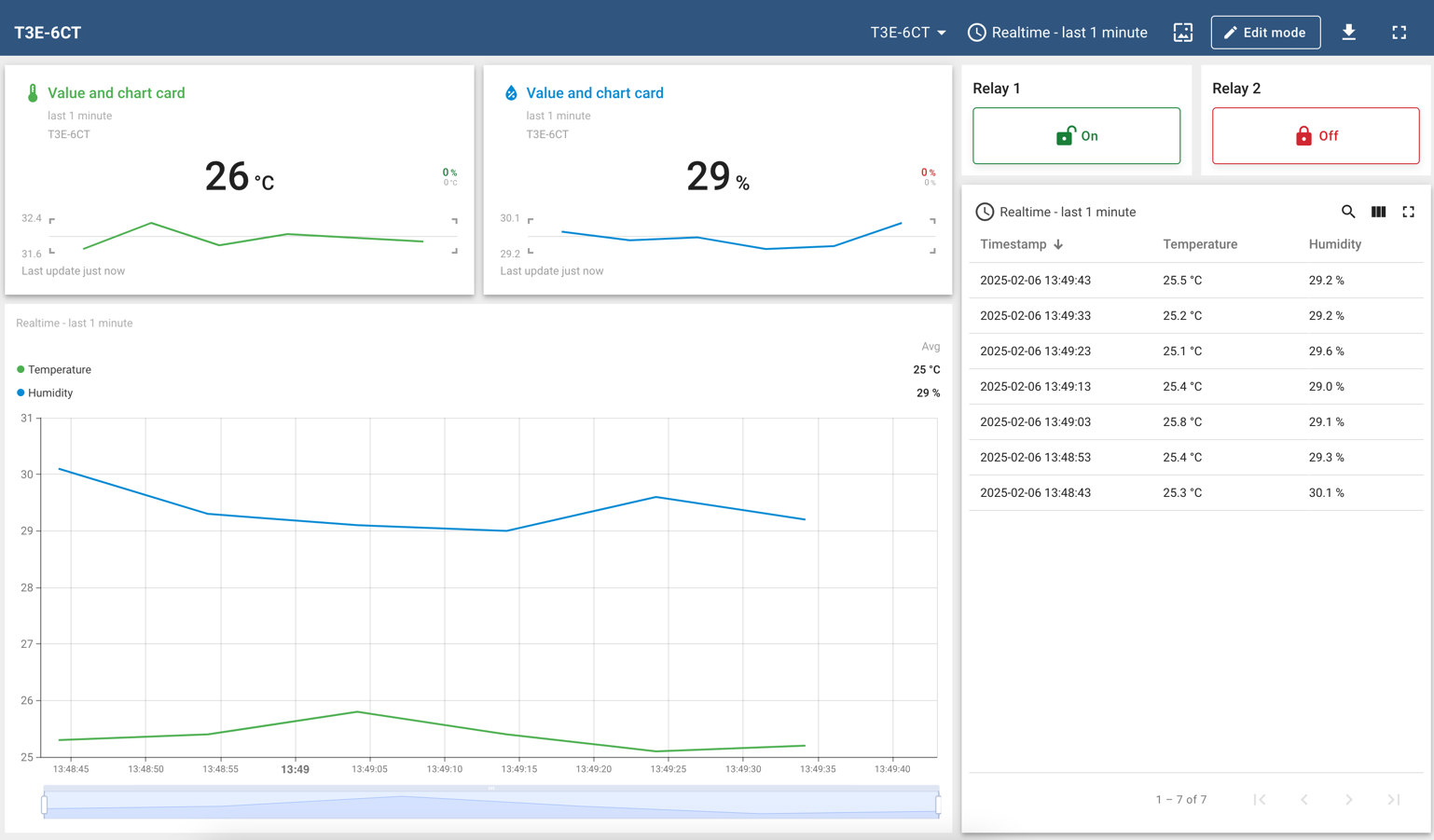

若操作正确，您将看到以下仪表盘：

创建新仪表盘

我们将创建仪表盘并添加最常用的部件。请参见下方说明。

• Open the Dashboards page. Click on the “+” icon in the top right corner. Select “Create new dashboard”;

• Input dashboard name. For example, “My New Dashboard”. Click “Add” to add the dashboard;

• Your dashboard should be listed first since the table sorts dashboards using the creation time by default. Click on the “Open dashboard” icon.

添加实体别名

别名是对部件中使用的单个实体或实体组的引用。别名可以是静态或动态的。我们将使用「单个实体」别名，引用单个实体，此处为「Temco T3E-6CT」。也可以配置引用多个设备的别名，例如某类型的设备或与某资产相关的设备。您可在此处了解更多关于不同别名的信息。

• Enter edit mode. Click on the pencil button in the bottom right corner;

• Click the “Entity Aliases” icon in the top right part of the screen. You will see an empty list of Entity aliases;

• Click “Add alias”;

• Enter an alias name. Choose “Single entity” as the Filter type, select “Device” for Type, and begin typing “My New” to trigger autocomplete suggestions;

• Click “Add” and then “Save”;

• Finally, click “Apply changes” in the dashboard editor to save the changes. Then you should enter edit mode again.

要添加新部件，我们需要从部件库中选择。部件按部件包分组。 每个部件都有数据源，数据源决定了部件显示的数据。
